Product description: Pololu wheels 90 x 10 mm - black

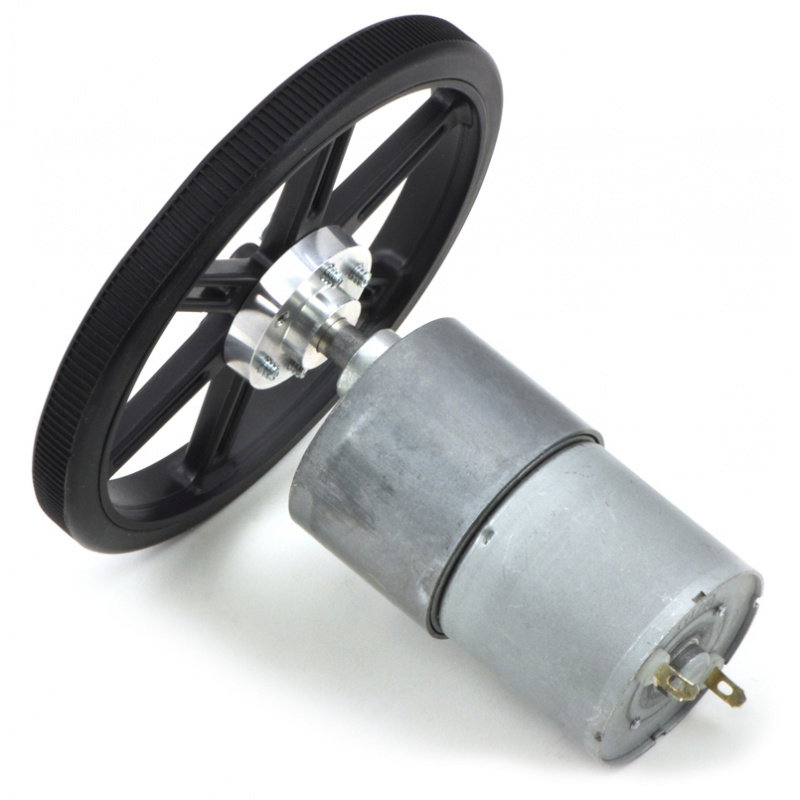

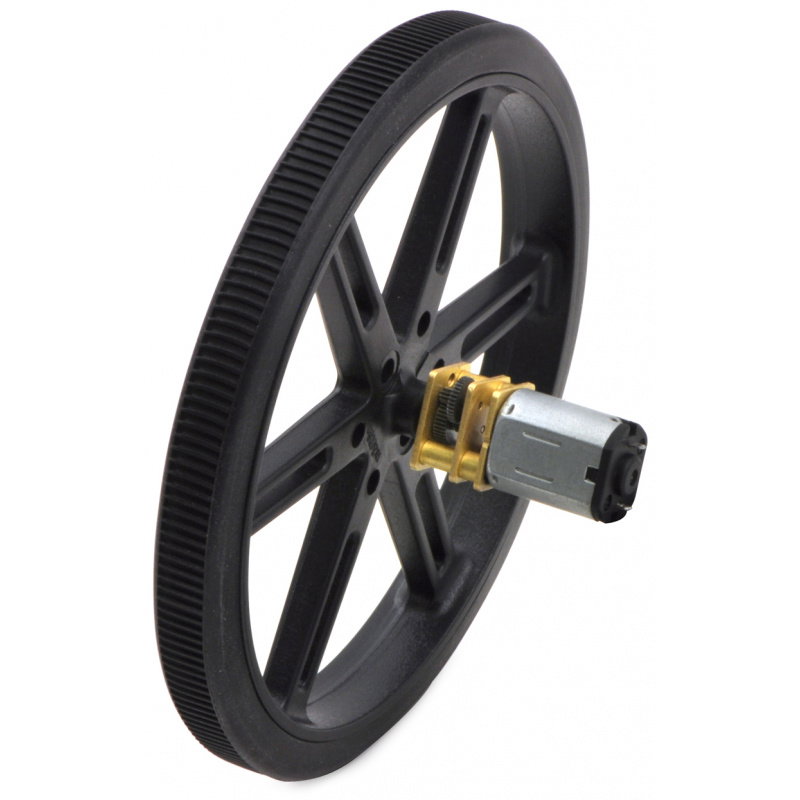

The wheels have treads that reduce the impact of ground contamination on friction and traction. The mounting holes are designed to accommodate Pololu micro motor shafts. The wheels also work with plastic right-angle motors .
Wheels for driving in various road conditions
When designing a robot or other remotely controlled vehicle, both the electronic and mechanical aspects of the design must be carefully considered. Besides selecting the right motors and drive system, the wheels, which transmit torque, play a crucial role. It's important to choose the right wheel shape and tread dimensions, especially if the vehicle will be traveling on a variety of surfaces. Therefore, Pololu has created miniature tires made of durable silicone, adapted to various operating conditions.

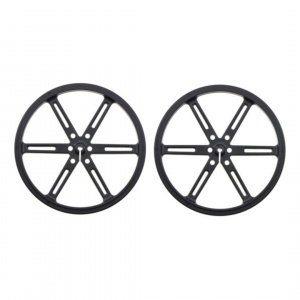

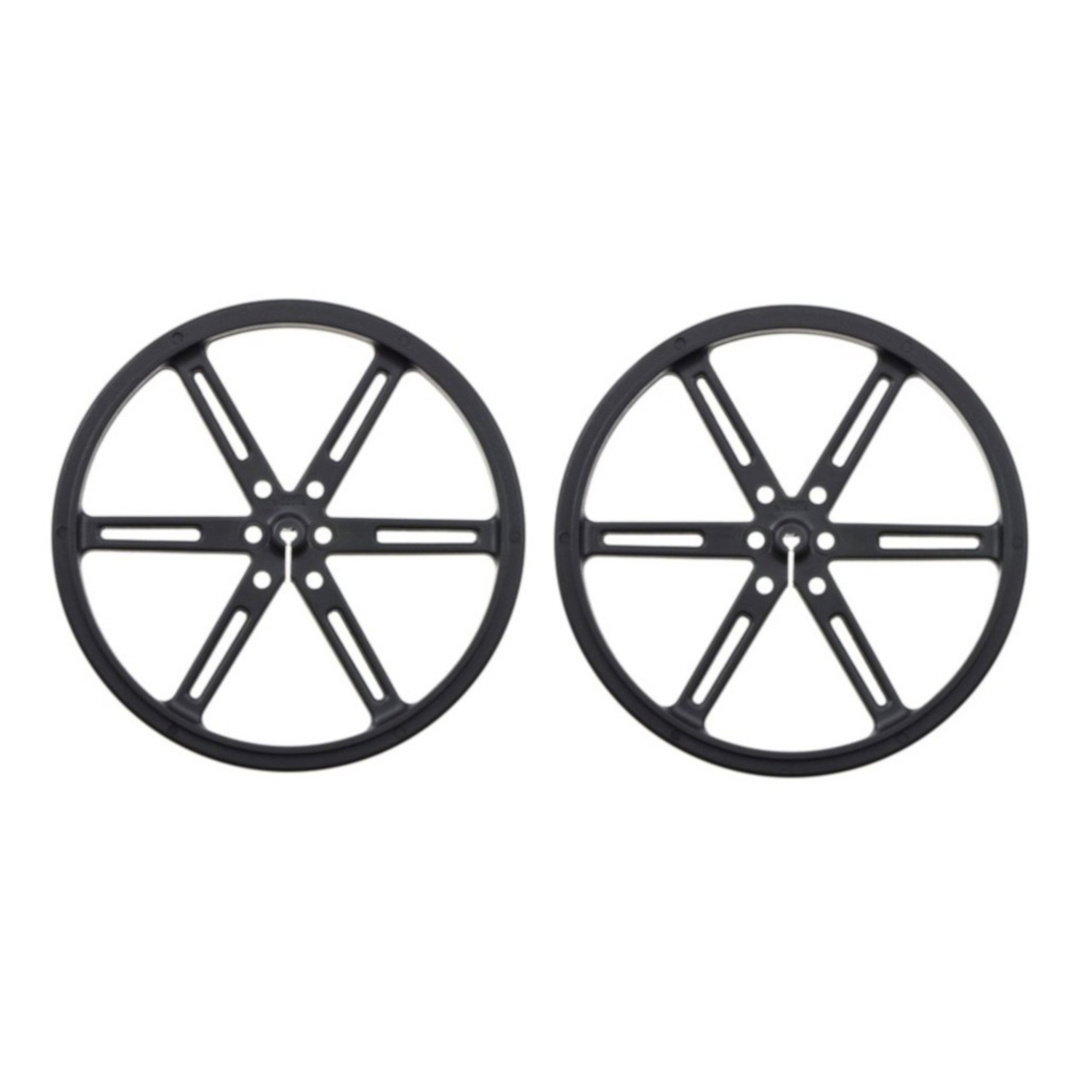

90x10 mm wheels - black - Pololu 1435 - perfect for robots!
These 90x10 mm wheels, available in black, are excellent components for building robots, remote-controlled vehicles, and other motorized vehicle projects. Made of high-quality materials, they ensure durability and reliability. With their dimensions of 90 mm in diameter and 10 mm in width, these wheels are suitable for a variety of applications, ensuring stability and reliable operation. Their black color gives them a sleek look and allows for easy integration into various projects.

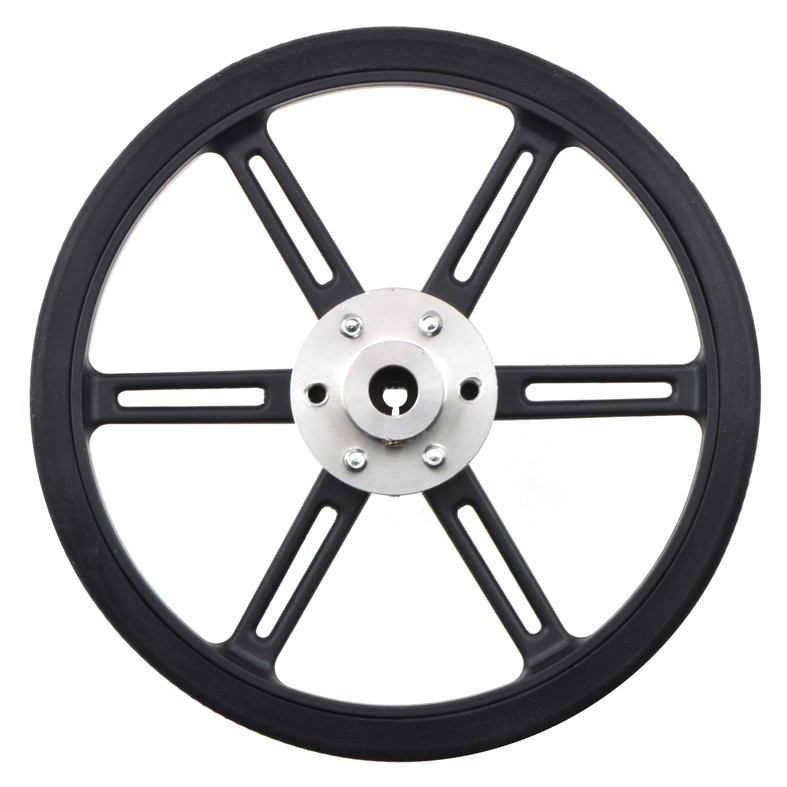

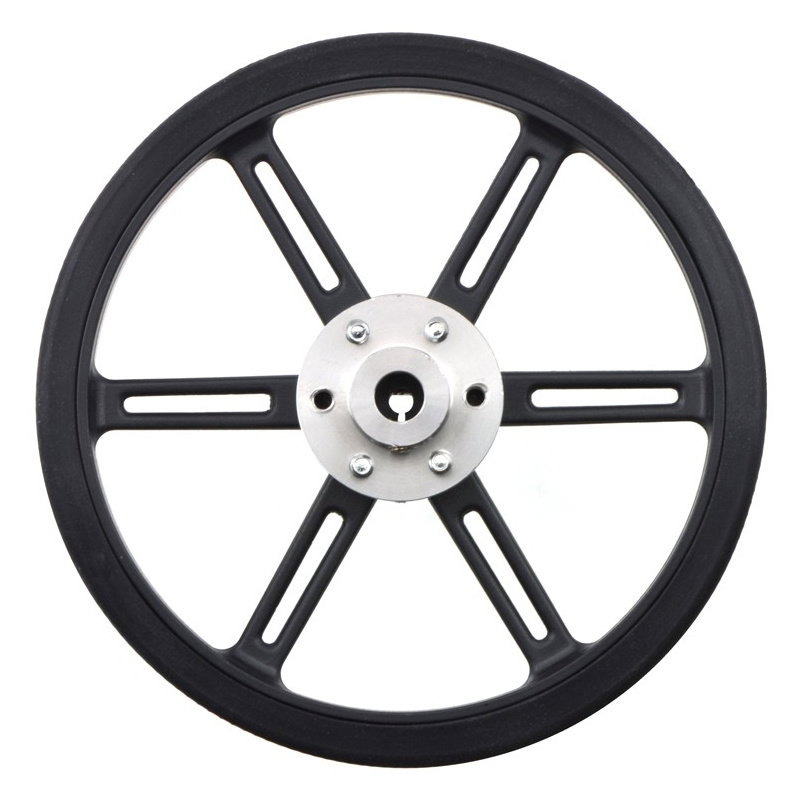

In order to ensure the possibility of connection to various types of drive systems, special adapters (hubs) have been designed, adapted to shafts with a diameter of: 3 mm , 4 mm , 5 mm and 6 mm .
The store also offers Pololu rims and tires in other sizes.
Pololu Wheel Specifications
- Wheel diameter: 90 mm
- Tire width: 10 mm
- Hole diameter: 3 mm (D-shaped)
- Weight: 20 g
- Number of wheels in the set: 2
Dimensions
The diameter, including the tire, is 80 mm. The overall width is 10 mm. The mounting hole is D-shaped and 3 mm in diameter. The rim dimensions are shown in the drawing below.
