Product description: 3D printer - Anycubic Photon Mono M7 Pro - resin
Anycubic Photon Mono M7 Pro is an advanced printer , ideal for fast and precise resin printing. Equipped with a large 10.1-inch LCD screen with 14K (13320 x 5120 px) resolution and LighTurbo 3.0 optical system, it provides extraordinary accuracy and light uniformity. It offers a print speed of up to 170 mm / h with fast printing resins and automatic resin refilling and recycling. The Photon Mono M7 Pro has a build area of 223 x 126 x 230 mm and features such as dynamic vat temperature control, resin level and failed print detection, making it a versatile tool for professional projects.

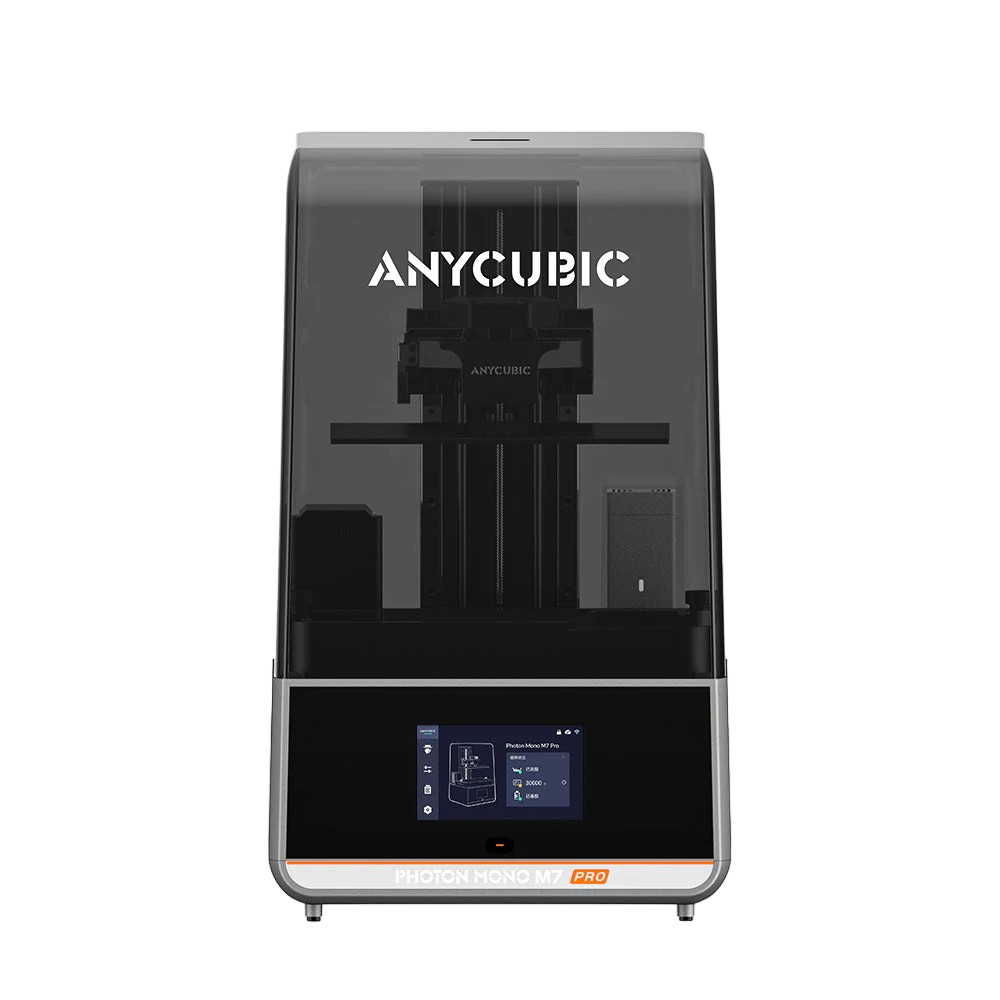

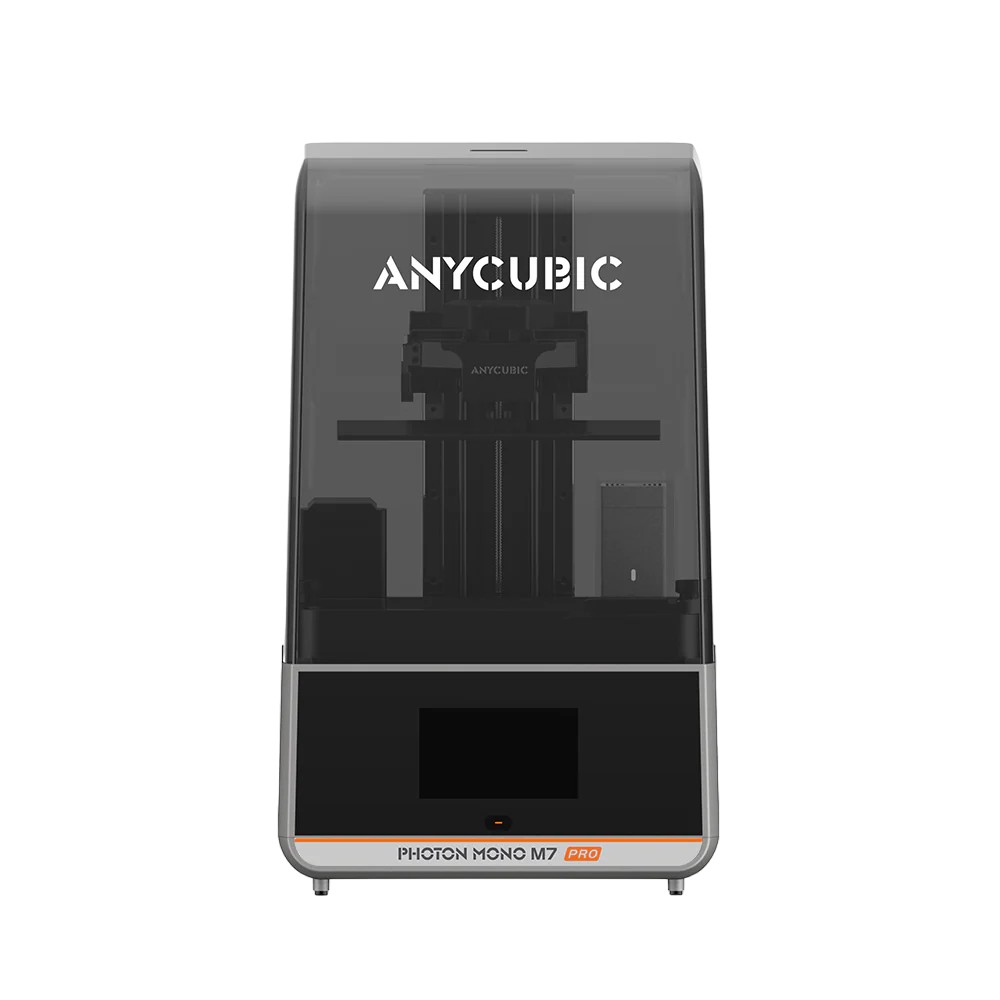

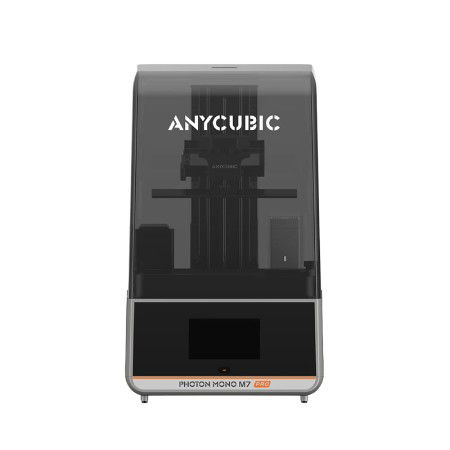

3D printer - Anycubic Photon Mono M7 Pro - resin.
The printing time for a 0.1 mm layer height is 2.69 s.
Ultra-fast printing with 14K precision
The Anycubic Photon Mono M7 Pro introduces a new standard of speed and accuracy in 3D printing. Equipped with a 14K (13320 x 5120) optical system , it provides incredibly detailed prints, reaching speeds of up to 130 mm/h with standard resin and up to 170 mm/h using special High Speed resin. Thanks to these features, the printing time of even the most complex models is significantly reduced, without compromising on quality.
Innovative resin management
Photon Mono M7 Pro has been designed with automation and user convenience in mind. The printer has an automatic resin refill system that automatically refills the material during printing. Thanks to this, you don't have to worry about interrupting the print or having to manually add resin. Additionally, the resin recycling function allows you to save material and quickly prepare for subsequent projects.

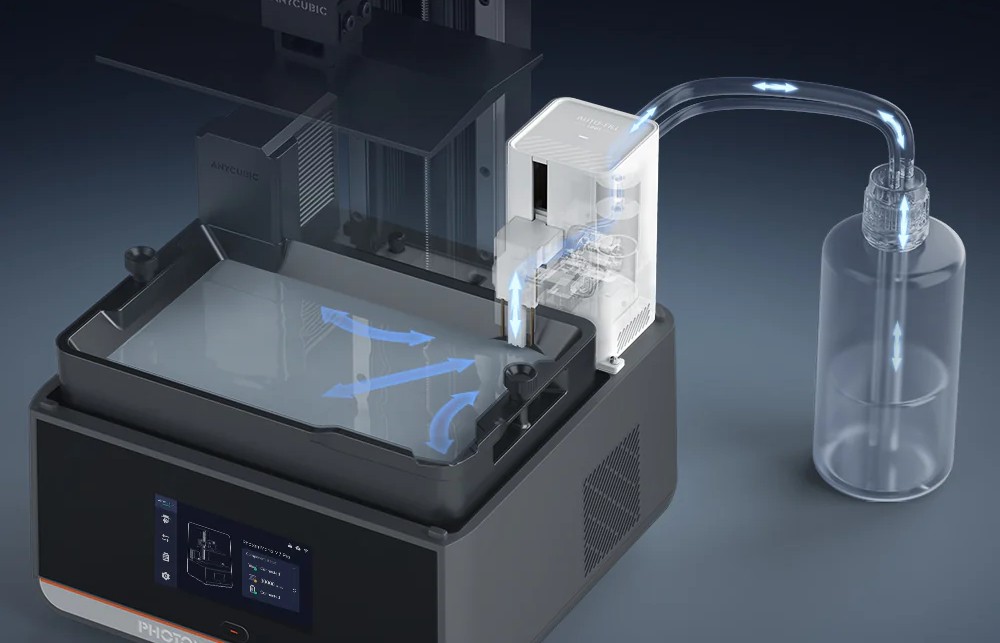

Automatic resin refill.

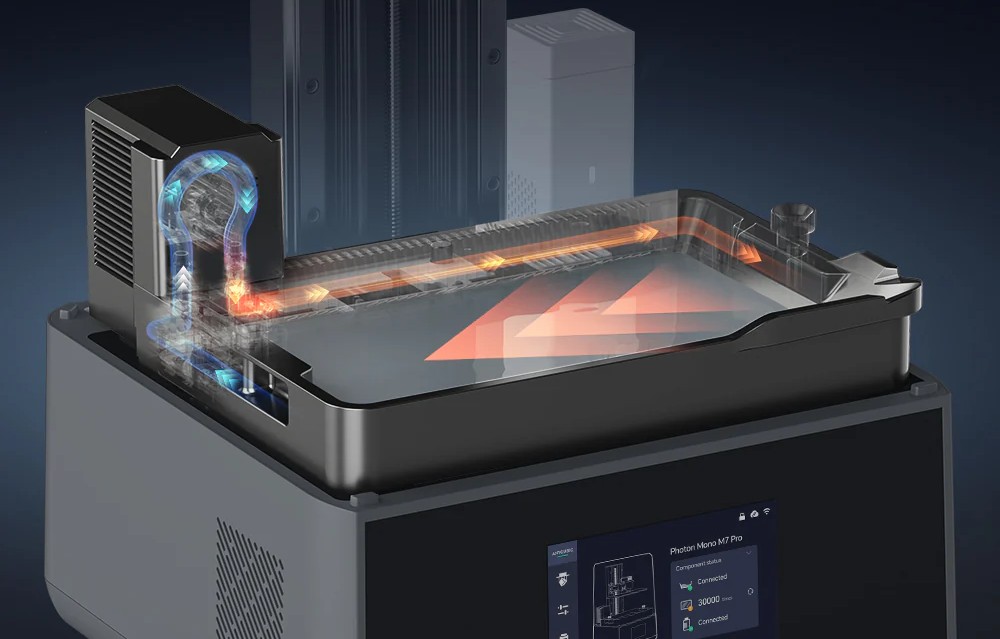

The resin temperature is dynamically controlled.
Intelligent printing support features
The Photon Mono M7 Pro is equipped with numerous intelligent functions that support and facilitate the printing process. Resin residue and failed prints detection automatically stops printing in the event of issues such as layer cracks or model detachment. Built-in release liner lifecycle management monitors release liner usage so the printer notifies you when it needs to be replaced, ensuring consistent print quality.
Dynamic temperature control
The printer features auto-adaptive temperature control technology that keeps the resin in optimal conditions during printing. Thanks to this, the Photon Mono M7 Pro automatically adjusts the vat temperature, which affects better efficiency and increases the success rate of prints, especially with more demanding materials.

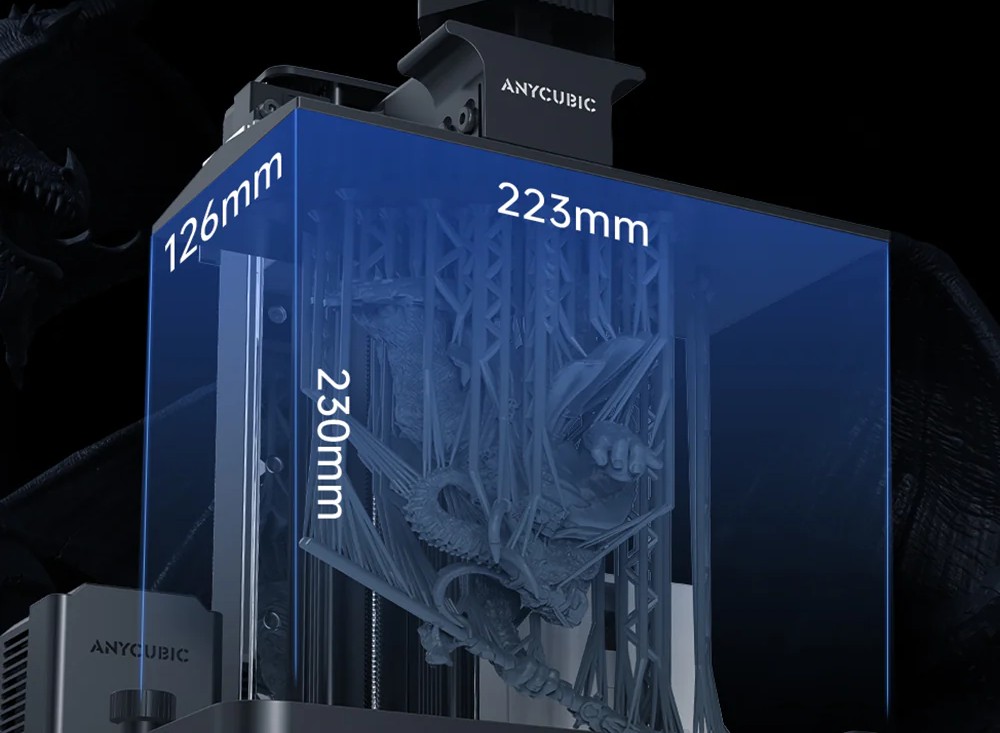

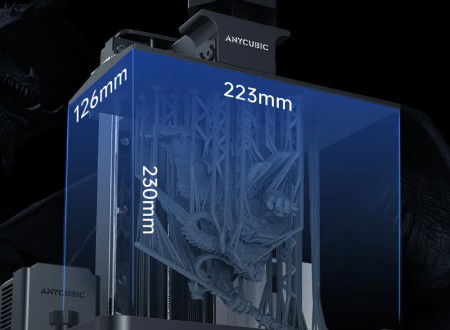

The Photon Mono M7 Pro provides plenty of space for creative projects.
COB light source system, combined with Fresnel lenses and forward-facing reflectors.
Light, the creator of everything – LighTurbo 3.0
The new LighTurbo 3.0 system is a combination of COB light source, Fresnel lenses and reflectors, which guarantee uniform light distribution of ≥ 90%. This innovative solution translates into incredible accuracy of models, with a minimum margin of error of only ± 0.01 to 0.05 mm.
Other features of the Anycubic Photon Mono M7 Pro printer
- Built-in AirPure filter : activated carbon filter eliminates unpleasant resin odors and improves the air quality around the device
- Resin level detection : when the resin level in the vat drops below the required minimum to continue printing, you will receive an automatic notification to quickly replenish the missing material
- Resin Residue Detection : Automatically detects solid contaminants in the vat, protecting the screen from damage
- Release Film Lifecycle Management : The printer monitors the number of release films peeled off and reminds you to replace them after 45,000 cycles
- Automatic leveling : precise, hands-free leveling eliminates the need to manually calibrate the platform
- Quick installation : assembly and preparation for work do not require the use of tools, which increases the convenience of use
The printer has a built-in activated carbon filter.
| Technical specifications of the Anycubic Photon Mono M7 Pro 3D printer | |
|---|---|
| Working area: | 223x126x230mm |
| Print resolution: | 13320x5120px (14K) |
| LCD screen type: | monochrome, 10.1'' |
| Print speed: | up to 130 mm/h (with standard resin), up to 170 mm/h (with High Speed resin) |
| Layer height: | ≥ 0.01mm |
| XY resolution: | 16.8 x 24.8µm |
| Software: | Anycubic Photon Workshop |
| Light source: | LighTurbo 3.0 (COB + Fresnel lens) |
| Z-axis: | T-type |
| Control panel: | touch screen, 5'' |
| Illumination uniformity: | ≥ 90% |
| Printer dimensions: | 312x315x520mm |
| Mass: | 12.8kg |
