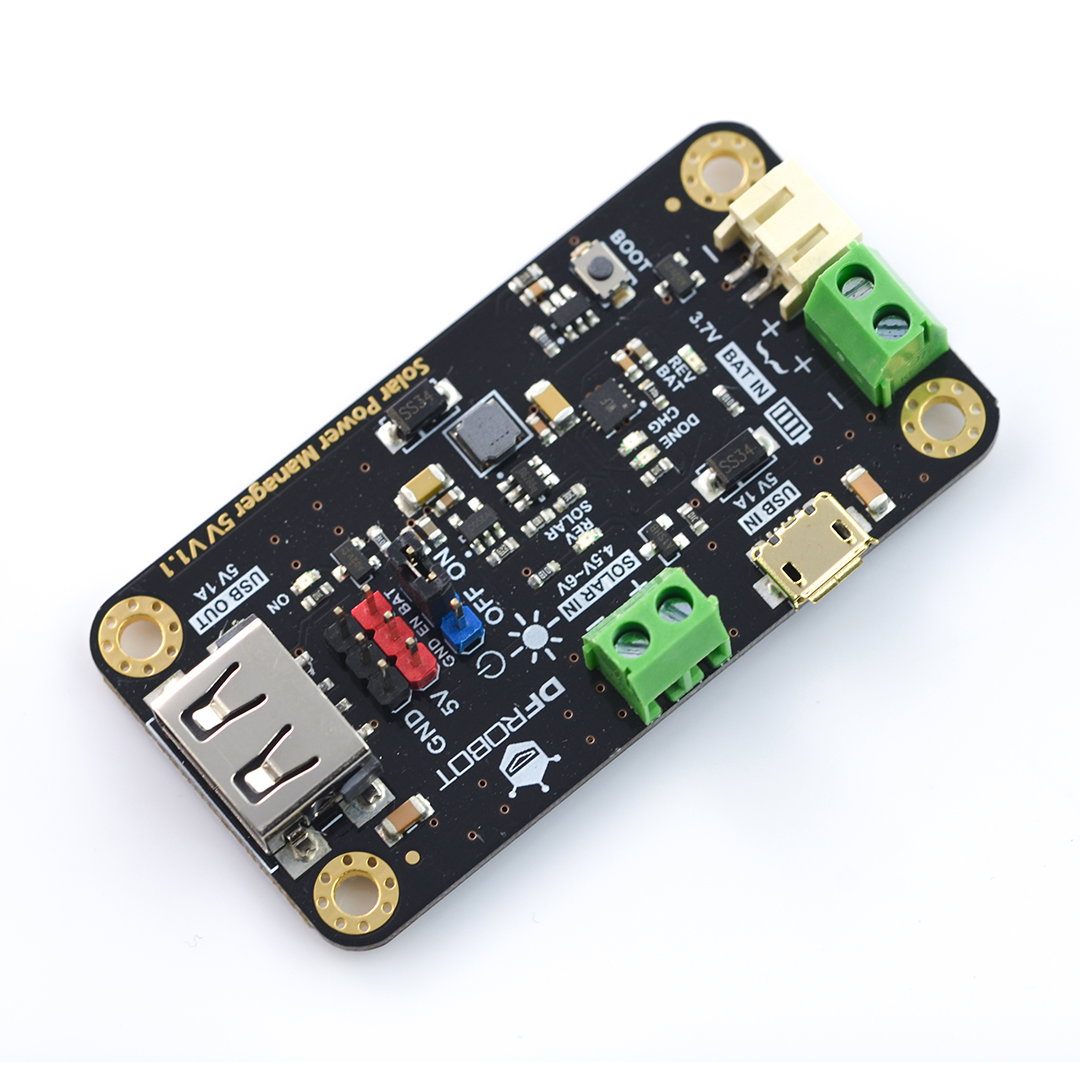

Product description: DFRobot - Solar energy management module - 5V.
The energy management module is a small,high-performance modulefor 5 Vsolar panels. It is equipped withthe MPPT (Maximum Power Point Tracking)algorithm- a constant voltage that maximizes panel performance. It can supply a charging currentof 900 mAtoa Li 3.7 V battery. It has ON/OFF control and protection function for the battery, photovoltaic cell and output, which significantly affects the stability and safety of projects. In combination with popular controllers from Arduino family allows to create a complete system powered by solar energy.
DFRobot - Solar energy management module - 5 V. In our offer there are also other usefulmodules.

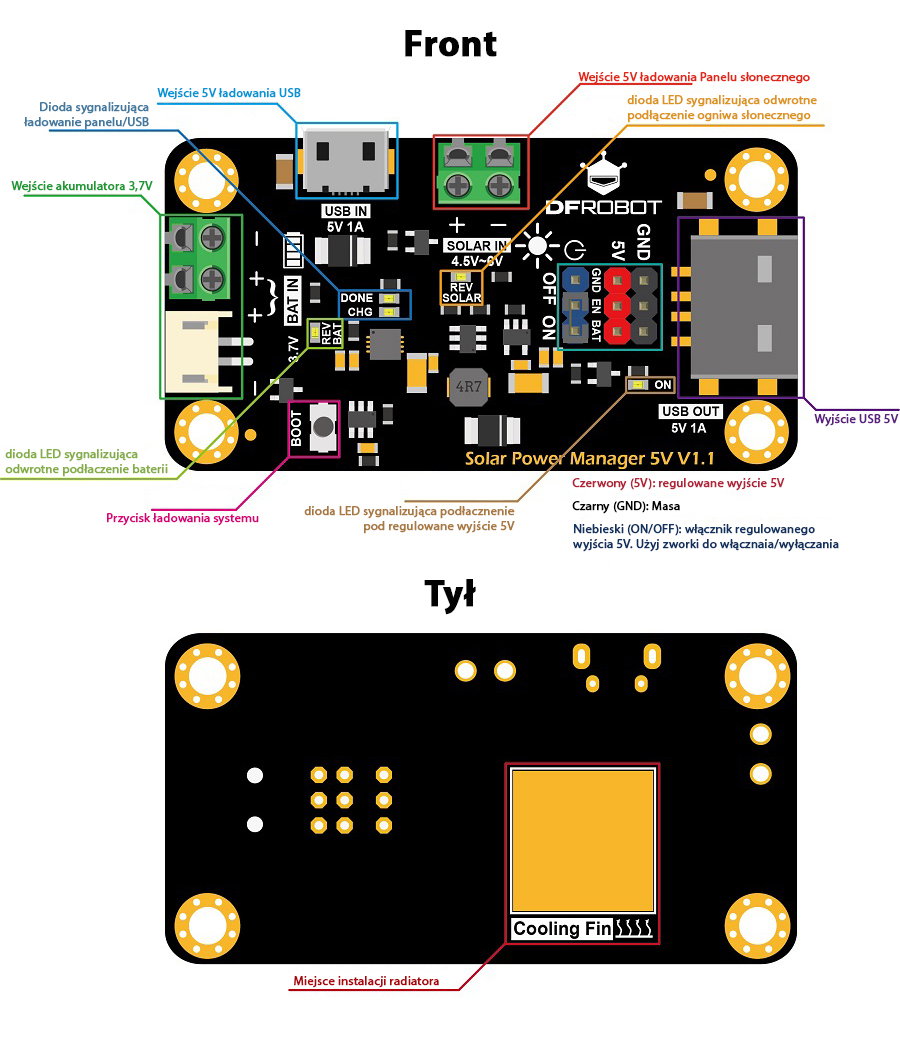

Description of the elements of the DFRobot Solar Power Management Module.
Specification of the solar energy management module
- IC solar energy management system: CN3065
- Cell input voltage (SOLAR IN): 4.5 V to 6 V
- Battery input (BAT IN): 3.7 V lithium-polymer or lithium-ion battery
- Charging current (USB/SOLAR IN): 900 mA
- Charging cut-off voltage: 4,2 V ±1%
- Adjustable power supply: 5 V, 1 A
- Charging efficiency: 73%
- Resting current: <1 ma="" li="">
- Operating temperature: -40°Cto 85°C
- Dimensions: 33 x 63 mm
- Security:
- BAT IN: overcharge/discharge, current and reverse connection protection
- 5 V/USB OUT: short-circuit protection, surge protection, overheating protection
- SOLAR IN: protection against reverse connection

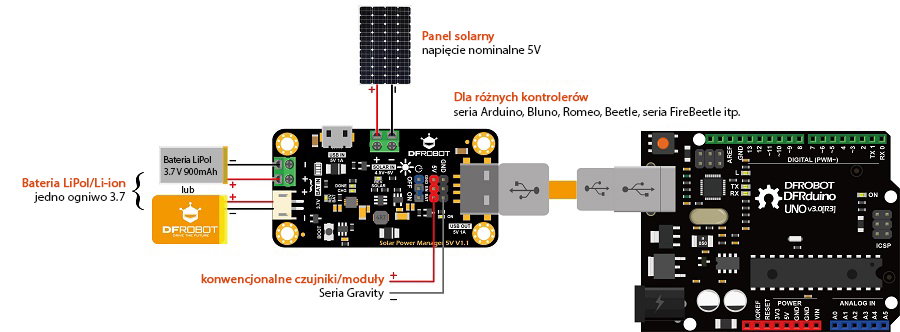

A solar power system based on the example ofDFRduino UNO.
Included:
- Energy management module 5 V - 1 piece.
- Jumper 2.54 mm - 1 pc.
- Nylon distance nuts M3 x 10 mm - 4 pcs.
- Stainless steel screws M3 x 5 mm - 4 pcs.
- Black aluminium heat sink 14 x 14 x 7 mm - 1 pc.
- Thermal conductive washer 14 x 14 x 0.5 mm - 1 pc.
