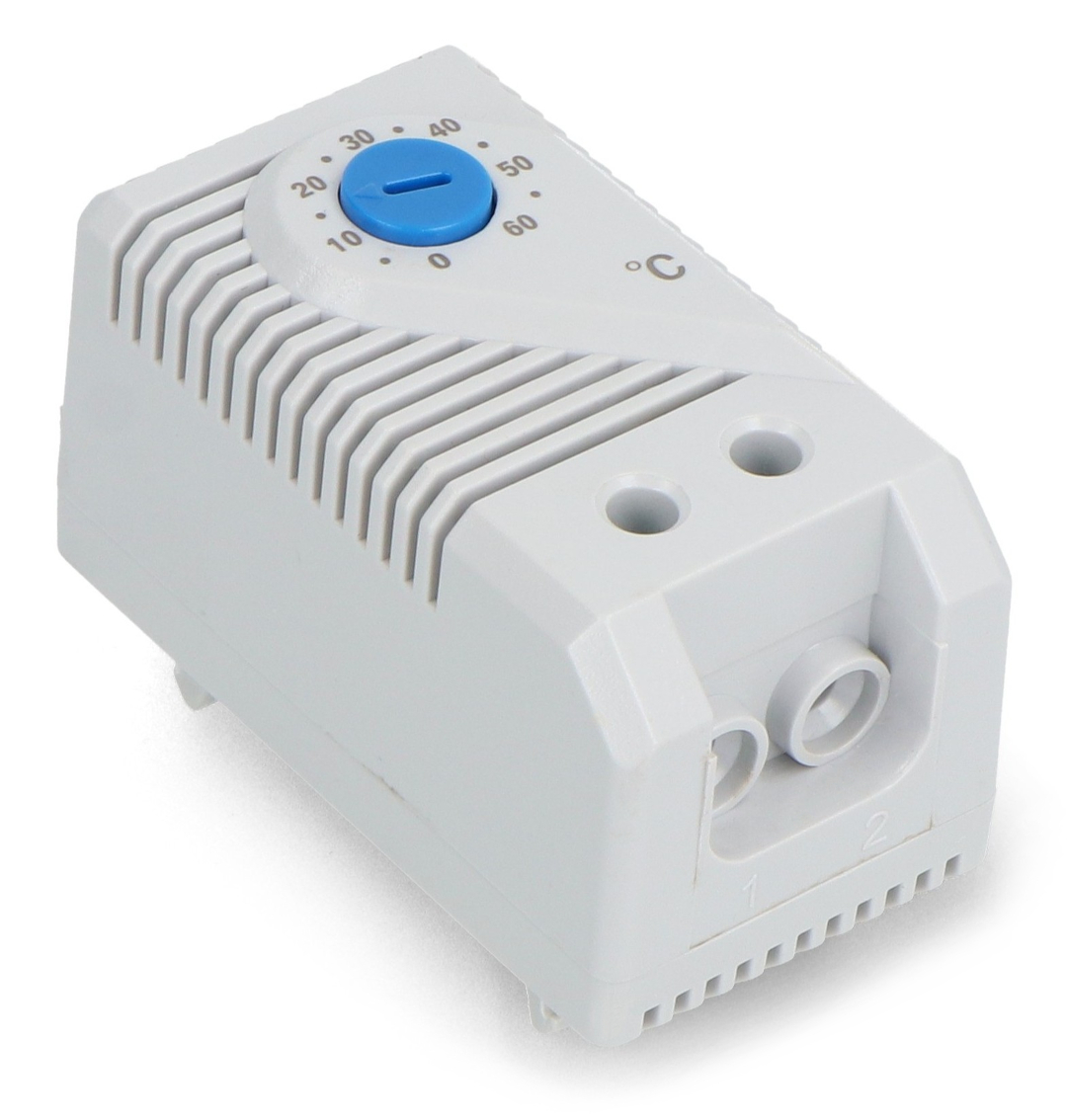

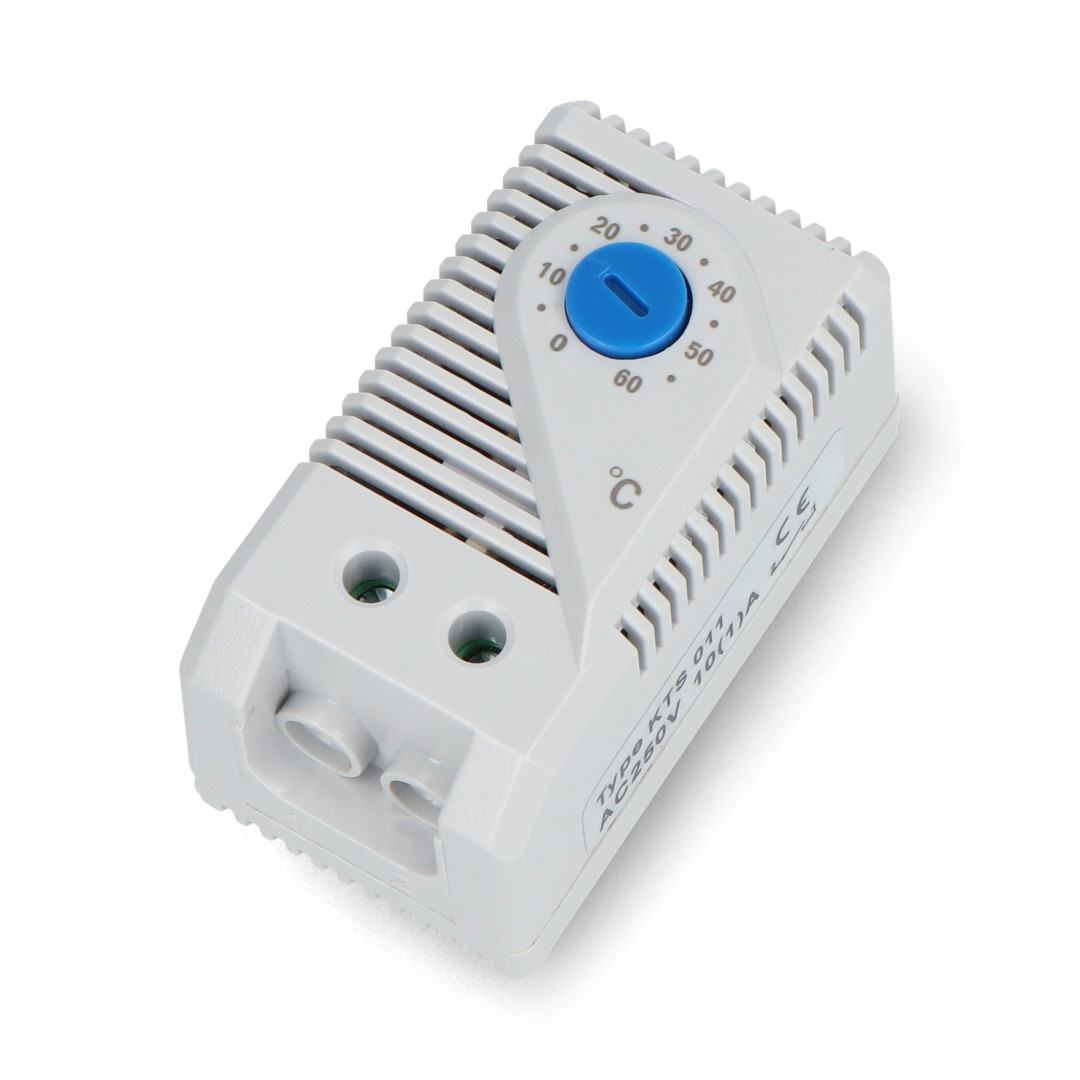

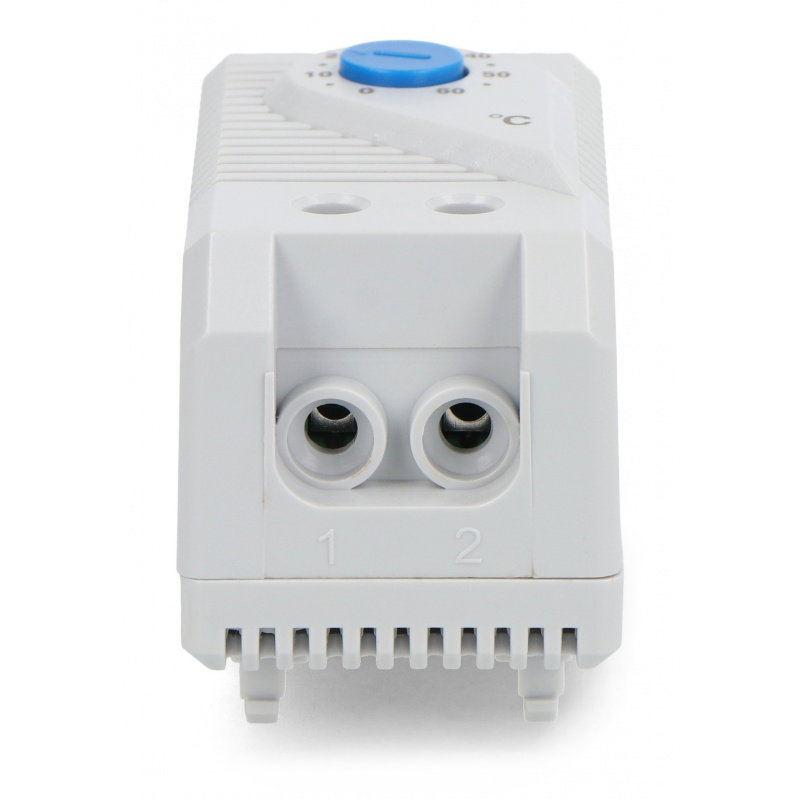

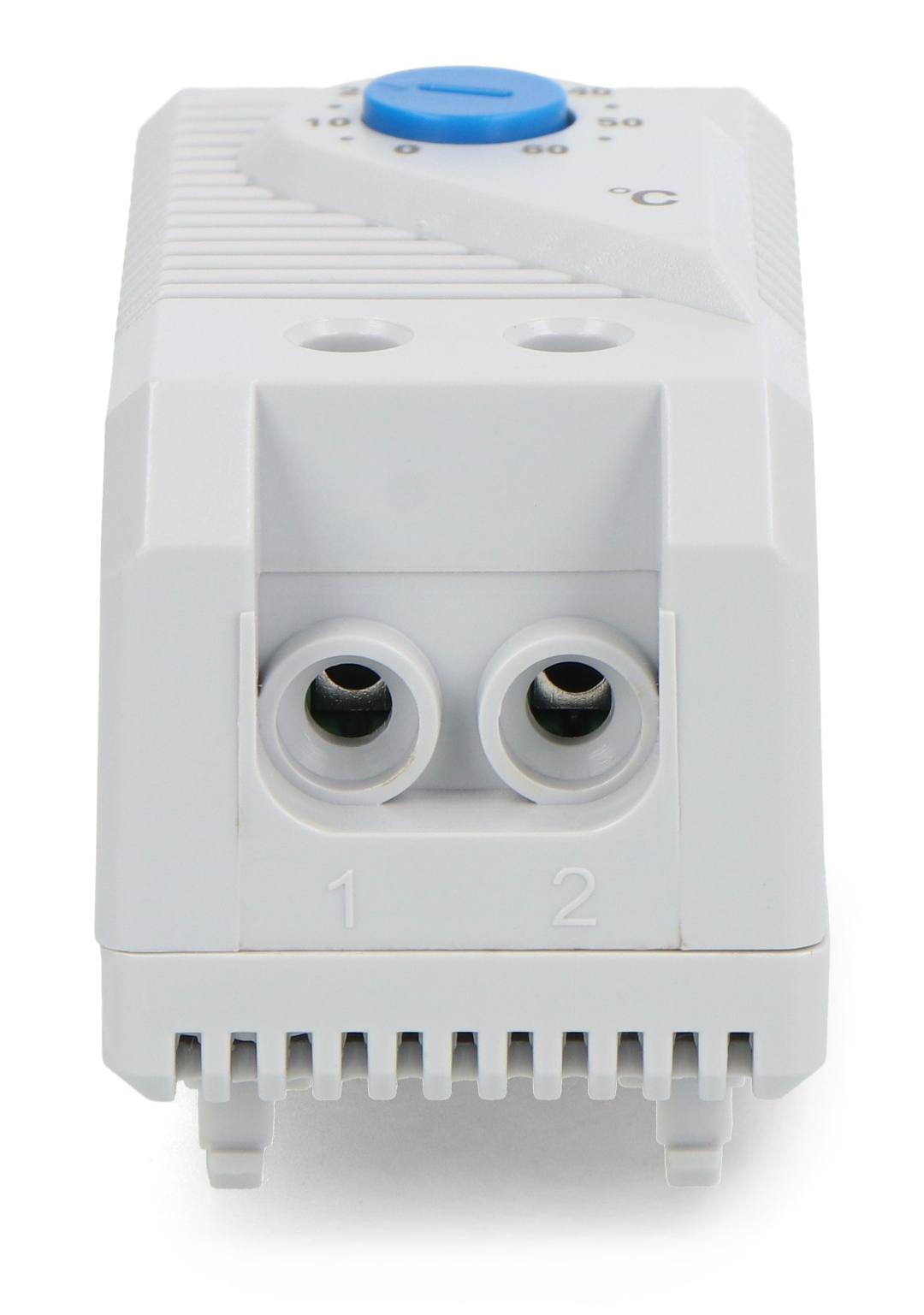

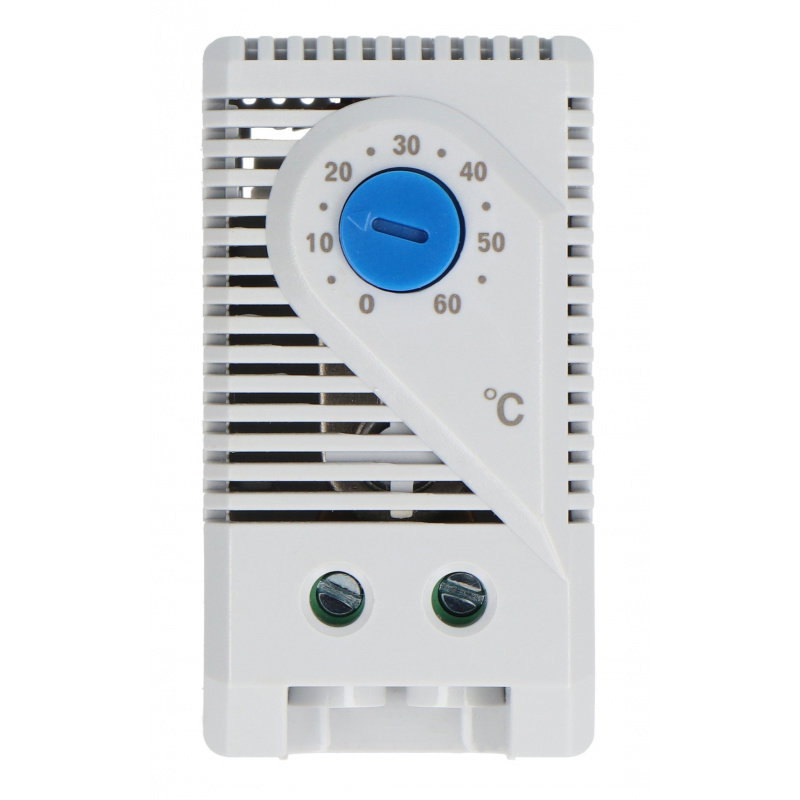

Product description: DIN rail thermostat - 250 V 10 A - Qoltec 54505
The Qoltec thermostat is a practical device designed for temperature control in rack cabinets and other installations requiring automatic cooling or heating control. Its main task is to monitor temperature and activate connected devices , such as fans or cooling systems, when a set threshold is exceeded. An adjustable operating range of 0°C to 60°C allows the thermostat to be adapted to various applications, both in server cabinets and ventilation or heating systems. Mounting on a TH35 DIN rail ensures quick and convenient installation in electrical switchboards.
Thermostat for DIN rail - 250 V 10 A - Qoltec 54505.
The Qoltec thermostat is a practical device designed to control the temperature in rack cabinets and other installations requiring automatic cooling or heating control.Special features
- Automatic temperature control: starts cooling or heating when the set threshold is exceeded
- Bimetallic sensor: reliable operation without complicated electronics
- Temperature control: operating range from 0°C to 60°C
- DIN mounting: easy installation on a TH35 rail
- High load capacity: up to 250 V and 10 A
- Hysteresis: 7°C ± 4°C ensuring stable operation
- Compact design: saves rack space
Practical applications
The Qoltec thermostat is used in rack cabinets, where it controls temperature and activates filter fans or cooling systems. It helps maintain optimal operating conditions for network and server devices, protecting them from overheating. The device is also suitable for industrial installations and home automation systems, where it can control heaters, fans, and heat exchangers. Thanks to its automatic operation, it reduces the need for manual control and increases equipment safety.
Technical specifications of the thermostat
- Temperature control range: 0°C to 60°C
- Operating temperature: -20°C to 80°C
- Hysteresis: 7°C ± 4°C
- Maximum voltage: 250 V
- Maximum current: 10 A
- Mounting: DIN rail TH35
- Protection class: IP20
- Material: plastic
- Color: white
- Dimensions: 60 x 33 x 43 mm
Contents of the set
- 1x Qoltec Thermostat

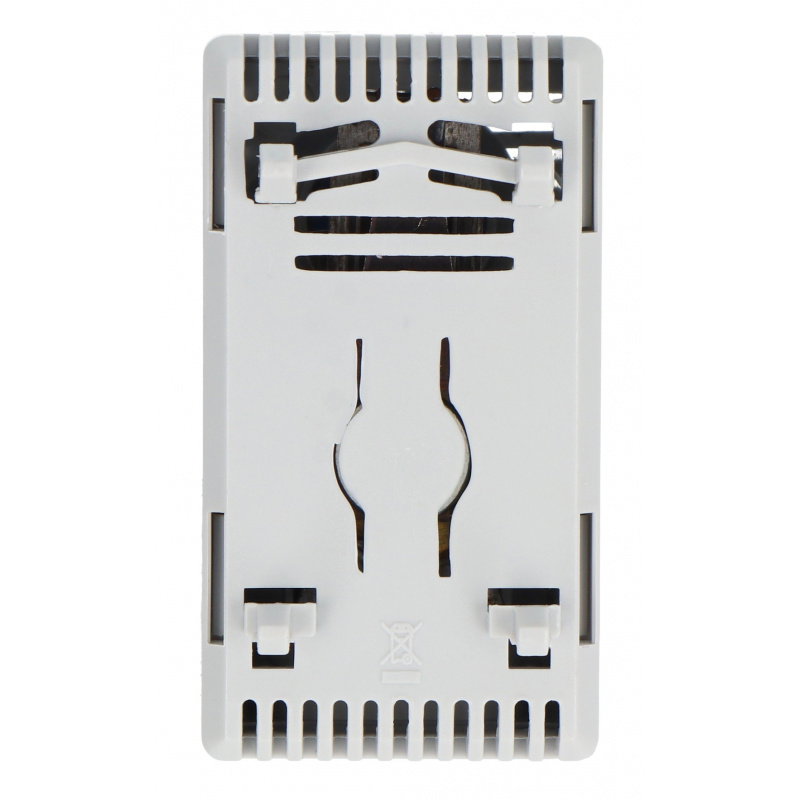

Mounting on a TH35 DIN rail ensures quick and convenient installation in electrical distribution boards.
