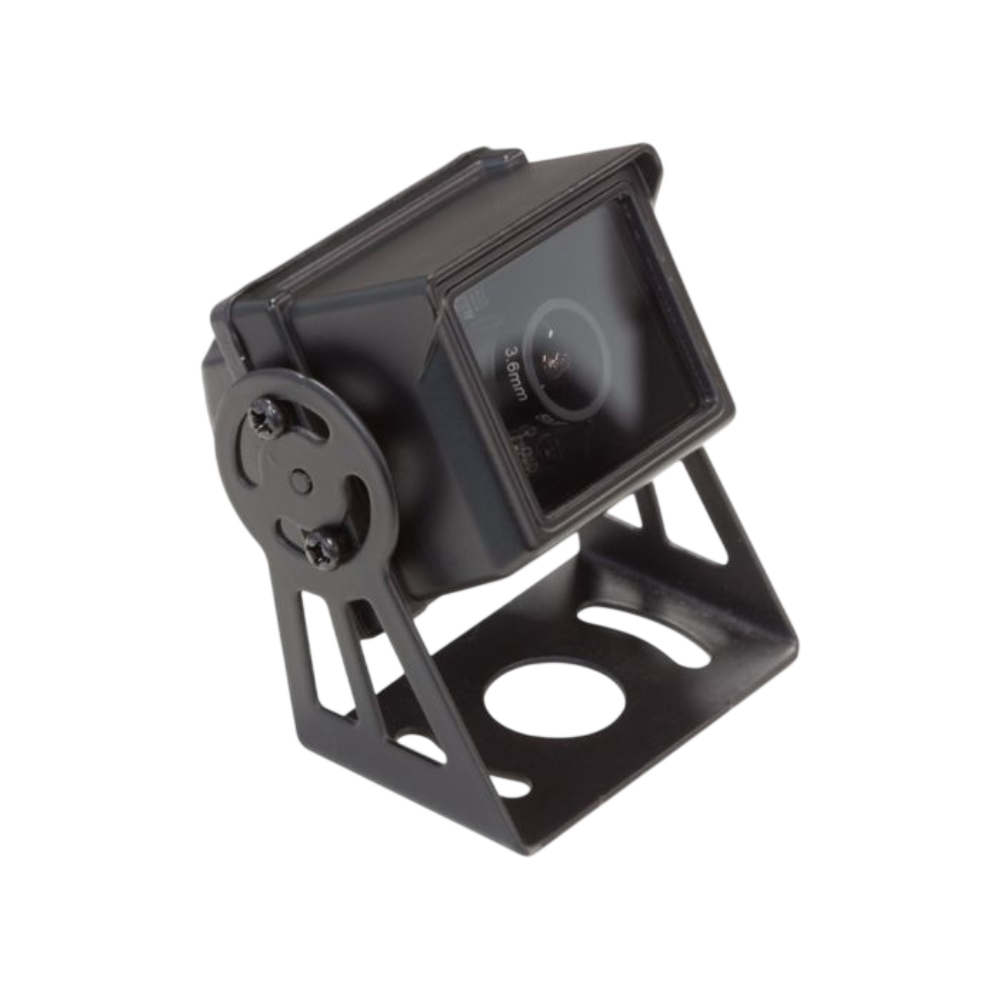

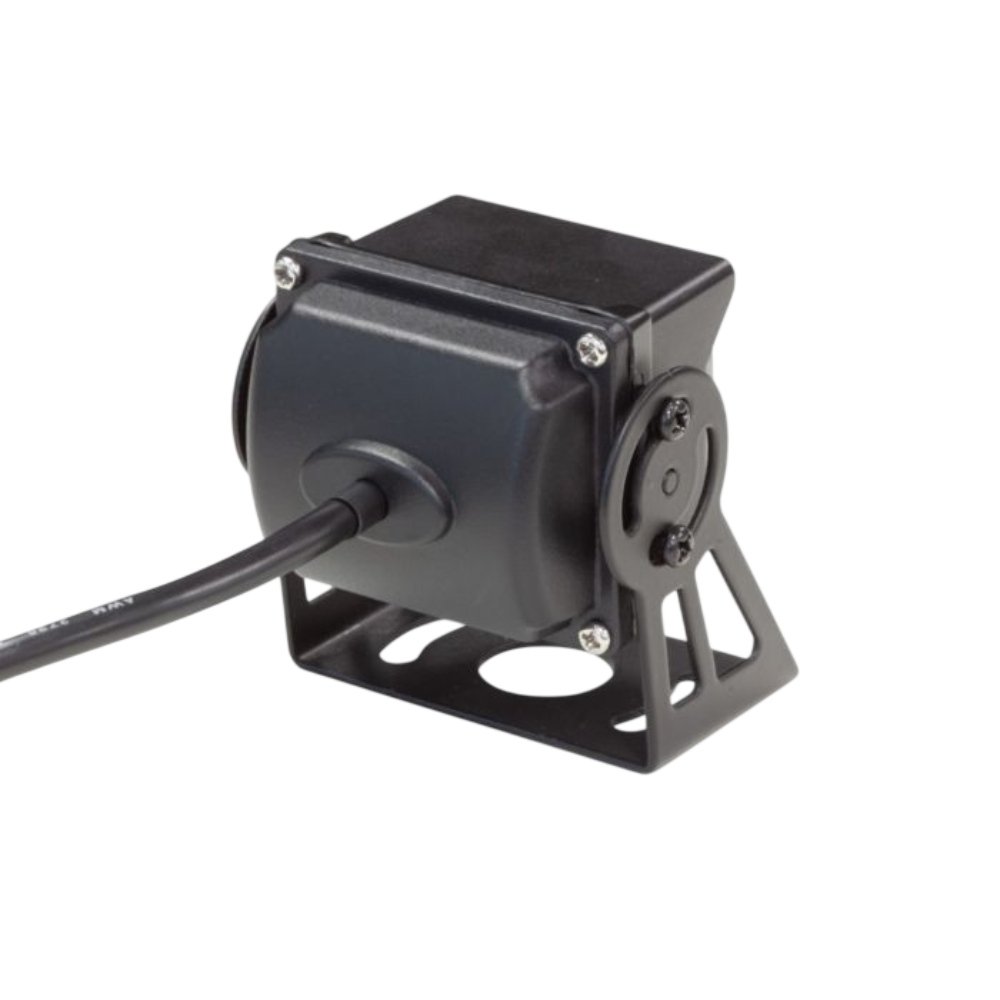

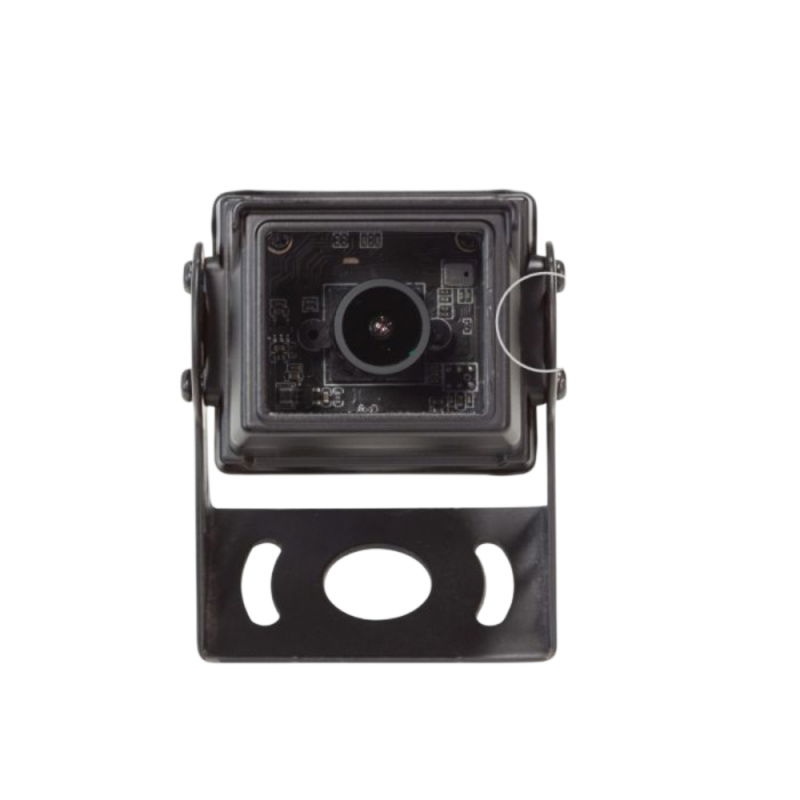

Product description: 2 MPx IMX291 USB Low Light Camera Module with 120° M12 Lens - ArduCam B0448
The ArduCam B0448 is a small but powerful 2MP camera module designed for vision projects, monitoring, industrial, and hobby applications. At the heart of the device is a Sony IMX291 CMOS sensor, which offers high light sensitivity and a wide dynamic range of 80 dB , enabling operation even in very low light conditions. The camera records in Full HD 1920 x 1080 at 30 fps , and thanks to its support for H.264, MJPG, and YUY2 formats, it can be used in a variety of vision applications and image processing systems. The module features an M12 lens with a 120° viewing angle , providing a wide field of view. The device operates in the UVC standard, meaning full plug-and-play operation without installing additional drivers. The camera is compatible with Windows, Linux, Android, and macOS , making it easy to use in IoT projects, robotics, monitoring systems, and machine vision applications. The module has a waterproof housing that protects against dust and moisture.
2 MPx IMX291 USB Low Light Camera Module with 120° M12 Lens - ArduCam B0448.
The ArduCam 2 MPx IMX291 is a small but highly efficient camera module designed for vision projects, monitoring, industrial and hobby applications.
Special features
- Sony IMX291 sensor: high-quality 2 MPx CMOS sensor with high sensitivity and a wide dynamic range of 80 dB
- Low light performance: Capture images with minimum illumination of 0.001 lux
- Full HD resolution: 1920 x 1080 recording at 30 fps
- 120° wide viewing angle: M12 lens with IR-cut filter for wide area coverage
- UVC plug and play standard: no need to install drivers
- Support multiple video formats: H.264, MJPG, YUY2
- Built-in microphone: ability to record video and audio simultaneously

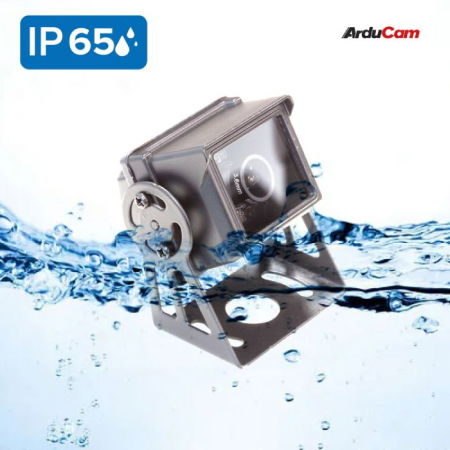

- Waterproof metal housing: increased resistance to dust and moisture
- Broad system compatibility: supports Windows, Linux, Android and macOS
Practical applications
The ArduCam IMX291 camera can be used in numerous image processing and monitoring projects. Its high sensor sensitivity makes it well-suited for video surveillance, night vision, and security systems . The module is also frequently used in machine vision, robotics, 3D scanners, VR systems, and industrial automation. Its compact size and USB interface make it easy to integrate with computers, single-board computers, and embedded devices.
Camera technical specifications
- Sensor: Sony IMX291
- Sensor type: CMOS
- Resolution: 2 MPx
- Optical format: 1/2.8"
- Pixel size: 2.9µm x 2.9µm
- Active sensor area: 1947 x 1109 px
- Maximum resolution: 1920 x 1080 px
- Frame rate: up to 30 fps
- Dynamic range: 80 dB
- Minimum illumination: 0.001 lux
- Video formats
- H.264: 30 fps at 1920 x 1080 px
- MJPG: 30 fps at 1920 x 1080 px
- YUY2: 30 fps at 640 x 480 px
- Lens type: M12
- Focal length: 3.6 mm
- Brightness: F2
- Viewing angle: 120° (diagonal)
- Focus: fixed focus
- Filter: IR-cut

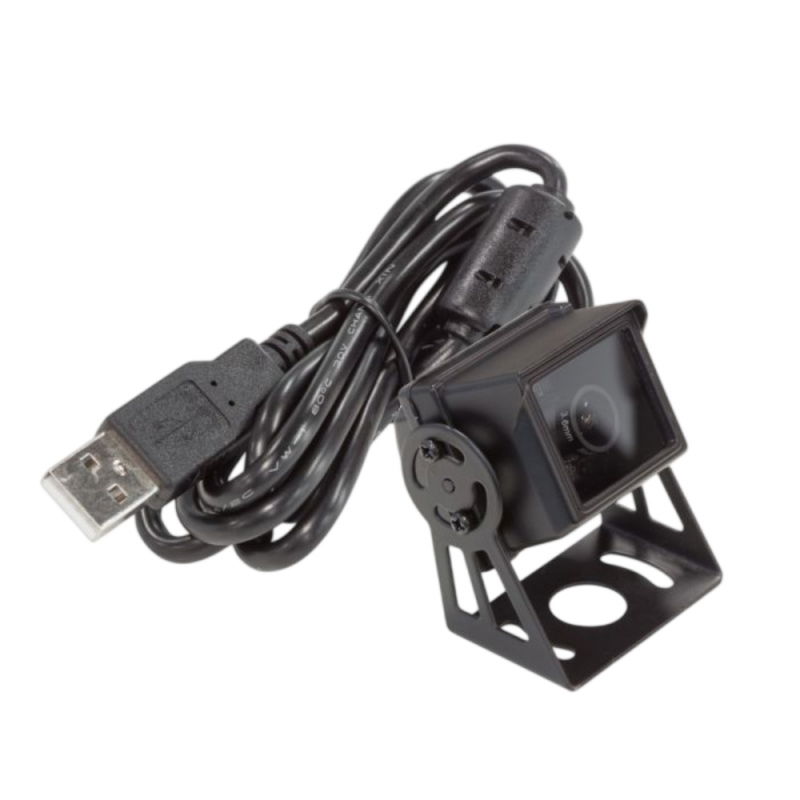

- Communication interface: USB 2.0
- Connector: B4B-ZR
- Compatible systems: Windows, Linux, Android and Mac OS
- Microphone: single microphone
- Operating voltage: 5 V DC ±5%
- Maximum current consumption: 300 mA
- Operating temperature: -20°C to 70°C
- Camera board size: 38 x 38 mm
The camera is compatible with Windows, Linux, Android, and macOS, making it easy to use in your projects. Useful links |
