PGA2350 - development board with RP2350B microcontroller - PiMoroni PIM722
The PGA2350 is a compact development board based on the RP2350 microcontroller, designed for integration into space-constrained designs. The board measures 25.4 x 25.4 mm , offers 64 pins with a 2.54 mm pitch, of which 48 are multi-function GPIO pins (8 can be used as ADC inputs). It is also equipped with 8 MB of PSRAM and 16 MB of Flash memory .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: PGA2350 - development board with RP2350B microcontroller - PiMoroni PIM722
The PGA2350 is a compact development board based on the RP2350 microcontroller, designed for integration into space-constrained projects. The board measures 25.4 x 25.4 mm , and offers 64 pins in a 2.54 mm pitch, of which 48 are multifunction GPIO pins (8 can be used as ADC inputs), which is 18 more pins than the Raspberry Pi Pico . The board has pin labels for easy identification. It also has 8 MB of PSRAM and 16 MB of Flash memory . The board has no built-in LEDs, buttons, or USB connectors ; for programming, you must connect your own USB connector.
PGA2350 - development board with RP2350B microcontroller - PiMoroni PIM722.
Botland is an official distributor of the Pimoroni brand. This British company offers inventive solutions for electronics enthusiasts, covering modules, sensors, Raspberry Pi expansions, educational kits and prototyping accessories. The Botland range holds original Pimoroni products only.
The PGA2350 is a compact development board based on the RP2350 microcontroller, designed for integration into space-constrained designs.
Special features of the PGA2350 board
- Compact Size - The PGA2350 development board is designed for projects where space is key. At just 25.4 x 25.4 mm, it is ideal for portable devices and other projects where compact size is important
- Large number of GPIO pins - there are as many as 48 multifunctional GPIO pins on the PGA2350, which provides a wide range of possibilities for connecting sensors, peripherals or controlling electronic components. Among them, 8 pins support ADC (analog-digital) functions, which allows direct work with analog signals such as temperature, humidity or voltage sensors
- High performance - the RP2350B microcontroller, which is the heart of the board, offers two ARM Cortex M33 cores with a clock speed of up to 150 MHz. Thanks to this, the PGA2350 guarantees fast data processing, smooth application operation and the ability to handle advanced commands in real time
- Expanded memory - The board offers 16 MB of Flash memory for storing code and data, and 8 MB of PSRAM memory, which provides adequate support for more complex applications
- Programming Flexibility - Compatible with both C/C++ and MicroPython, giving the user complete freedom to choose the programming environment. This makes the PGA2350 suitable for both experienced programmers and beginners who want to learn and experiment in a friendly environment
PGA2350 Technical Specifications
- Microcontroller: RP2350B
- Processor: Dual Arm Cortex M33
- Frequency: up to 150 MHz
- Flash Memory: 16MB
- PSRAM memory: 8MB
- Oscillator: Crystal
- Voltage regulator: built-in 3.3 V (max. output current 300 mA)
- Number of pins: 64 (2.54 mm pitch)
- GPIO Pins: 48 multifunction (8 with ADC support)
- GND Pins: 6
- Input voltage range: 3V to 5.5V (on VB pin only)
- Compatibility: C/C++ or MicroPython
- Dimensions: 25.4 x 25.4 x 3.6 mm

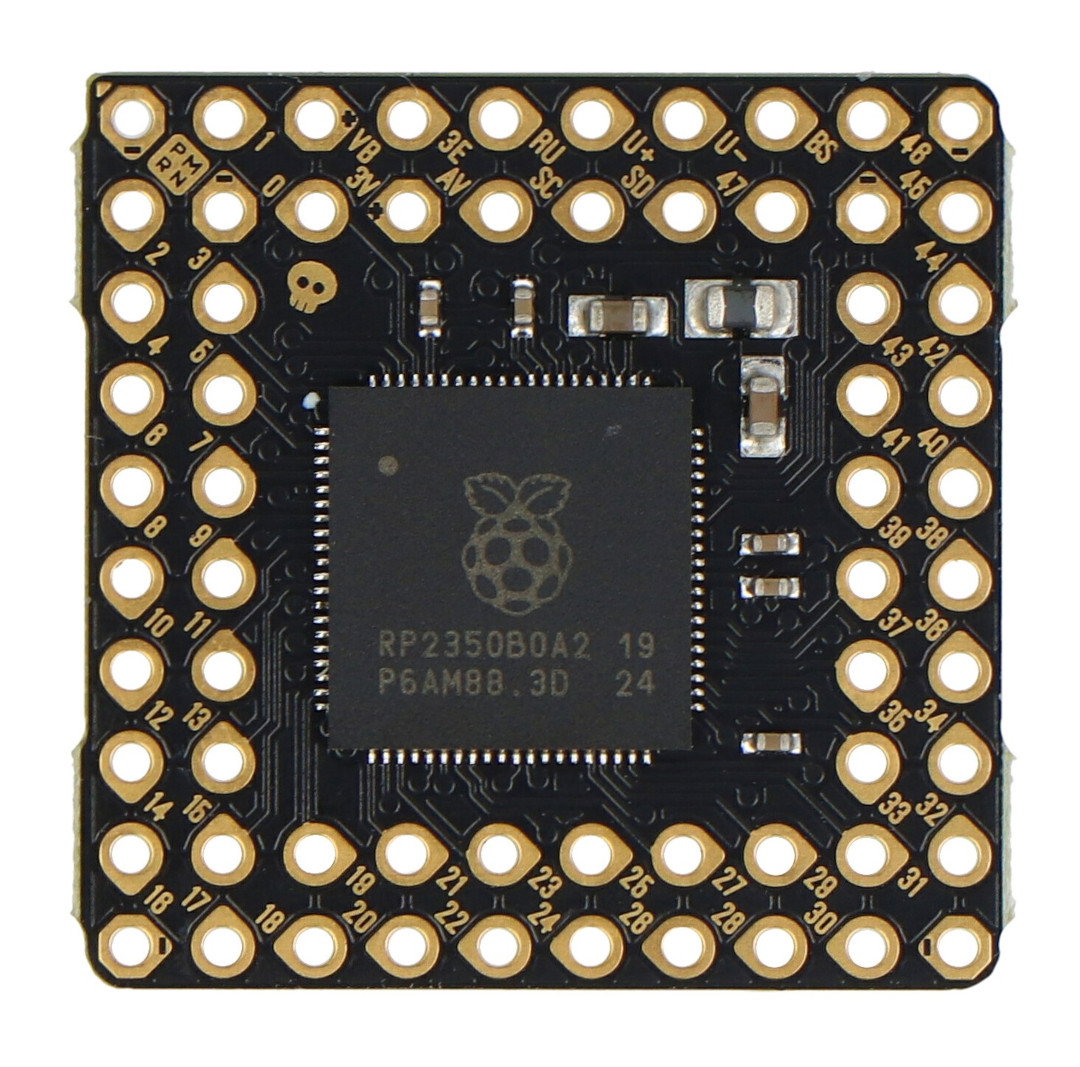

The board is marked with pins for easy identification.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | RP2350 |
| UC - Core | Cortex M33 |
| UC - Flash | 16 MB |
| UC - RAM | 8 MB |
| Width | 9 cm |
| Height | 16 cm |
| Depth | 0.5 cm |
| Weight | 0.007 kg |
