Cable detector + tester RJ45 - UNI-T UT682
The detector is used to detect pairs of wires. It allows to determine the position of both telephone, Internet and power cables. The device consists of a transmitter and a receiver. The meter has a function of RJ45 tester.
We could not load the price.
The promotional price does not combine with quantity discounts.
UNI-T UT682 cable pair detector with RJ45 tester
The detector is used to detectwire pairs. The device consists of a transmitter and a receiver. UNI UT682 has three main operating modes. Depending on the choice of one of the options, they allow to determine the position of telephone, Internet or power supply cables. The meter has a function of RJ45 tester.It can also be used to diagnose open circuit and short circuit. The detector also enables testing of DC voltage. UNI UT682 signals indications by means of sound and diodes placed on both parts of the device. It also has low battery indicator and headphone input.
UNI-T UT682 cable pair detector with RJ45 tester

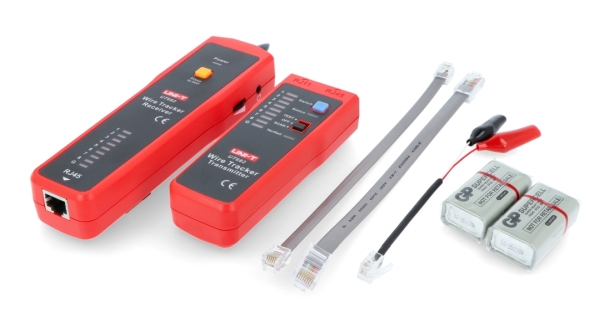

The UNI UT682 detector kit includes:
- Transmitter and receiver
- 2 batteries 6F22 9 V
- RJ45 cable
- RJ11 cable
- RJ11 cable with crocodiles
- Case to hold the detector together with its accessories
UNI UT682 detector specifications:
- Type of cables detected: telephone, internet, power supply
- Maximum length of telephone line: 3000 m
- Polarity indicator for telephone wire pairs: 5 V to 52 V
- Maximum power consumption of the receiver in standby mode: ~10 mA
- Maximum current consumption of the receiver during operation: < 40 mA
- Continuous output voltage of the transmitter: 12 V Peak - Peak
- Low battery indicator
- Power supply: transmitter: 6F22 9 V battery (supplied)
- Power supply: receiver: 6F22 9 V battery (supplied)
- Product dimensions: transmitter: 74 x 68 x 28 mm
- Product dimensions: receiver: 208 x 47 x 33 mm
- The weight: transmitter: 150 g
- The weight: receiver: 130 g
| Name | Value |
|---|---|
| Width | 23.7 cm |
| Height | 4.3 cm |
| Depth | 16 cm |
| Weight | 0.4 kg |
