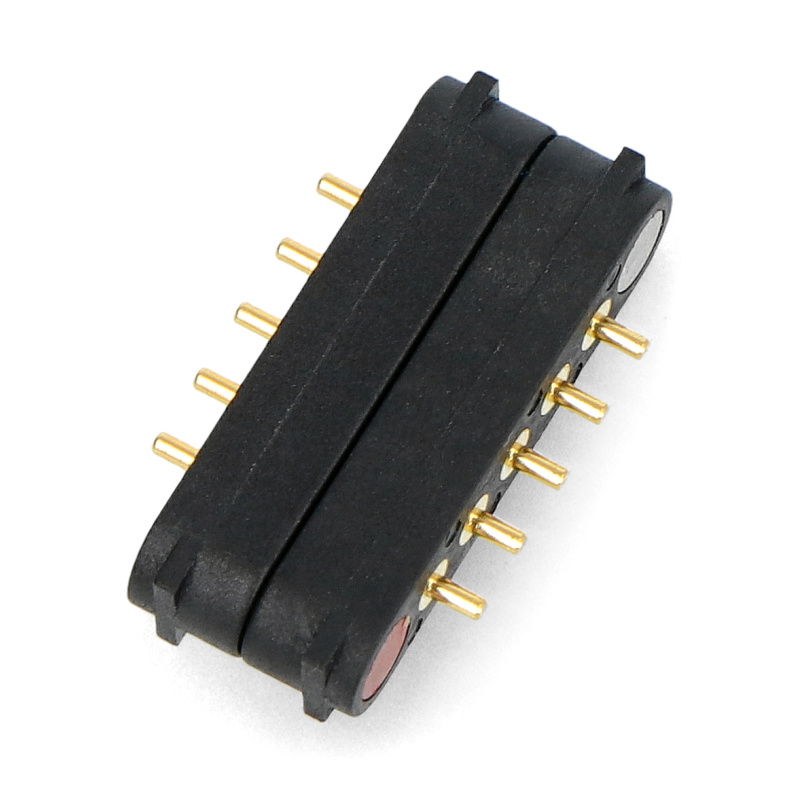

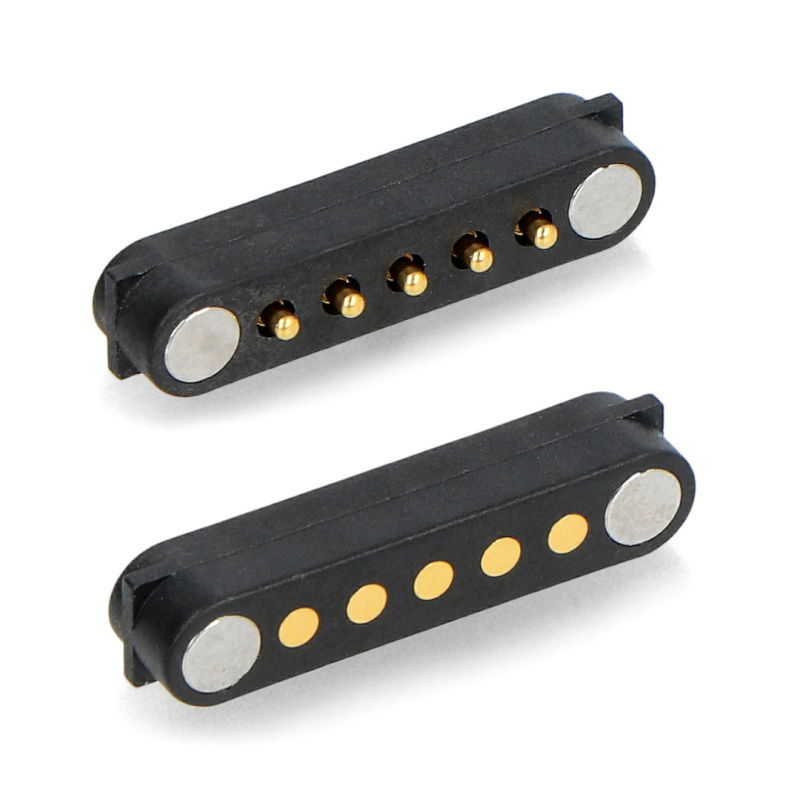

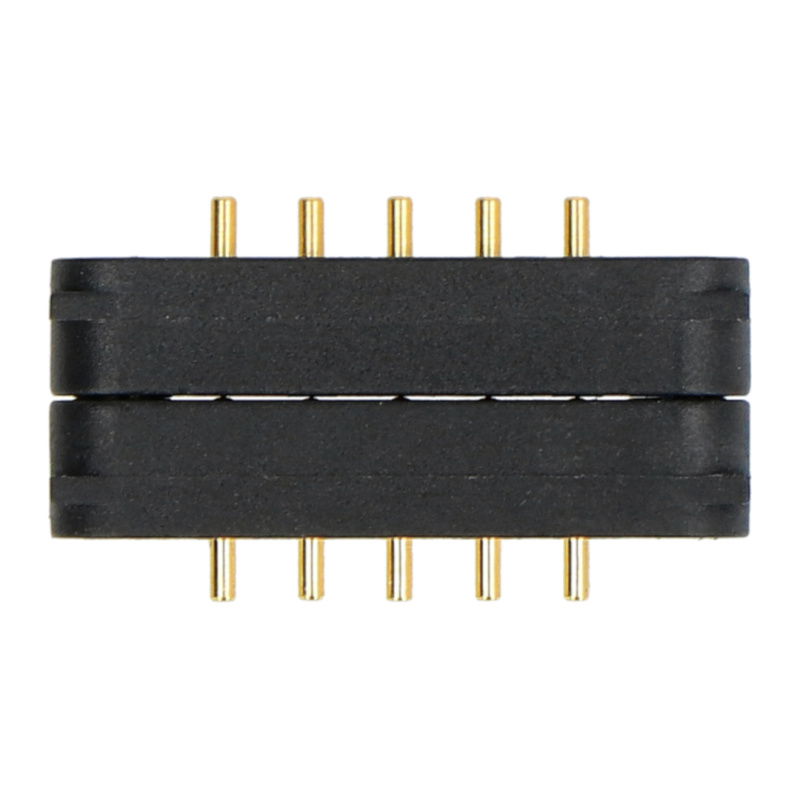

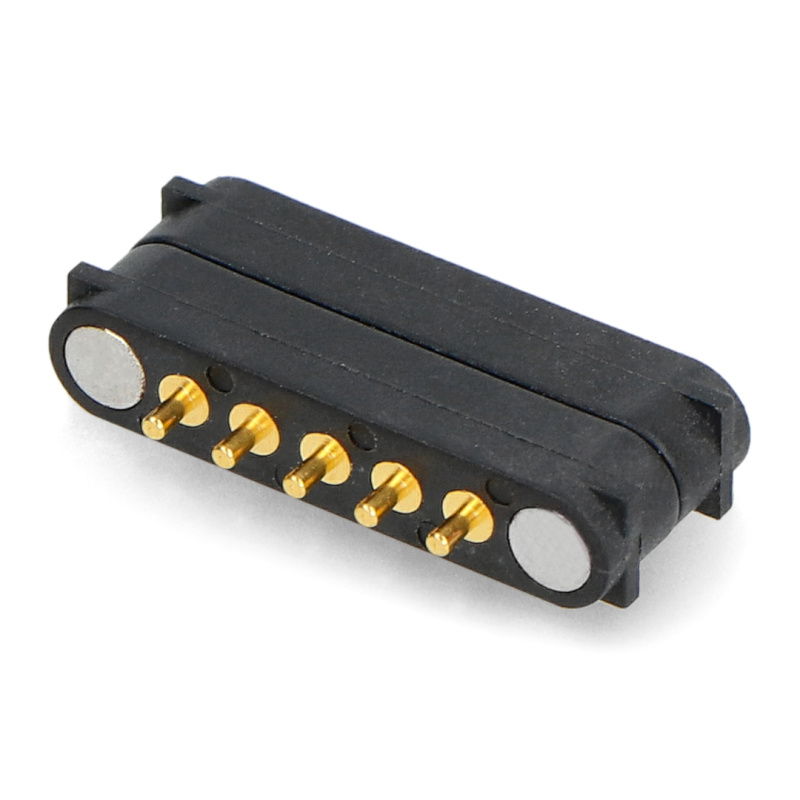

DIY Magnetic Connector - Straight Angle 5-pin magnetic connectors - Adafruit 5413
Magnetic connectors are very often used during prototyping of systems - they facilitate and accelerate the process of connecting two modules with each other. DIY Magnetic Connectors were manufactured by Adafruit, similar to MagSafe, and a similar solution can also be found in MacBooks and the littleBits set. The kit consists of two connectors - a female with 5-pin pogo and a male with 5-pin . The pins' pitch is 2.54 mm . Attempting to reverse connect the connectors will end up pushing them apart. The connectors can be soldered into your own PCBs.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DIY Magnetic Connector - simple 5-pin magnetic connectors - Adafruit 5413
Magnetic connectors are very often used during prototyping of systems - they facilitate and accelerate the process of connecting two modules with each other. DIY Magnetic Connectors were manufactured by Adafruit , similar to MagSafe, and a similar solution can also be found in MacBooks and the littleBits set. The kit consists of two connectors - a female with 5-pin pogo and a male with 5-pin . The pins' pitch is 2.54 mm . Attempting to reverse connect the connectors will end up pushing them apart. The connectors can be soldered into your own PCBs.
DIY Magnetic Connector - straight 5-pin magnetic connectors - Adafruit 5413.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
Magnetic connectors from Adafruit.
Specification of magnetic connectors
- Type of connectors: magnetic, pogo
- Number of pins: 5
- Pitch: 2.54 mm
- Type: simple
- Maximum voltage: 36 V DC
- Maximum current: 2 A.
- Working and storage temperature: -30 ° C to 65 ° C
- Dimensions: 20.08 x 4.2 mm
Kit contents
- 1x male pogo magnetic connector, 5-pin, straight
- 1x female magnetic connector, 5-pin, straight
Useful links
| Name | Value |
|---|---|
| Raster | 2.54 mm |
| Lead | 5 |
| Conn Type | magnetic |
| Conn - Standard |
|
| Width | 5 cm |
| Height | 1 cm |
| Depth | 7.5 cm |
| Weight | 0.003 kg |
