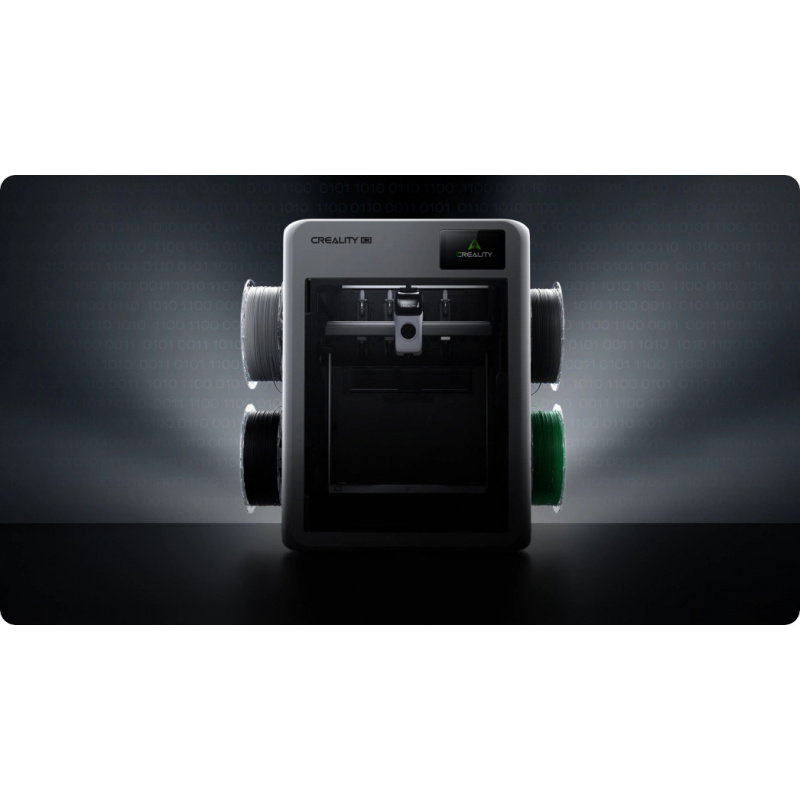

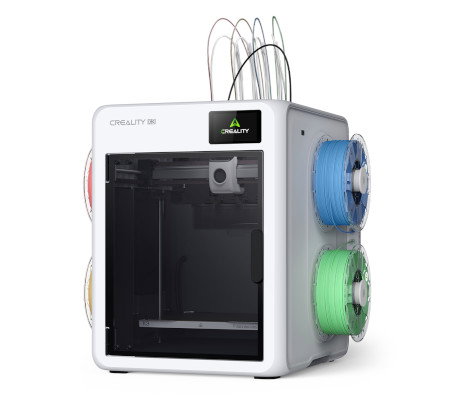

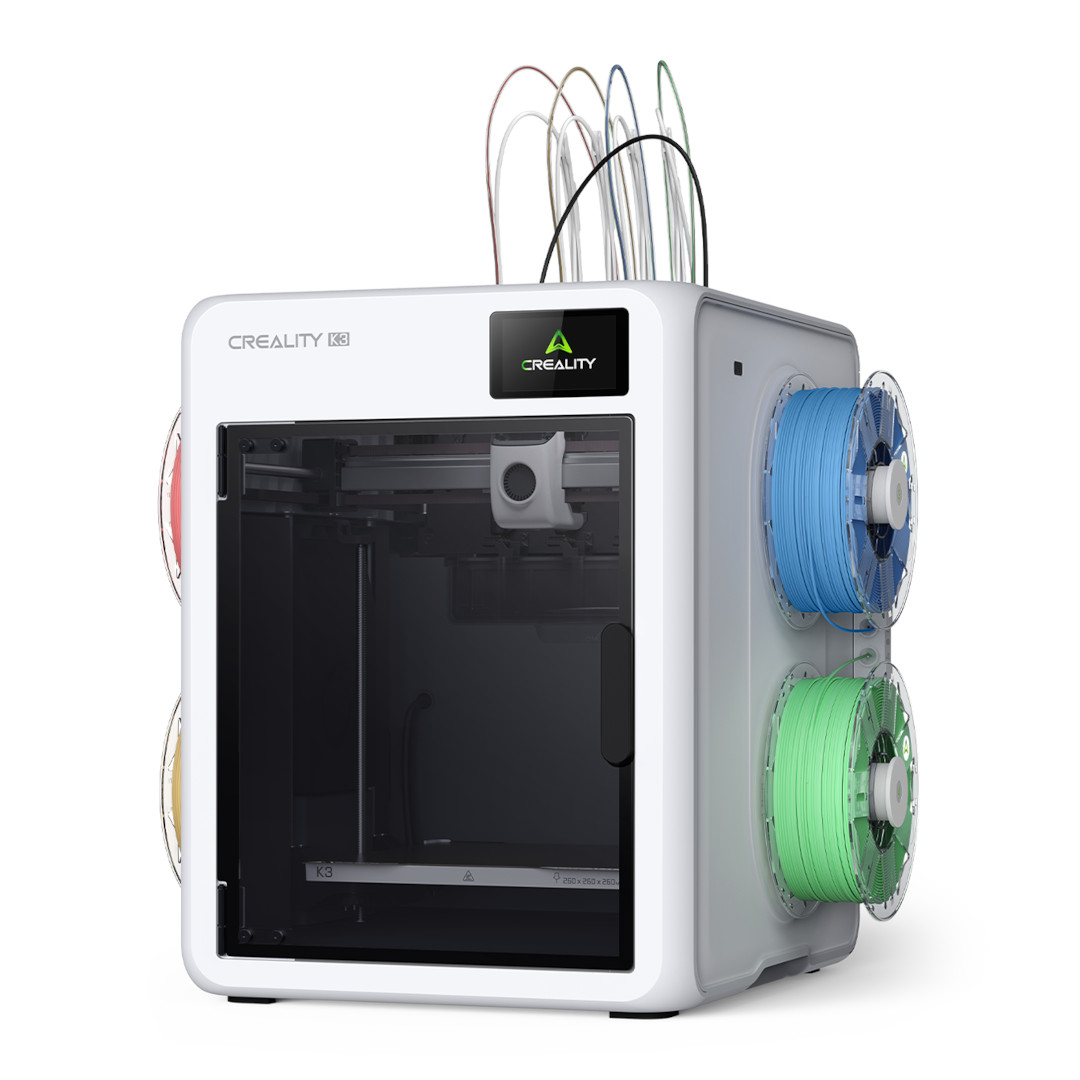

3D Printer - Creality K3

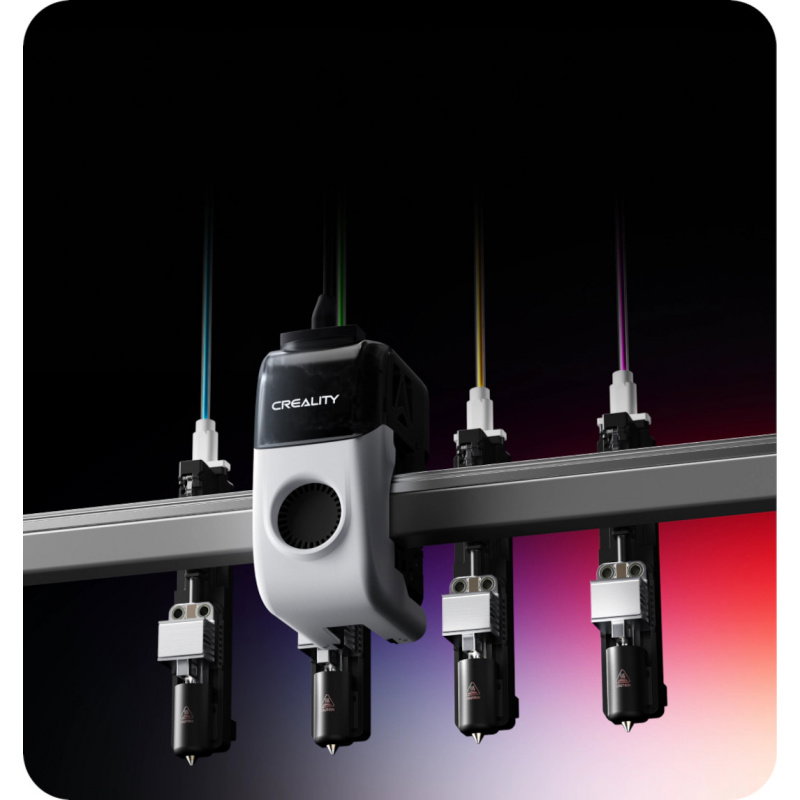

• KliTek system : enables automatic nozzle change during multi-color and multi-material printing
• Supports up to 4 nozzles : allows you to use different colors, materials and nozzle diameters within a single project
• Less filament waste : KliTek's separate nozzles reduce the need to flush the system when changing colors or materials, reducing filament waste
• Nozzle change in 4.8 seconds : reduces downtime when producing models that require frequent material changes
• Material change in 15 seconds : streamlines the production of complex multi-material models
• 260 x 260 x 260 mm build area : provides space to produce large models and several smaller pieces at the same time
• Print speed up to 500 mm/s : enables quick production of prototypes and finished elements
• Acceleration up to 20,000 mm/s² : allows you to dynamically implement subsequent fragments of the model
• Direct drive extruder : hardened steel gears ensure efficient feeding even of flexible and composite materials
• Nozzle temperature up to 300°C : allows the use of a wide range of filaments
• Table temperature up to 100°C : provides conditions suitable for many technical materials
• Spring-loaded PEI plate : makes it easier to achieve proper adhesion of the first layer and remove finished models
• 720p camera with lighting : allows you to observe the printer's operation

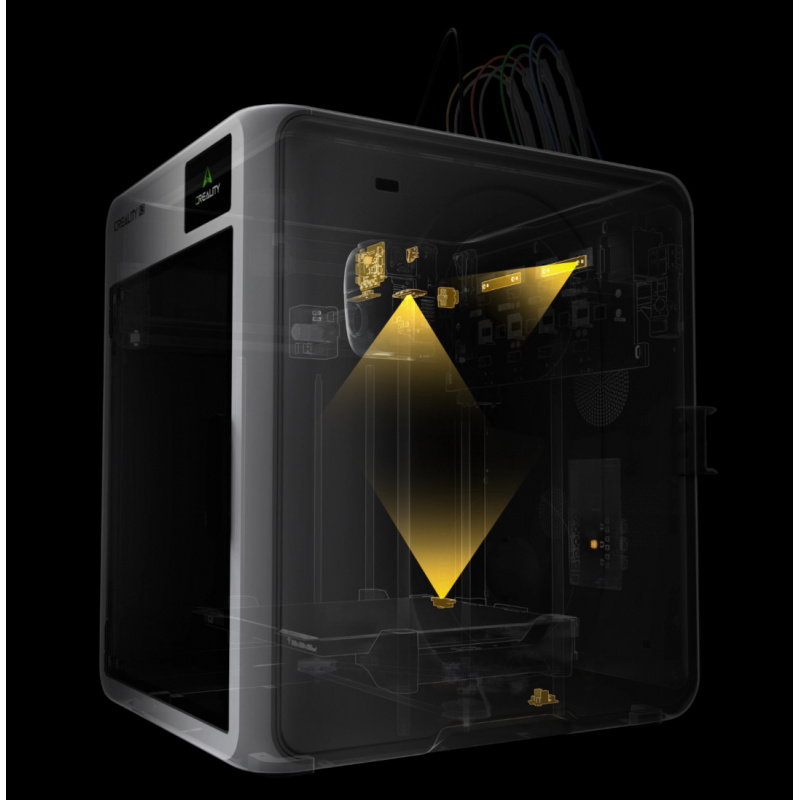

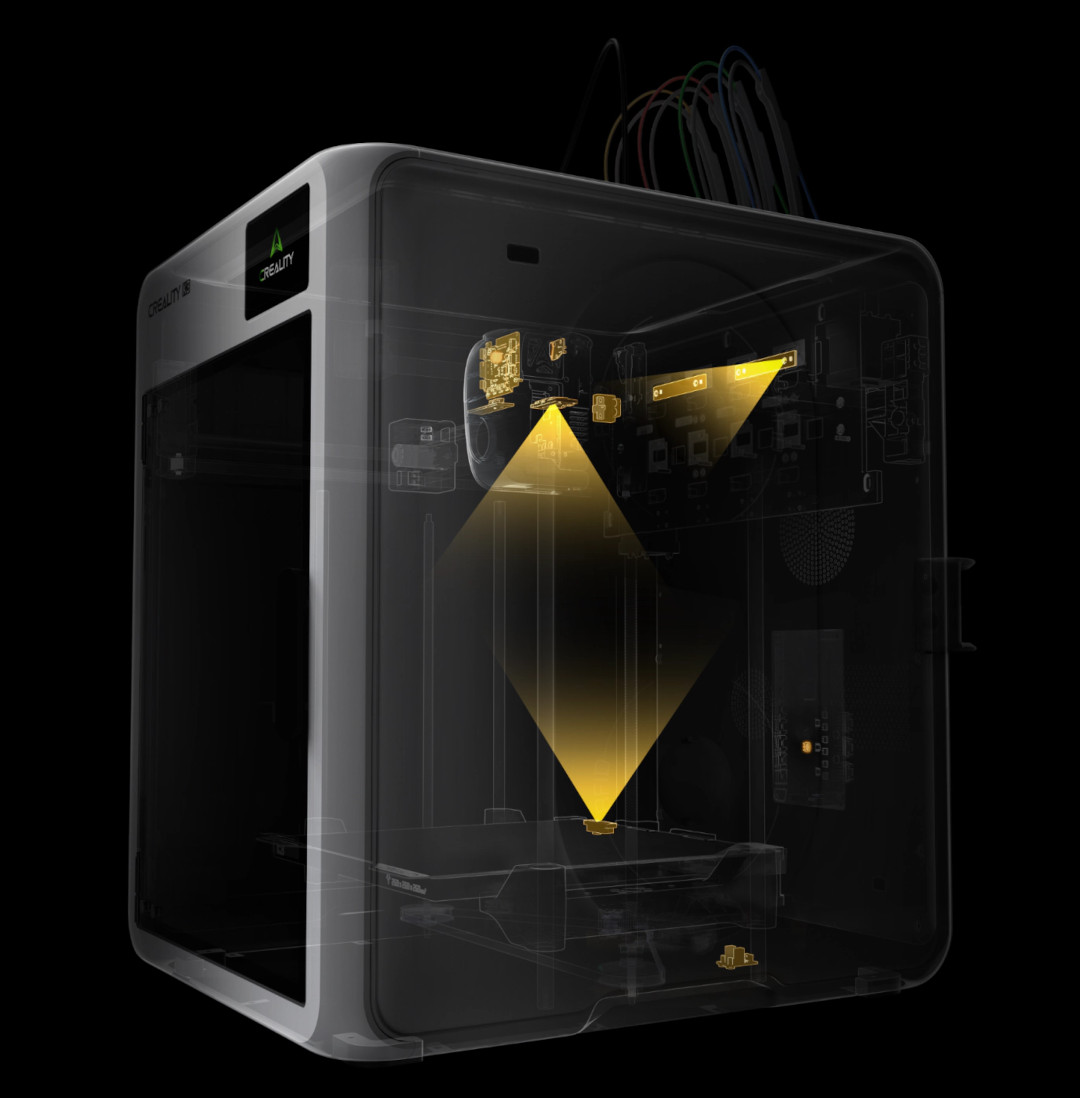

• Advanced detection system : detects, among others, nozzle clogging, spaghetti, lack of filament, filament tangling and the presence of the build plate
• Auto calibration : Includes nozzle offset and filament flow calibration
• 2.4 GHz WiFi : allows you to use network functions and transfer files to the printer
• 8 GB of memory : provides space for files to be printed
• Polish interface : facilitates configuration and daily use of the device

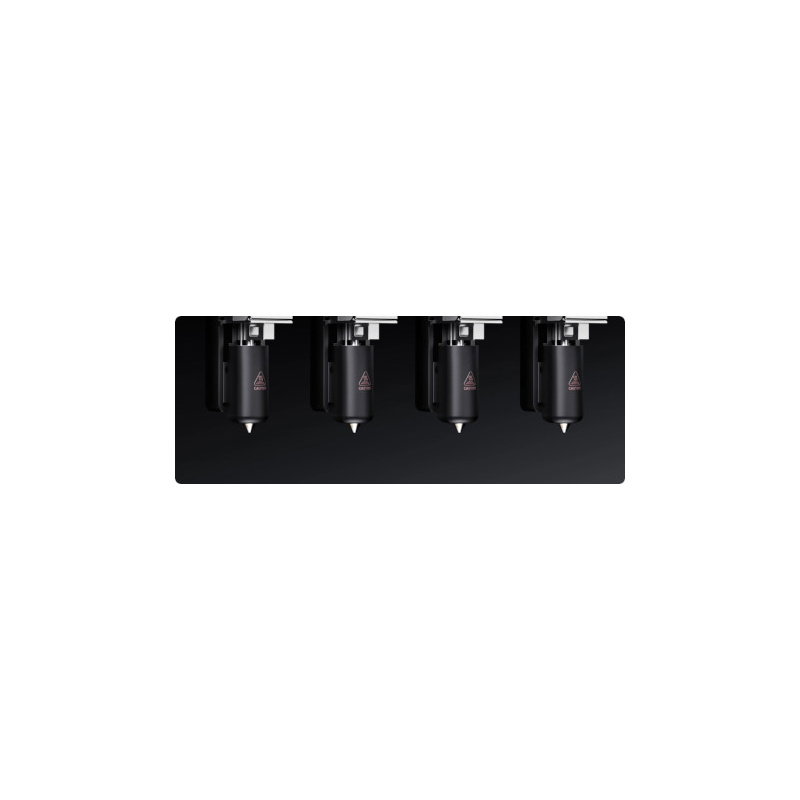

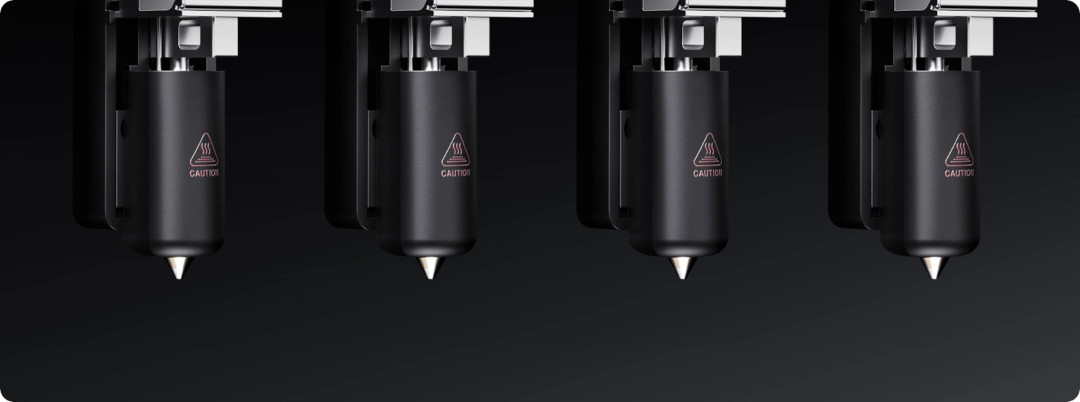

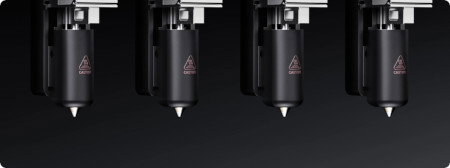

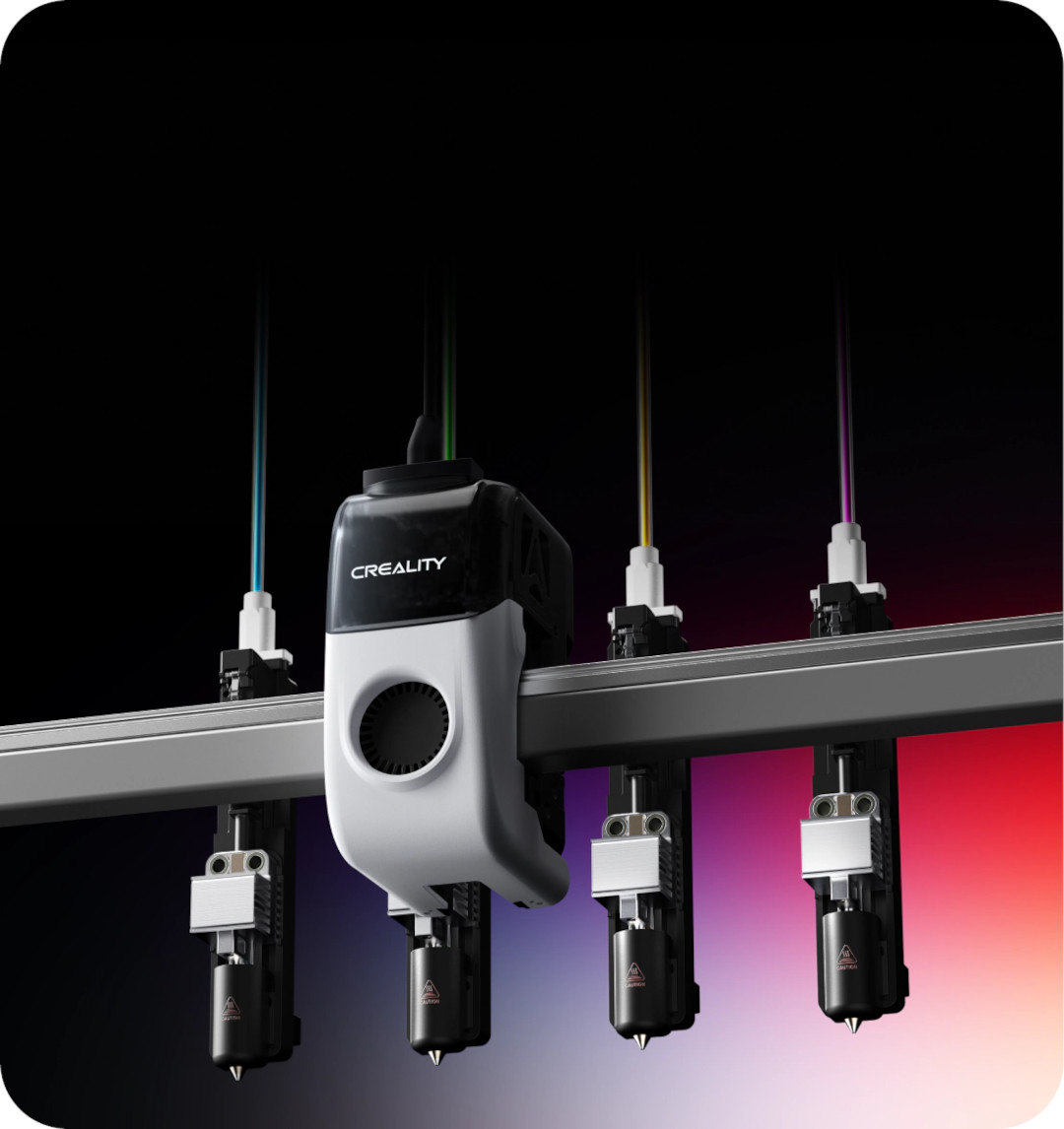

The KliTek system allows you to use nozzles of different diameters in a single job. The Creality K3 supports 0.2 mm, 0.4 mm, 0.6 mm, and 0.8 mm nozzles, so the material application method can be tailored to the specific part of the model. For example, a smaller nozzle can create external surfaces and details, while a larger nozzle can build infill faster. This solution allows for combining high detail with shorter model turnaround times. There's no need to manually change nozzles between workflows. Parameters for different nozzles can be configured in the Creality Print software.

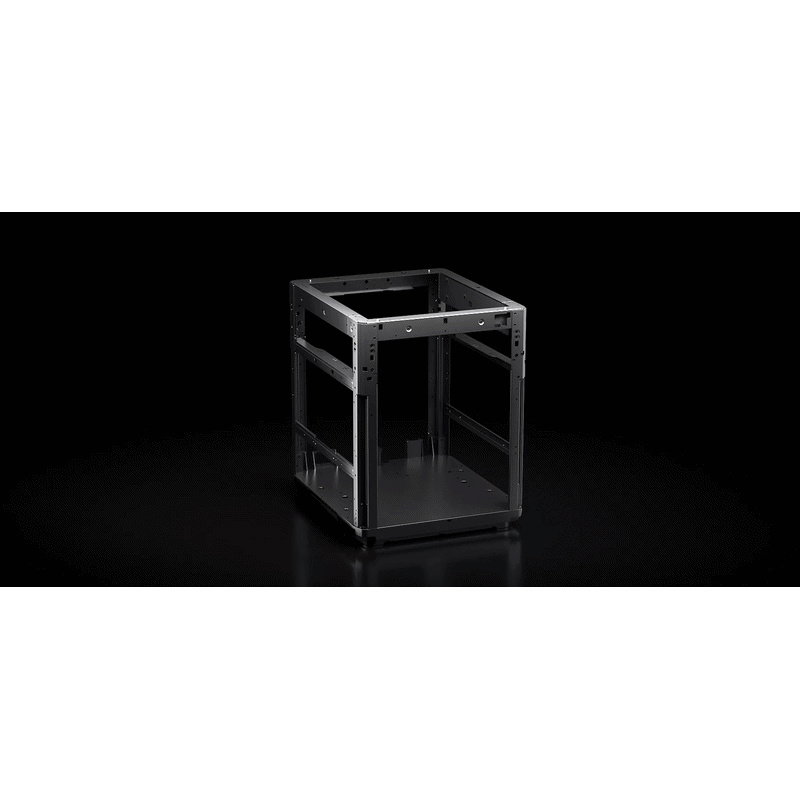

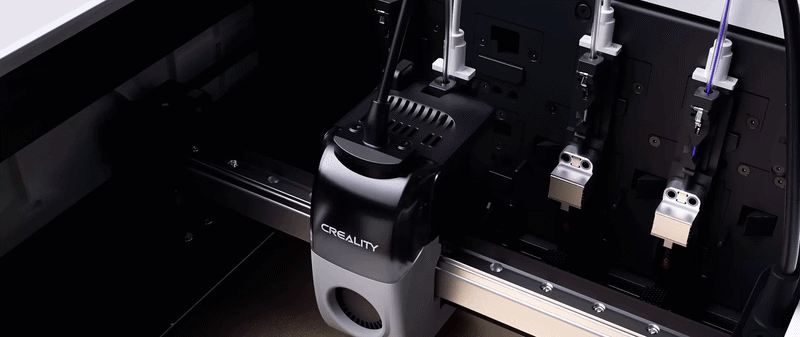

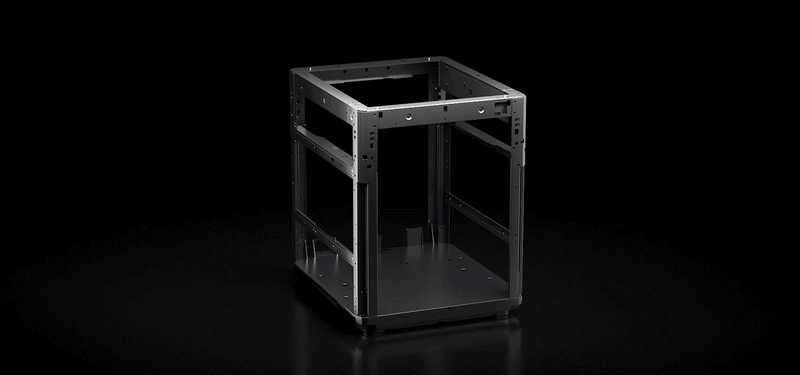

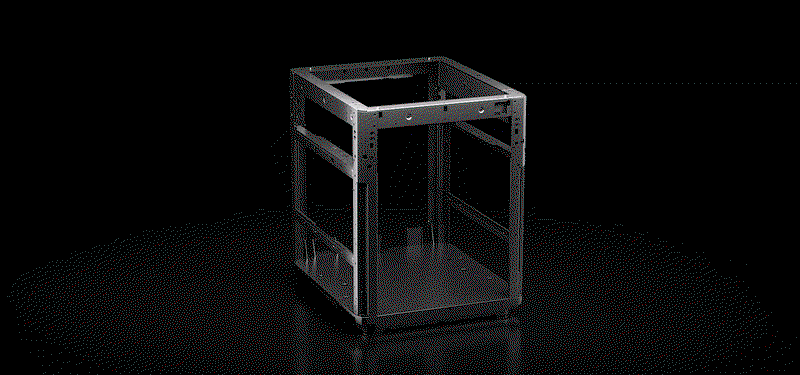

Automatic nozzle replacement requires not only speed but also highly accurate repositioning of the active working unit. In the Creality K3, the KliTek system ensures repeatability of positioning in the XYZ axes of ≤ 25 µm after a nozzle change, which helps maintain consistency of subsequent layers and precision when working with multiple materials and colors. The device's design has been further optimized for high movement dynamics – according to the manufacturer, the implemented solutions increase the structure's stiffness by 30% . A stable frame is particularly important with print speeds of up to 500 mm/s and accelerations of up to 20,000 mm/s², as it helps reduce the impact of vibrations on the quality of the produced models.

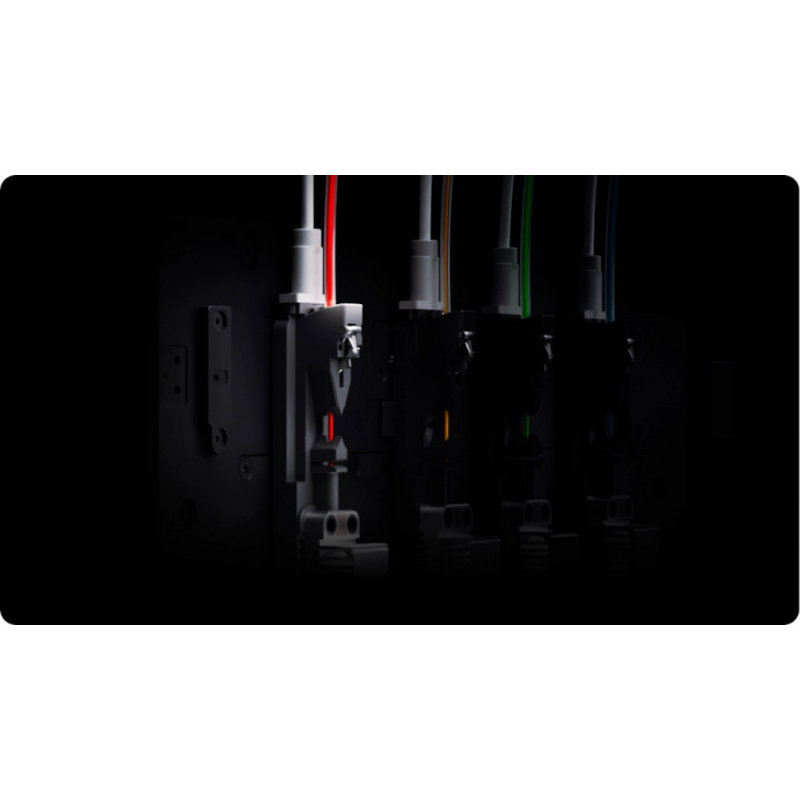

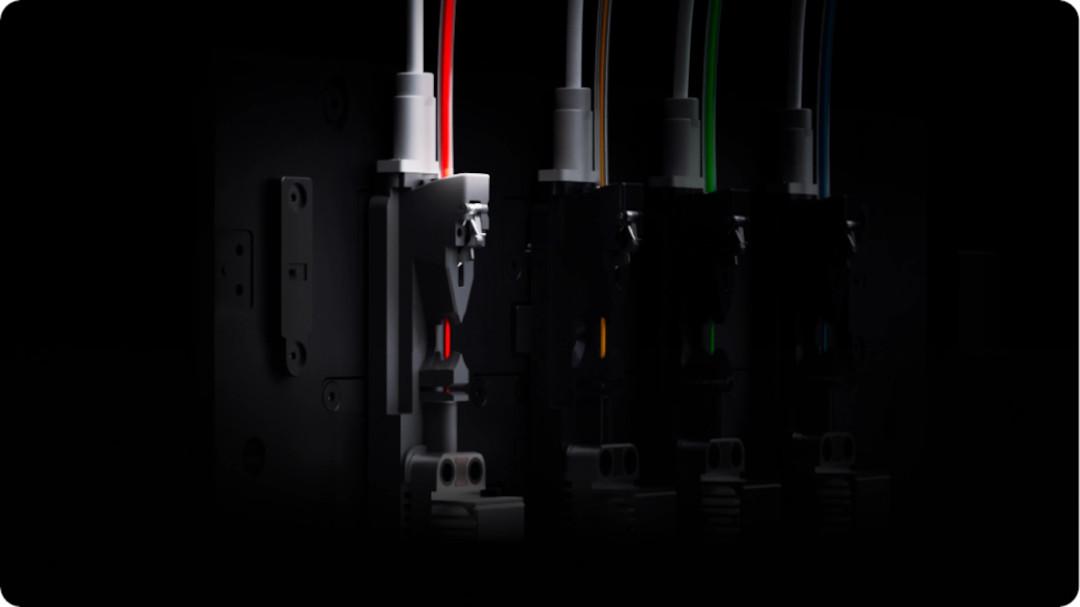

The Creality K3 features a USB-C Quick Swap design that simplifies nozzle assembly maintenance and servicing. The module integrates the nozzle, hotend, and filament path , allowing the key components responsible for melting and feeding material to form an easily accessible assembly. To disassemble, simply unscrew two screws and disconnect the USB-C connector , allowing for quick removal of the entire module without time-consuming head disassembly. This solution can reduce downtime related to maintenance, cleaning, or replacing printer consumables.

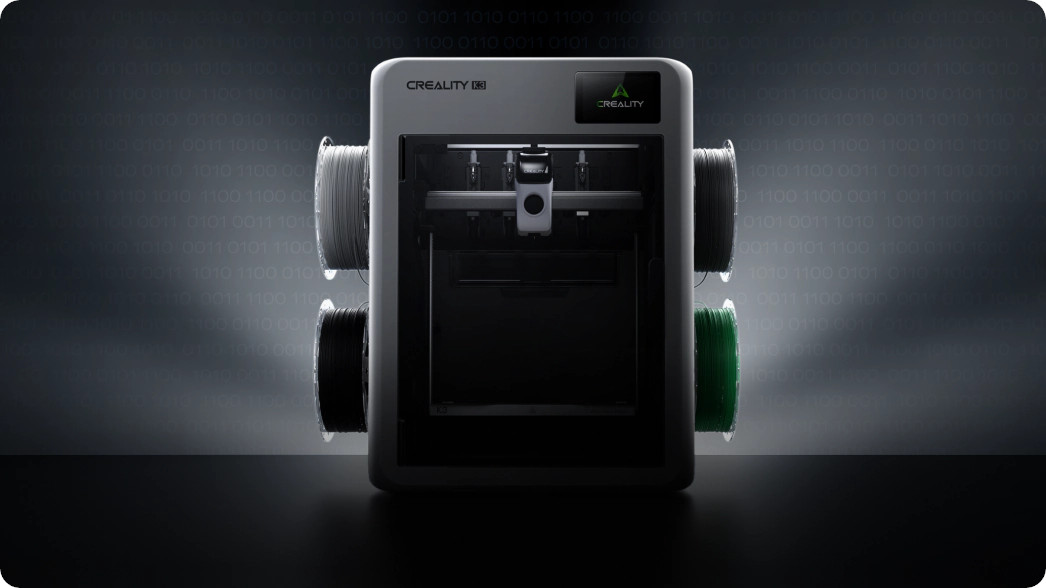

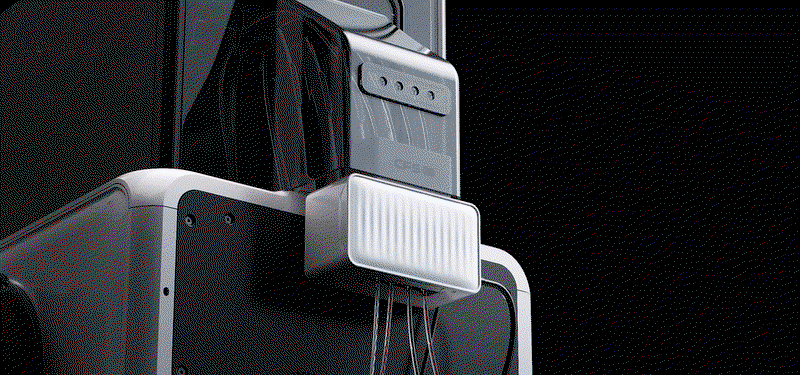

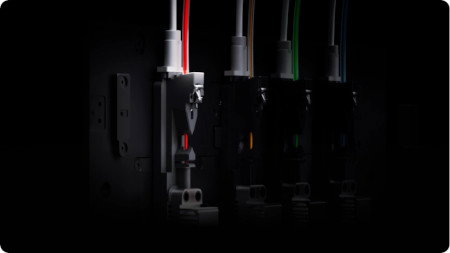

The Creality K3 ecosystem expands multi-material printing capabilities with automatic identification of compatible Creality filaments equipped with RFID . The system can recognize information about material type and color, simplifying job setup and reducing the number of parameters requiring manual adjustments. Four filament channels allow for the creation of complex multi-color designs, and the Creality Print software allows for the management of materials, nozzles, and print parameters in a single environment. The software also includes features for controlling TPU threading, optimizing connections between different materials, and preparing support structures.
