Hobby Motor - mini DC motor M260 1-3V - SparkFun ROB-11696

Index: SPF-20804 EAN: 5904422379063
A small metal DC motor equipped with a gear wheel placed on the shaft. The wheel has a diameter of 6 mm and 10 teeth, drives other parts without much resistance, allows you to create simple projects such as a fan. The motor is powered by 1 V to 3 V DC, the maximum voltage can be 12 V DC. Its speed, no load, is 6600 ± 10% RPM (when supplied with 1 V DC, 110 mA). The motor shaft movement is clockwise.
Hobby Motor - mini DC motor M260 1-3V - SparkFun ROB-11696
€2.00
€1.63 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SparkFun

Description: Hobby Motor - Mini Motor M260 1-3 V - SparkFun ROB-11696

A small, metal DC motor equipped with a gear wheel located on the shaft. The wheel has a diameter of 6 mm and 10 teeth, drives other elements in rotation without much resistance, allows you to create simple projects such as a fan. The motor is powered by 1 V to 3 V DC, the maximum voltage can be 12 V DC. Its speed, no load, is 6600 ± 10% RPM (when supplied with 1 V DC, 110 mA). The movement of the motor shaft is clockwise. There are two wires soldered to the motor, red and black, terminated with a standard BLS male connector. Although the data sheet of the motor indicates the maximum supply voltage of 3 V DC, the motor can be supplied with up to 12 V DC.

In our store you can find a wide range of DC motors, we invite you to familiarize yourself with other models.

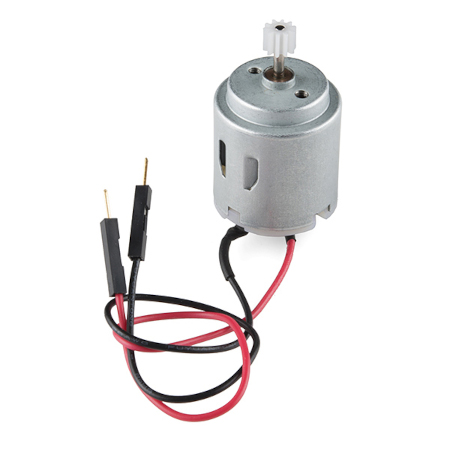

Niewielki silnik metalowy DC z kołem zębatym

A metal DC motor equipped with a gear wheel.

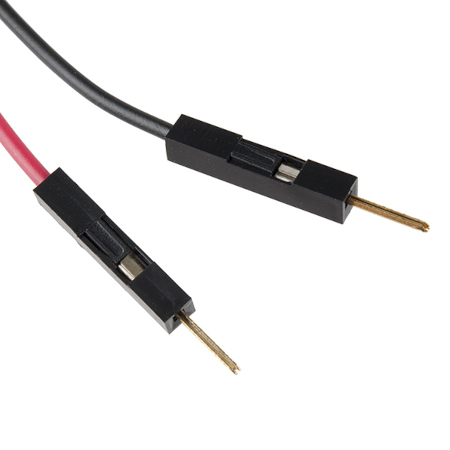

Silnik z przewodamiThe motor comes with BLS cables.

DC motor specifications

  • Nominal supply voltage: 3 V DC
  • Supply voltage range: 1 V to 3 V DC (max. 12 V)
  • Direction of rotation: clockwise
  • Storage temperature: from -5°C to 40°C
  • Storage humidity: 10% to 90%
  • No-load current consumption: 110 mA max
  • No-load speed: 6600 ± 10% RPM
  • No-load starting voltage: 1 V max
  • Current consumption when the shaft is stopped: 0.8 A
  • Isolation impedance: over 10 MΩ (min)
  • Net weight: 26 g

Voltage to 1.0 V
Voltage from 12.0 V
Motor - current 110 mA
Rotation speed 6600 rpm
Motor - shaft 6 mm
Voltage nominal 3.0 V
Package width 7 cm
Package height 8 cm
Package depth 2.5 cm
Package weight 0.03 kg
