Product description: ZD-8915 desoldering station - 90 W
The ZD-8915 desoldering station combines a heated nozzle with an automatic solder extraction system , streamlining the removal of electronic components from PCBs . A built-in compressor generates vacuum when the gun trigger is pressed, allowing you to remove molten solder without the need for a separate manual suction unit. A 90W ceramic heater , peaking at 200W during heating, ensures the station is quickly ready for operation. Microprocessor control allows for temperature regulation from 160°C to 480°C with a resolution of 1°C . A clear, backlit LCD display shows the set and currently measured temperature at the desoldering tip.

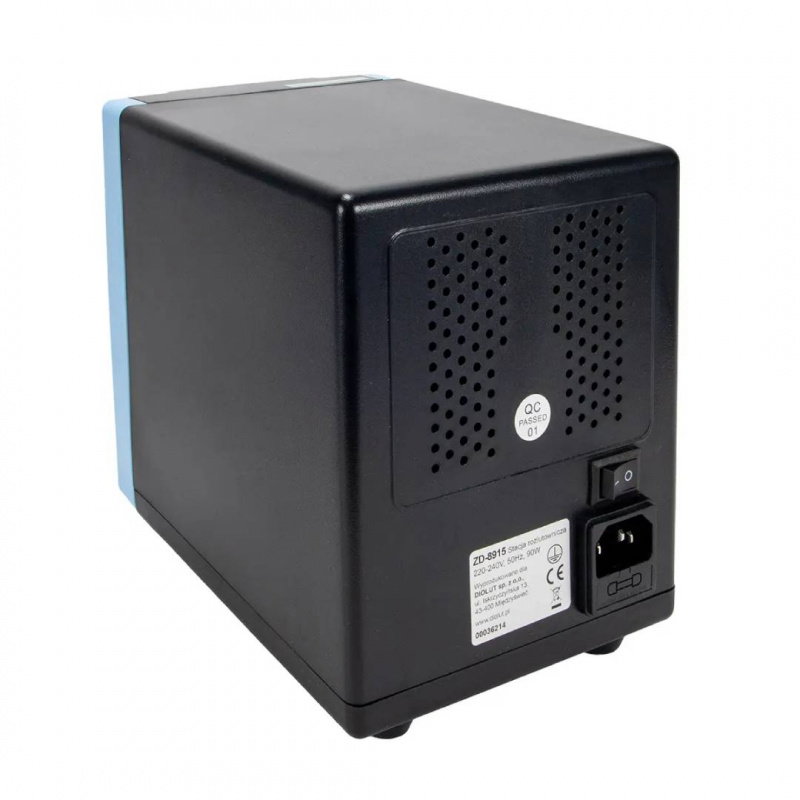

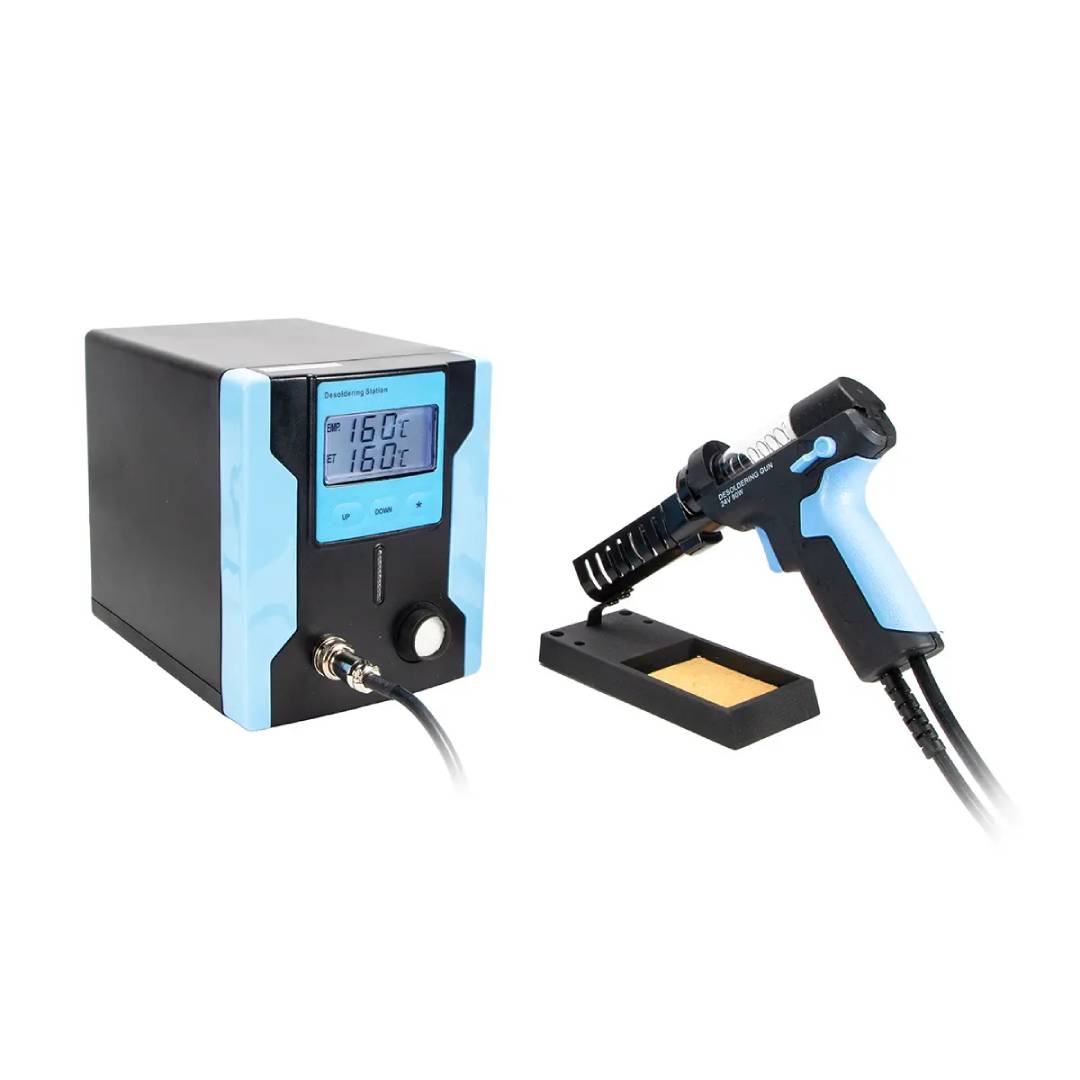

Desoldering station ZD-8915 - 90 W.
The combination of a heated nozzle with automatic solder extraction facilitates the removal of components from PCBs.
Main features of the ZD-8915 desoldering station
- Automatic solder extraction : built-in vacuum pump facilitates the removal of molten solder from solder pads and holes
- 90 W ceramic heater : ensures efficient tip heating during service work
- Instantaneous power during heating up to 200 W : allows you to quickly prepare the station for work
- Temperature adjustment from 160°C to 480°C : allows you to adjust the parameters to the type of work being performed
- 1°C adjustment resolution : allows you to precisely set the operating temperature
- Microprocessor temperature control : responsible for controlling and stabilizing parameters during desoldering
- Backlit LCD display : allows you to read the set temperature and the current tip temperature
- 600 mmHg vacuum : supports effective suction of hot tin

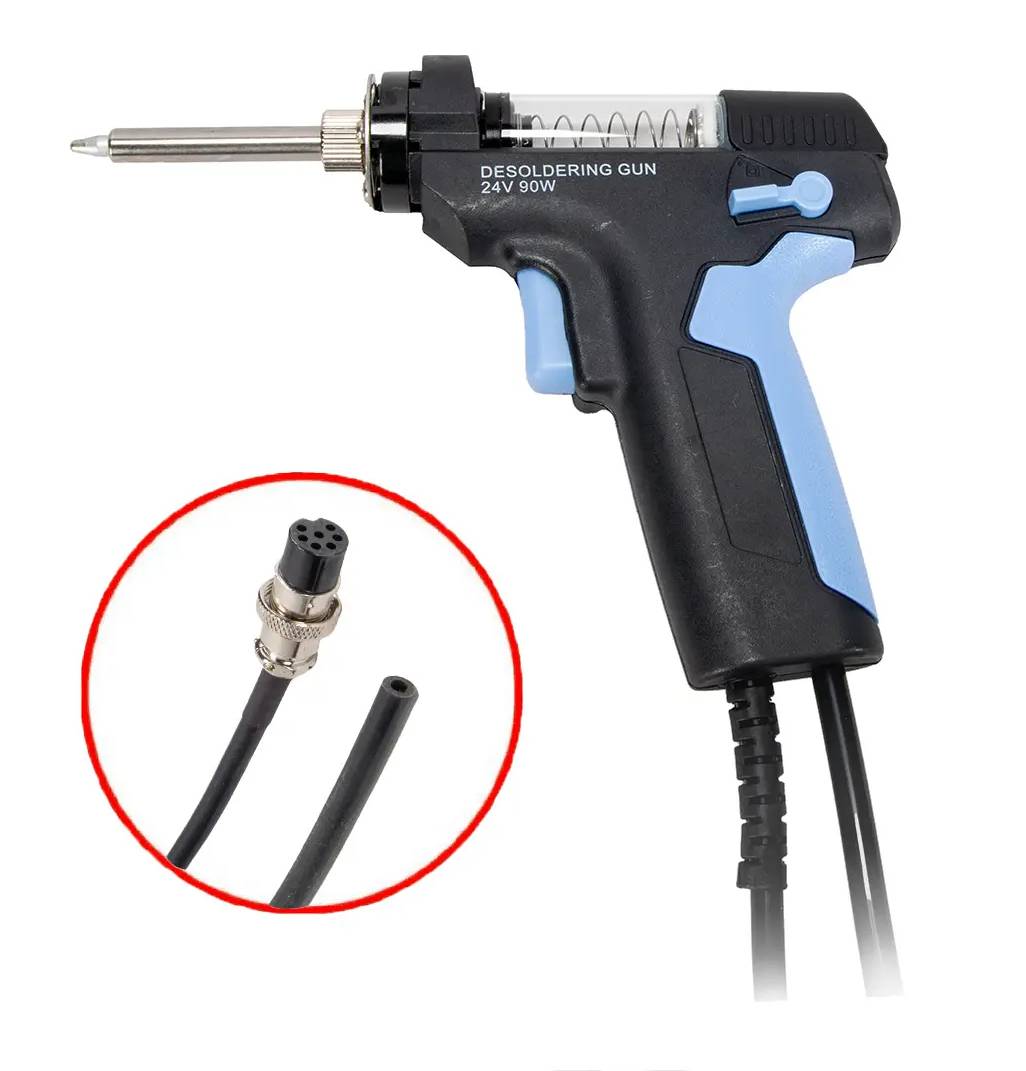

- Desoldering gun : combines the function of solder heating and its suction, making it easier to work with THT components
- Consumable accessories included : additional tips, filters and cleaning rods make it easier to start work and maintain the station on an ongoing basis.
Application of the ZD-8915 station in electronics servicing
The ZD-8915 desoldering station is primarily useful for removing THT through-hole components from printed circuit boards (PCBs) . It allows for simultaneous solder heating and extraction, streamlining component replacement and cleaning mounting holes. It can be used for electronics repairs, service work, prototyping, and recovering functional components from unused boards . The automatic extraction system is particularly useful when working with components with multiple leads, where manual solder removal would be more time-consuming.

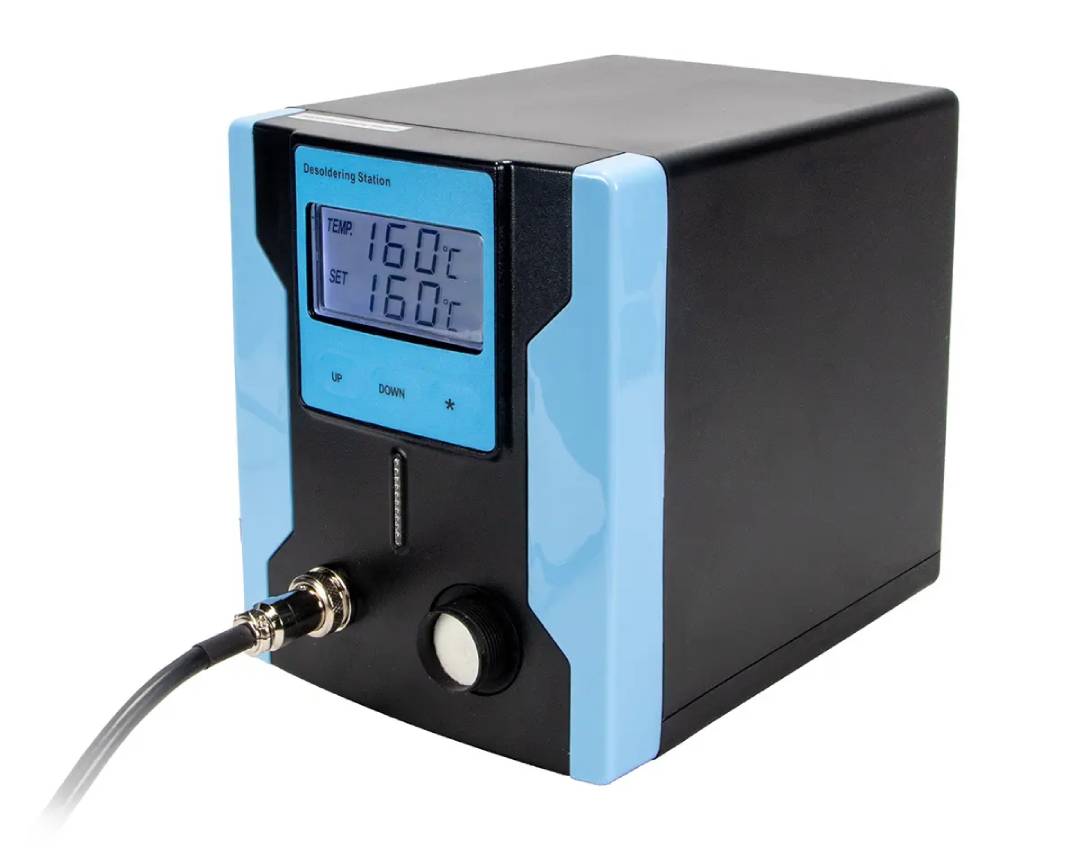

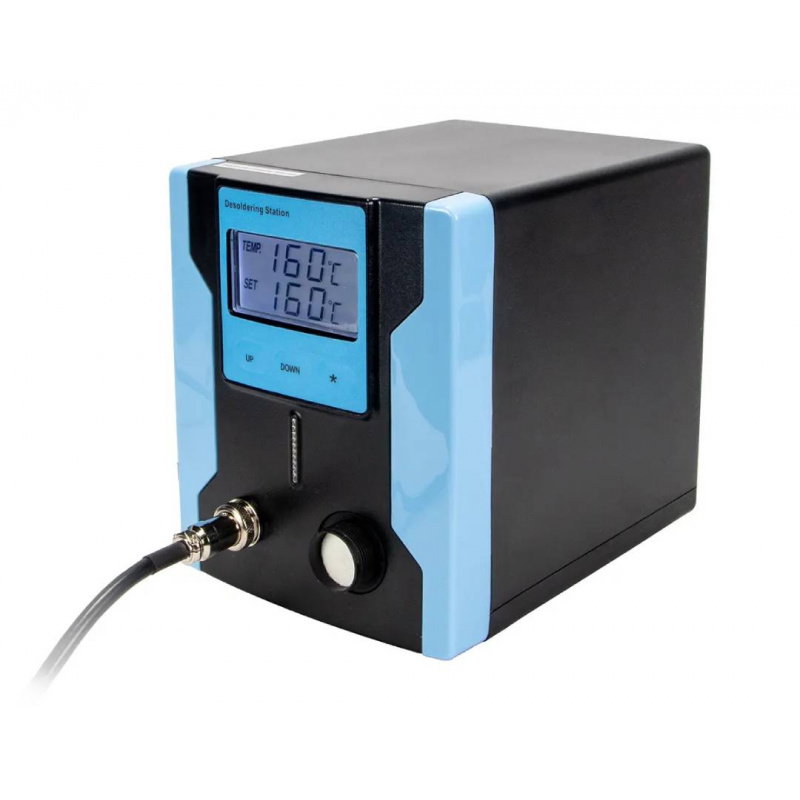

Digital regulation ranging from 160°C to 480°C allows you to adjust the parameters to the service work being performed.

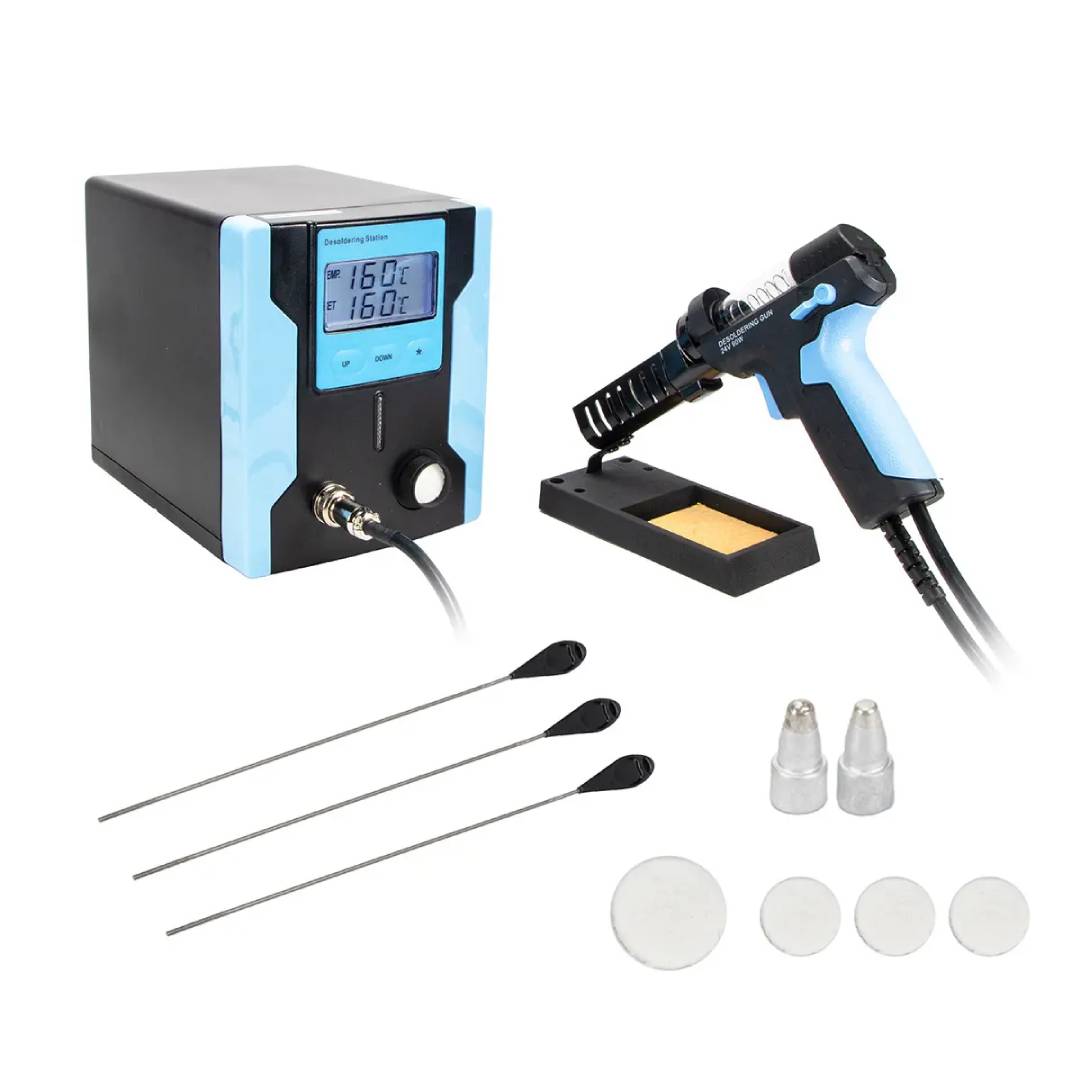

Elements included in the set.
Technical specifications of the ZD-8915 desoldering station
- Model: ZD-8915
- Type: desoldering station with automatic solder suction
- Supply voltage: 220 V to 240 V AC
- Heater power: 90 W
- Instantaneous power during heating: up to 200 W
- Temperature control range: 160°C to 480°C
- Temperature control resolution: 1°C
- Temperature control: digital, microprocessor
- Display: LCD with backlight
- Temperature measurement: desoldering tip temperature reading
- Pump vacuum: 600 mmHg
- Heater type: ceramic
- Dimensions: 14 x 17 x 19 cm
Contents of the set
- ZD-8915 desoldering station
- Desoldering gun with installed tip
- Gun stand with a sponge for cleaning the tip
- 2 spare tips
- Spare filters
- 3 cleaning rods designed for different tip diameters
- Adapter for connecting the station to the gun
- Power cord
