Product description: Grove - Cable Pigtail - 4-pin connecting cable - 10 cm - Adafruit 5244

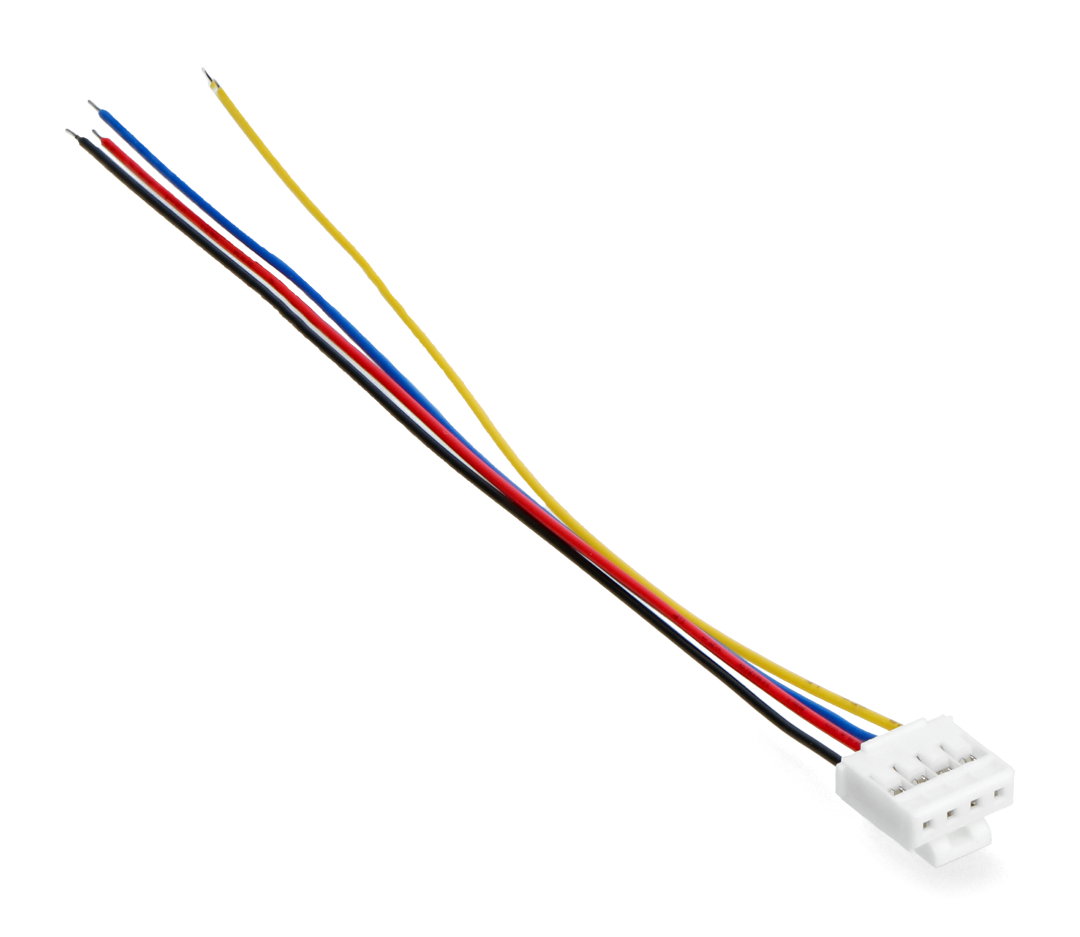

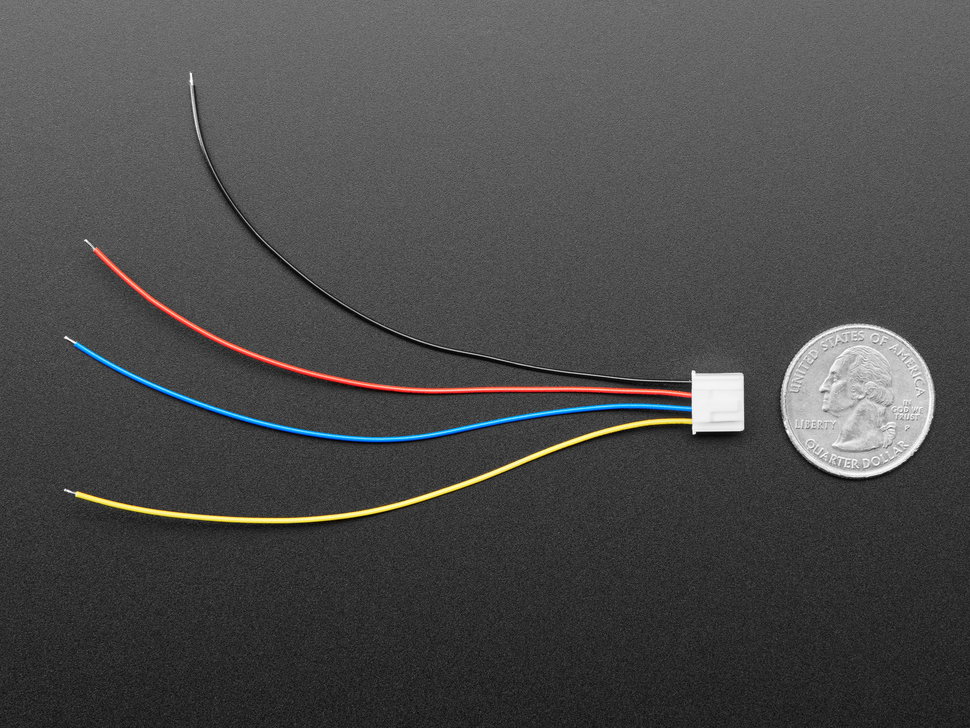

Connection cable from Adafruit. On one side it has four isolated wires (each in a different color), and on the other side it has a connector compatible with the Grove standard. The cable length is 100 mm , with a tolerance of about 5 mm . The cable can be used for quick connection and prototyping of modules with a microcontroller, eg Arduino and peripherals that have a Grove connector.
Kit contents
- Grove - Cable Pigtail - 4-pin connecting cable - 10 cm - Adafruit 5244 - 1 piece
Technical specification of the cable
- Connector standard: Grove
- Core termination: stranded wires
- Number of pins: 4
- Raster: 2 mm
- Core designation:
- black - the ground of the system
- red - 3 V / 5 V power supply
- blue - data line of the I2C bus
- yellow - clock line of the I2C bus
- Cable length: 100 mm (+/- 5 mm)
- Number of pieces in the set: 1 piece
The subject of the sale is a cable with a Grove 2 mm connector, which is not compatible with JST PH sockets.
