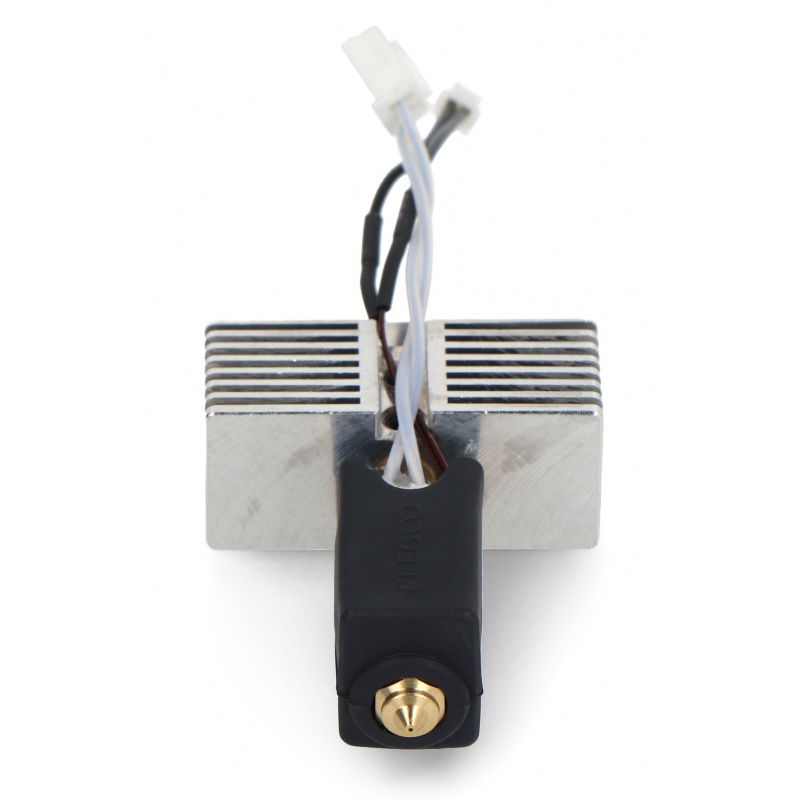

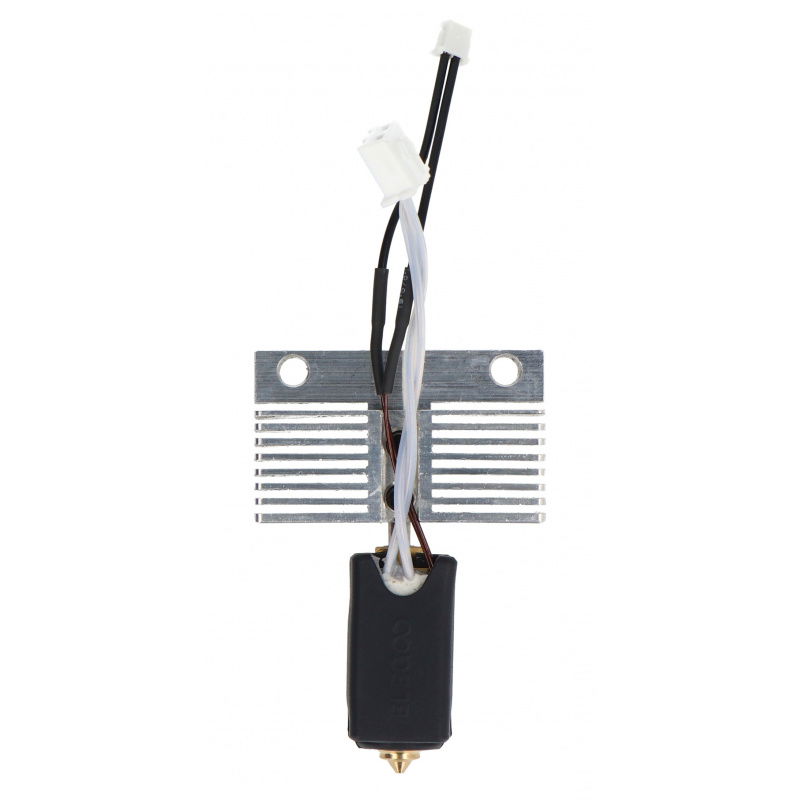

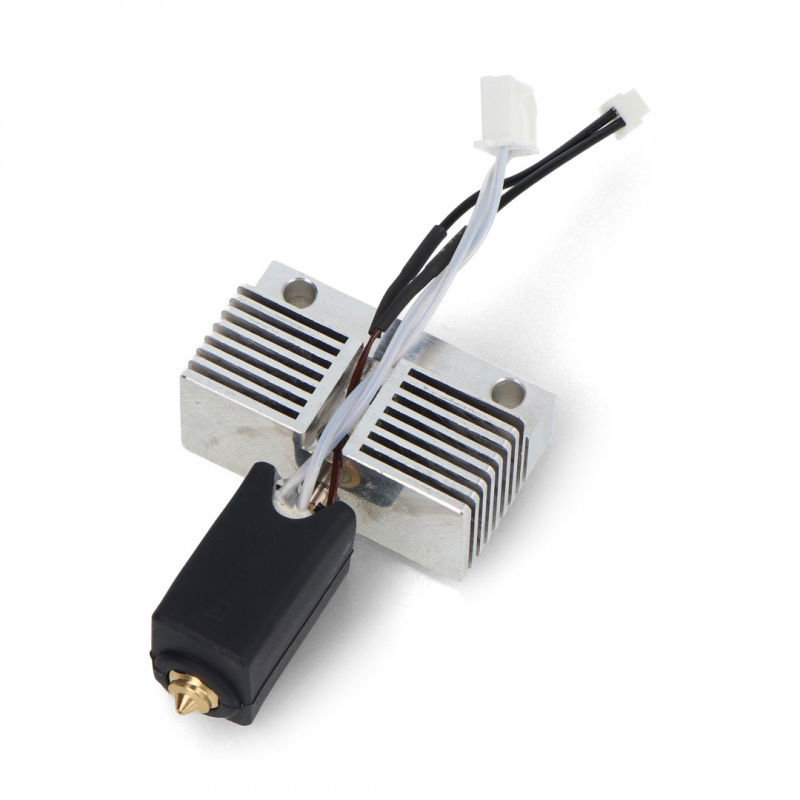

Product description: 0.4 mm hotend head for Elegoo Neptune 4 Plus / 4 Max 3D printers
The Elegoo Neptune 4 Plus and Neptune 4 Max 3D printer hotend is a complete solution for upgrading or replacing your extruder's heating system. The kit includes a 0.4mm brass nozzle , a 60W ceramic heating element, a titanium alloy thermal tube, a brass heater block, a PTFE tube , and an aluminum heatsink . The hotend supports temperatures up to 300°C , enabling printing with a wide range of filaments , including high-temperature materials.
0.4mm hotend head for Elegoo Neptune 4 Plus / 4 Max 3D printers.
The hotend has a nozzle with a hole diameter of 0.4 mm.
Main features of the hotend
- Complete assembled kit: includes all necessary hotend components - nozzle, tubes, heater block and mounting hardware
- 0.4mm brass nozzle: ideal for precise technical and decorative printing
- Titanium alloy heat pipe: ensures efficient heat dissipation and reduces the risk of blockages
- 60W ceramic heater: fast heating and stable temperature even during high-speed printing
- Brass Heater Block: Ensures even temperature distribution along the entire length of the hotend
- Aluminum heatsink: increased cooling surface - better thermal control
- Easy installation: the kit includes screws and standard connectors to fit Neptune 4 Plus / 4 Max heads
Practical applications
The Elegoo Neptune 4 Plus and 4 Max 3D printer hotend enables precise and stable printing with a wide range of filaments , such as PLA , PETG , TPU , ABS , and nylon . Thanks to its high-temperature hotend with a ceramic heater and titanium heat pipe, it's ideal for printing technical and mechanical components and highly detailed models.
Hotend technical specifications
- Compatibility: Elegoo Neptune 4 Plus, Neptune 4 Max
- Nozzle diameter: 0.4 mm
- Nozzle material: brass
- Maximum operating temperature: 300°C
- Thermal tube: made of titanium alloy
- Heating element: ceramic, power 60 W
- Heating block: brass
- Heatsink: aluminum, widened for better heat dispersion
Contents of the set
- 1x 0.4mm Hotend Head for Elegoo Neptune 4 Plus / 4 Max 3D Printers
The head is dedicated to Elegoo Neptune 4 Plus and 4 Max 3D printers.
