Hotend for Snapmaker 2.0

Index: SNM-19179 EAN: 6971573442037

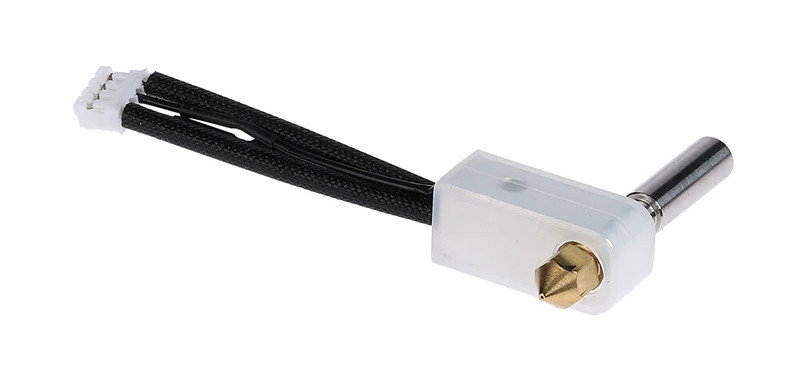

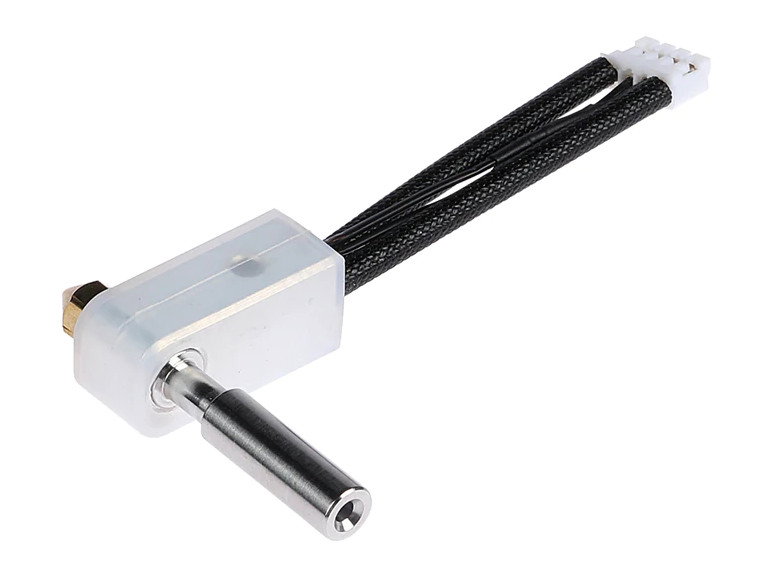

Original spare part designed to work with 3D printing module, which is equipped with Snapmaker version 2.0. It is a fully integrated kit ready to connect right out of the box. The kit consists of a heating tube and a heating block with dimensions of 24 x 12 x 10 mm. Inside the block, there are thermistors responsible for temperature control of the nozzle. The block is additionally protected with a casing made of flexible plastic.
Hotend for Snapmaker 2.0
€11.90
€9.67 tax excl.
Waiting time: 10-12 weeks
Temporarily unavailable
PayPal payment
Manufacturer: Snapmaker

Product description: Hotend head for Snapmaker 2.0

Originalspare part designed to work with the 3D printing module, which is equipped withSnapmakerversion 2.0. This is a fully integrated kit ready to connect right out of the box. The kit consists of a heating tube and a heating block with dimensions of24 x 12 x 10 mm. Inside the block, there arethermistorsresponsible for temperature control of the nozzle. The block is additionally protected with a casing made of flexible plastic. The set includes also factory mounted printing nozzle. Thediameter ofa hole from which afilamentwill be extruded is0,4 mm. The thermistors placed in the block have wires which end with an appropriateplug, which makes the process of head replacement much easier in case of its wear or damage. The head allows to print with filaments of the diameter of1.75 mm.

Oryginalna cześć zamienna wyprodukowana przez firmę Snapmaker.
Original spare part manufactured by Snapmaker.
Głowica jest w pełni gotowa do użycia.
The head is fully ready to use.

Technical specification

  • Dimensions of the heating block: 24 x 12 x 10 mm
  • Nozzle: 0,4 mm
  • Filament diameter: 1.75 mm
  • Connected wires with connector compatible with all Snapmaker 2.0 devices

Package width 6 cm
Package height 8 cm
Package depth 3 cm
Package weight 0.016 kg
