Product description: LattePanda 3 Delta 864 - 8 GB RAM + 64 GB eMMC Intel Celeron N5105
LattePanda 3 Delta 864 is the next installment in this series. The minicomputer is based on a quad-core Intel 11th generation processor - Celeron N5105 clocked from 2.0 GHz to 2.9 GHz with the Intel UHD Graphic graphics system clocked from 450 MHz to 800 MHz. Delta 864 has 8 GB of LPDDR4 RAM clocked at 2933 MHz and 64 GB of eMMC v5.1 memory . The ATmega32U4 coprocessor, compatible with Arduino Leonardo , allows you to program in Arduino with the use of numerous libraries. The built-in wireless communication system allows for WiFi 6 2.4 GHz and 5 GHz communication, as well as Bluetooth 5.2 . The device is equipped with numerous interfaces, such as USB 3.2, USB C, HDMI, DisplayPort, Ethernet Gigabit, and a TPM 2.0 module. LattePanda minicomputer works with Linux and Windows.
The manufacturer has prepared a detailed user guide , which greatly facilitates the start of working with a minicomputer - check it out!

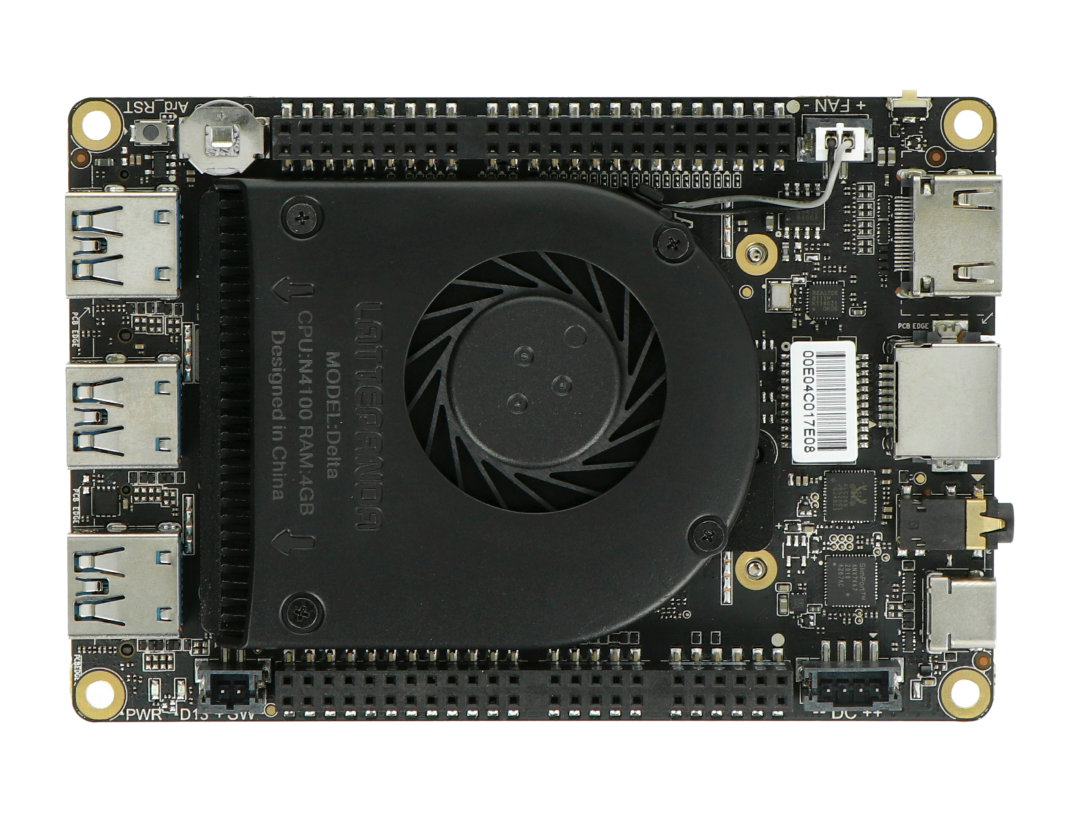

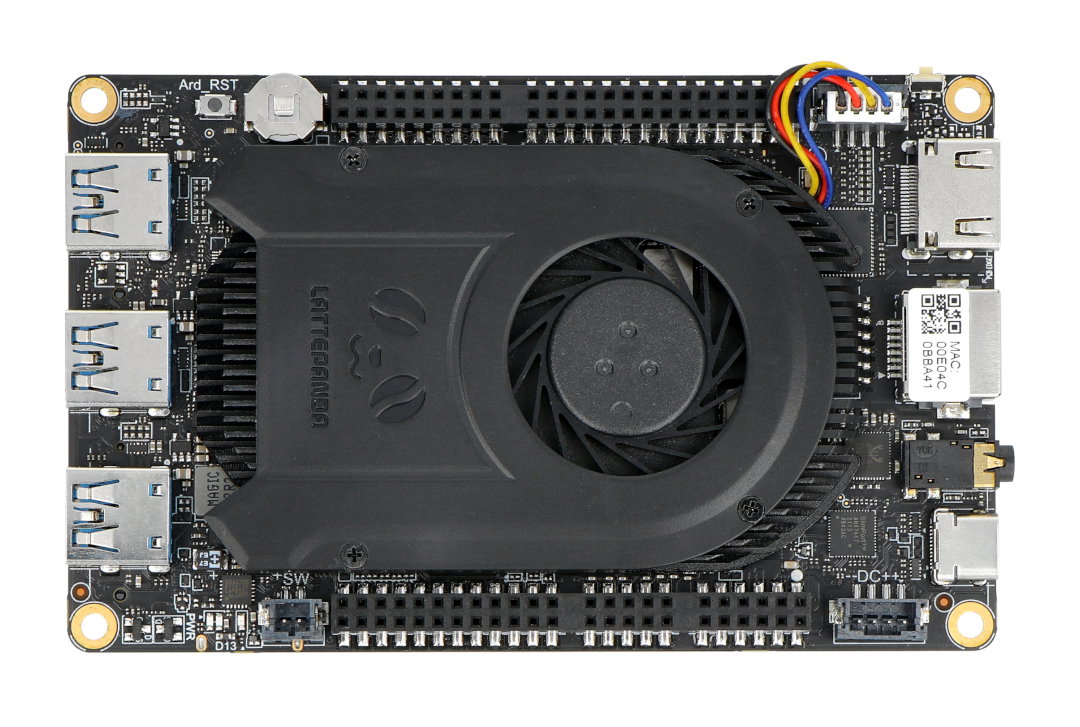

LattePanda 3 Delta 864 - 8 GB RAM + 64 GB eMMC Intel Celeron N5105.
USB 3.2 connectors on the LattePanda 3 Delta 864.Main features of LattePanda 3 Delta 864
- Enhanced CPU Performance - Based on the 11th Generation N5105 quad-core processor and offers much better performance.
- More RAM and eMMC - Equipped with 8 GB of LPDDR4 RAM and 64 GB of eMMC memory, ensures high performance and multitasking.
- Ultra-fast connectivity - it has a WiFi 6 communication system and a gigabit Ethernet port.
- Higher data transfer speed - 1x USB 3.2 gen2, 2x USB 3.2 gen1 and 1x USB Type-C ensure high data transfer speed, they are up to 10 times faster than USB 2.0.
- Dual 4K HDR and 3-way video output - HDMI, DisplayPort over USB-C and eDP for great flexibility.
- Rich IO interfaces and Arduino ATmega32U4 coprocessor - compatible with over 200 sensors and actuators.
- It supports Windows 10 and Windows 11 , as well as Linux systems.
Our store also offers a version with activated Windows 10 Enterprise .

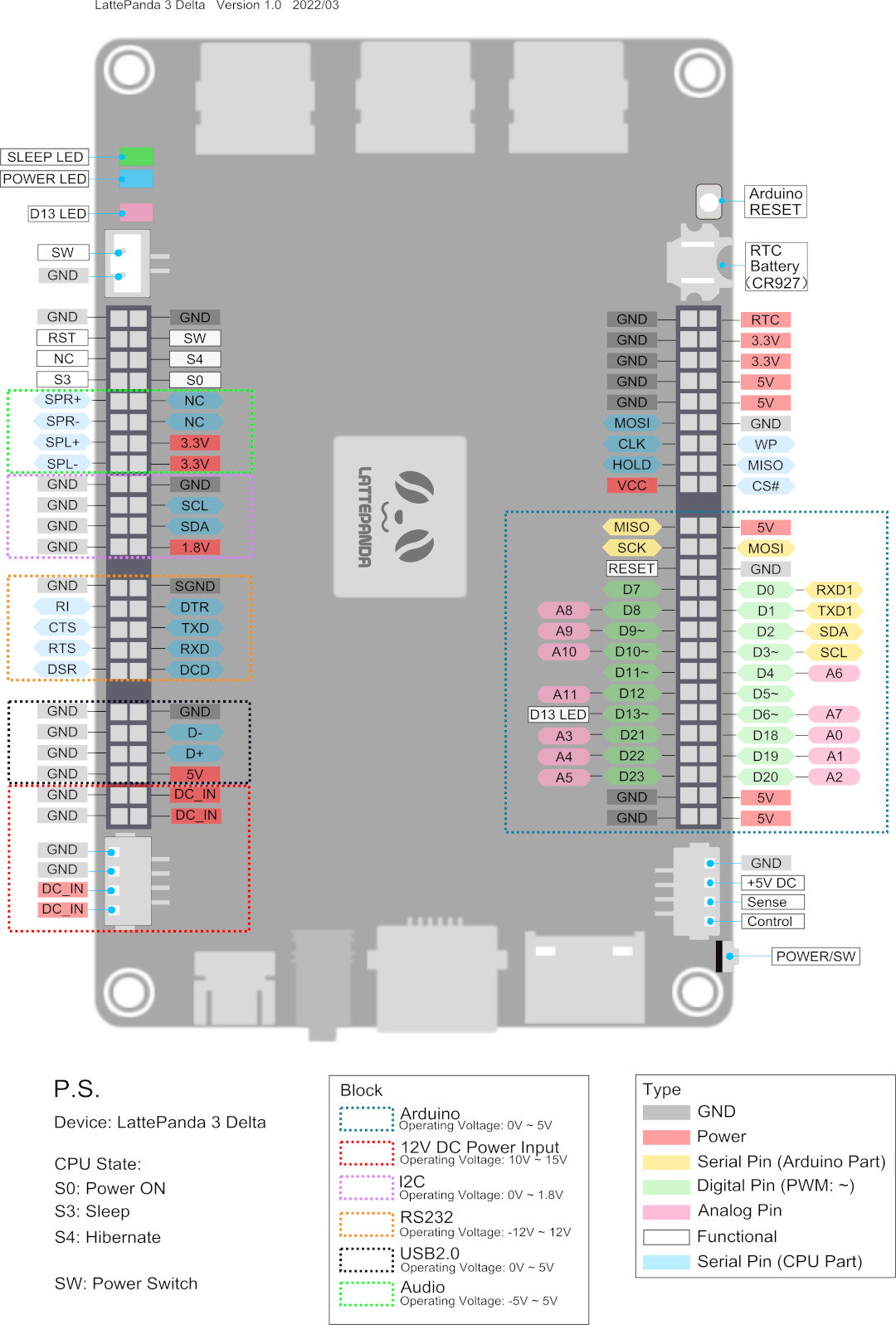

The distribution of elements on the LattePanda 3 Delta board
- GPIO pins
- RTC
- USB 3.2 Gen2
- 2x USB 3.2 Gen1
- System switch - pin
- System control and signal pin
- 2-channel audio output
- RS232
- USB 2.0 on pin connectors
- DC 12V power port
- USB type C - display, Hub, PD power
- Headphone jack
- Gigabit Ethernet
- HDMI 2.0b
- System switch - button
- Variable speed fan connector
- Arduino outputs

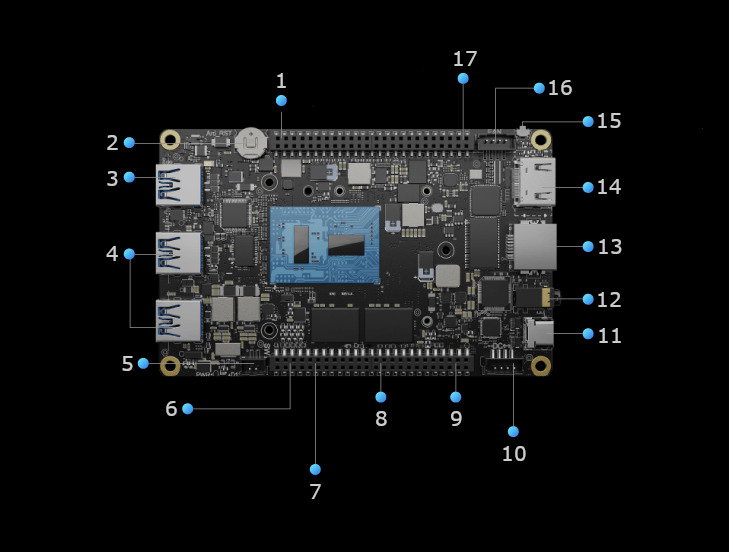

The distribution of elements on the board.

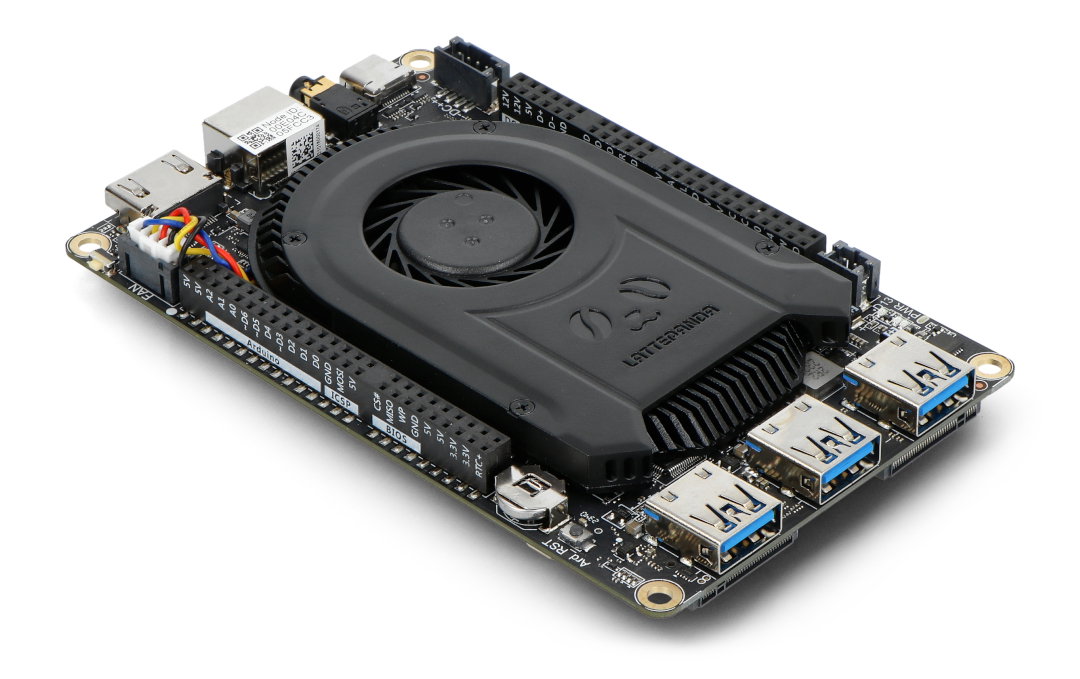

Minicomputer with built-in active cooling.What is needed to run LattePanda?
- Power supply - a dedicated 45 W power supply is included in the set
- HDMI cable - to connect the monitor to the minicomputer
- Keyboard and mouse - for controlling and inputting data into the device
- Operating system such as Windows 10, Windows 11 or Linux
First launch of LattePanda Delta
Minicomputer LattePanda 3 Delta 864 has a built-in eMMC memory with a capacity of 64 GB, on which the operating system can be installed. Commissioning the device is extremely simple, just follow the instructions below. For more information, see the user guide.
- Plug the WiFi antenna into the socket
- Connect the HDMI cable to the monitor
- Connect the mouse and keyboard
- Then connect the power to the USB Type-C port using the supplied power adapter
- Press and hold the power button for approximately 1 second. The built-in blue LED will illuminate and the operating system will start up. The default is Windows 10.
Communication of the minicomputer LattePanda Delta
LattePanda 3 Delta is equipped with basic communication interfaces, which are often found in office PCs. The following are at the user's disposal:
- Four connectors: 2x USB 3.2 gen1 type A, 1x USB 3.2 gen2 type A, USB type C
- Gigabit Ethernet port with which you can transfer data via Ethernet with speeds up to 1000 Mb / s
- Dual-band WiFi 6 module - enables communication with the 802.11 ac wireless network
- Bluetooth 5.2 module - allows you to transfer data via a popular interface
- GPIO - general-purpose outputs / inputs that can be used to operate many peripheral devices, including LEDs , buttons or motor drivers.

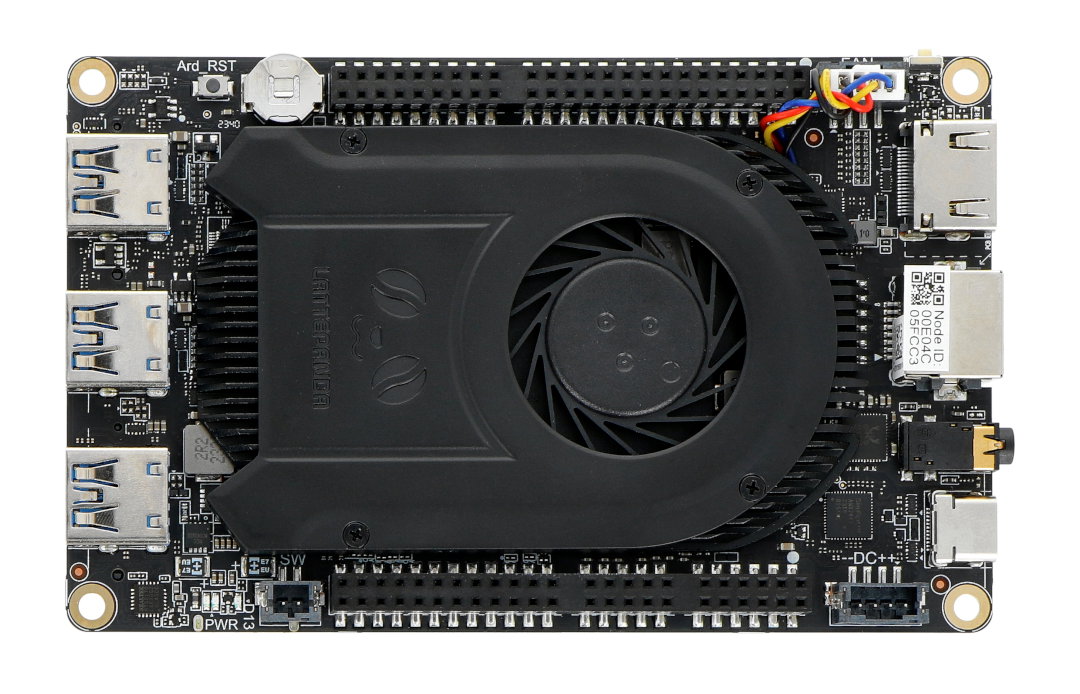

Leads of the minicomputer LattePanda 3 Delta 864.
LattePanda Delta specification and comparison
| Basic information | ||
|---|---|---|
 |
 |
|
| Model | LattePanda 3 Delta 864 | LattePanda Delta 432 |
| Technical Specifications | ||
| Chipset processor | Intel Celeron N5105 | Intel Celeron N4100 |
| Number of cores | 4 (Quad Core) | 4 (Quad Core) |
| Operating Systems | Windows Linux For self-installation |
Windows Linux For self-installation |
| Timing | from 2.0 GHz to 2.9 GHz | 2.4 GHz |
| RAM | 8 GB LPDDR4 | 4 GB LPDDR4 |
| EMMC memory | 64 GB (built-in) | 32 GB (built-in) |
| Coprocessor | Atmega32u4 compatible with Arduino Leonardo supports GPIO |
Atmega32u4 compatible with Arduino Leonardo supports GPIO |
| Graphics | Intel UHD Graphic 450 - 800 MHz |
Intel UHD Graphics 600 200 - 700 MHz |
| GPIO slot | 2x 2x24-pin female connector | 2 x 2x25-pin female connectors |
| Number of GPIO | 2 x 48 | 2 x 50 |
| Tile dimensions | 125 x 78 x 16 mm | 115 x 78 x 14 mm |
| Interfaces | ||
| USB interface |
2x USB 3.2 Gen1 - type A |
3x USB 3.0 - type A 1x USB 3.0 - type C |
| Network interface | Ethernet 10/100/1000 Mbps port | Ethernet 10/100/1000 Mbps port |
| WiFi interface | Dual Band 2.4 GHz and 5 GHz | Dual Band 2.4 GHz and 5 GHz 802.11 b / g / n / ac |
| Bluetooth | BLE 5.2 | BLE 5.0 |
| Touch display | dedicated socket | dedicated socket |
| Video |
1x HDMI 2.0b - up to 4096 x 2160 px @ 60 Hz HDR |
HDMI HD 4K eDP |
| Audio | microphone and headphone connector | HDMI + audio jack |
| Communication | 12x analog inputs 23x digital I / O (7 PWM) 1x UARR 1x I2C 1x SPI 1x audio 1x RS232 4-pin 1x fan connector 1x 4-pin connector (power and switch) 1x M.2 B key - 4G / 5G module, SATA SSD 1x M.2 M Key - NVMe SSD |
UART, I2C, I2S, GPIO, TTL, RTC |

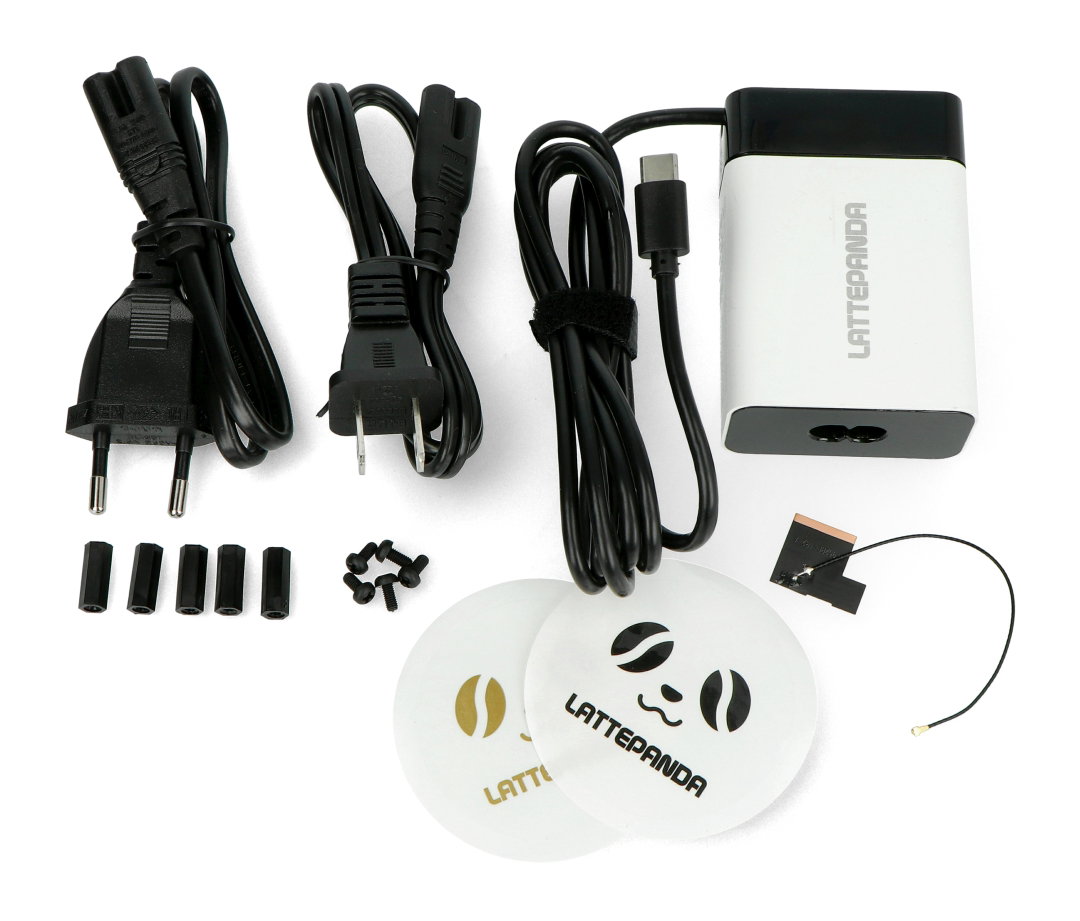

The set includes the LattePanda Delta module and the necessary accessories.
Kit contents
- LattePanda 3 Delta 864
- Active cooling fan (built-in)
- 45W PD Power Adapter (with standard EU and US power cord)
- Dual band antenna
- RTC battery (built-in)
- Mounting elements: spacers and screws
- User manual
