LattePanda 3 Delta 864 - 8GB RAM + 64GB eMMC Intel Celeron N5105 - Windows 10
LattePanda 3 Delta 864 is the next installment in this series. This version is licensed under Windows 10 Enterprise . The minicomputer was based on the 11th generation Intel processor - Celeron N5105 Quad-Core clocked from 2.0 GHz to 2.9 GHz. The processor has a built-in Intel UHD Graphic graphics system clocked from 450 MHz to 800 MHz. The board is equipped with 8 GB of LPDDR4 RAM clocked at 2933 MHz and 64 GB of eMMC v5.1 memory . The ATmega32U4 coprocessor, compatible with Arduino Leonardo, allows you to program in Arduino with the use of numerous libraries. The built-in wireless communication system allows for WiFi 6 2.4 GHz and 5 GHz communication, as well as Bluetooth 5.2 .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LattePanda 3 Delta 864 - 8 GB RAM + 64 GB eMMC Intel Celeron N5105
LattePanda 3 Delta 864 is the next installment in this series. This version is licensed under Windows 10 Enterprise . The minicomputer was based on the 11th generation Intel processor - Celeron N5105 Quad-Core clocked from 2.0 GHz to 2.9 GHz. The processor has a built-in Intel UHD Graphic graphics system clocked from 450 MHz to 800 MHz. The board is equipped with 8 GB of LPDDR4 RAM clocked at 2933 MHz and 64 GB of eMMC v5.1 memory . The ATmega32U4 coprocessor, compatible with Arduino Leonardo , allows you to program in Arduino with the use of numerous libraries. The built-in wireless communication system allows for WiFi 6 2.4 GHz and 5 GHz communication, as well as Bluetooth 5.2 . The device is equipped with numerous interfaces, such as USB 3.2, USB C, HDMI, DisplayPort, Ethernet Gigabit, and a TPM 2.0 module.
The manufacturer has prepared a detailed user guide , which greatly facilitates the start of working with a minicomputer - check it out!
LattePanda 3 Delta 864 - 8 GB RAM + 64 GB eMMC Intel Celeron N5105.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
USB 3.2 connectors on the LattePanda 3 Delta 864.
Main features of LattePanda 3 Delta 864
- Increased processor performance - The 11th generation N5105 Quad-Core processor is characterized by very good performance.
- More RAM and eMMC - 8 GB of LPDDR4 RAM and 64 GB of eMMC memory, ensures high performance and multitasking.
- Ultra-fast connectivity - WiFi 6 wireless communication and gigabit Ethernet port.
- Higher data transfer speed - 1x USB 3.2 gen2, 2x USB 3.2 gen1 and 1x USB Type-C ensure high data transfer speed, they are up to 10 times faster than USB 2.0.
- Dual 4K HDR and 3-way video output - HDMI, DisplayPort over USB-C and eDP for great flexibility.
- Rich IO interfaces and Arduino ATmega32U4 coprocessor - compatible with over 200 sensors and actuators.
- It supports Windows 10 and Windows 11 , as well as Linux systems. This version comes with a Windows 10 Enterprise license.
Our store also offers a version without the system .

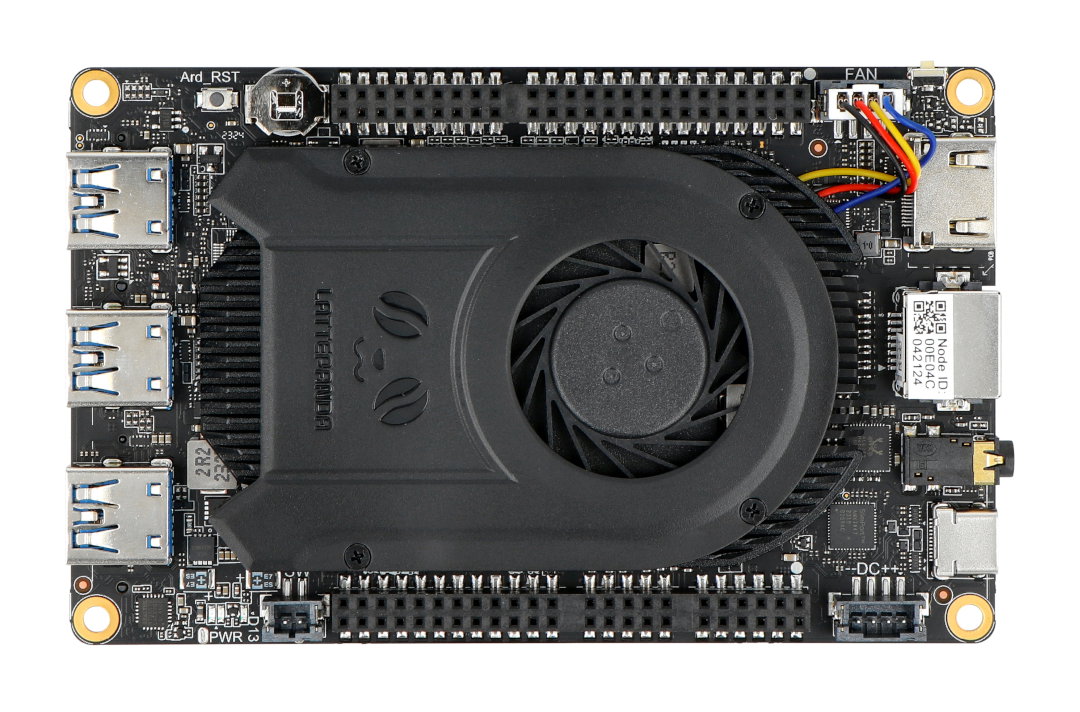

The distribution of elements on the LattePanda 3 Delta board
- GPIO pins
- RTC
- USB 3.2 Gen2
- 2x USB 3.2 Gen1
- System switch - pin
- System control and signal pin
- 2-channel audio output
- RS232
- USB 2.0 on pin connectors
- DC 12V power port
- USB type C - display, Hub, PD power
- Headphone jack
- Gigabit Ethernet
- HDMI 2.0b
- System switch - button
- Variable speed fan connector
- Arduino outputs
The distribution of elements on the board.

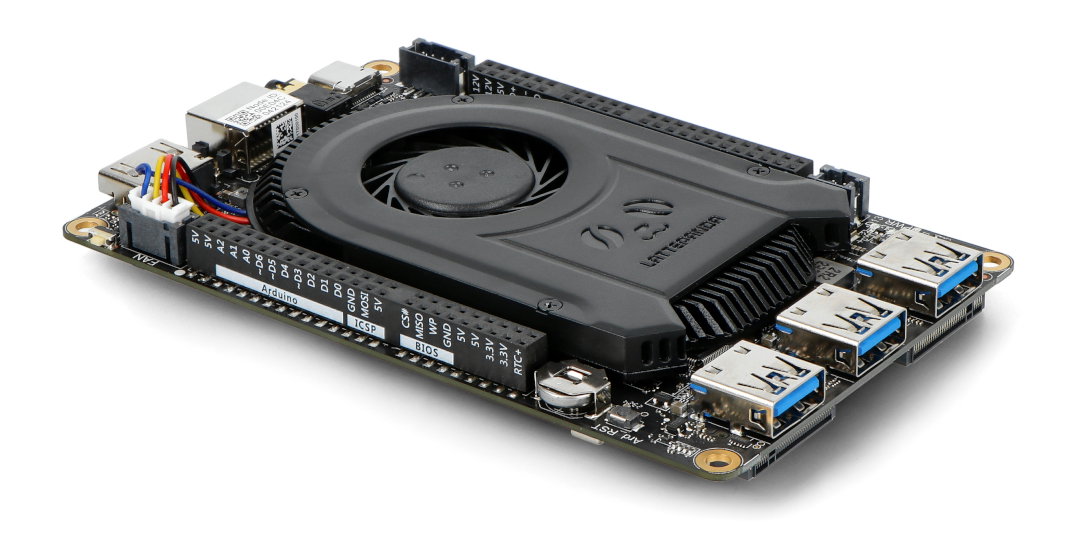

Minicomputer with built-in active cooling.
What is needed to run LattePanda?
- Power supply - a dedicated 45 W power supply is included in the set
- HDMI cable - necessary to connect the monitor with a minicomputer
- Keyboard and mouse - for controlling and entering data
- Operating system e.g. Windows 10, Windows 11 or Linux (license included)
First launch of LattePanda Delta
The LattePanda 3 Delta 864 board is equipped with eMMC memory with a capacity of 64 GB, on which the operating system can be installed. To run the board:
- Plug the WiFi antenna into the socket
- Connect the HDMI cable to the monitor
- Connect the mouse and keyboard
- Then connect the power to the USB Type-C port using the supplied power adapter
- Press and hold the power button for approximately 1 second. The built-in blue LED will illuminate and the operating system will start up. The default is Windows 10.
For more information, see the user guide.
Communication of the minicomputer LattePanda Delta
The board has basic communication interfaces that can also be found in office PCs. The following are at the user's disposal:
- Four connectors: 2x USB 3.2 gen1 type A, 1x USB 3.2 gen2 type A, USB type C
- Gigabit Ethernet socket with which you can transfer data over Ethernet at speeds up to 1000 Mb / s
- Dual-band WiFi 6 module - enables communication with the 802.11 ac wireless network
- Bluetooth 5.2 module - allows you to transfer data via a popular interface
- GPIO - general-purpose outputs / inputs that can be used to operate many peripheral devices, including LEDs , buttons or motor drivers.
Leads of the minicomputer LattePanda 3 Delta 864.
LattePanda Delta specification and comparison
Basic information
 |  | |
| Model | LattePanda 3 Delta 864 | LattePanda Delta 432 |
| Technical Specifications | ||
| Chipset processor | Intel Celeron N5105 | Intel Celeron N4100 |
| Number of cores | 4 (Quad Core) | 4 (Quad Core) |
| Operating Systems | Windows Linux For self-installation | Windows Linux For self-installation |
| Timing | from 2.0 GHz to 2.9 GHz | 2.4 GHz |
| RAM | 8 GB LPDDR4 | 4 GB LPDDR4 |
| EMMC memory | 64 GB (built-in) | 32 GB (built-in) |
| Coprocessor | Atmega32u4 compatible with Arduino Leonardo supports GPIO | Atmega32u4 compatible with Arduino Leonardo supports GPIO |
| Graphics | Intel UHD Graphic 450 - 800 MHz | Intel UHD Graphics 600 200 - 700 MHz |
| GPIO slot | 2x 2x24-pin female connector | 2 x 2x25-pin female connectors |
| Number of GPIO | 2 x 48 | 2 x 50 |
| Tile dimensions | 125 x 78 x 16 mm | 115 x 78 x 14 mm |
| Interfaces | ||
| USB interface | 2x USB 3.2 Gen1 - type A | 3x USB 3.0 - type A 1x USB 3.0 - type C |
| Network interface | Ethernet 10/100/1000 Mbps port | Ethernet 10/100/1000 Mbps port |
| WiFi interface | Dual Band 2.4 GHz and 5 GHz | Dual Band 2.4 GHz and 5 GHz 802.11 b / g / n / ac |
| Bluetooth | BLE 5.2 | BLE 5.0 |
| Touch display | dedicated socket | dedicated socket |
| Video | 1x HDMI 2.0b - up to 4096 x 2160 px @ 60 Hz HDR | HDMI HD 4K eDP |
| Audio | microphone and headphone connector | HDMI + audio jack |
| Communication | 12x analog inputs 23x digital I / O (7 PWM) 1x UARR 1x I2C 1x SPI 1x audio 1x RS232 4-pin 1x fan connector 1x 4-pin connector (power and switch) 1x M.2 B key - 4G / 5G module, SATA SSD 1x M.2 M Key - NVMe SSD | UART, I2C, I2S, GPIO, TTL, RTC |
The set includes the LattePanda Delta module and the necessary accessories.
Kit contents
- LattePanda 3 Delta 864
- Active cooling fan (built-in)
- 45W PD Power Adapter (with standard EU and US power cord)
- Dual band antenna
- RTC battery (built-in)
- Mounting elements: spacers and screws
- User manual
- Windows 10 IoT Enterprise activation code
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | N5105 |
| UC - RAM | 8 GB |
| UC - core | 4. Quad Core |
| UC - analog in | 12 |
| UC - External memory | eMMC 64GB |
| UC - freq | 2.9 GHz |
| UC - Ethernet | yes |
| UC - PWM | 7 |
| UC - WiFi | yes |
| UC - USB | 4x USB |
| UC - Bluetooth | yes |
| UC - HDMI | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| UC - LCD interface | yes |
| UC - Linux | yes |
| UC - Windows | yes |
| Width | 13.2 cm |
| Height | 20.6 cm |
| Depth | 5.7 cm |
| Weight | 0.537 kg |
