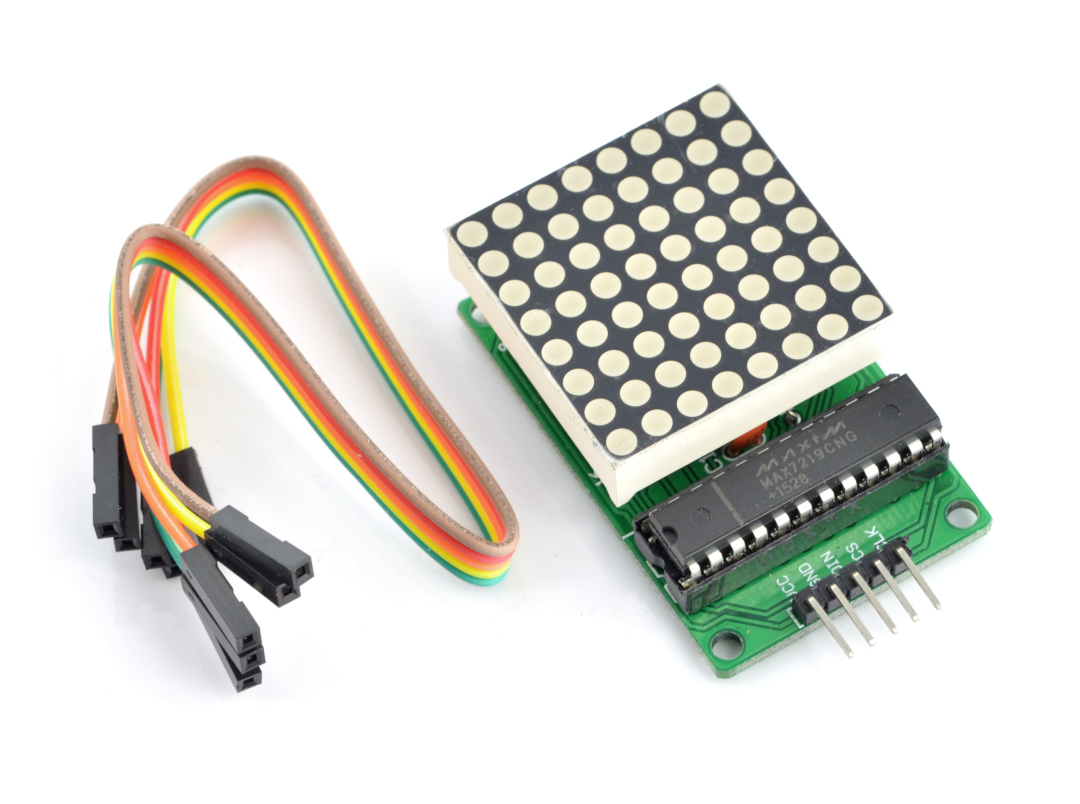

Matrix LED 8x8 + driver MAX7219 - small 32x32mm with wires
Matrix module consisting of 64 LEDs arranged in an 8 x 8 square. The set consists of the board with built-in controller and martix as well as female-female wires.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Supply voltage: 5 V
- LED matrix 8 x 8
- Communication interface: SPI
- Led color: red
- Module dimensions 50 x 32 mm
- Matrix dimensions: 32 x 32 mm
Included
- Printed circuit coard with MAX7219 driver and 8x8 matrix
- 5 x cable female-female - 20 cm
The kit does not require separate soldering. It is ready for operation.
Description
The set includes a display matrix of LEDs 8 x 8 complete with a controller and all necessary passive elements. The MAX7219 control system communicates via the SPI bus, which means it can be easily controlled using microcontrollers, including AVR and Arduino modules. The description, together with a library and a sample program for usersof Arduinocan be foundhere.
To start the module with Arduino using thelibrary, you must connect: DIN - PIN 12, CLK - PIN 11 CS - PIN 10.
Outputs are in a form of populargoldpin connectors(2.54 mm raster) for connecting the sensor viawiresor directly to the breadboard.
Useful links
| Name | Value |
|---|---|
| Screen - type | Matryca LED |
| Screen - diagonal | 1.77'' |
| Screen - interface | GPIO |
| Screen - touch | no |
| Screen - resolution | 8x8 px |
| Width | 4 cm |
| Height | 7 cm |
| Depth | 1.7 cm |
| Weight | 0.018 kg |
