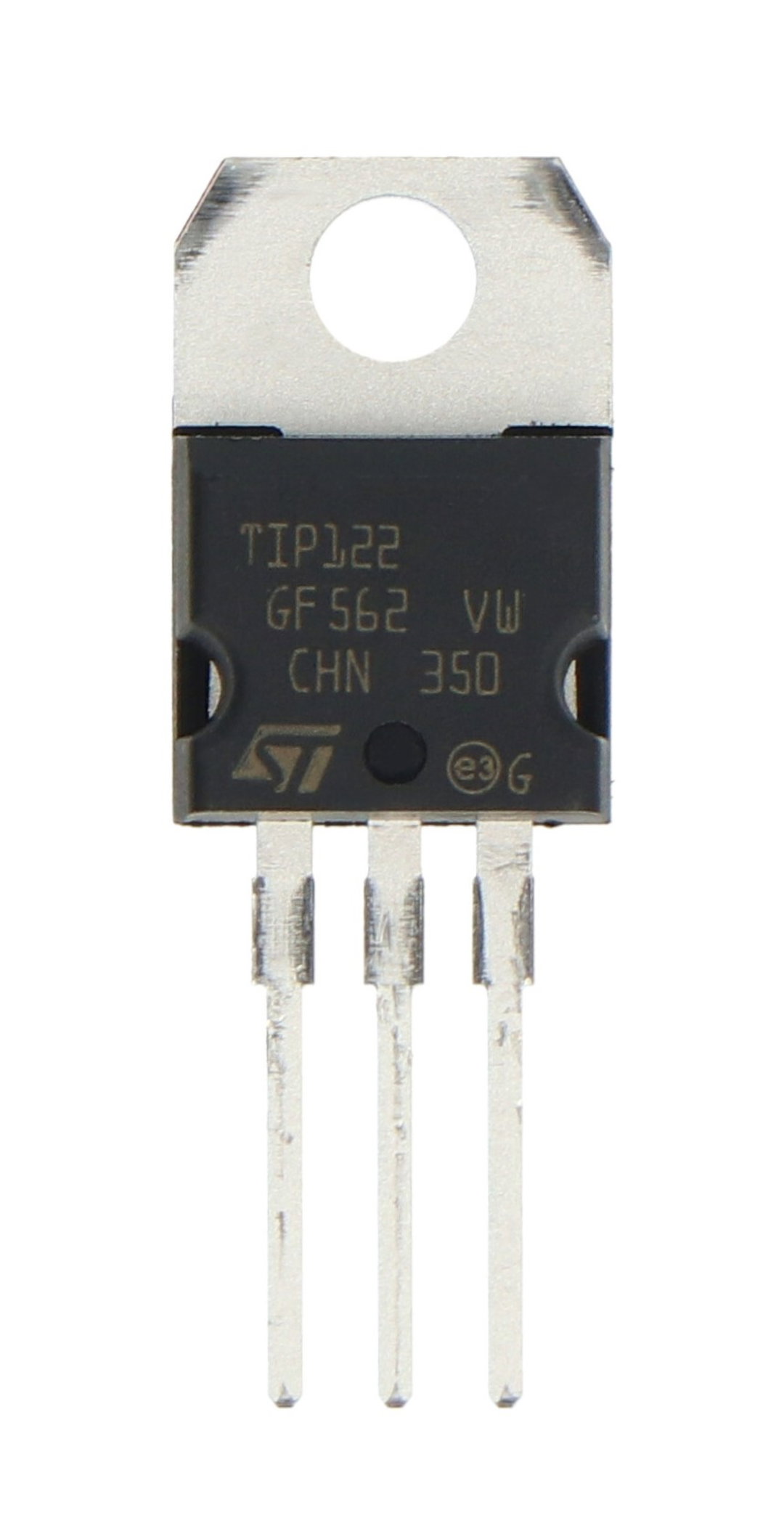

Darlington TIP122 100V/5A NPN bipolar transistor - 5pcs.
The TIP122 is an NPN Darlington bipolar transistor that supports a collector current of up to 5 A and a collector-emitter voltage of up to 100 V , offering a high current gain of 1000. It is used in high-power applications such as motors, lighting, and relays.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: NPN Darlington bipolar transistor TIP122 100 V / 5 A - 5 pcs.
The TIP122 is an NPN Darlington bipolar transistor designed for applications requiring high current gain and heavy load control . This transistor has a maximum collector current of 5 A and a maximum collector-emitter voltage of up to 100 V , making it resistant to high voltages . The TIP122 also has a very high current gain of around 1000, which means that even a small base current can control a much larger collector current. This is a common transistor used in motors , lighting or relays requiring high power.
Also check out other types of transistors available in our offer.
NPN Darlington bipolar transistor TIP122 100 V / 5 A - 5 pcs.
Items included in the set.
TIP122 Transistor Specification
- Transistor Type: Bipolar NPN Darlington
- Collector-emitter voltage (Vce): 100 V
- Collector current (Ic): 5 A
- Base-emitter voltage (Vbe): 5 V
- Base Current (Ib): 120 mA
- Current Gain (hFE): approx. 1000
- Maximum power loss: 65 W
- Housing: TO-220
Items are sold in sets of 5.
| Name | Value |
|---|---|
| Width | 6.2 cm |
| Height | 9 cm |
| Depth | 1 cm |
| Weight | 0.011 kg |
