Product description: DIY Magnetic Connector - simple 8-pin magnetic connectors - Adafruit 5469
Magnetic connectors are mounting elements that are very often used during prototyping systems, because they significantly facilitate and accelerate the process of connecting two modules together. DIY Magnetic Connectors were manufactured by Adafruit and are modeled on MagSafe connectors, a similar solution can also be found in MacBooks and littleBits modules. The set consists of two connectors - male with 8-pins pogo and female with 8-pins with a pitch of 2.2 mm .

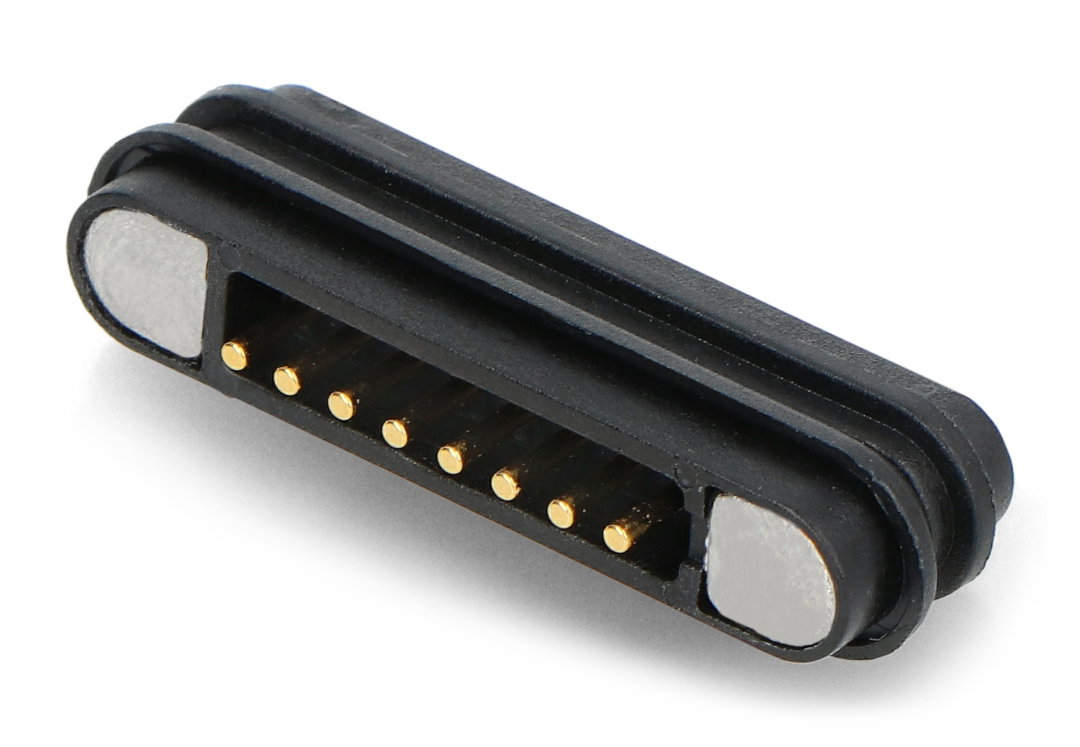

DIY Magnetic Connector - simple 8-pin magnetic connectors - Adafruit 5469.

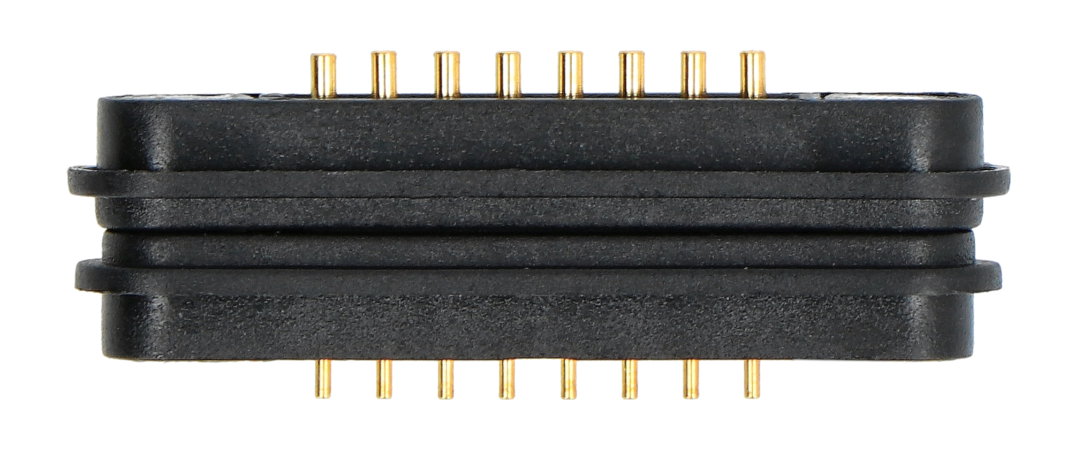

The magnetic joint can only be connected in one way - the opposite application will end up mutually repelling the elements.
Technical specification of magnetic connectors
- Type of connectors: magnetic, pogo
- Number of pins: 8
- Pitch: 2.2mm
- Type: straight
- Maximum voltage: 12V
- Maximum current: 3 A
Kit contents
- 1x pogo male magnetic connector, 8-pin, straight
- 1x magnetic female connector, 8-pin, straight
In our offer you will also find other DIY Magnetic Connectors - check!

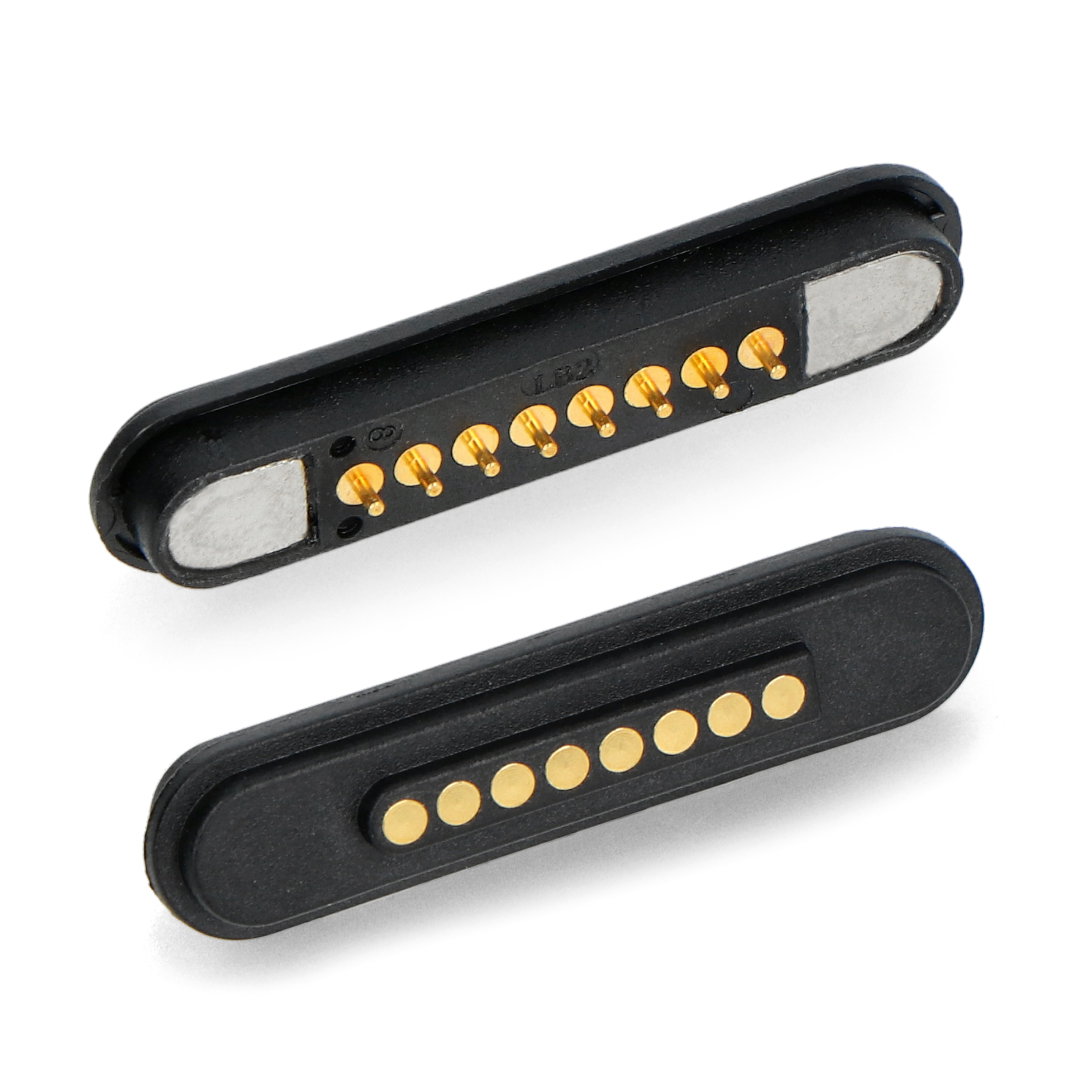

The set consists of two magnetic connectors.
