Product description: FNIRSI-1013D - portable digital oscilloscope 2x 100 MHz with touch screen
The FNIRSI-1013D is a modern, dual-channel digital oscilloscope designed for electronics diagnostics, service work, and research and development applications. Offering a 100 MHz bandwidth for each channel and a real-time sampling rate of 1 GS/s , the device enables accurate analysis of both analog and digital signals. The oscilloscope features a large, 7-inch TFT LCD touchscreen with a resolution of 800 x 480 px , ensuring convenient operation and clear waveform viewing. The AUTO configuration function allows for quick adjustment of measurement settings and display of the analyzed signal without the need for manual configuration.

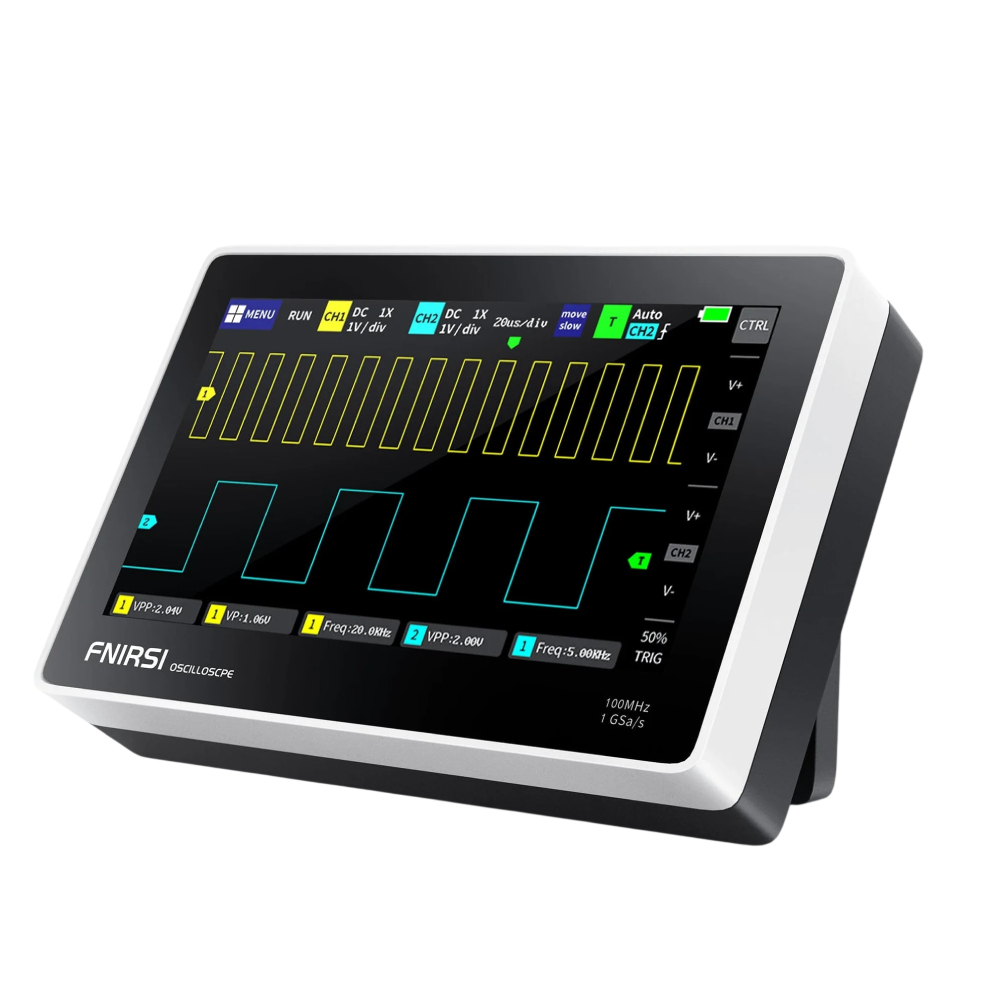

FNIRSI-1013D - portable digital oscilloscope 2x 100 MHz with touch screen.
The FNIRSI-1013D is a modern, two-channel digital oscilloscope designed for electronics diagnostics, service work, and research and development applications.
Special features
- Two measurement channels: simultaneous analysis of two signals
- 2 x 100 MHz analog bandwidth: precise measurements of electronic signals
- 1 GS/s sampling: high accuracy waveform analysis

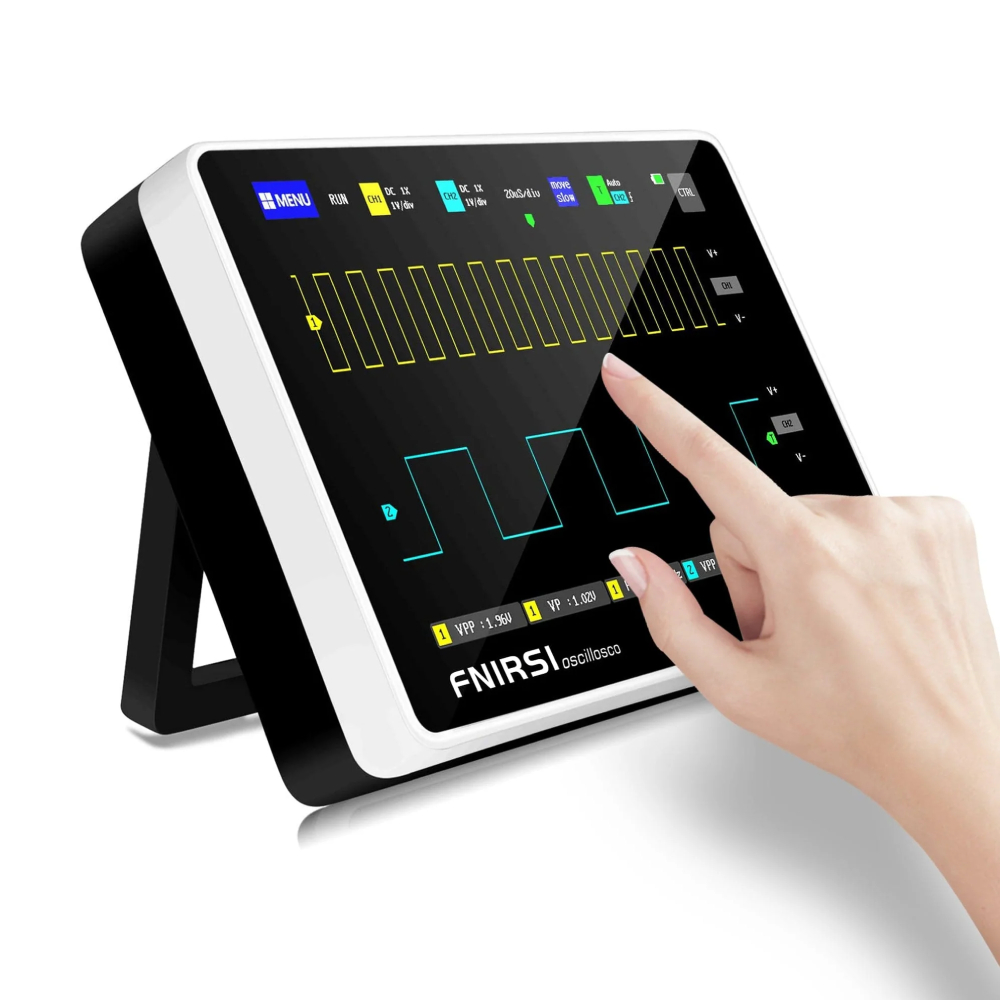

- Large 7" touchscreen: convenient operation and clear data presentation
- AUTO function: automatic adjustment of measurement parameters with one button
- Built-in voltage protection: input protection up to 400 V
- Trigger support: Single, Normal, and Auto modes
- Cursor measurements: quick reading of waveform parameters
- FFT and Lissajous Figures: Advanced Signal Analysis
- 1 GB internal memory: saves up to 1000 screenshots and 1000 waveforms
- USB data export: easily copy measurement results
- 6000 mAh battery: up to 4 hours of mobile use
- USB Type-C Charging: Conveniently power and charge your device
Practical applications
- Diagnostics of electronic systems
- Electronics and household appliances service
- Analysis of PWM systems and converters
- Measurements of digital and analog signals
- Embedded projects and microcontrollers
- Technical Education and Laboratories
- Electronics research and development
- Car system diagnostics

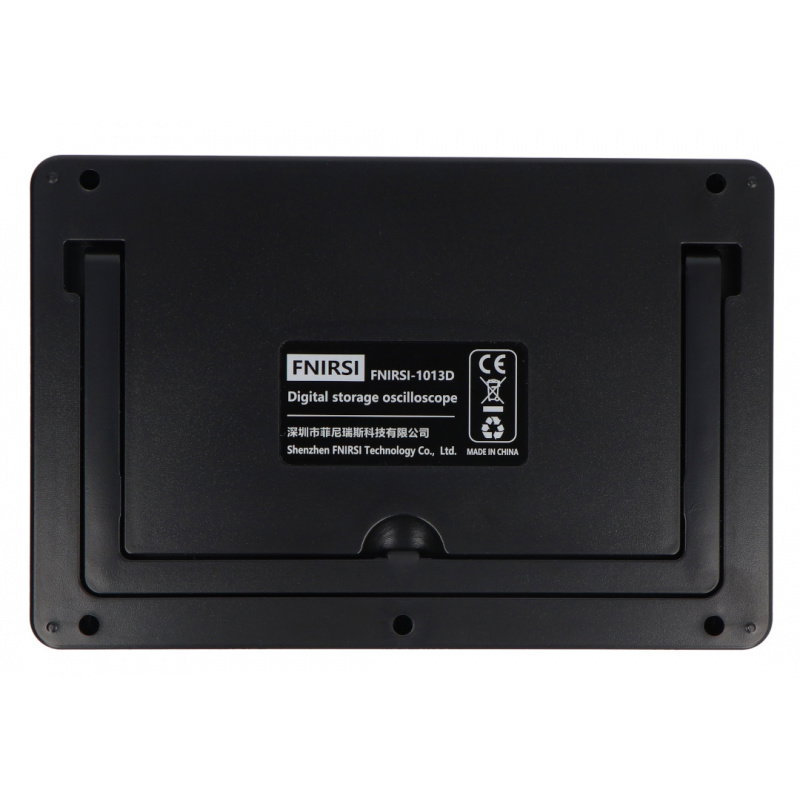

Mobile oscilloscope for service and laboratories
The FNIRSI-1013D was designed as a compact and portable measurement tool for electronics technicians, service technicians, and engineers. Thanks to its lightweight design and built-in battery, the device can be used both in the workshop and directly on the devices being diagnosed. Its dual-channel design allows for simultaneous observation of input and output signals of electronic systems, significantly simplifying the analysis of amplifiers, converters, PWM controllers, and digital circuits.
Advanced signal analysis
The oscilloscope supports cursor measurements, FFT, and Lissajous display , enabling more detailed analysis of signal parameters. A built-in waveform manager allows you to conveniently view saved screenshots and measurement data without the need for a computer. The device supports both periodic analog and aperiodic digital signals, making it ideal for diagnostics in consumer electronics, power systems, automotive, and embedded systems.
The device offers a bandwidth of 100 MHz for each channel and real-time sampling at 1 GS/s.
The AUTO automatic configuration function allows you to quickly adjust measurement settings and display the analyzed signal without the need for manual configuration.Technical specifications
- Model: 1013D
- Device type: digital oscilloscope
- Number of channels: 2
- Analog bandwidth: 2 x 100 MHz
- Sampling: 1 GS/s
- Rise time: < 3 ns
- Memory depth: 240 kbit
- Vertical sensitivity: 50 mV to 500 V
- Input resistance: 1 MΩ
- Time base: 50 s to 10 ns
- Trigger modes:
- Single
- Normal
- Car
- Trigger slope:
- growing
- falling
- Input coupling: AC/DC
- Maximum measuring voltage:
- 1X: up to 40V
- 10X: up to 400V
- 100X: up to 4000V
- Screen: TFT LCD 7"
- Screen resolution: 800 x 480 px
- Touchscreen: Capacitive touchscreen
- AUTO function: yes
- FFT: yes
- Lissajous figures: yes
- Cursor measurement: yes
- Mileage Manager: Yes
- Internal memory:
- up to 1000 screenshots
- up to 1000 runs
- Data export: USB
- Battery: 6000 mAh
- Working time: up to 4 hours
- Charging: USB Type-C 5V/2A/3A/4A
- Voltage accuracy: ±2%
- Frequency accuracy: ±0.01%
- Number of automatic measurement parameters: 12

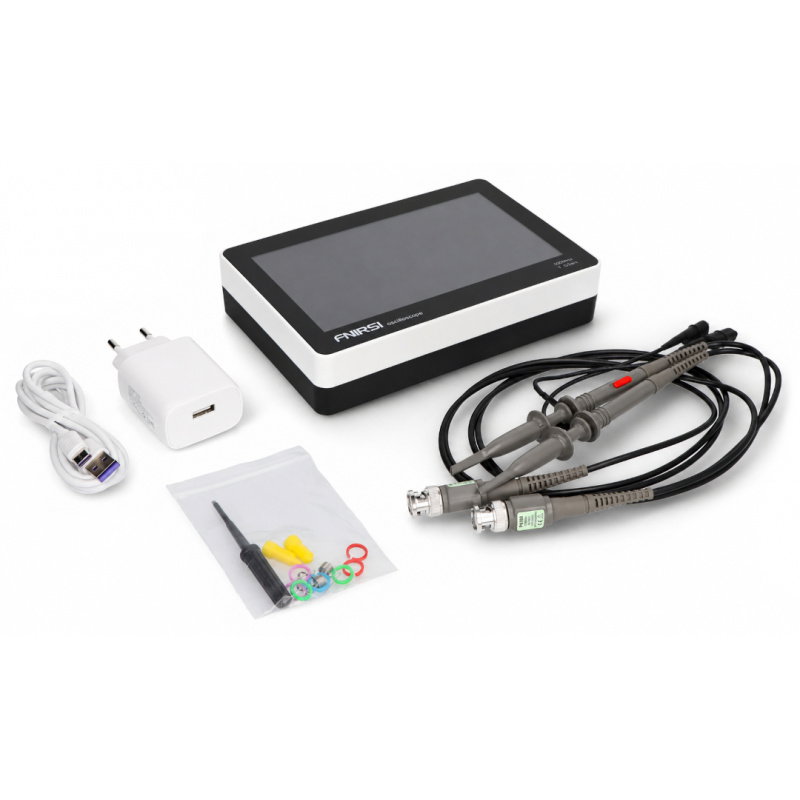

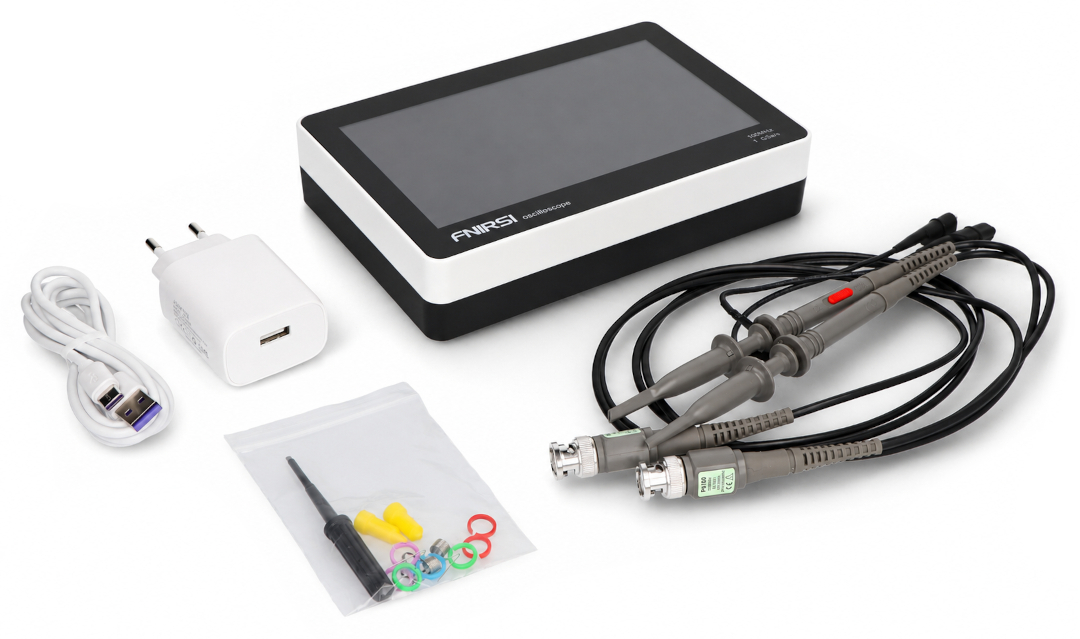

Contents of the set
- FNIRSI-1013D Oscilloscope
- USB Type-C cable
