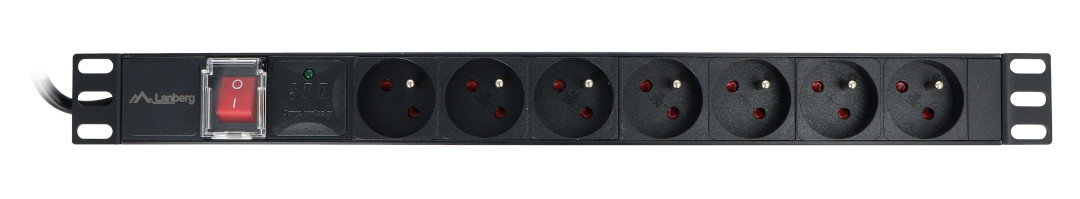

Product description: Power strip for 19'' server racks - 7 sockets 16 A - 2 m - black - Lanberg PDU-07E-0200-BK
The Lanberg power strip is an advanced solution intended for professional use. Dedicated to horizontal installation in 19" server racks , this strip guarantees smooth and reliable power supply to connected devices, while offering a high level of protection . Equipped with a single-phase power input and a number of protections, such as overload protection and current path shutters, ensuring maximum protection for the user and devices. Additionally, an automatic fuse with a green LED indicator enables easy servicing and replacement, which significantly increases functionality and comfort of use. The strip is equipped with a cable with an excess cross-section , which ensures full and uninterrupted operation of the devices even when fully loaded. Thanks to its solid aluminum construction and detachable mounting ears that can be reversed, the strip is durable and easy to install.
Power strip for 19'' server racks - 7 sockets 16 A - 2 m - black - Lanberg PDU-07E-0200-BK.
Power management strip in 19" rack server cabinets.Special features of the power strip
- 1U height: saves space in server racks, allowing the installation of many components.
- Voltage range from 220 V to 250 V: a wide voltage range ensures versatility of use.
- Maximum power 4000 W: the strip withstands high loads, ideal for intensive use.
- Automatic fuse with green LED indicator: facilitates possible servicing and replacement.
- Surge protection: protects equipment from sudden voltage surges, maximum protection current up to 5000 A.
- Material: high-quality aluminum ensures durability and strength of the strip.
- Unscrewable mounting ears: allow for easy installation and can be reversed for greater flexibility.
- 2 m cable length: sufficient cable length with a 1.5 mm² cross-section, VDE-compliant, ensures a safe connection to the power supply.
Technical specifications of the strip
- Socket type: E type
- Number of sockets: 7
- Plug type: uni-schuko
- Fuse type: automatic
- Number of fuses: 1
- Fuse response time: 25 ns
- Current intensity: 16 A
- Maximum power: 4000 W
- Voltage range: 220V to 250V
- Frequency range: 50 Hz / 60 Hz
- Max. surge protection intensity: from 3000 A to 5000 A
- Protections: surge protection, switch
- Purpose: rack cabinets
- Switch: yes
- Telecom height: 1 U
- Size: 19"
- Installation direction: horizontal
- Mounting holes: yes
- Cable length: 200 cm
- Type and type of output socket pins: solid, brass
- Cable type: 3-core, cross-section 1.5 mm², VDE compliant
- Material: aluminum
- Black colour
- Dimensions: 45 x 483.3 x 45 mm
- Weight: 0.79 kg

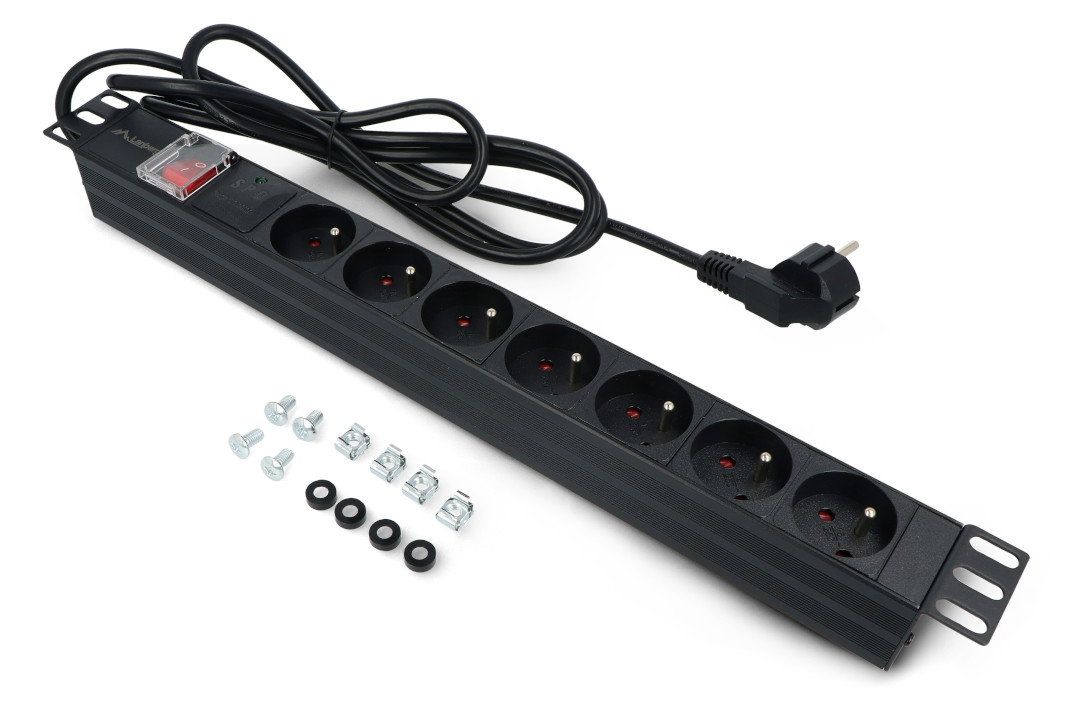

Elements included in the set.
