Product description: Raspberry set Pi 3B WiFi + official accessories

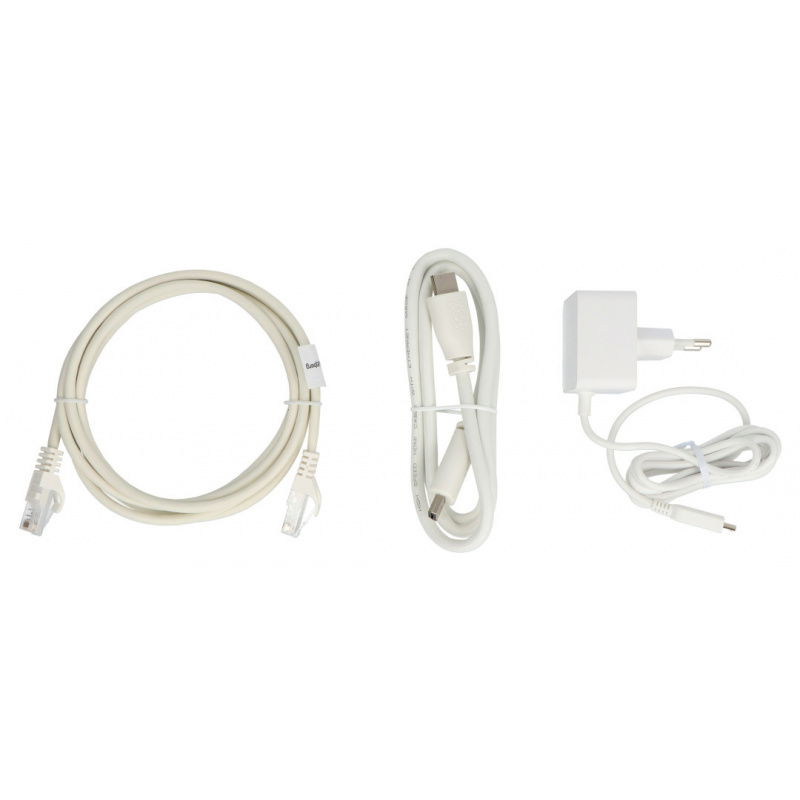

The kit includes theRaspberry Pi 3mini-computermodel B 1 GB RAMwith itsofficial designand original 5.1 V power supply with 2.5 A current capacity. Also included: HDMI cable with Raspberry Pi logo, heat sinks, memory card and Ethernet cable.
| L.p. | Photo | Name |
|---|---|---|
| 1 |  |
Raspberry Pi 3 Model B 1 GB RAM- popular minicomputer in the latest version with 64-bit1.2 GHzprocessor,1 GBRAM, built-inWiFiandBluetoothmodule. |
| 2 |  |
Original Raspberry Pi- 5 Vpower supplywith 2.5 A current capacity and microUSB connector. |
| 3 |  |
The official Raspberry Pi red-and-white enclosure- has the ability to configure side walls and top flap, gives access to audio, video, microSD power card and GPIO connectors. It is also possible to mount heat sinks. In order to choose a different enclosure, please usethe configurator. |
| 5 |  |
Official HDMI cable- 1 m long class 1.4 class for connecting Raspberry Pi to a monitor. This product is supported by the Raspberry Pi foundation and has the raspberry logo on the connectors. |
| 6 |  |
32 GB class 10 microSD card with NOOBs system- fast 16 GB class 10 memory card with NOOBs software, which enables easy installation of any operating system on the first startup of the minicomputer. |
| 7 |  |
Network cable- Ethernet Patchcord UTP 5e with a length of more than 1 m allows you to create a connection to the Internet. |
| 8 |  |
Heat sink set- with adhesive layer for simple installation on mini-computer chipsets. The heat sinks are not required by the manufacturer, their installation is only recommended if the device will operate at maximum efficiency for a long time. |

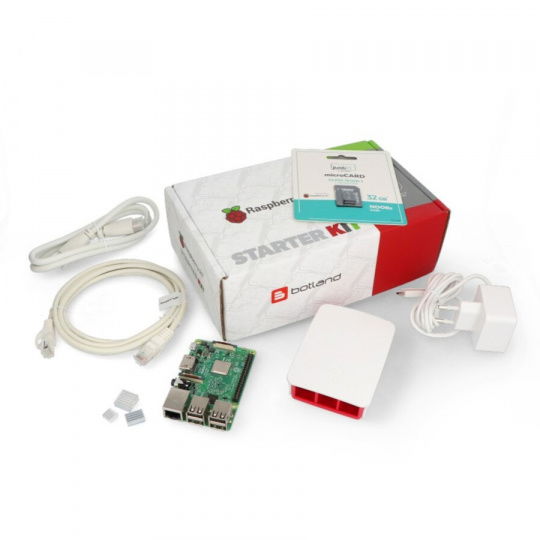

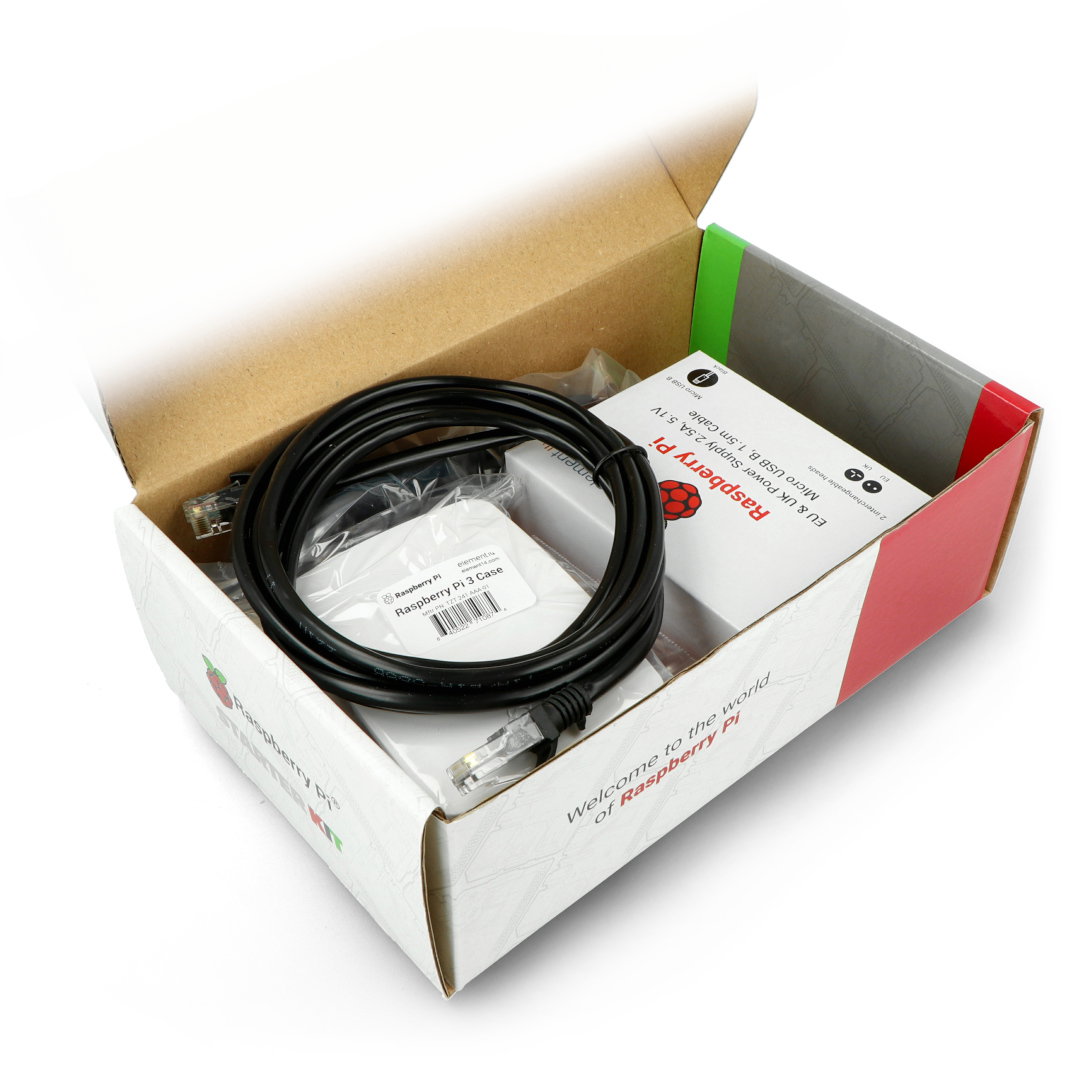

Raspberry Pi 3B + official accessories.
The enclosed case has the ability to remove the top cover, so you can easily connect the circuits to the GPIORaspberry Piconnectors.
What's new with the Raspberry Pi 3?
|
Operating system
The raspberry drive isa microSD memory card. The operating system can be uploaded using a computer with a reader. Acard with the NOOBs program installedis included in the set, which allows you to choose from among the systems at first start-up: Raspbian, Openelec, RaspBMC, OSMC Linux.
| Check how to install Raspberry Pi OS to Raspberry Pi |
A performance of the Raspberry Pi mini-computer.
Specification and comparison of the Raspberry Pi 2 and 3
| Basic information | ||
 |
 |
|
| Model | Raspberry Pi 3 model B | Raspberry Pi 2 model B |
| Edition | 3 - 2016 r. | 2 - 2015 r. |
| Technical specification | ||
| Chipset processor | Broadcom BCM2837 64-bit | Broadcom BCM2836 32-bit |
| Core | Quad-Core ARM Cortex A53 | Quad-Core ARM Cortex-A7 |
| Operating systems |
Linux Raspbian Windows 10 loT |
Linux Raspbian Windows 10 loT |
| Clocking | 1.2 GHz | 900 MHz |
| Architecture | ARMv8-A | ARMv7-A |
| Memory RAM | 1 GB LPDDR2 @ 900 MHz | 1 GB DDR @ 400 MHz |
| Memory | microSD card | microSD card |
| GPIO socket |
40-pin connector (2x20 pin) raster 2.54 mm |
40-pin connector (2x20 pin) raster 2.54 mm |
| Power supply |
5.1 V / 2.5 A via microUSB |
5,0 V / 1,8 A via microUSB |
| Dimensions of the tiles | 85 x 56 x 17 mm | 85 x 56 x 17 mm |
| Interfaces | ||
| USB interface | 4x USB 2.0 - socket type A | 4x USB 2.0 - socket type A |
| Network interface | 10/100 Mbps Ethernet port | 10/100 Mbps Ethernet port |
| WiFi interface | 802.11 b/g/n 150 Mbps | No |
| Bluetooth | Low Energy, BLE 4.1 | none |
| Camera | CSI socket | CSI socket |
| Touchscreen display | DSI socket | DSI socket |
| Video | HDMI HD 1080px / 30 fps | HDMI HD 1080px / 30 fps |
| Communication | UART, SLEEPING, I2C, GPIO | UART, SLEEPING, I2C, GPIO |
