Product description: CSI/DSI Cable Adapter Thingy - adapter for cameras and displays - for Raspberry Pi - Adafruit 5785

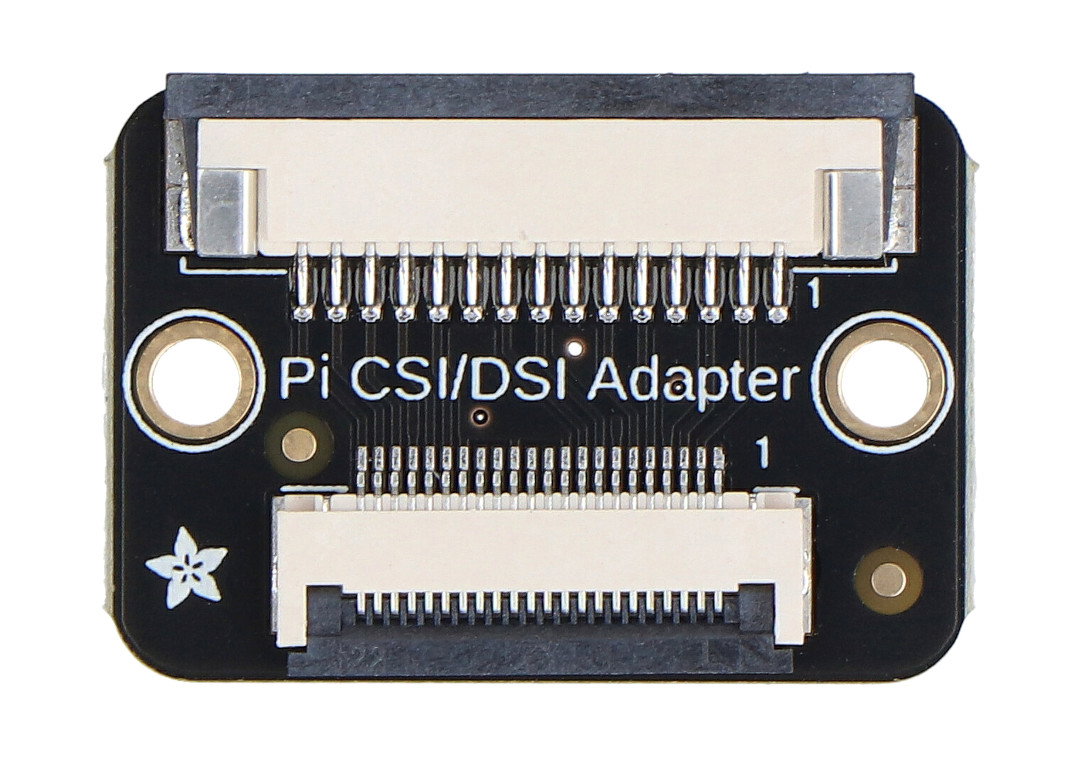

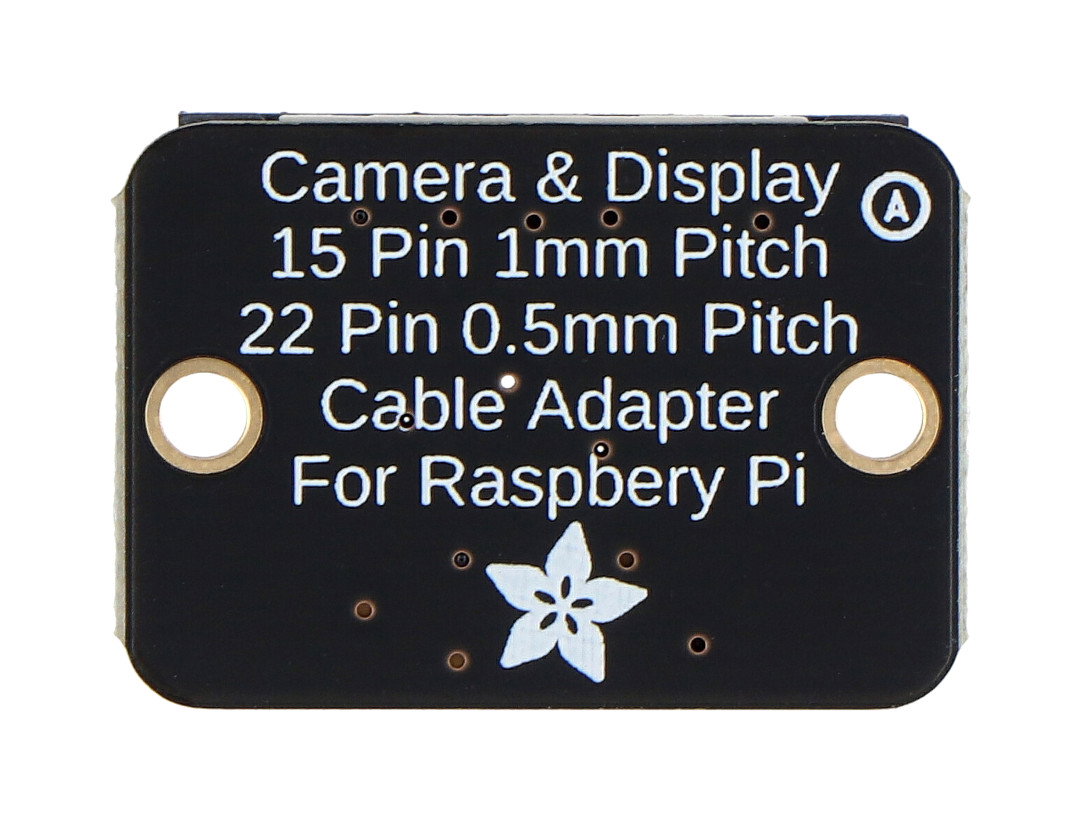

CSI/DSI Cable Adapter Thingy is a board from Adafruit enabling CSI and DSI communication with the Raspberry Pi minicomputer. It has two types of connectors: a 15-pin connector with a pitch of 1 mm, intended for connecting the camera and display , and a 22-pin connector with a pitch of 0.5 mm , which is used to connect Raspberry Pi. The module can also be used as an extension cable, thanks to which it will be possible to place a camera or screen at a certain distance from the raspberry. The manufacturer declares that the maximum extension can be 25 cm.

The module can also be used as an extension cable, thanks to which it will be possible to place a camera or screen at a certain distance from the raspberry.
Technical specifications of the board
- Module type: CSI/DSI adapter
- Additional function: extension cord
- Maximum extension distance: approximately 25 cm
- Intended use: to connect cameras and displays with Raspberry Pi
- Connector 1: CSI 15-pin pitch 1 mm
- Connector 2: DSI 22-pin pitch 0.5 mm
- Board dimensions: 25.4 x 17.9 x 4.2 mm
- Weight: 2.4 g
Our offer also includes FPC tapes enabling connection to Raspberry Pi, check it out!
