Product description: PCIe to USB 3.2 HUB 4x USB Adapter - Compatible with Raspberry Pi CM4 - Waveshare 18899
PCIe to USB 3.2 Gen1 adapter manufactured by Waveshare. When connected to a PCIe slot, the module expands the device's interfaces by four USB 3.2 ports . The adapter is compatible with the CM4IO expansion board for the Raspberry Pi Compute Module 4 .
The manufacturer has prepared a user guide for Raspberry Pi Compute Module 4 devices.

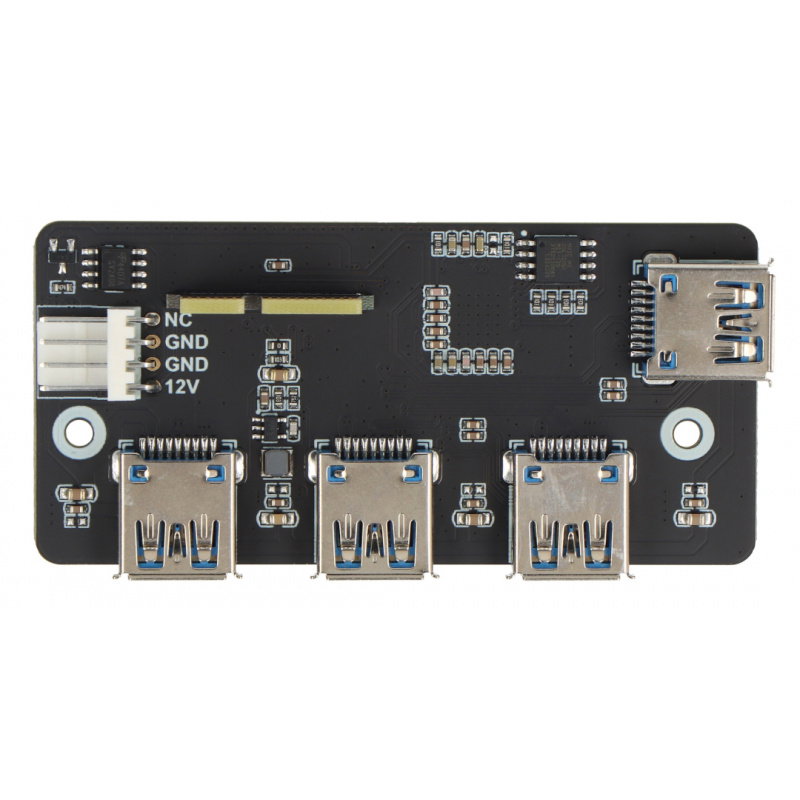

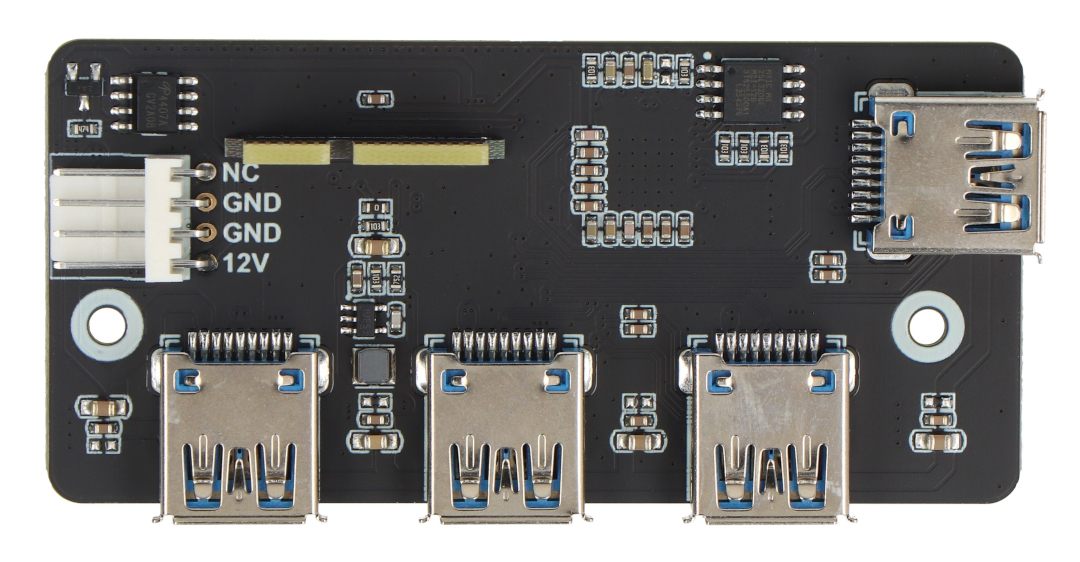

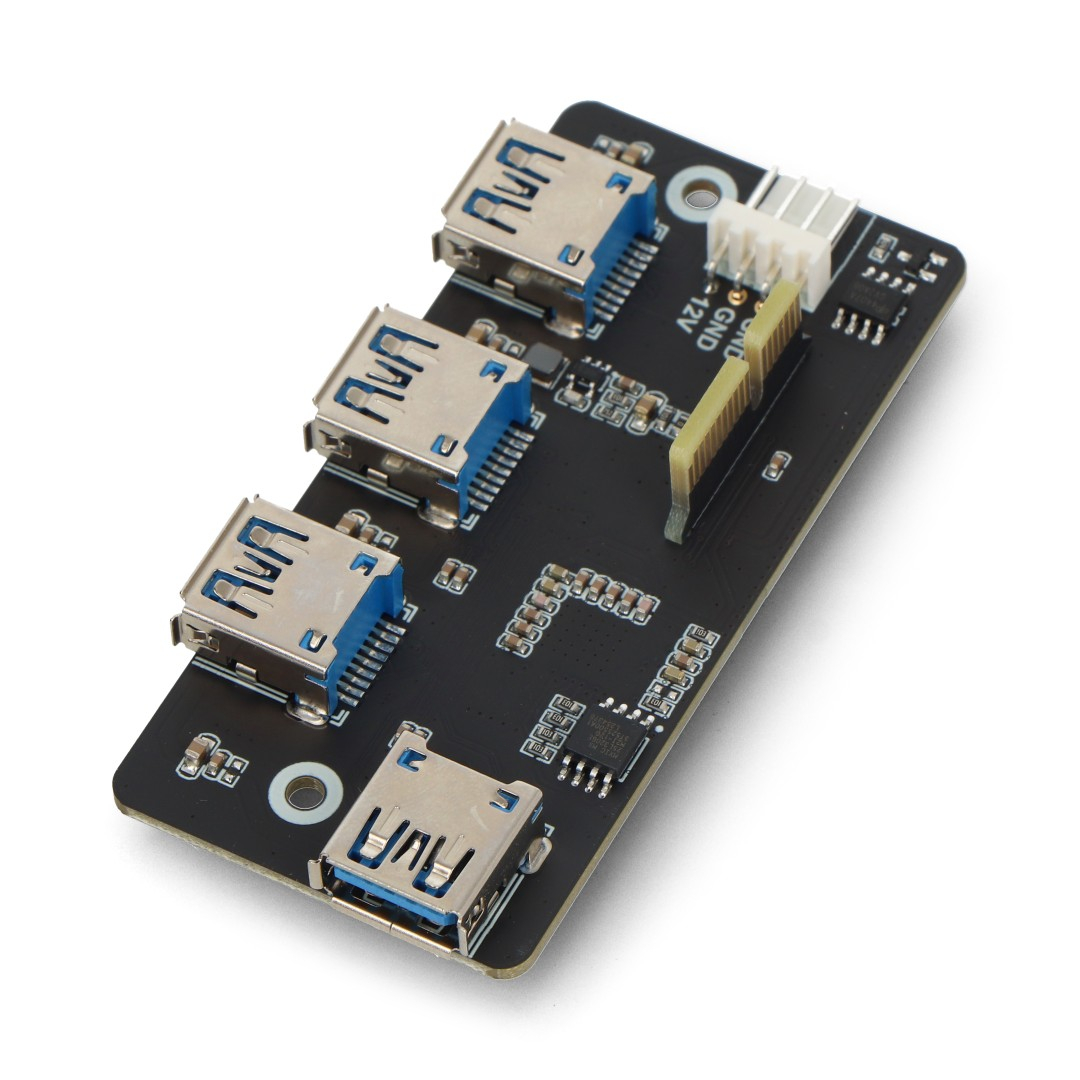

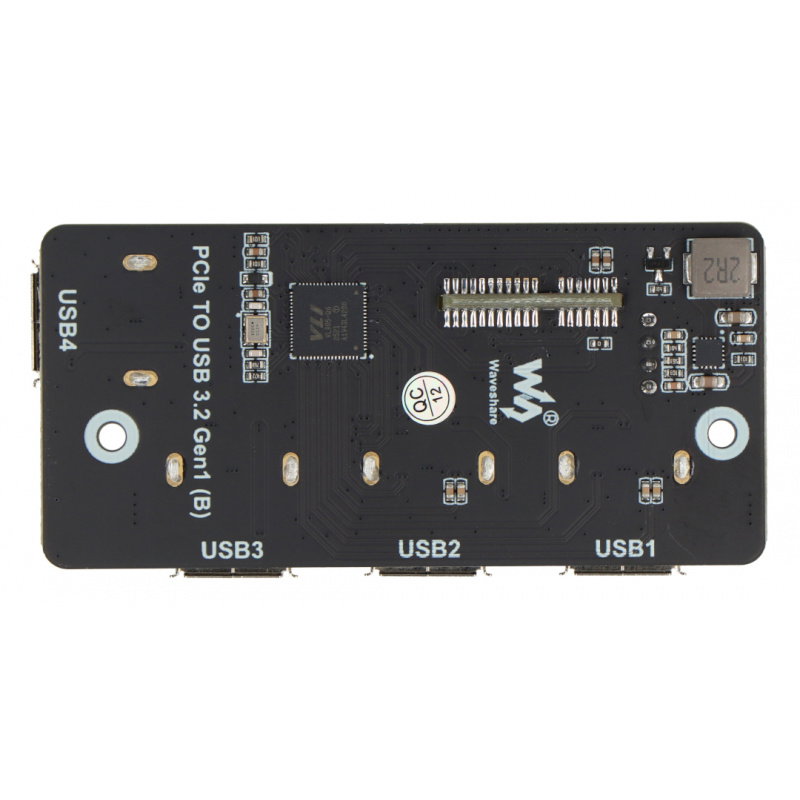

PCIe to USB 3.2 Gen1 Adapter, 4x USB Hub.

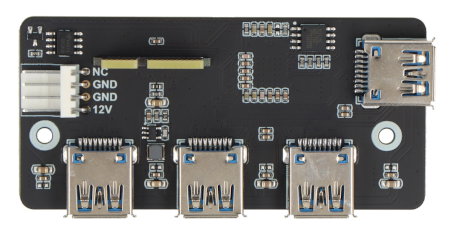

USB Hub for Raspberry Pi CM4.Main features of the adapter
- 4x USB 3.2 Gen 1 ports, compatible with 3.0/2.0 and 1.1 ports
- Powered by 12V PCIe port or onboard 12V DC connector
- Based on the VL805 chip, no driver installation required, plug and play
- Designed for the Raspberry Pi CM4 IO module
- When connecting to a PC motherboard, the manufacturer recommends using a PCIe cable.
PCIe USB Adapter Specifications
- Adapter Type: PCIe to USB
- Chip: VL805
- Number of USB ports: 4
- USB Standard: 3.2 Gen1
- Power supply voltage: 12V from PCIe or external port
- Dimensions: 82 x 39 mm

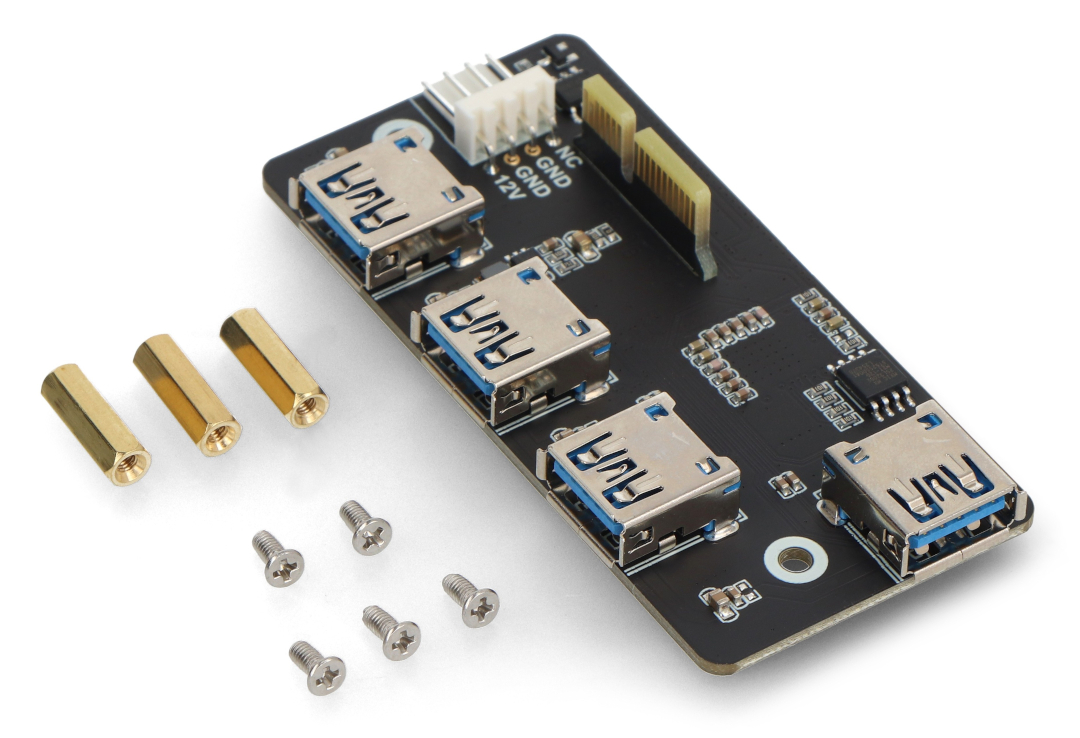

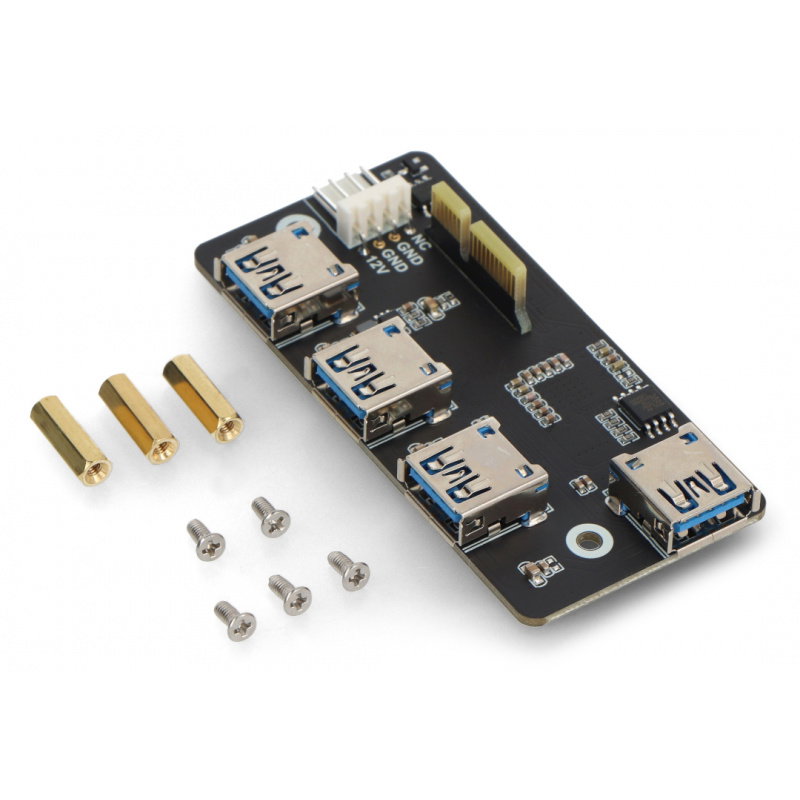

Contents of the set
- PCIe to USB adapter
- Set of screws and spacers
Contents of the set. Useful links |
