Product description: PoE Ethernet / USB HUB HAT for Raspberry Pi Zero - Waveshare 19635
An overlay that combines the function of a USB hub and a PoE power supply. Created by Waveshare module based on RTL8152B chip, it extends functionality of Raspberry Pi Zero by 3 USB 2.0 ports and one 10 / 100 Mb Ethernet port with PoE 802.3af support - power over Ethernet. The overlay works with any version of Raspberry Pi Zero.
The manufacturer provides a user guide for Raspberry Pi Zero.

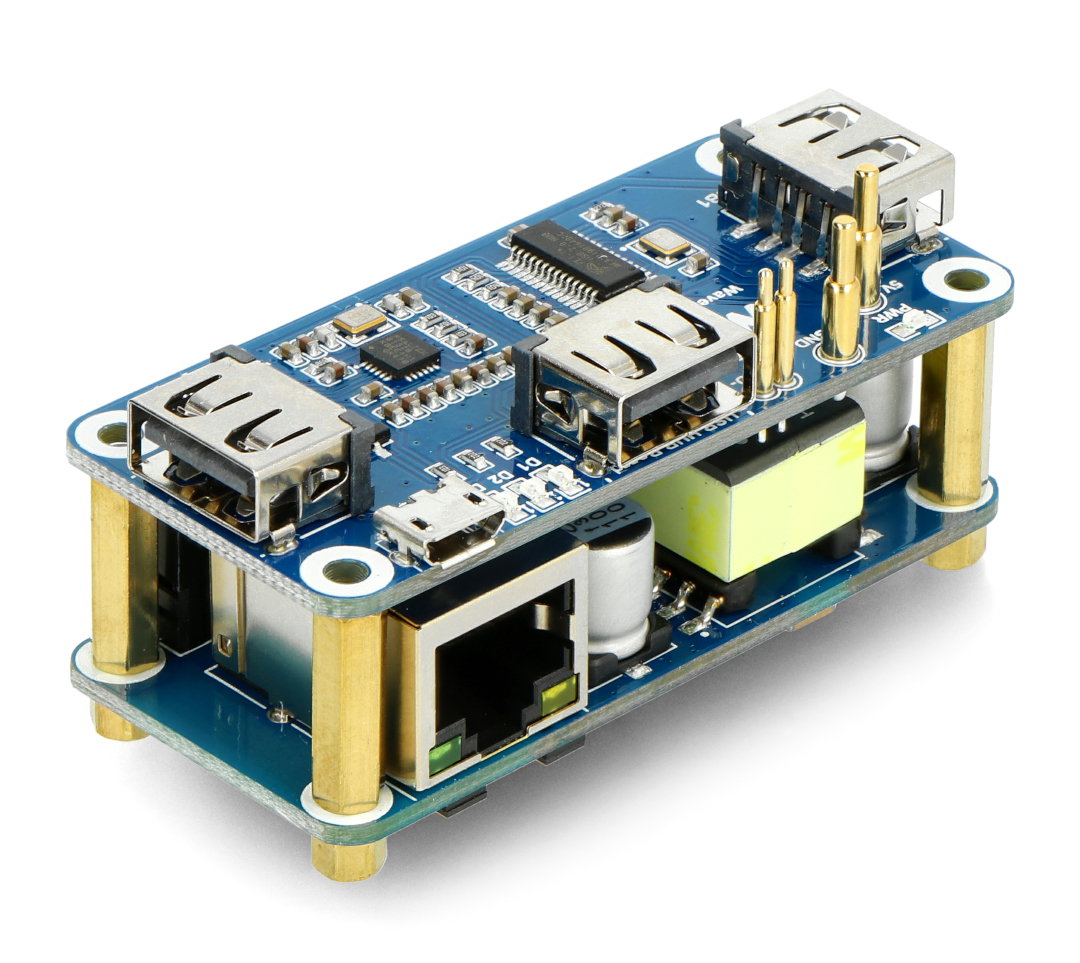

PoE / USB overlay for Raspberry Pi Zero.
Kit contents.Main features of PoE / USB HUB HAT overlay
The PoE Ethernet / USB HUB HAT overlay is specially designed for Raspberry Pi Zero series boards. With this small overlay and a device that supports 802.3af (PoE enabled router / switch), it is possible to simultaneously power the Raspberry Pi Zero minicomputer and an internet connection using only one Ethernet cable.
- Designed for Raspberry Pi Zero series minicomputers
- Based on RTL8152B chip with RJ45 10 / 100 Mbps port
- Supports PoE, 802.3af compliant
- 3 USB ports compliant with 2.0 / 1.1 standard
Overlay specifications
- PoE input voltage: 37 V to 57 V DC
- Output voltage: 5 V / 2.5 A
- Network standard: IEEE 802.3af
- Dimensions: 23.1 x 65 mm

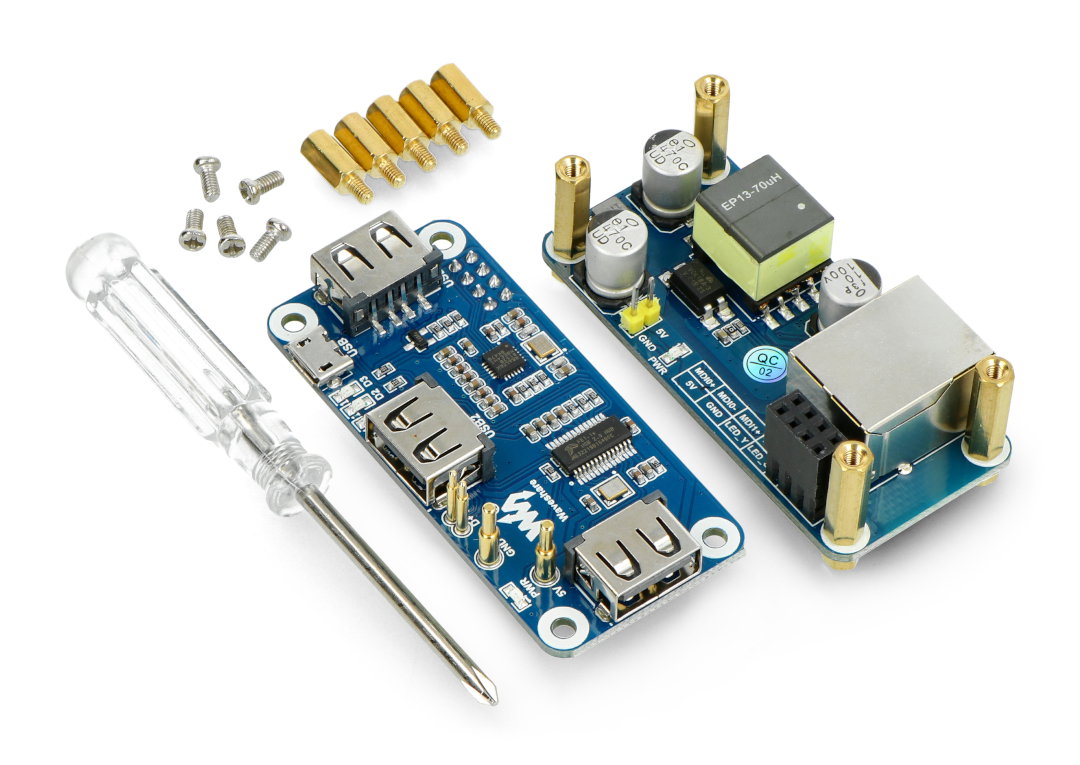

Contents of the kit
- Overlay for Raspberry Pi Zero
- Set of screws and spacers
- Screwdriver

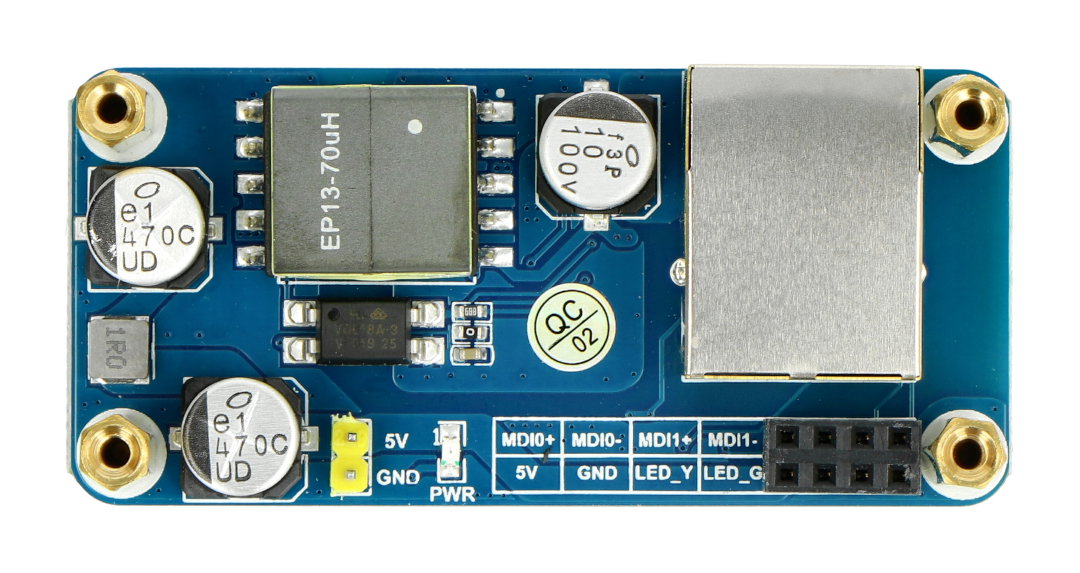

PoE cap for Raspberry Pi Zero.
