Product description: CEM DT-5300B earth resistance meter
The DT-5300B electronic meter manufactured by CEM is designed to measure the earth resistance used in electrical and lightning protection installations, as well as to measure the soil resistivity. DT-5300B enables to compensate for the influence of cable resistance by adjusting the zero point with the ADJ potentiometer. The meter has a built-in DC voltmeter up to 1000 V , AC up to 750 V , an ohmmeter as in a multimeter (low voltage) for measuring low resistance and an acoustic electric circuit continuity tester. In addition, the device is equipped with an LCD display with backlight, and the housing is made of durable plastic with a blue rubber holster. The whole set is placed in a material bag that allows easy carrying.

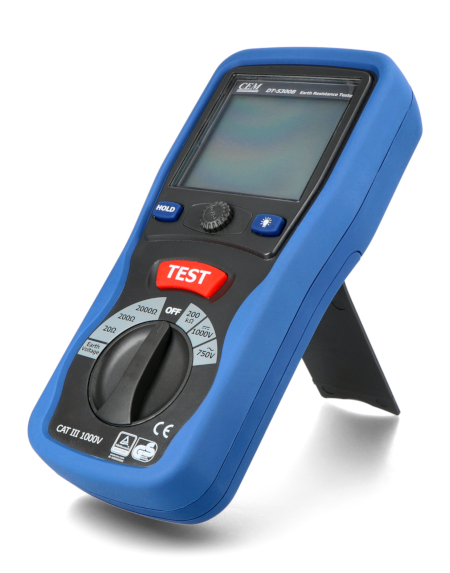

CEM DT-5300B earth resistance meter.

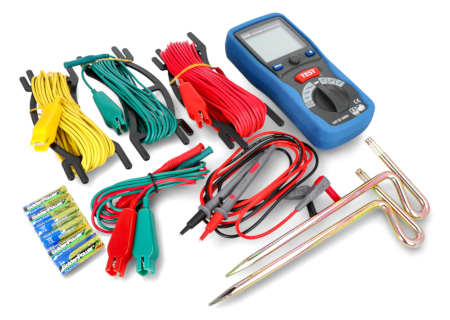

Items included in the kit.
Kit contents
- CEM DT-5300B earth resistance meter
- Set of test leads
- 2 x Metal Bars
- 6 x AA battery, 1.5V
- Bag (organizer)
- User manual
Technical specification of the CEM DT-5300B meter
| Parameter | Range |
|---|---|
| Earth resistance | 20 Ω / 200 Ω / 2000 Ω |
| DC voltage | up to 1000 V. |
| AC voltage | up to 750 V. |
| Resistance | 200 kΩ |
| Basic measurement accuracy | +/- 3% |
| Sampling rate | 2.5 times / sec |
| Continuity test |
|
| Automatic power off | Yes |
| Beeper | Yes |
| Low battery indicator | Yes |
| Backlight | Yes |
| Data Hold function | Yes |
| Manual zero adjustment with potentiometer ADJ | Yes |
| Working temperature | from 0 ° C to 40 ° C |
| Storage temperature | -10 ° C to 60 ° C |
| Earth voltage measurement | up to 200 V. |
| Display | LCD (60 x 50 mm) |
| Dimensions | 200 x 92 x 50 mm |
| Power | 6 x AA battery (1.5 V) |
| Mass | 700 g |
