Product description: Velleman VMA405 - RFID module MF RC522 MiFare 13.56 MHz + card and key fob

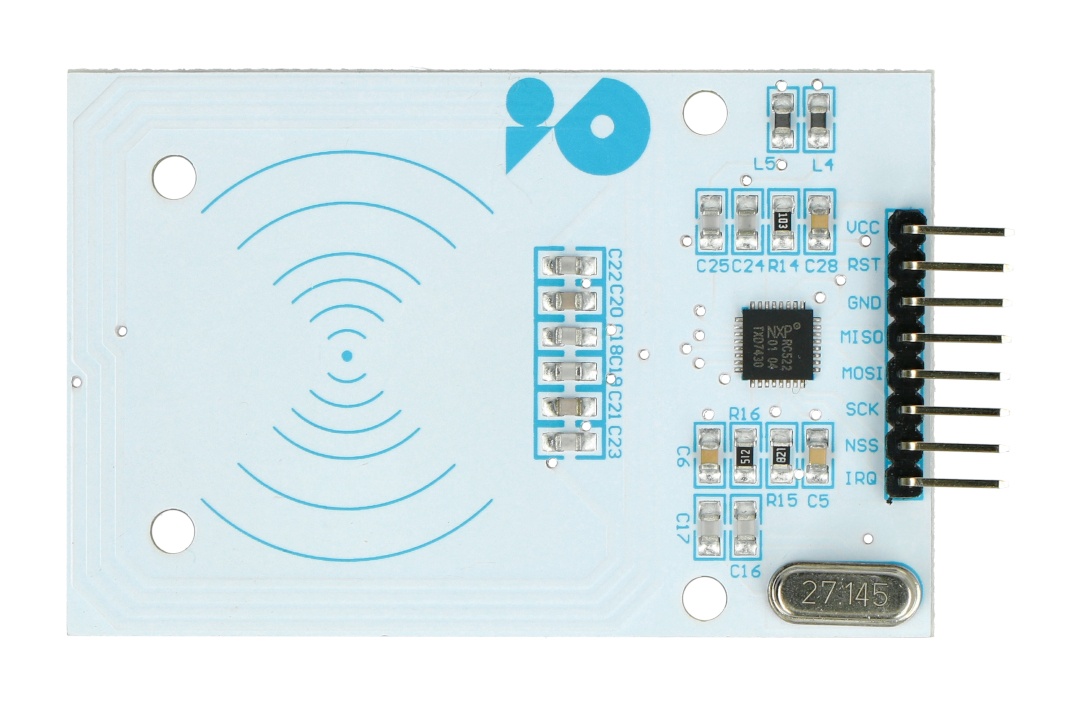

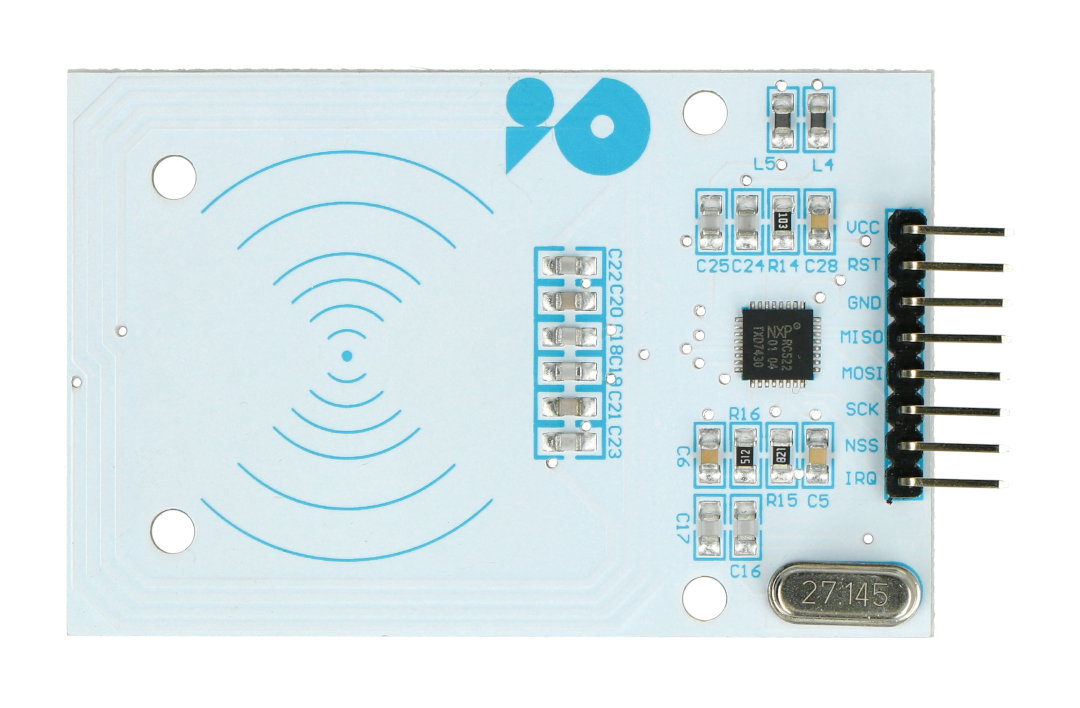

The board allows you to read and write data from RFID devices at a frequency of 13.56 MHz . The module is based on the MFRC522 chip , is powered by a voltage of 3.3 V to 12 V, and communicates via SPI. The kit also includes a card and a key fob .
The module communicates via SPI.
Supported RFID tags
The module can read so-called RFID tags, such as cards and key fobs operating at a frequency of 13.56 MHz.
Check out our 13.56 MHz RFID Tags!
Arduino compatible product The manufacturer provides the Arduino library and sample programs . A detailed description of the connection can be found in the user manual . |
Specification
- Operating voltage: 3.3 V to 12 V
- Operating current: 13 to 26 mA
- Operating frequency: 13.56 MHz
- Supported cards: MiFare
- Data transfer speed: 10 Mb/s
- Controller: MFRC522
- Ability to read and write data
- Communication: SPI
- Board dimensions: 60 x 40 x 5 mm

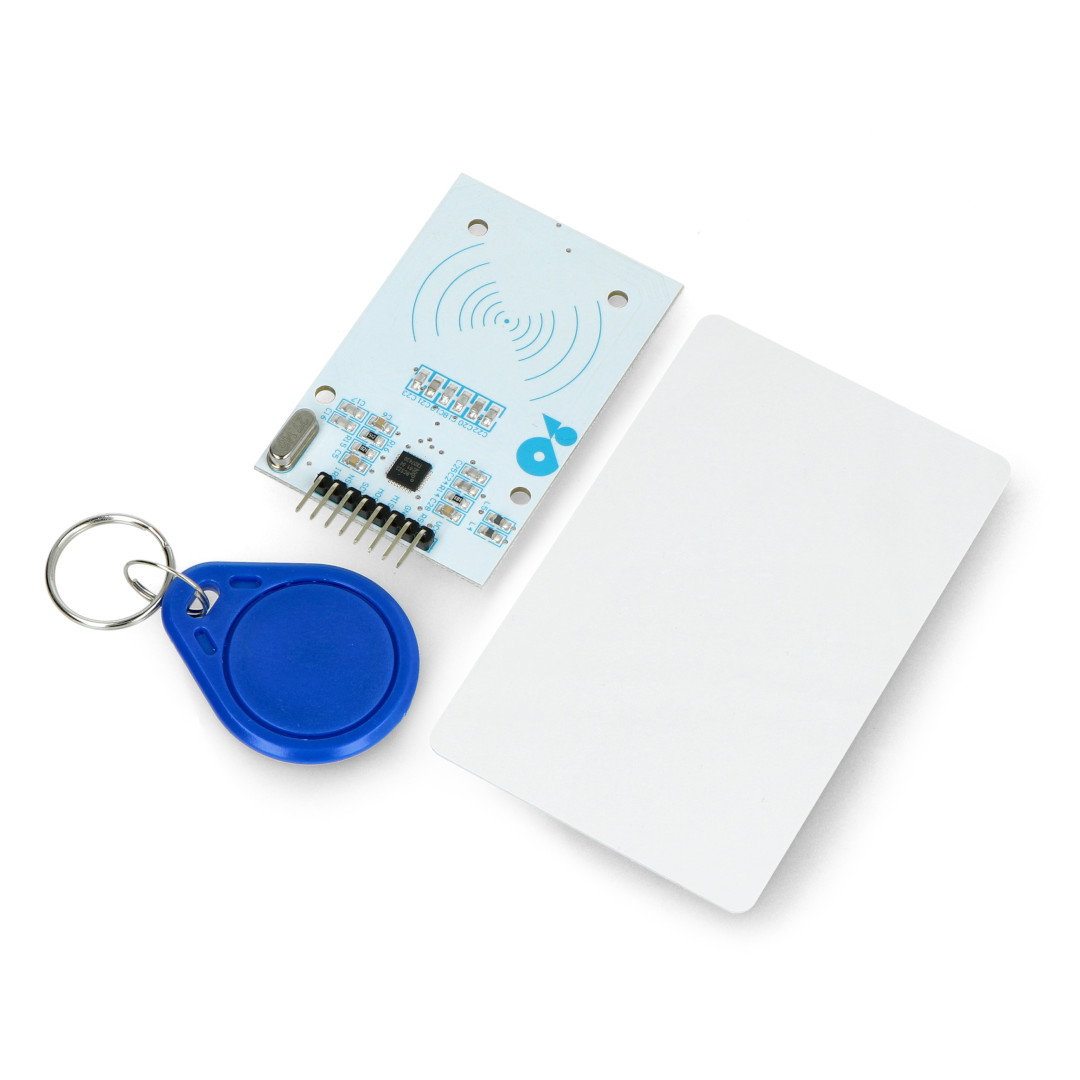

Included in the set
- RFID module
- RFID ID card
- RFID keychain
