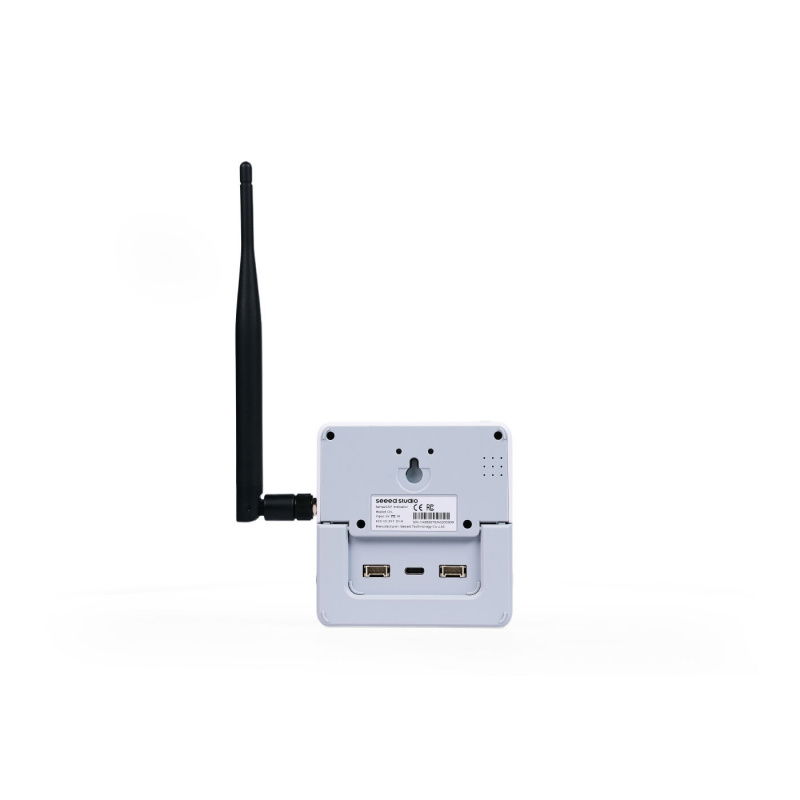

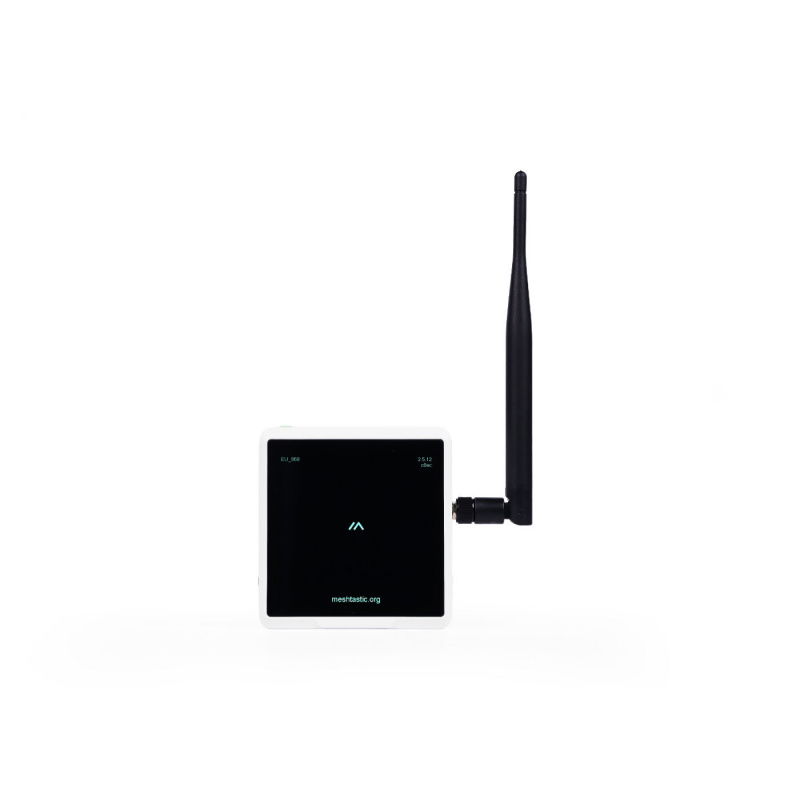

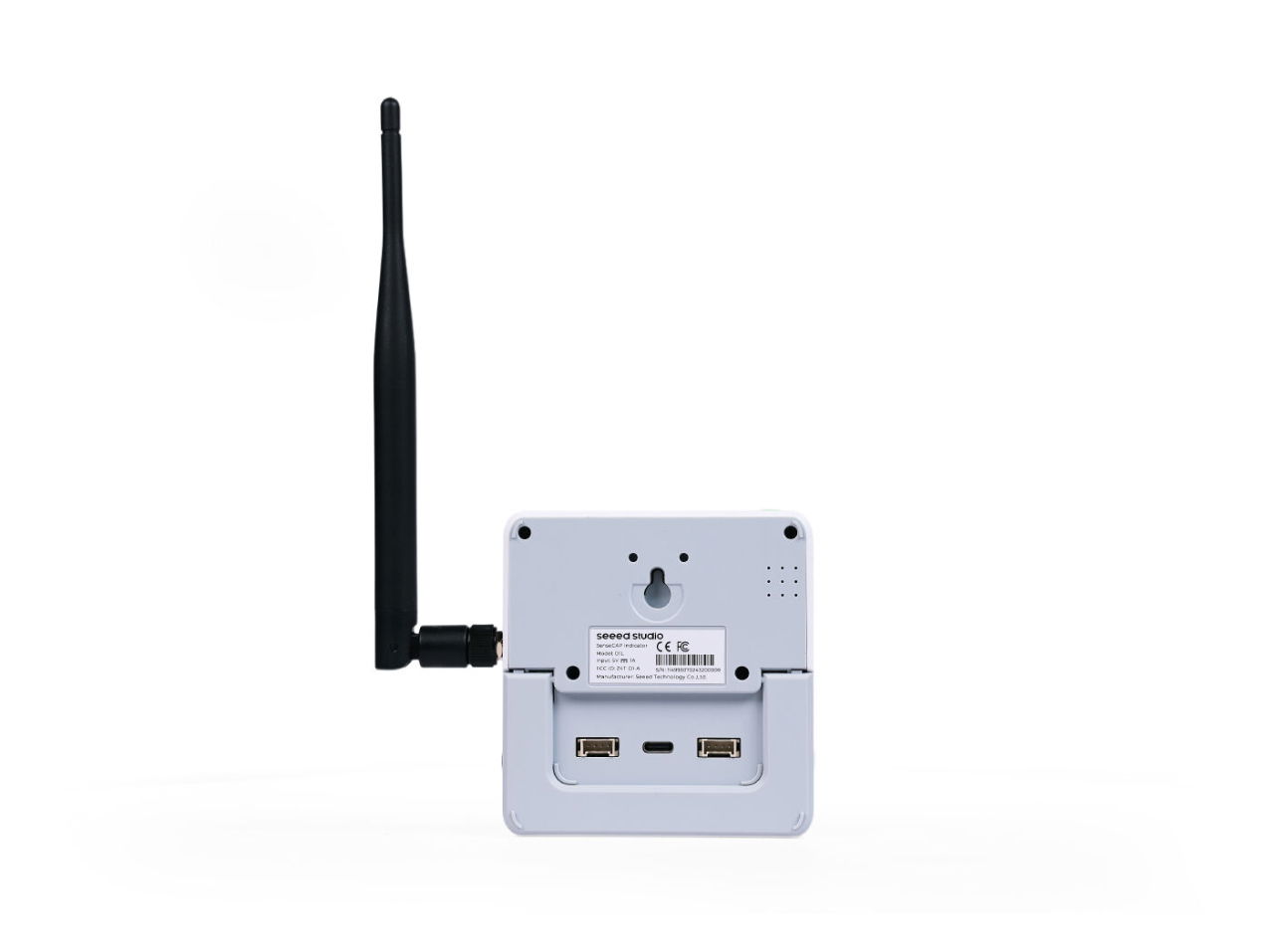

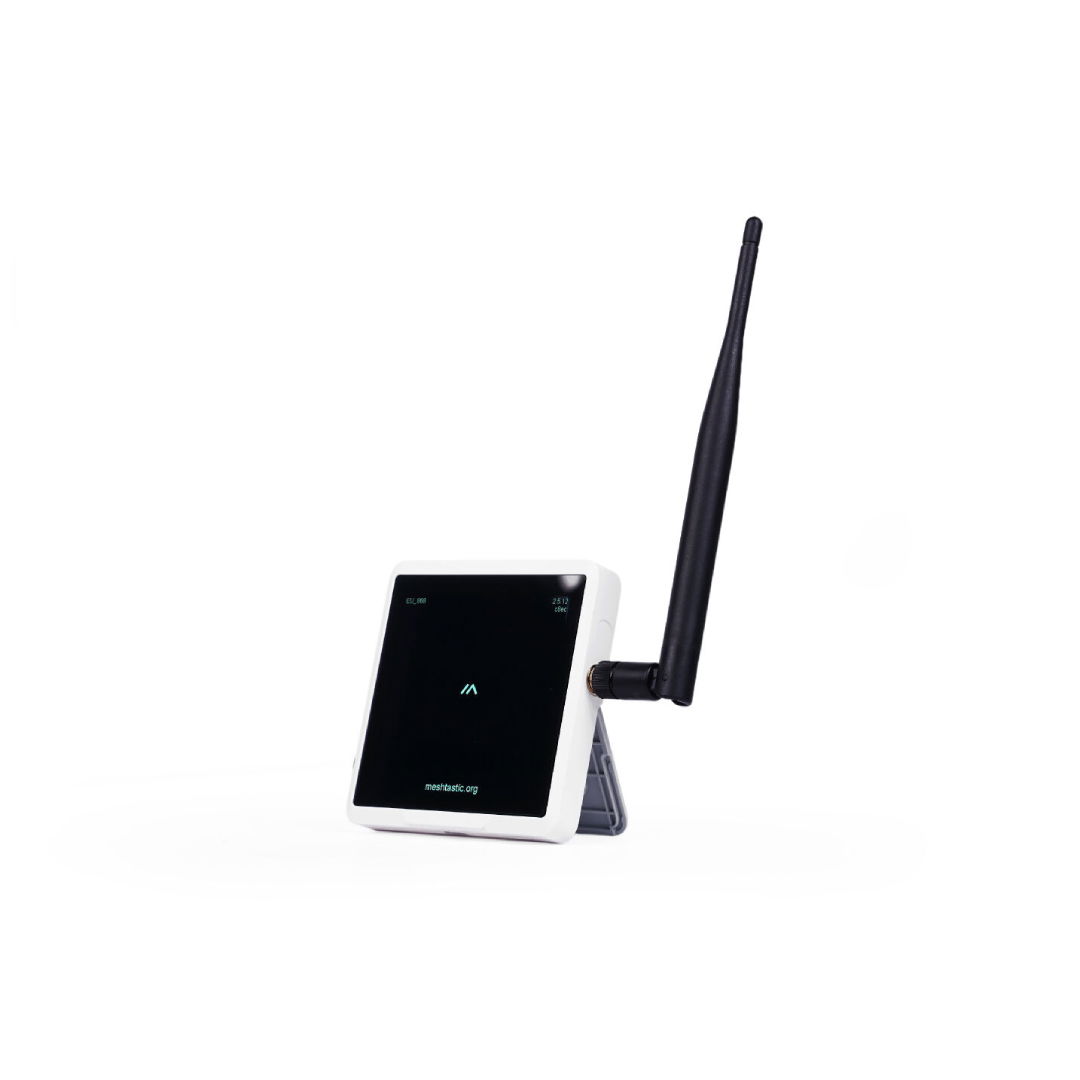

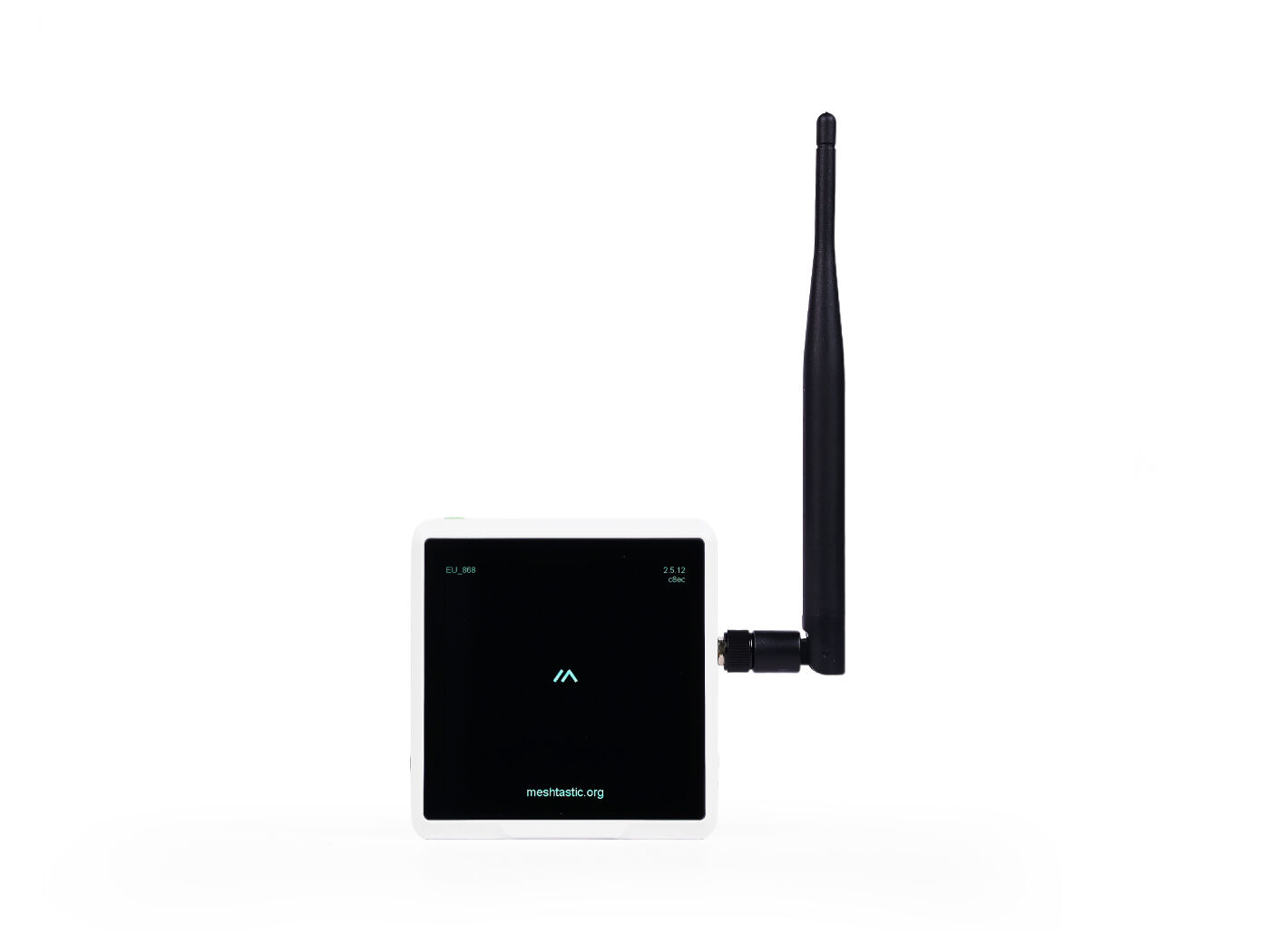

SenseCAP Indicator for Meshtastic & LoRa - 3,95'' IoT touchscreen with ESP32S3 + RP2040 - antenna - Seeedstudio 114993532
SenseCAP Indicator for Meshtastic & LoRa is an advanced communication device that enables a quick start in LoRa mesh technology with Meshtastic . Pre-installed firmware allows for immediate operation after connecting the power supply. Thanks to the use of two powerful microcontrollers (ESP32-S3 and RP2040) , you gain huge expansion possibilities, and the built-in Semtech SX1262 LoRa chip allows you to work as a local network node or a single-channel LoRaWAN gateway.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SenseCAP Indicator for Meshtastic & LoRa - 3.95'' IoT touchscreen with ESP32S3 + RP2040 - antenna - Seeedstudio 114993532
SenseCAP Indicator for Meshtastic & LoRa is an advanced communication device that enables a quick start in LoRa mesh technology with Meshtastic . Pre-installed firmware allows for immediate operation after connecting the power supply. Thanks to the use of two powerful microcontrollers ( ESP32-S3 and RP2040 ), you gain huge expansion possibilities, and the built-in Semtech SX1262 LoRa chip allows you to work as a local network node or a single-channel LoRaWAN gateway. Additional features such as a 480 x 480 px touchscreen , microSD compatibility and extensive GPIO make this equipment ideal for educational, prototyping and industrial applications.
SenseCAP Indicator for Meshtastic & LoRa - 3.95'' IoT touchscreen with ESP32S3 + RP2040 - antenna - Seeedstudio 114993532.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
The SenseCAP Indicator for Meshtastic & LoRa is an advanced communications device that enables a quick start to LoRa mesh technology with Meshtastic.
Special Features
- Meshtastic Support : Pre-installed Meshtastic firmware allows for immediate startup
- Dual MCUs: ESP32-S3 (240 MHz) and RP2040 (133 MHz) for maximum flexibility
- 3.95” RGB touchscreen : 480 x 480 px resolution, touch support
- LoRa SX1262 module : supports 862 MHz to 930 MHz band
- Wireless communication : WiFi 2.4 GHz and Bluetooth 5.0 LE
- Expandability : Over 400 Grove-compatible GPIOs, microSD card slot (up to 32 GB)
- Open source : fully compatible with ESP32 and Raspberry Pi ecosystems
- 5V/1A Power Supply : Simple power supply from any USB port
Note! The device does not contain a GPS module.
Practical applications
SenseCAP Indicator for Meshtastic & LoRa is perfect as a stationary or mobile Meshtastic node , allowing you to build your own decentralized communication network based on LoRa technology. Thanks to LoRaWAN support, the device can be configured as a single-channel IoT gateway, ideal for data transmission in projects such as Smart Home, precision agriculture or environmental monitoring. Cooperation with open software makes it an ideal prototyping platform for developers.
The built-in Semtech SX1262 LoRa chip allows it to operate as a local network node or single-channel LoRaWAN gateway.
Additional features such as a 480 x 480 px touchscreen, microSD compatibility and extensive GPIO make this hardware ideal for educational, prototyping and industrial applications.
Technical specification of the module
- Main Processor: ESP32-S3, Dual-Core Xtensa LX7, Clock Speed up to 240 MHz, Flash Memory 8 MB
- Support Processor: RP2040, Dual-Core ARM Cortex-M0+, Clock Speed up to 133 MHz, Flash Memory 2 MB
- Screen: touch, capacitive RGB, 3.95'', resolution 480 x 480 px
- Wireless connectivity: WiFi 802.11b/g/n (2.4GHz), Bluetooth 5.0 LE
- LoRa module: Semtech SX1262, supports 862 MHz to 930 MHz band
- External memory: microSD card slot (up to 32 GB, card not included)
- GPIO: over 400 Grove compatible pins
- Power supply: 5 V DC, 1 A (USB connector)
- Supported protocols: Meshtastic, convertible to single-channel LoRaWAN gateway
- Dimensions: 97 x 93 x 18 mm

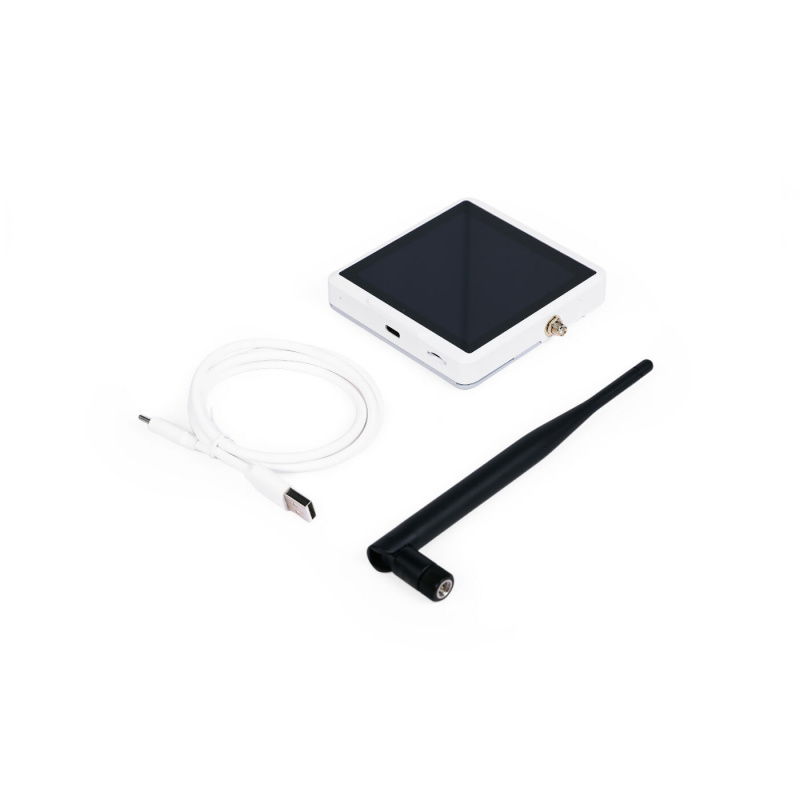

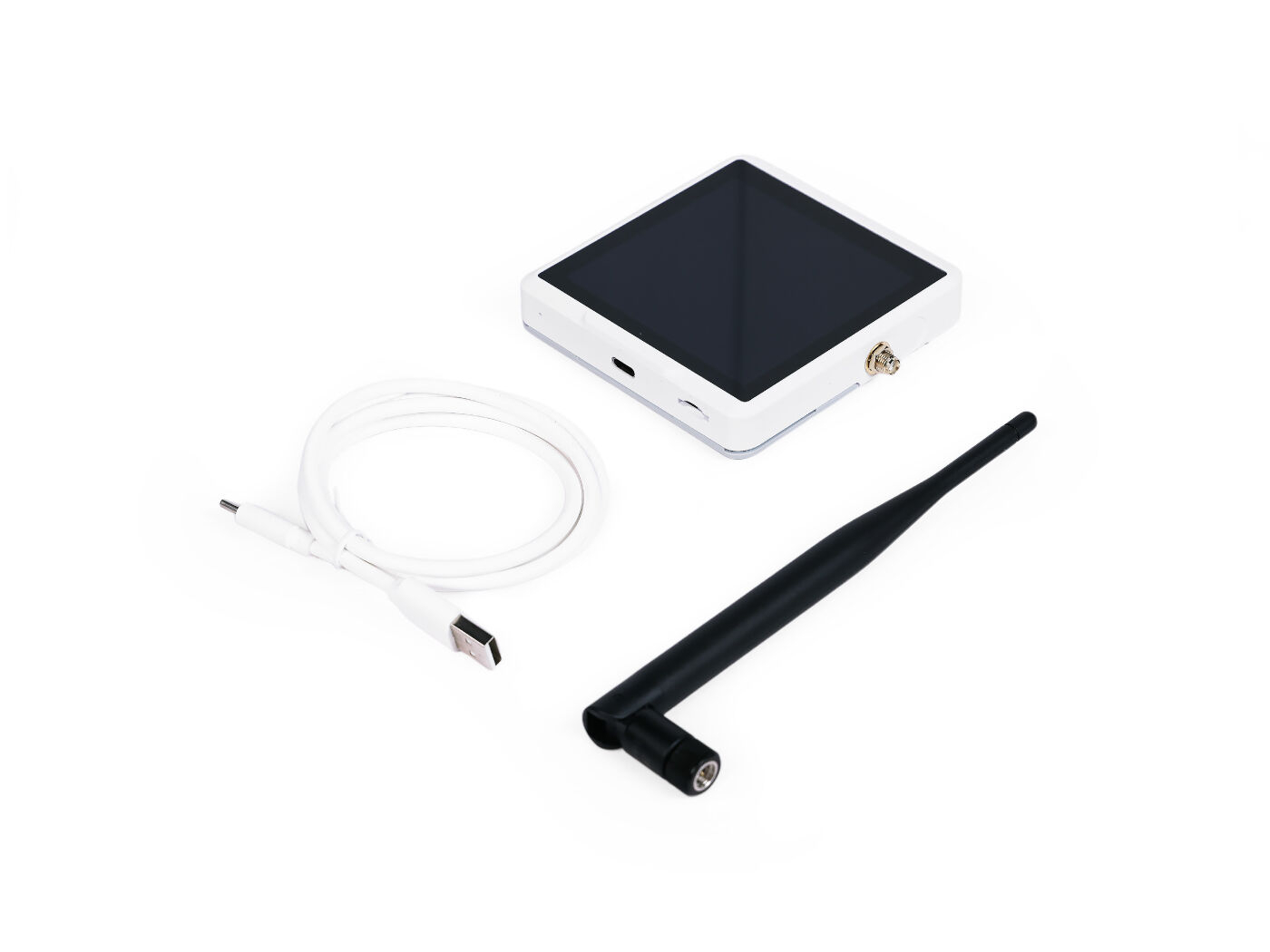

Kit Contents
- SenseCAP Indicator for Meshtastic & LoRa
- USB Type-C Cable
- 2dBi SMA antenna from 868MHz to 915MHZ
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 3.95 '' |
| Screen - touch | yes |
| Screen - resolution | 480x480px |
| UC - Microcontroller |
|
| UC - Core |
|
| UC - Flash |
|
| UC - core | 2. Dual Core |
| UC - freq |
|
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - Connector | USB typ C |
| Smart Home | Central unit |
| Communication |
|
| Width | 14 cm |
| Height | 4.4 cm |
| Depth | 12.6 cm |
| Weight | 0.228 kg |
