Product description: Shelly 1PM Gen3 - 1x relay AC 110 - 240 V, DC 24 - 30 V, WiFi / Bluetooth 16 A - energy measurement - Android / iOS application
Shelly 1PM Gen3 is a compact, intelligent relay that allows you to remotely control devices from 110V to 240V AC or from 24V to 30V DC and monitor their energy consumption. Thanks to WiFi and Bluetooth connectivity, it can be easily integrated with home automation systems such as Google Assistant, Alexa or Samsung SmartThings, allowing for voice control and automation . Compared to its predecessor, it has gained an improved processor and larger memory. Shelly 1PM Gen3 can be installed in standard electrical boxes , behind power sockets or in other places with limited space. Additionally, it has a built-in web interface that allows you to monitor and control its operation, as well as adjust settings.
Shelly 1PM Gen3 - 1x relay AC 110 - 240 V, DC 24 - 30 V, WiFi / Bluetooth 16 A - energy measurement - Android / iOS application.

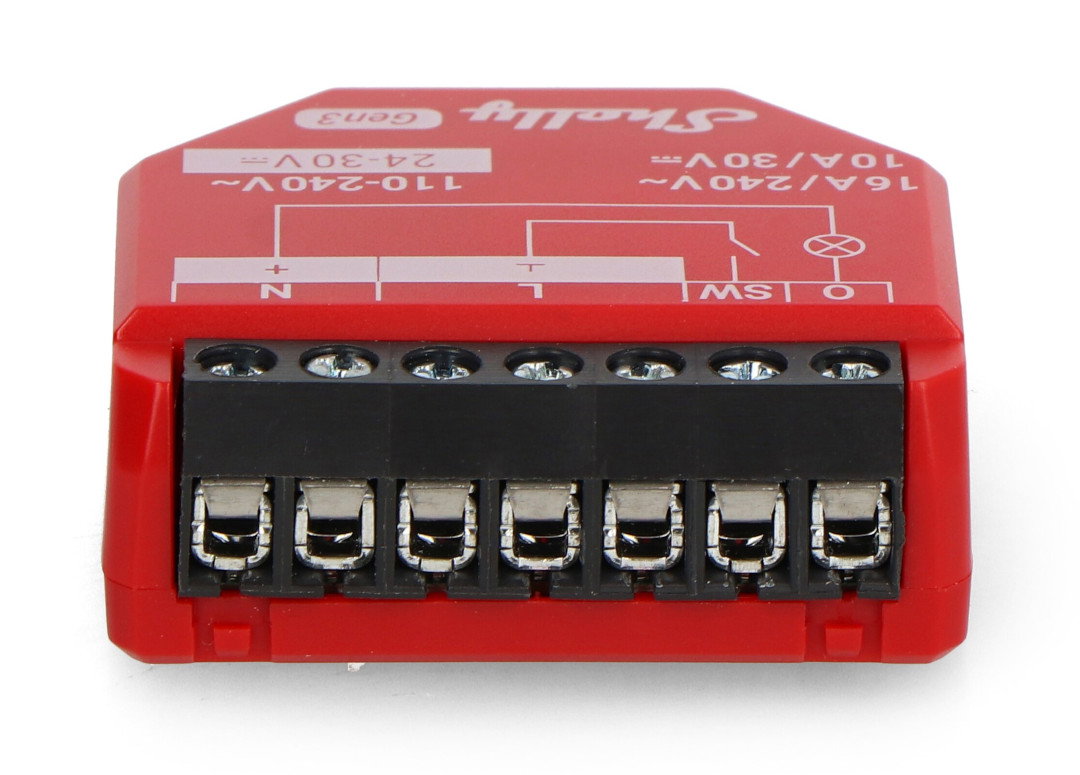

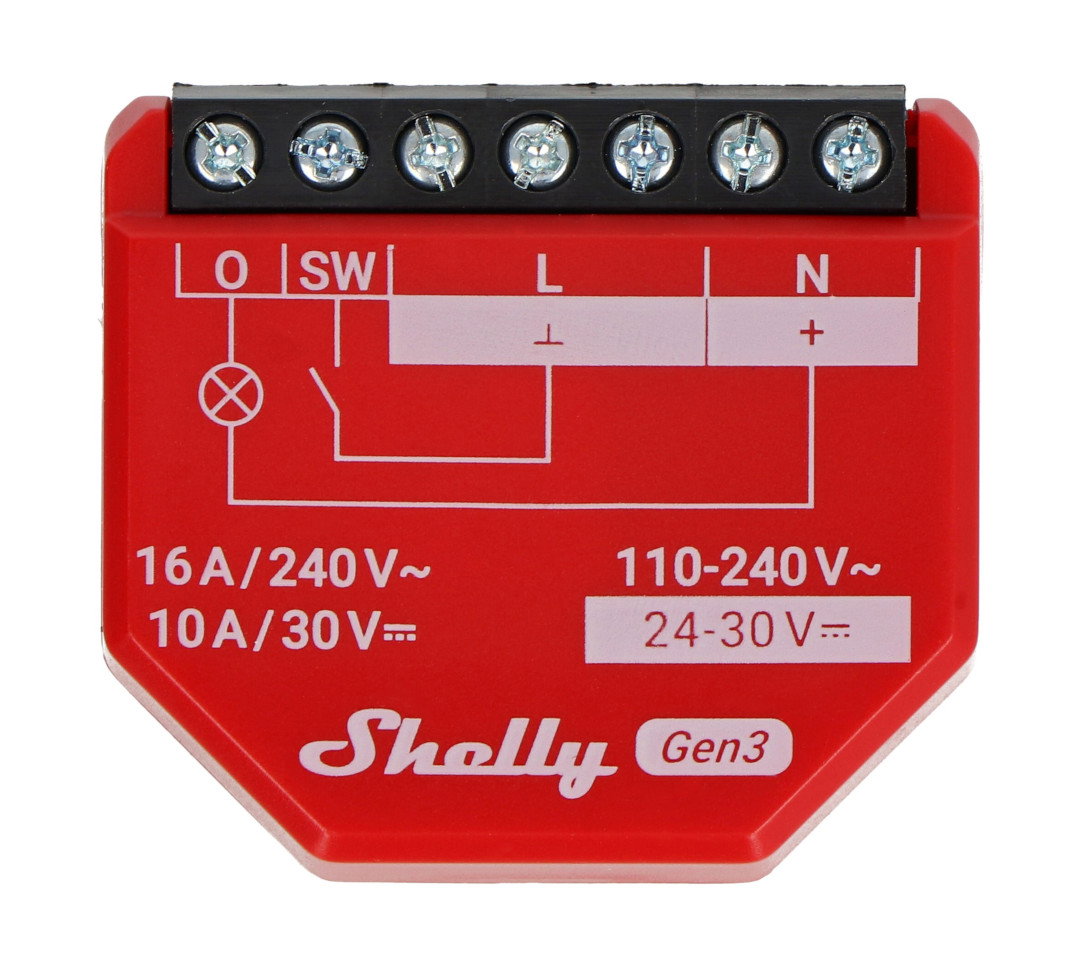

The relay has screw connectors for mounting wires.
What does Gen3 bring?
The Gen3 series introduces a number of improvements compared to previous models. With increased memory up to 8 MB and a modern processor , the device provides faster operation and better responsiveness.

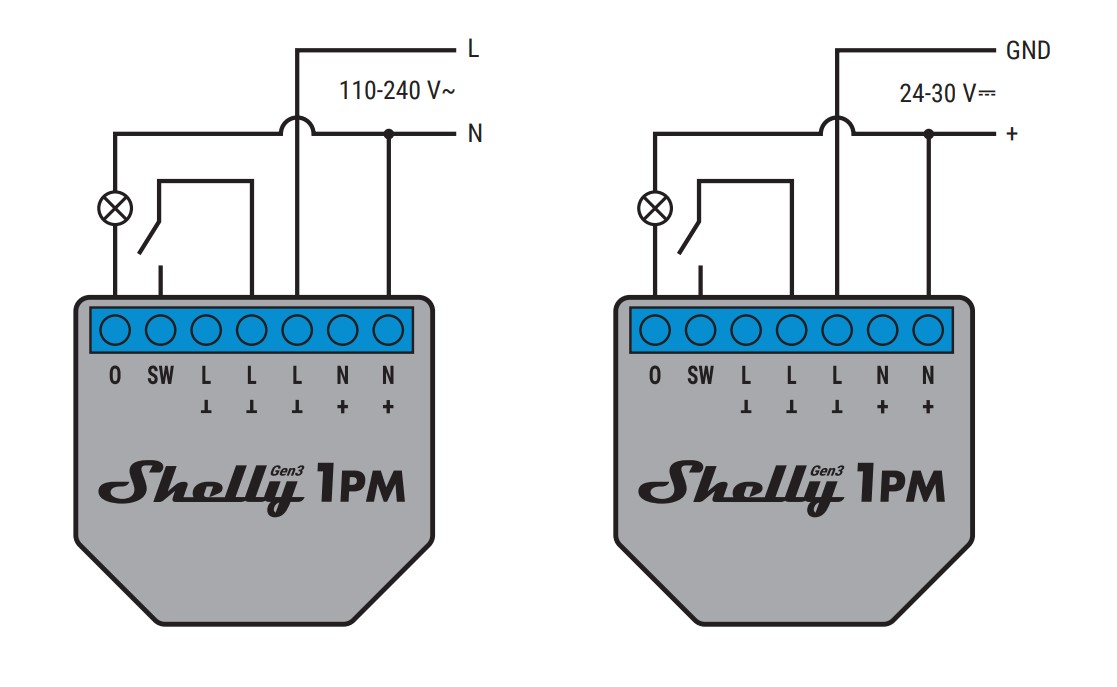

Shelly 1PM Gen3 module connection diagram
Before connecting the Shelly 1PM module, turn off the power supply in the circuit in which it will be installed. Make sure that the device is located in a safe place, protected from the weather and inaccessible to unauthorized persons.
The module is equipped with six screw connectors to which you can connect the wires using a screwdriver. Here is a description of the individual connectors:
- O : potential-free output
- L1 / L : 230 V AC power supply (or 24 V to 30 V DC), positive pole
- SW : switch input that controls output O
- Debug port : used for diagnostics and testing of the module
Always remember to exercise caution when working with electrical equipment.
Module connection diagram.
The relay does not require an additional gateway.
Shelly 1PM Gen3 Module Configuration
- Connect to your device's network : connect to the wireless network named "shelly1pm-xxxxxx" where "xxxxxx" is your device's unique serial number
- Download the app : Next, download the Shelly app from Google Play or the App Store
- Initial setup : In the app, simply click on the default device name to start the setup process
- Alternative configuration via browser : you can also configure the device via the website. To do this, after connecting to the Shelly network, open the browser and enter the address http://192.168.33.1 . A configuration page will appear, where you must select your home WiFi network and enter the access password

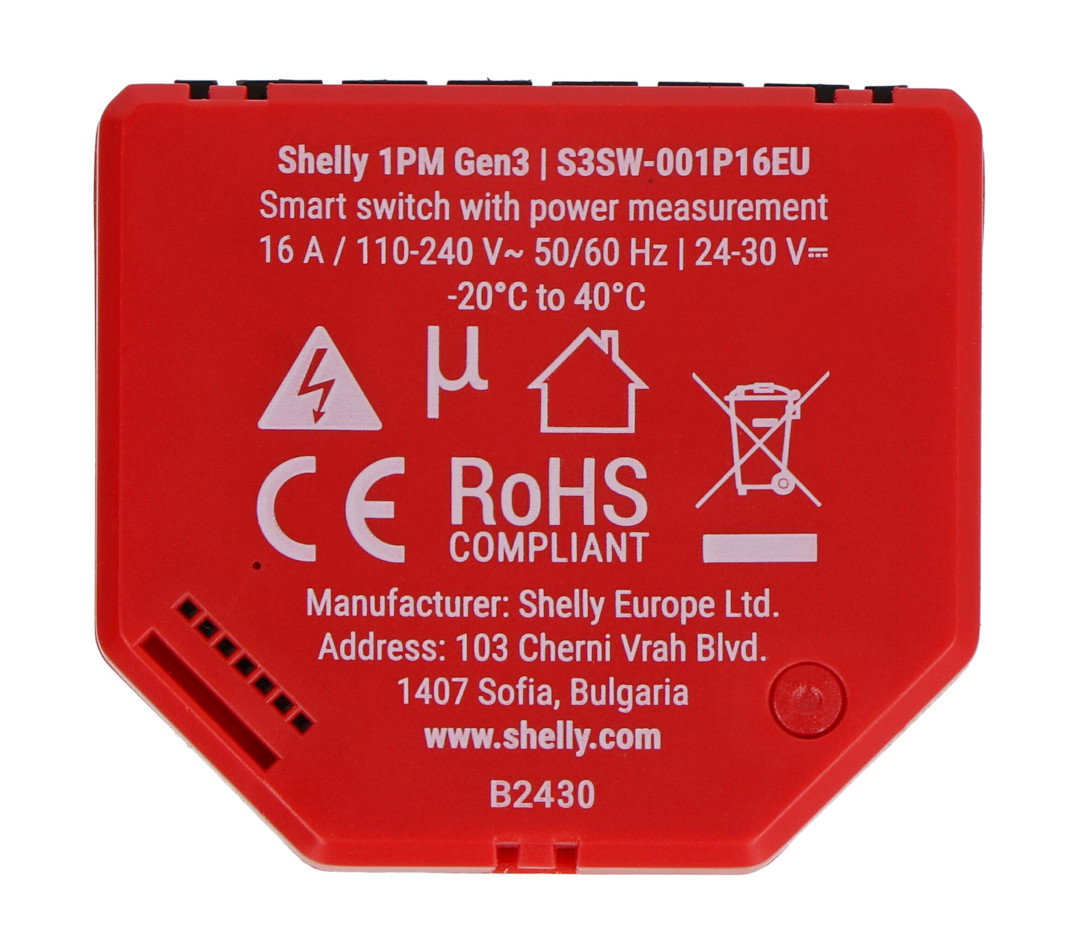

Technical specifications of the relay
- Model: S3SW-001P16EU
- Supply voltage: 110 V to 240 V AC / 24 V to 30 V DC
- Power consumption: < 1.2 W
- Control output type: relay
- Maximum switching voltage AC: 240 V
- Maximum switching voltage DC: 30 V
- Maximum AC load: 16 A
- Maximum DC load: 10A
- WiFi protocol: 802.11 b/g/n, 2.4 GHz band
- Bluetooth Protocol: 4.2
- Connectors: 6 screw terminals (O, L1/L, SW, debug port)
- Maximum power consumption: 3680 W
- Supported protocols: HTTP, MQTT, UDP, WebHooks
- Power management: power measurement functions
- Interface: Built-in web interface for configuration and monitoring
- Integrations: Compatible with Google Home, Amazon Alexa and Samsung SmartThings
- Dimensions: 42 x 37 x 16 mm
- Weight: 27 g
The relay can control a wide range of devices and equipment.
| Comparison of Shelly Gen1, Gen2, Gen3 and Gen4 Devices | ||||
|---|---|---|---|---|
| Feature | Shelly Gen 1 | Shelly Gen 2 (Plus/Pro, Mini) | Shelly Gen 3 | Shelly Gen 4 |
| WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi (WiFi 6) |
| Processing Power | Basic | More powerful processors than Gen 1 | Shelly chip for optimal performance | Most advanced processing power |
| Memory | Basic memory | Up to 4 MB Flash (8 MB in PRO) | 8 MB Flash, 256 kB RAM | More than Gen 3 (512 kB RAM) |
| Bluetooth | No | Yes - for easy setup | Yes - for easy setup | Yes - for easy setup |
| Scripting and Automation | No | Enhanced automation capabilities | Advanced scripting and automation | Advanced scripting and automation |
| Energy Monitoring | Basic (selected models) | Extended monitoring (some models) | Advanced monitoring and safety | Advanced monitoring and safety |
| Device Control | MQTT, CoAP, HTTP Webhooks | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud |
| Virtual Components | No | Available (PRO only) | Supported | Supported |
| KNX Support | No | Yes (selected PRO only) | Yes (selected devices) | Yes (selected devices) |
| Bluetooth Gateway | No | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) |
| KVS (Key-Value Store) | No | Yes | Yes | Yes |
| Timer Loop | No | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously |
| Range Extender | No | Yes | Yes | Yes (WiFi and ZigBee) |
| Simultaneous AP and WiFi | No | Yes | Yes | Yes |
| Ethernet | No | Yes (PRO only) | Yes (PRO only) | Yes (PRO only) |
| Intended Use | Basic home automation | More features, scripting, better hardware | Advanced automation, future-proof | Full automation, maximum flexibility |
| Protocol Support | None | BTHome, MQTT+Cloud, KNX (PRO) | BTHome, KNXnet/IP, Matter, MQTT+Cloud, Virtual Components | BTHome, Matter, ZigBee, TCP/IP Modbus, KNXnet/IP, MQTT+Cloud |
