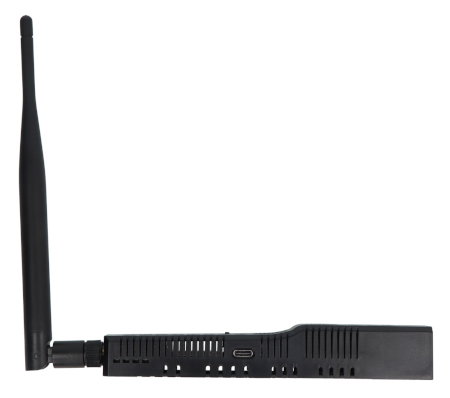

Product description: SMLIGHT SLZB-06p10 - ZigBee CC2674P10 gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi
The SLZB-06p10 is a powerful ZigBee coordinator from the SMLIGHT SLZB-06 series, designed for stable operation in complex smart home systems. The gateway utilizes a Texas Instruments CC2674P10 chip and an ESP32 module, supporting communication via Ethernet, WiFi, and USB . The adapter can be powered via PoE using the IEEE 802.3af standard or via USB Type-C , making it easy to install in an optimal location, regardless of the Home Assistant server's location. The SLZB-06p10 is ready to use right out of the box and supports popular Zigbee2MQTT and ZHA integrations.
SMLIGHT SLZB-06p10 - ZigBee CC2674P10 gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi.
Featuring USB, Ethernet and 802.3af PoE connectivity options, the SLZB-06 series is ideal for both smart homes and industrial environments.
Main features of SMLIGHT SLZB-06p10
- Texas Instruments CC2674P10 chip : provides high performance and supports up to 400 end devices
- Home Assistant compatibility : works with Zigbee2MQTT and ZHA integrations
- Ethernet, USB and WiFi communication : allows flexible connection of the coordinator to the automation system
- PoE power supply : allows you to power your device and transmit data over a single Ethernet cable
- Thread and Matter-over-Thread support : prepares the installation for modern Smart Home standards
- 20 dB signal amplifier : improves the range and stability of ZigBee communication
- External 5 dB antenna : supports a reliable connection to devices on your network
- ZigBee coordinator and router mode : allows you to adjust the operation to a specific installation
- OTA and SLZB-OS updates : provide convenient configuration, feature development and device management
ZigBee - reliable communication for a smart home
ZigBee technology was designed for energy-efficient and reliable communication between smart home devices. Thanks to its mesh network topology, any network-powered device can act as a router, increasing the range and stability of the entire installation. The SLZB-06p10 adapter can operate as a ZigBee coordinator or router , enabling the construction of extensive automation systems including sensors, lighting, controllers, relays, and many other devices compatible with Home Assistant, ZigBee2MQTT, and ZHA . Additionally, it offers native Thread support and support for Matter over Thread , making it a future-proof solution for emerging smart home ecosystems.
The adapter is compatible with Home Assistant via ZigBee2MQTT and ZHA.Technical specifications of the ZigBee gateway
- Main ZigBee Chip: Texas Instruments CC2674P10
- ZigBee processor: Arm Cortex-M33 48 MHz
- Memory: 1024 kB Flash, 256 kB ROM, 296 kB RAM
- SRAM Cache: 8 kB
- Main WiFi chip: ESP32 Espressif
- ESP32 processor: dual-core
- ESP32 memory: 520 kB SRAM, 448 kB ROM
- USB-UART converter: CP2102
- Ethernet chip: LAN8720
- Communication standard: ZigBee 3.0
- ZigBee operating modes: coordinator and router, ZigBee to Ethernet, ZigBee to USB
- Thread Support: Yes
- Matter-over-Thread Support: Yes
- Home Assistant integration: Zigbee2MQTT, ZHA
- Maximum number of end devices: up to 400
- Communication: Ethernet, WiFi, USB
- PoE support: yes
- PoE standard: IEEE 802.3af
- PoE power: up to 15 W
- USB interface: USB Type-C
- Output signal gain: 20 dB
- External antenna gain: 5 dB
- ESP32 Autoboot: Yes
- Pre-loaded software: yes
- Open-source software: yes
- OTA updates: yes

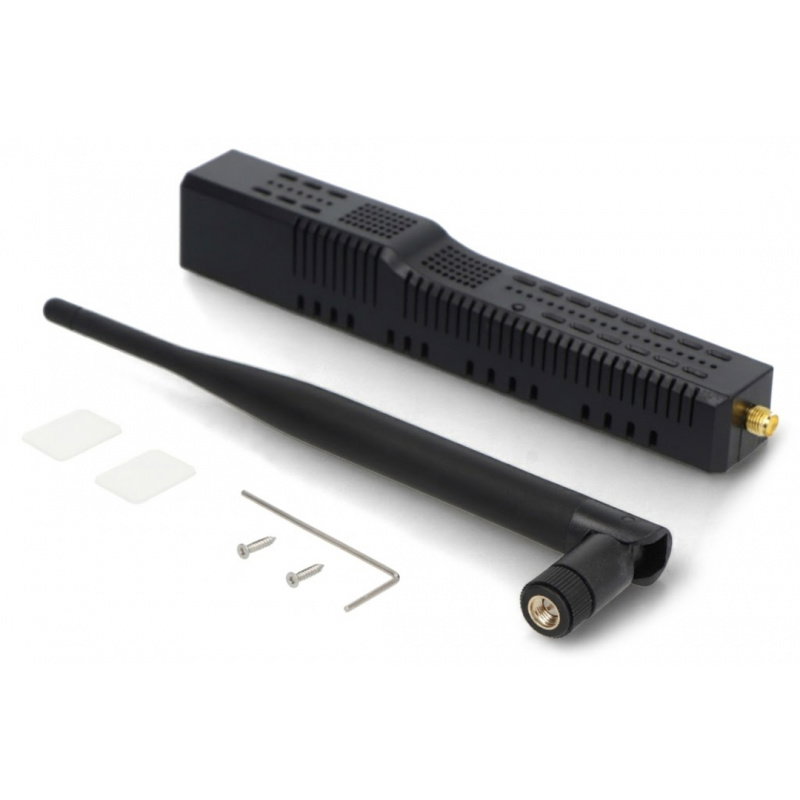

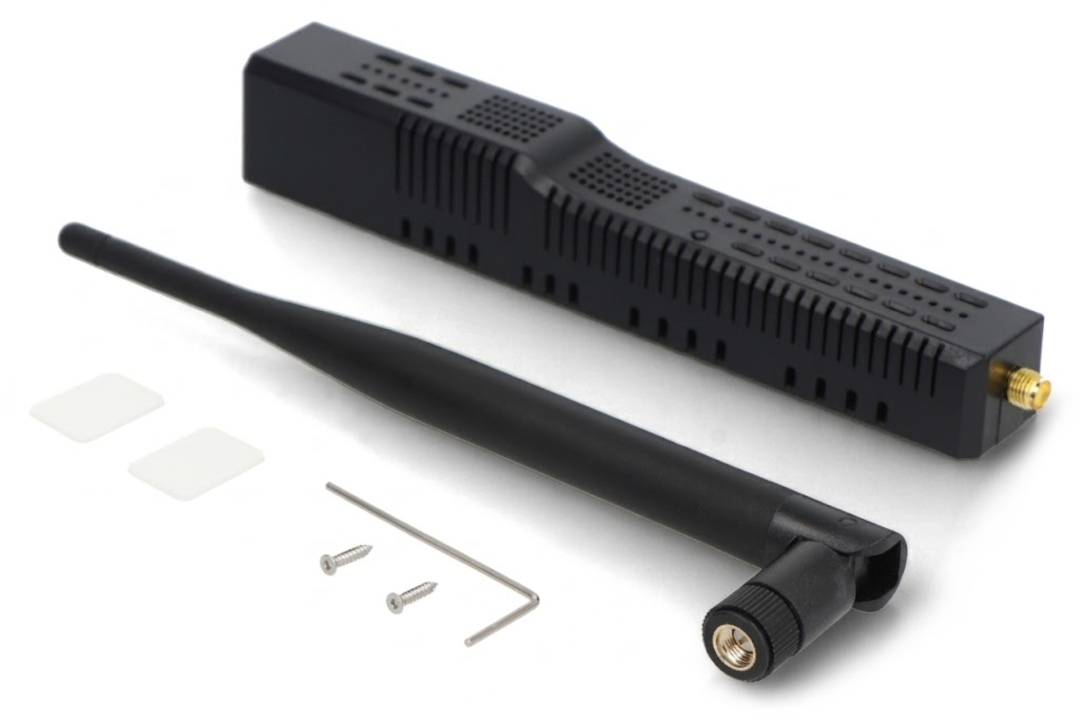

Contents of the set
- SMLIGHT SLZB-06p10 coordinator
- 5 dB antenna
- Micro USB to USB Type-C connector
- Mounting screws x2
- Adhesive tape x2
- Screwdriver
| Comparison of models from the SLZB-06 series | |||||
|---|---|---|---|---|---|
| Model | SLZB-06 | SLZB-06M | SLZB-06MG24 | SLZB-06P7 | SLZB-06P10 |
| SoC ZigBee/Thread | CC2652P | EFR32MG21 | EFR32MG24 | CC2652P7 | CC2674P10 |
| SoC Manufacturer | Texas Instruments | Silicon Labs | Silicon Labs | Texas Instruments | Texas Instruments |
| Max connected devices | up to 200 | up to 200 | up to 350 | up to 300 | up to 400 |
| The best choice for | Zigbee2MQTT | ZHA | ZHA | Zigbee2MQTT | Zigbee2MQTT |
| Good compatibility with | ZHA | Zigbee2MQTT | Zigbee2MQTT | ZHA | ZHA |
| ZigBee support | Yes, all models natively support ZigBee | ||||
| Thread Support | Yes, all models natively support Thread | ||||
| WiFi support | Yes, 2.4 GHz, including Ethernet-WiFi bridge mode | ||||
| Bluetooth ESPHome support | BLE over ESP32 and ESPHome integration | ||||
| SLZB-OS System | Yes, ready to go right out of the box | ||||
| Multiprotocol | NO | Yes | Yes | NO | NO |
| Attention | Multiprotocol mode is not recommended by Home Assistant | ||||
