Description

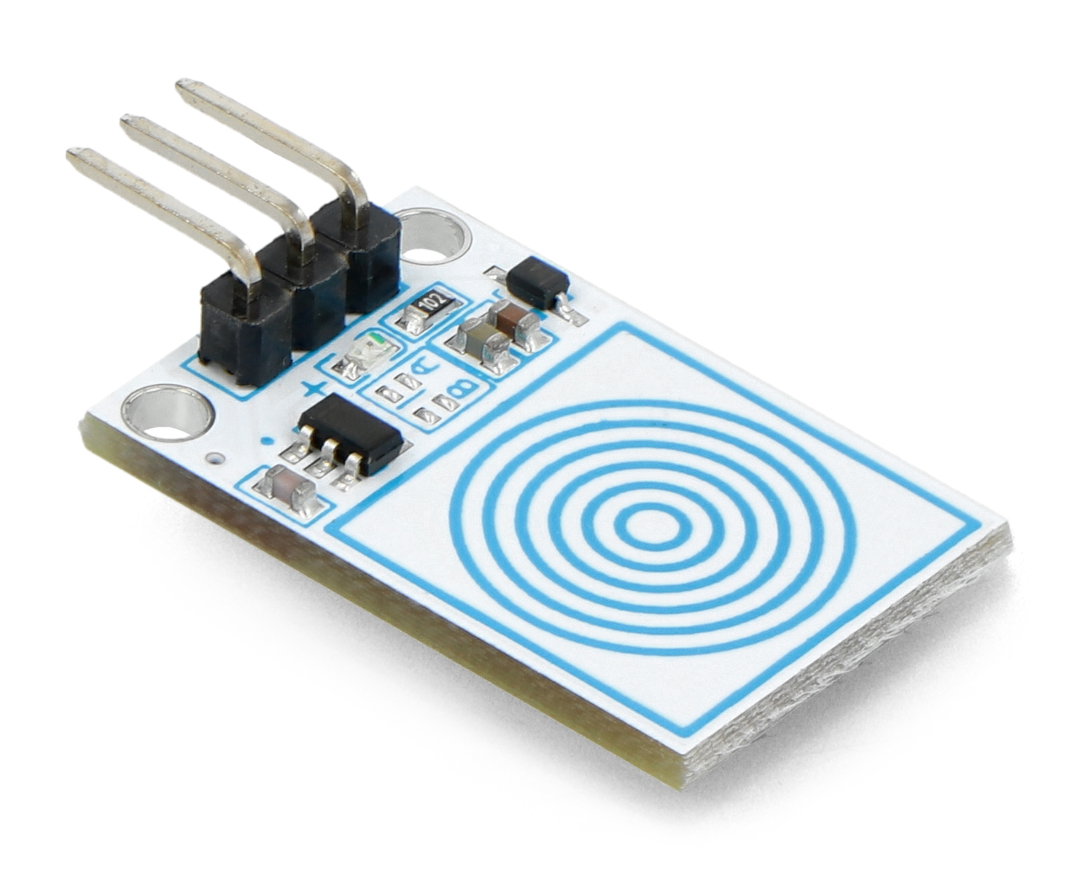

Module with touch, capacitive button which requires a little pressure to activate. The output is the analog signal.
Pins
The device has a 3-pin connector. The output is an analog signal whichcan lead, for example, to an analog input of the module of Arduino.
| Pin | Description |
|---|---|
| VCC | Supply voltage: 3 V to 5 V. |
| GND | The ground of the system. |
| S | The pin of the data. |
Specification
- Supply voltage: 3 V to 5 V
- Pins: 3-pin
- Dimensions: 30 x 16 x 6 mm
- Weight: 5 g
