Description: 8x3.4mmvibrating motor
A small motor with a diameter of 10 mmanda height of 2.0 mm generatingvibrationsof 0.75 g amplitude. It consumes about 60 mA of current with a 3 V supply.
Vibration motor specification
- Supply voltage: 2.5 V to 3.5 V
- Vibration amplitude at 3 V: 0.75 g
- RPM at 3 V supply: 14500 rpm
- Power consumption: 60 mA (80 mA max.)
- Operating temperature: -10 °C to 60 °C
- Dimensions: 10 x 2.0 mm

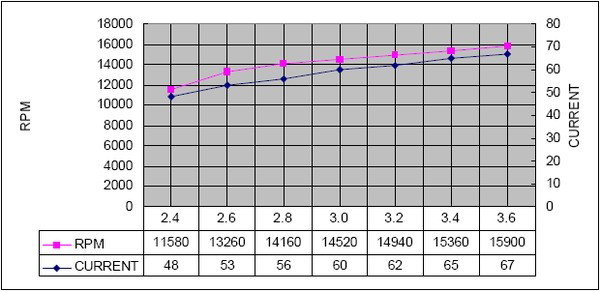

Speed as a function of supply voltage.

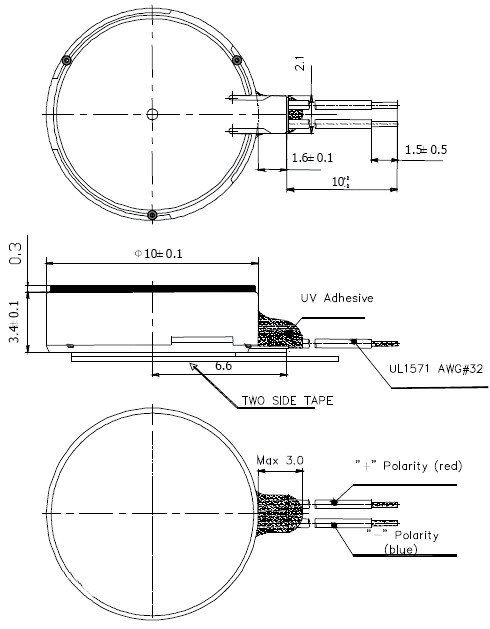

Dimensions of the vibrating motor
