Product description: USB Type-C power module with Li-Pol support and solar panel for WisBlock - RAK Wireless RAK19012
A power supply module designed for the RAK Wireless WisBlock platform . The board integrates a USB Type-C connector compliant with the USB 2.0 standard, a Li-Po battery charging circuit , and a solar panel connector , making it ideal for creating autonomous, low-power IoT devices. The module enables convenient programming and debugging of compatible WisBlock Core modules directly via USB Type-C . Its compact 30 x 20 mm dimensions and modular design allow for easy integration with WisBlock Base boards equipped with a Power Slot. The RAK19012 also features LEDs to indicate charging and device operation, as well as a microcontroller reset button.

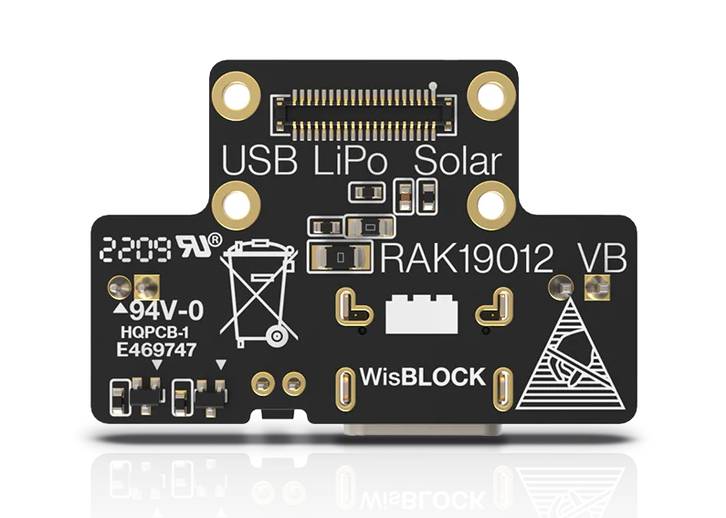

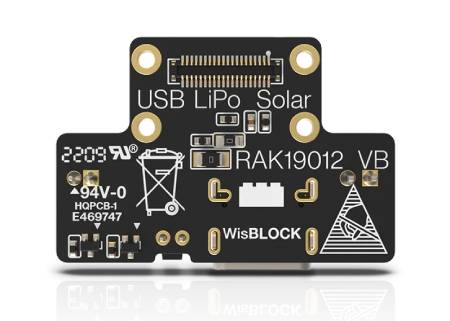

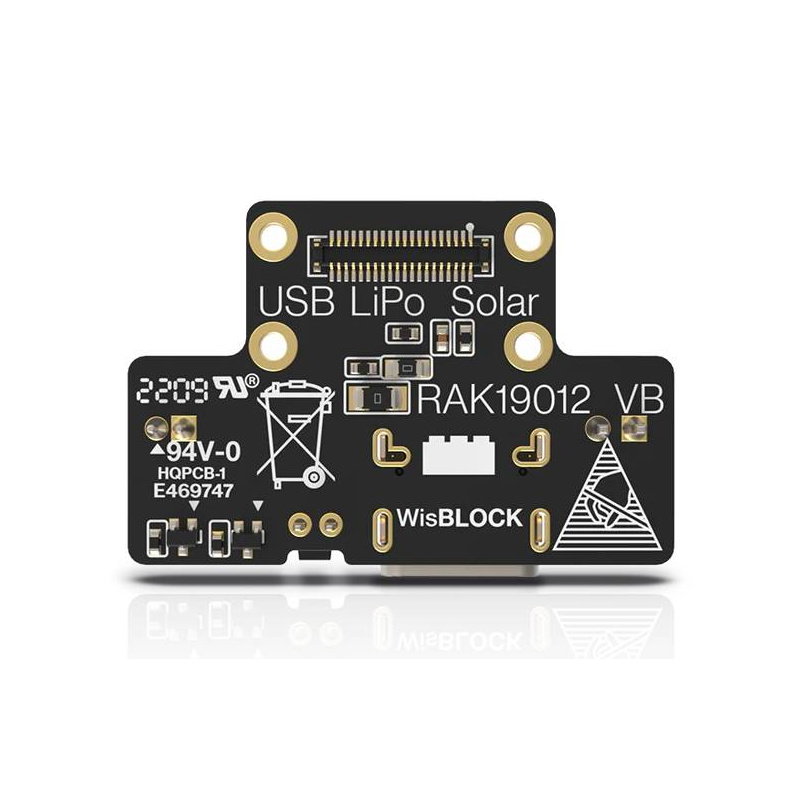

USB Type-C power module with Li-Pol and solar panel support for WisBlock - RAK Wireless RAK19012.
RAK19012 is a compact power board designed for the WisBlock system.
Main features of the RAK19012 module
- USB Type-C connector : allows programming and debugging of WisBlock Core modules
- LiPo battery support : compatible with Li-Ion / Li-Pol batteries with a voltage of 3.7V to 4.2V

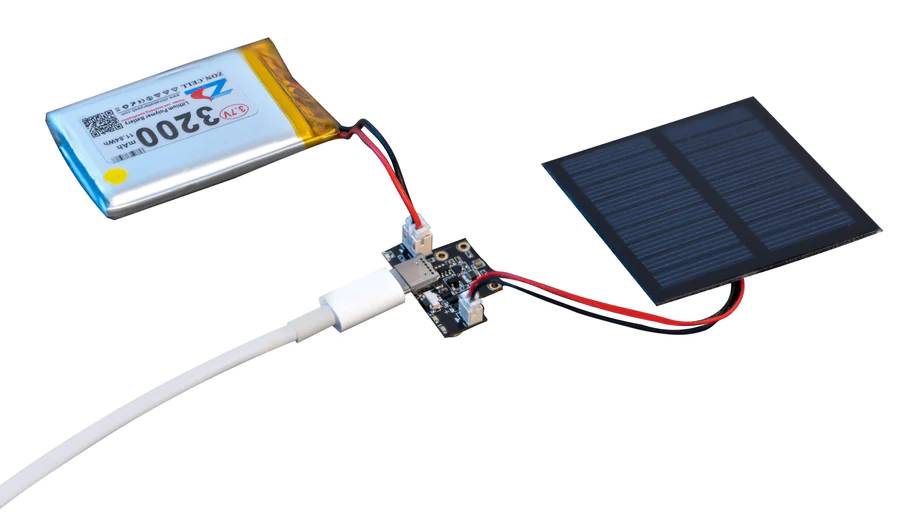

- Solar Charging : Dedicated 5V solar panel connector for battery charging
- Built-in charging system : safe battery charging without additional modules
- Status LEDs : Charging indicator and two user-configurable LEDs
- RESET button : quick reset of the connected MCU module
- Compact dimensions : small size of 30 x 20 mm makes it easy to integrate into IoT projects
- WisBlock's modular design : easy expansion and integration with the RAKwireless ecosystem
Technical specifications of the power board
- Model: RAK19012
- USB connector: USB Type-C compatible with USB 2.0
- Supported batteries: Li-Ion / Li-Pol
- Battery voltage: 3.3 V to 4.3 V
- Standard battery voltage: 3.7V LiPo
- Battery charging voltage: 4.2 V
- Minimum battery discharge current: 500 mA
- Solar panel support: yes
- Solar panel voltage: 5V
- Built-in charging system: yes
- LEDs: 3
- RESET button: yes
- System connector: 40-pin WisConnector
- Compatibility: WisBlock Base with Power Slot
- Operating temperature range: -35°C to 75°C
- Storage temperature range: -40°C to 80°C
- Dimensions: 30 x 20 mm
Contents of the set
- 1x RAKwireless RAK19012
- 1x USB cable

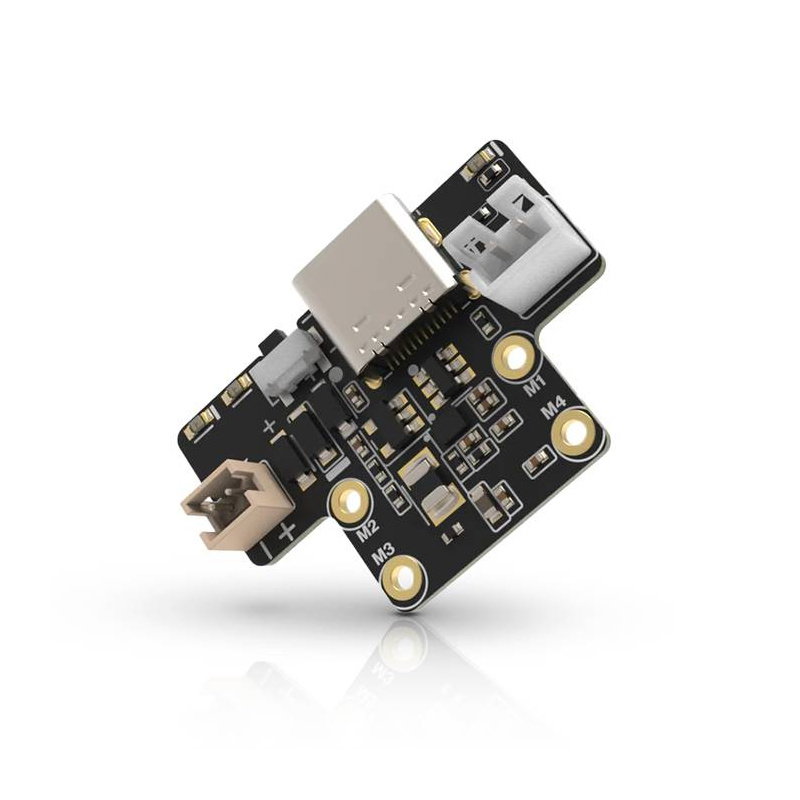

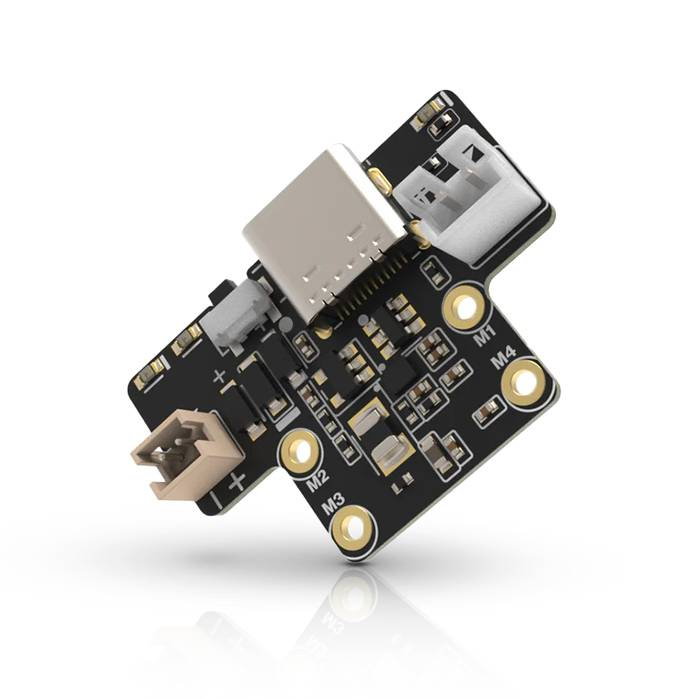

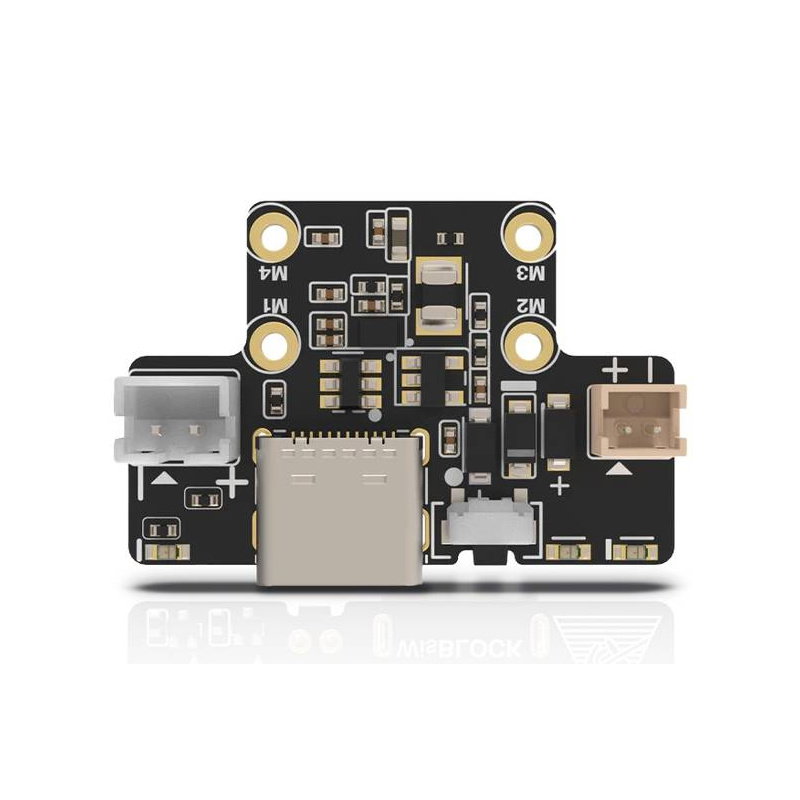

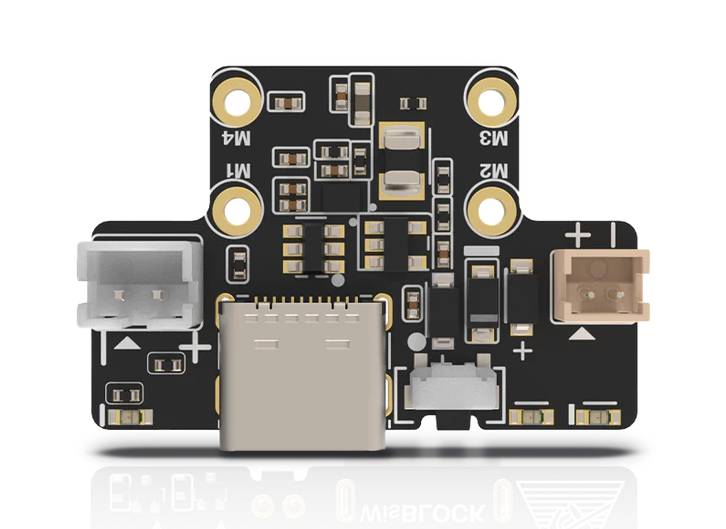

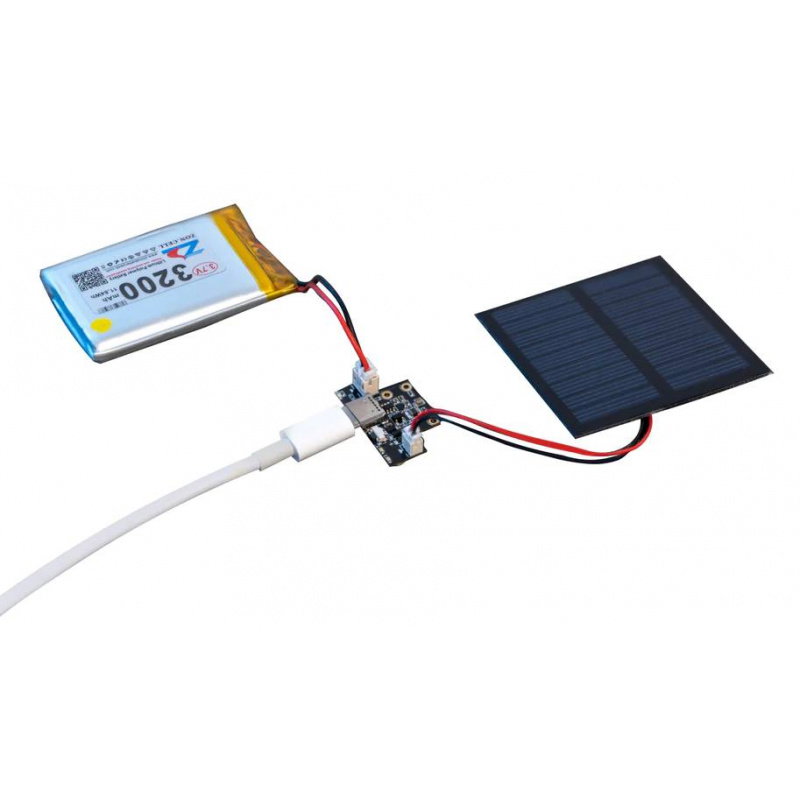

The module is equipped with a USB Type-C connector, a Li-Pol battery connector with a built-in charging system and an input for a solar panel.
