Product description: Unitree R1 Robot Battery - 6000 mAh
The Unitree battery was designed specifically for the Unitree R1 humanoid robot . Its 6000 mAh capacity and 194.4 Wh energy provide stable power to the robot's electronics, drives, and control systems. The compact design facilitates transport, storage, and quick replacement during robot operation. The proprietary BMS (Battery Management System) monitors key battery parameters, ensuring their safety and extended battery life. The built-in charge level indicator allows for a quick assessment of the current battery charge status. This simplifies robot operation planning, preparing additional power sources, and organizing longer demonstrations and educational activities.
Before using the battery for the first time, make sure it is fully charged.

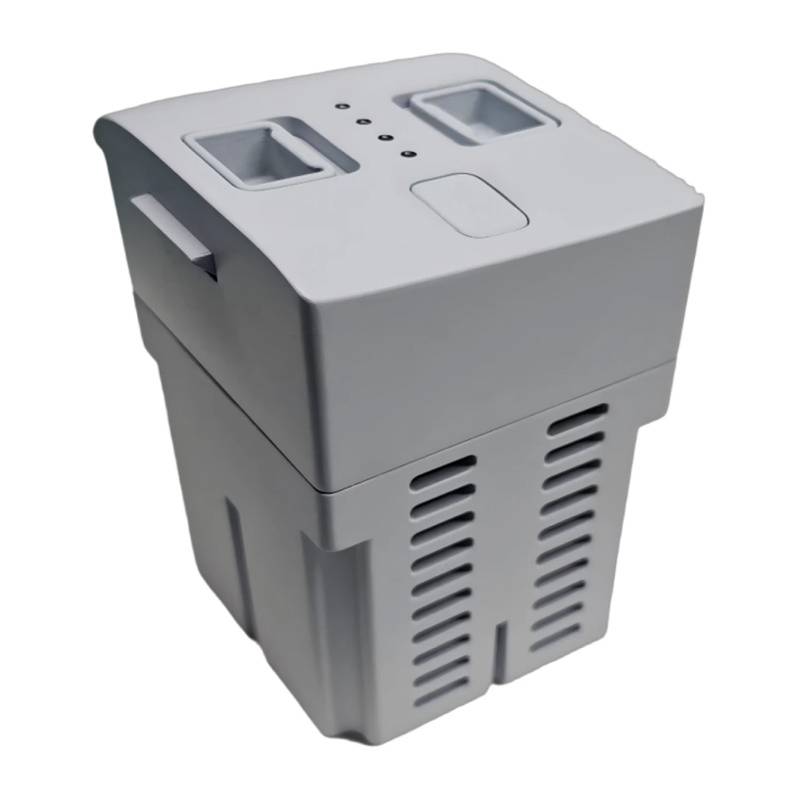

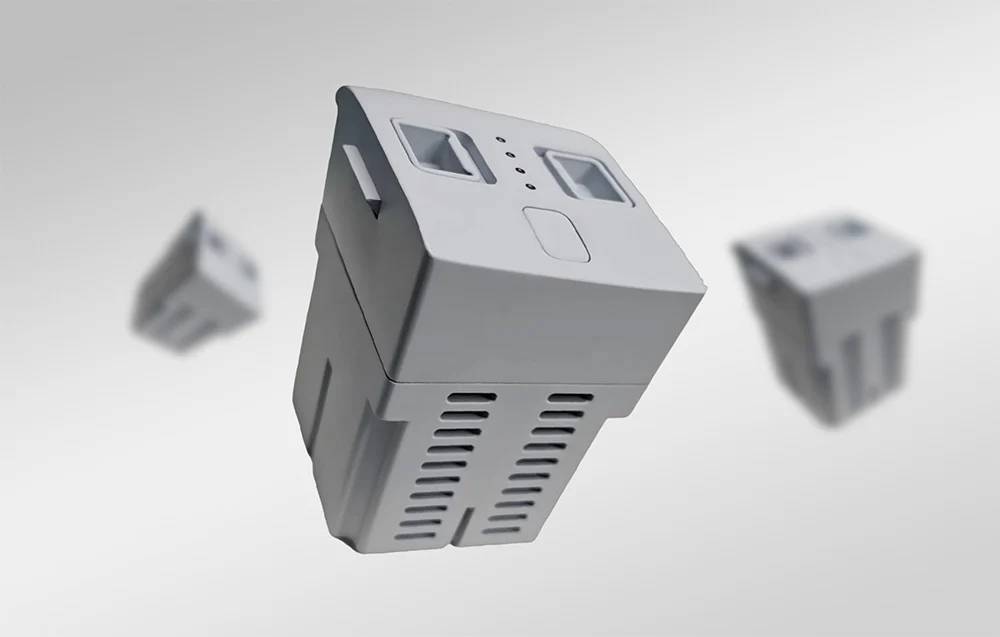

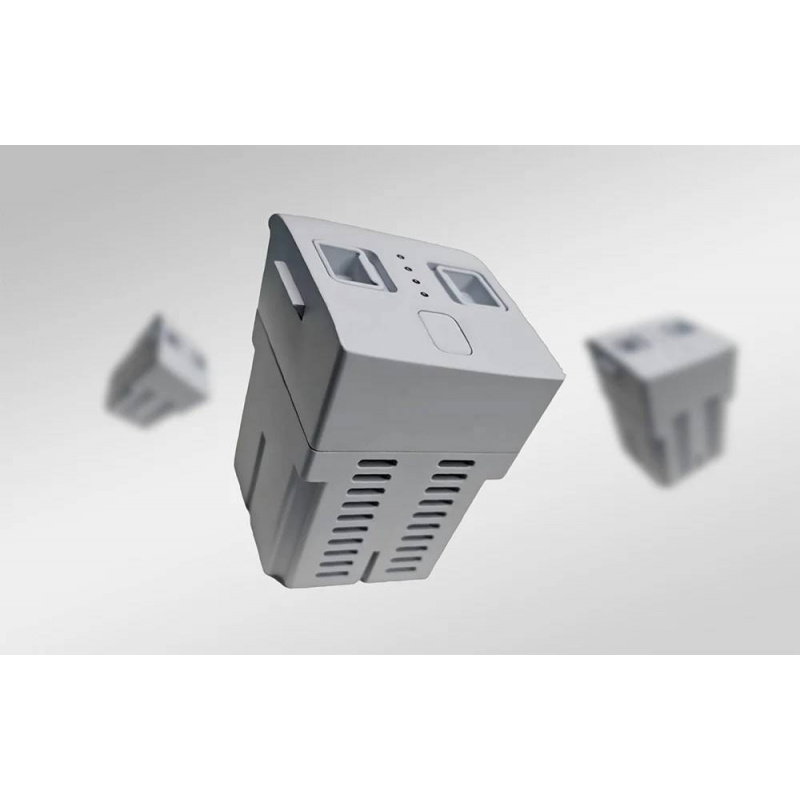

Unitree R1 Robot Battery - 6000 mAh.
Dedicated battery for the Unitree R1 robot.
Main features of the battery
- 6000 mAh capacity : provides stable power to the Unitree R1 robot
- Energy 194.4 Wh : allows the device to work efficiently
- Proprietary BMS system : controls the process of charging and discharging cells
- Charge level indicator : allows you to quickly check the battery status
- Overcharge protection : increases safety of use
- Over-discharge protection : protects cells from damage
- Short circuit protection : protects the power supply system
- Load Detection System : Monitors battery operating conditions
- Self-discharge protection : supports safe storage
- Unitree R1 Compatibility : dedicated solution for the Unitree humanoid robot
Intelligent energy management system BMS
The advanced Battery Management System (BMS) controls all key cell operating parameters. It monitors the charging and discharging process , helping to maintain stable device operation and extend battery life. This ensures the robot can enjoy a safe and predictable power source for a long time.
Advanced security features for cell safety
The battery is equipped with an extensive set of safeguards against overcharging, over-discharging, and short circuits . It also features charge balance protection, a load detection system, and self-discharge protection during storage . These features help maintain high cell efficiency and increase operational safety.

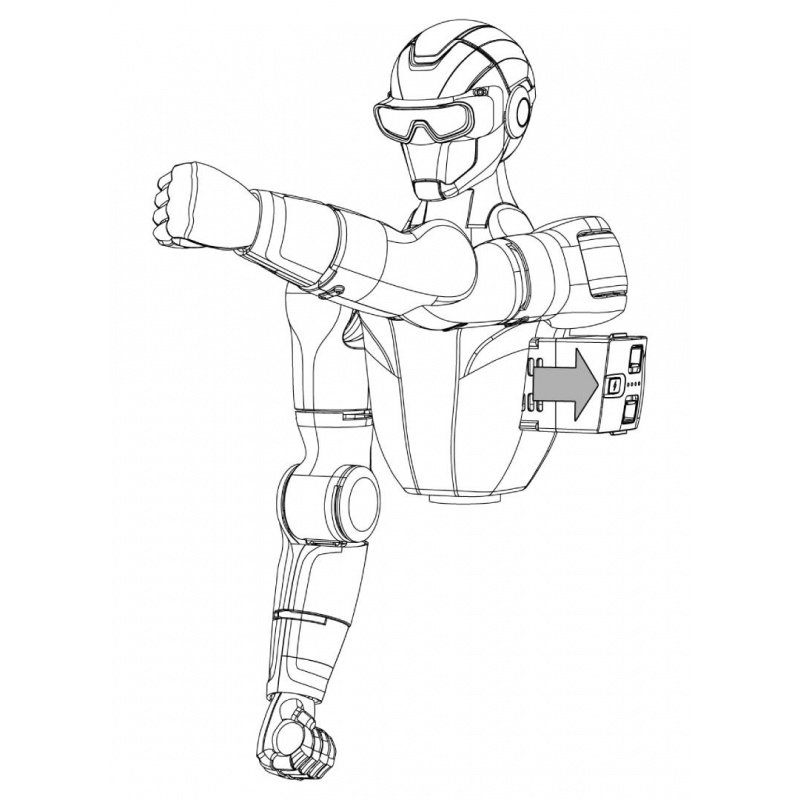

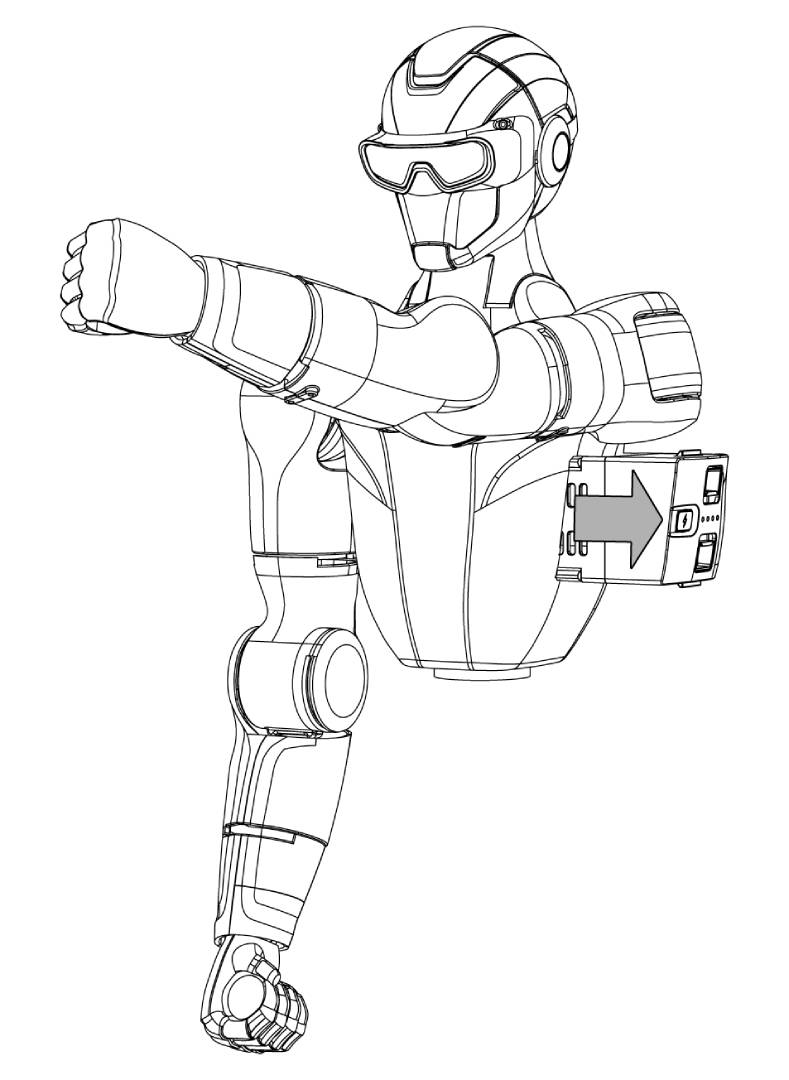

To remove the battery, lift the left arm of the robot.
The Unitree R1 battery is perfect as an additional source of energy during shows, presentations and technology events.
Unitree R1 battery technical specifications
- Compatibility: Unitree R1
- Nominal voltage: 32.4 V
- Charging limit voltage: 37.8 V
- Nominal capacity: 6000 mAh
- Energy: 194.4 Wh
- Battery management system: proprietary BMS
- Features: Battery level display, storage self-discharge protection, charge balancing protection, overcharge protection, over-discharge protection, short circuit protection, load detection system
- Dimensions: 85 x 83 x 146.5 mm
Kit contents
- 1x Battery for Unitree R1 robot
