Display e-paper - 1.64'' 168x168px - 4 colors - SPI - Waveshare 22755
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: E-paper display - 1.64'' 168 x 168 px - 4 colors - SPI - Waveshare 22755

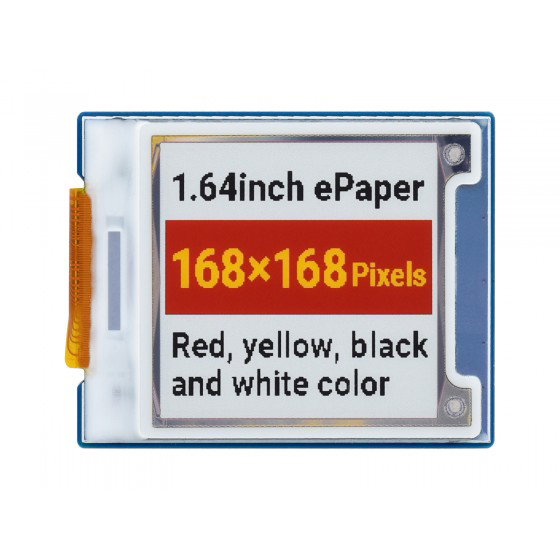

Waveshare display made on the basis ofe-paper technology, which makes this type of display suitable for e-book readers and electronic magazines. The diagonal of the screen is 1.64 ", and the resolution is 168 x 168 px . The image is displayed in four colors : red, yellow, black and white. The screen uses the SPI interface for communication purposes and works with boards such as Raspberry Pi, Jetson Nano , Arduino, STM32, etc.
Product compatible with Arspberry Pi and Arduino!
The manufacturer provides a product wiki page , which contains information about the pins of the module and a detailed user guide - check it out!
E-paper display - 1.64'' 168 x 168 px - 4 colors - SPI - Waveshare 22755.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
e-paper technology.
What is the "e ink e paper" display?
The e-paper display, also known as e-paper display, uses electrophoretic microcapsule technology to present data. This means that it mimics the appearance of standard ink found on traditional paper. This type of technology is extremely user-friendly - screens do not emit blue glow, are passively reflective and provide a wide viewing angle. All these features mean that our eyesight does not get tired so much during use, and reading is even more enjoyable than before.
Main features of the e-paper screen
- No backlight, it displays the last content for a long time, even when the power is disconnected
- Very low power consumption, power only required to refresh the image
- SPI interface, compatible with Arduino , Raspberry Pi , STM32 , etc.
- Built-in voltage regulator compatible with 3.3V/5V boards
Pin description

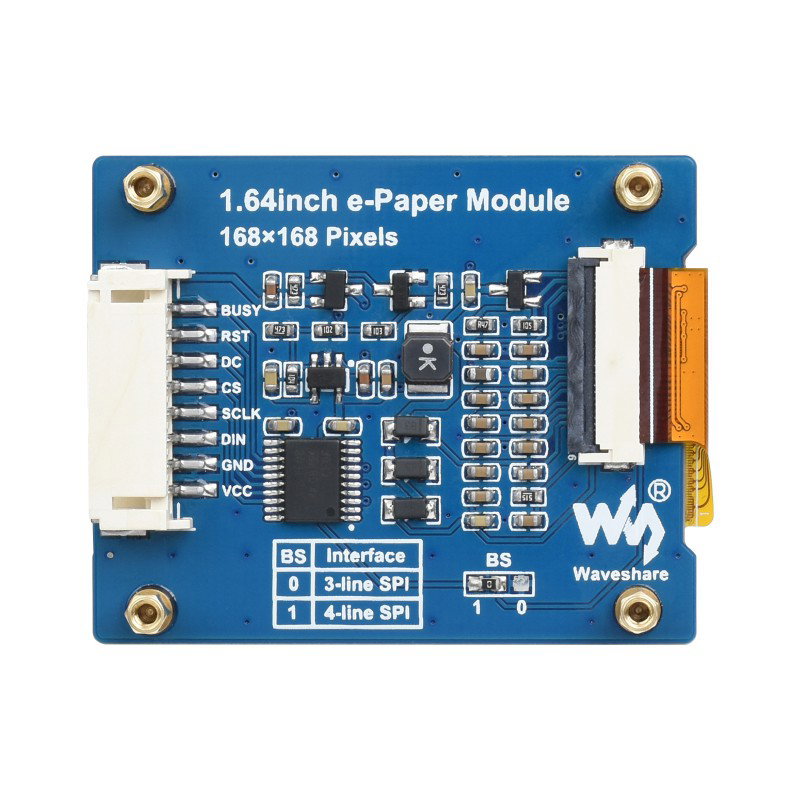

At the back of the display there is a connector with leads, so there is no need to solder the connectors. Just connect the display using the cable included in the set in accordance with the following relationships:
- VCC - supply voltage
- GND - system ground
- DIN - MOSI line of the SPI bus
- CLK - SCK line of the SPI bus
- CS - chip select (activated low)
- DC - data / command selection pin (high state for data, low state for commands)
- RST - reset, activated by low state
- BUSY - output pin of the busy state, activated high
On the back of the display there is a connector with leads.

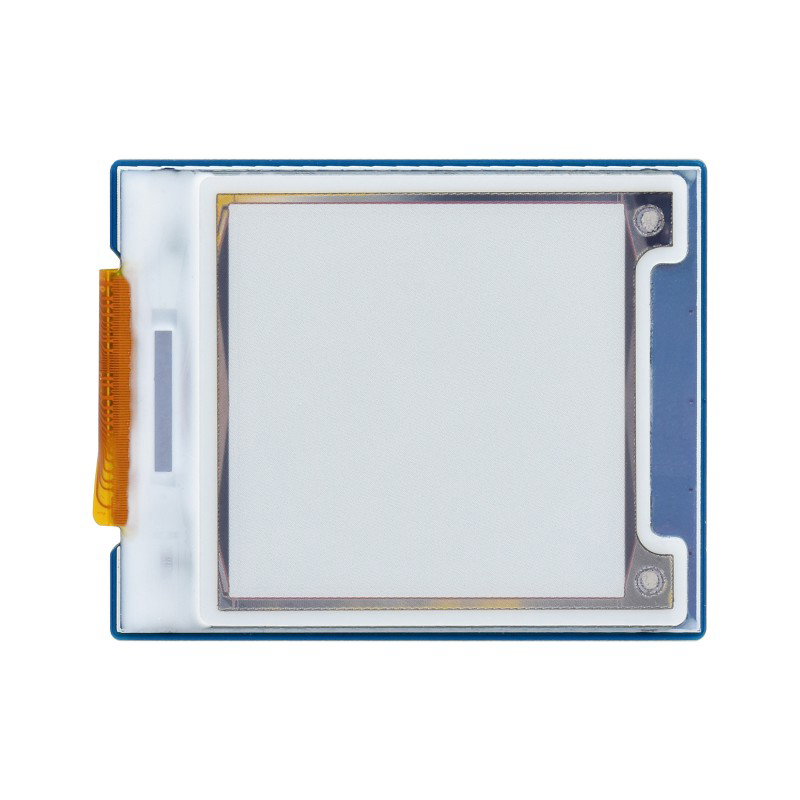

The screen has a square shape with a diagonal of 1.64''.
e-paper display specification
- Supply voltage: 3.3 V or 5 V
- Interface: SPI
- Display color: red, yellow, black and white
- Diagonal: 1.64''
- Resolution: 168 x 168 pixels
- Grayscale: 2
- Full refresh time: 12 sec
- Refresh power consumption: less than 57mW
- Standby current consumption: less than 0.01 uA
- Viewing angle: over 170°
- Pixel dimensions: 0.176 × 0.176 mm
- Module dimensions: 47 × 38 mm
- Display dimensions: 29.568 × 29.568 mm
Kit contents
- E-paper display - 1.64'' 168 x 168 px - 4 colors - SPI
- 8-pin connection cable, 20 cm long
Useful links
| Name | Value |
|---|---|
| Screen - type | e-paper |
| Screen - diagonal | 1.64 " |
| Screen - interface | SPI |
| Screen - touch | no |
| Screen - resolution | 168x168px |
| Width | 7 cm |
| Height | 5 cm |
| Depth | 2 cm |
| Weight | 0.025 kg |
