Product description: E-Paper 2.9'' 296 x 128 px - NFC-powered display - Waveshare 17746
Waveshare 's 2.9" e-paper display offers a solution for wireless power and data transfer using NFC technology. Unlike traditional LCD screens, the e-paper display doesn't require continuous power —after a single data transfer , the screen retains its image for months . With its compact ABS housing, low power consumption, and high contrast, it's perfect as an electronic label, product tag, name badge, or information plate.

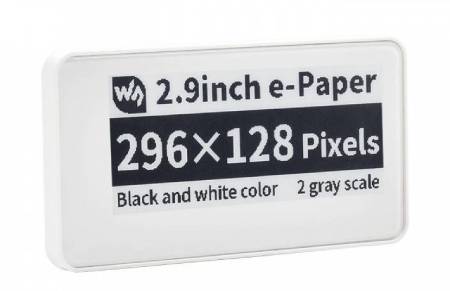

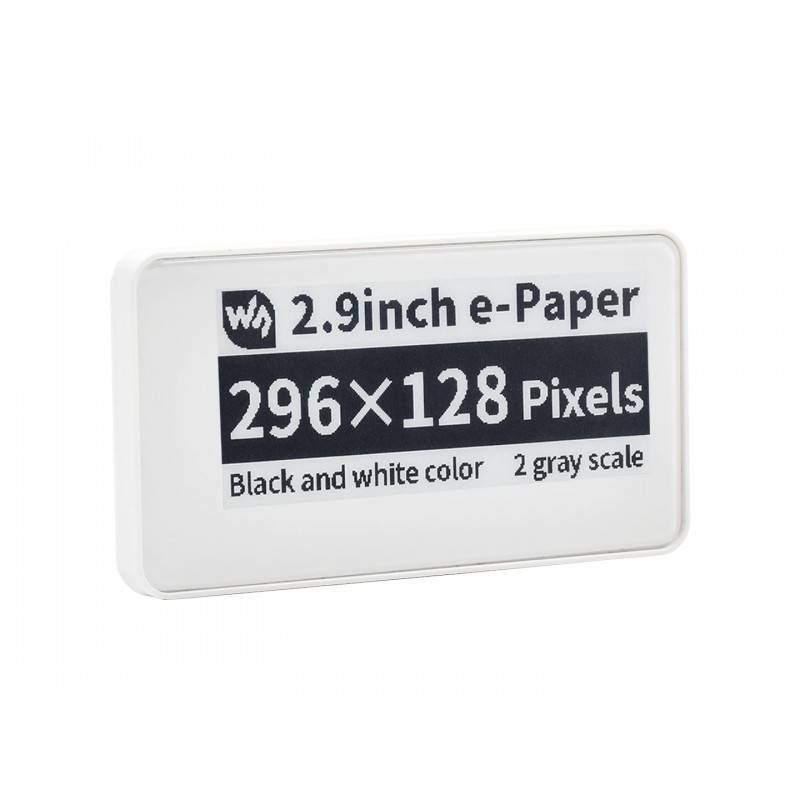

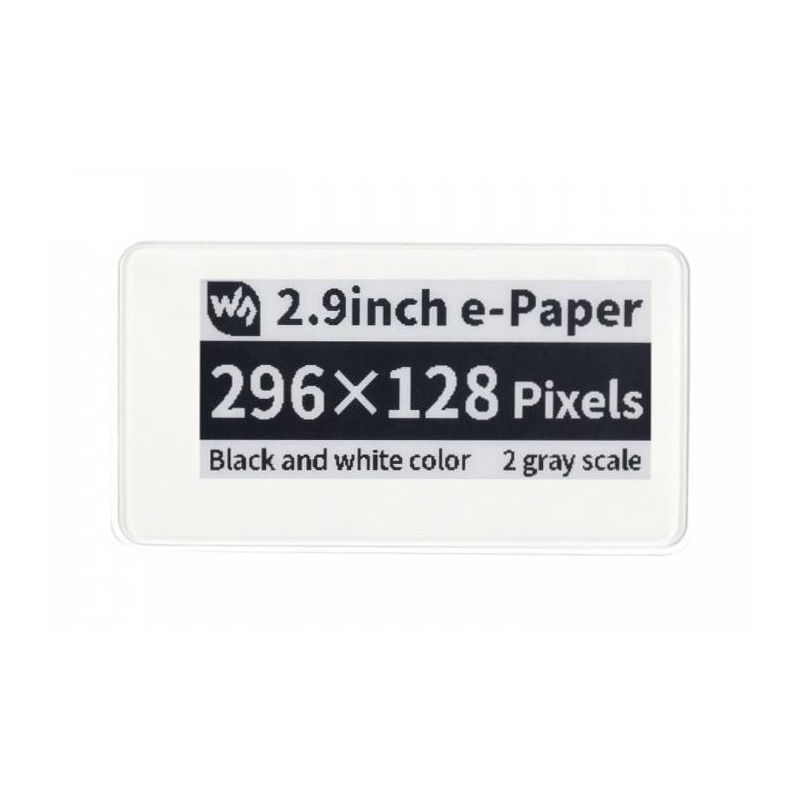

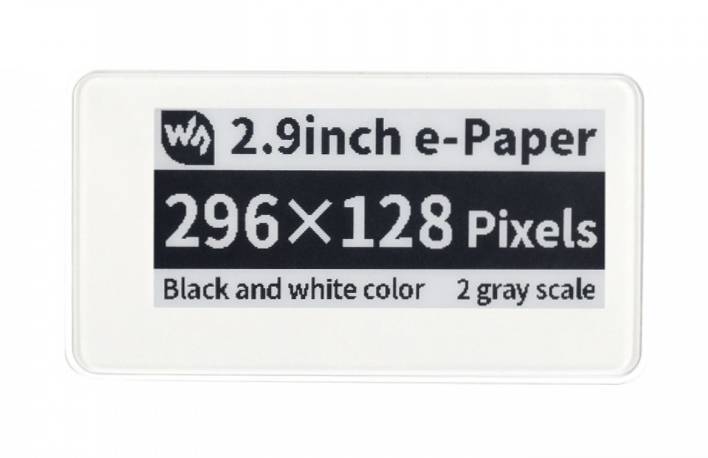

E-Paper 2.9'' 296 x 128 px - NFC powered display - Waveshare 17746.

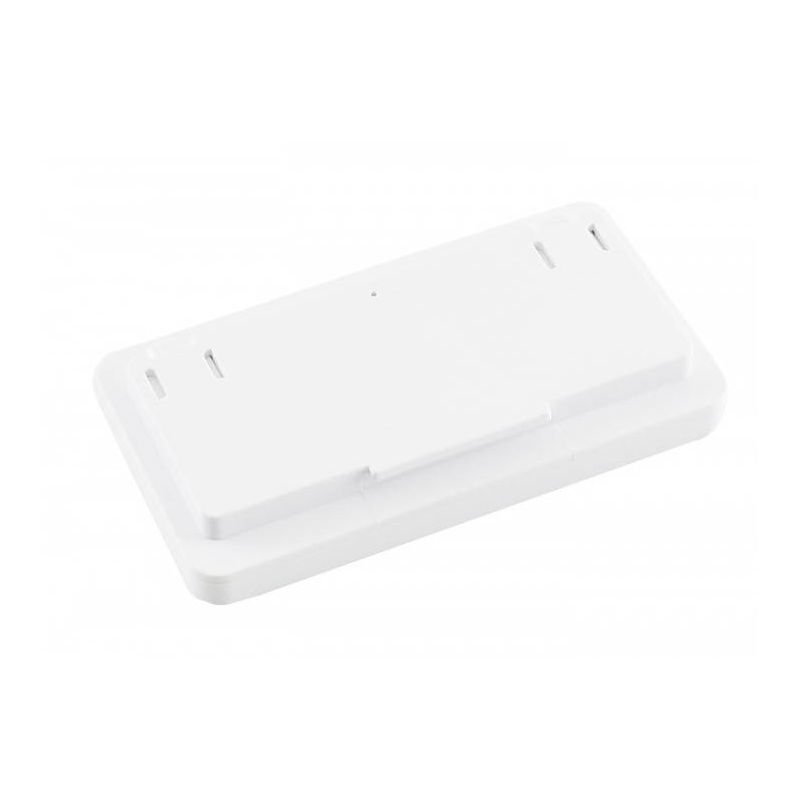

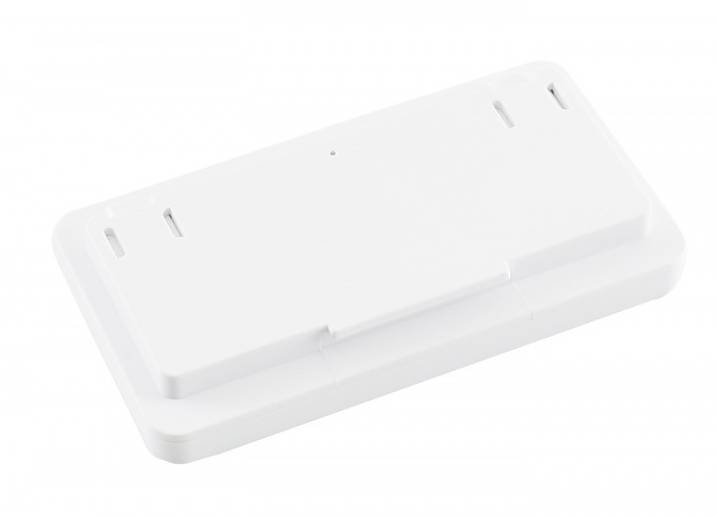

The ABS housing provides protection, making the product ideal for shelf labeling, conference tags, or asset marking.
Main display features
- Passive NFC technology : simultaneous power supply and data transmission via smartphone or reader
- No batteries : no need to charge, maximum reliability
- E-paper display : no energy consumption to maintain the image
- Image durability : the image remains readable for many months unless overwritten
- Full image and text support : ability to display bitmap graphics, photos, text, QR codes, etc.
- Two-color screen : black and white + 2-level grayscale
- Wide viewing angle : over 170°, no fade effect
- Dedicated application : Android and iOS with image editing and transfer function
How does an e-paper display with NFC work?
An e-paper display uses microcapsules containing pigment particles that, when arranged with an electrical charge, create a permanent, readable image. This technology requires no backlight or energy to maintain the content—the image is kept "frozen" until updated.

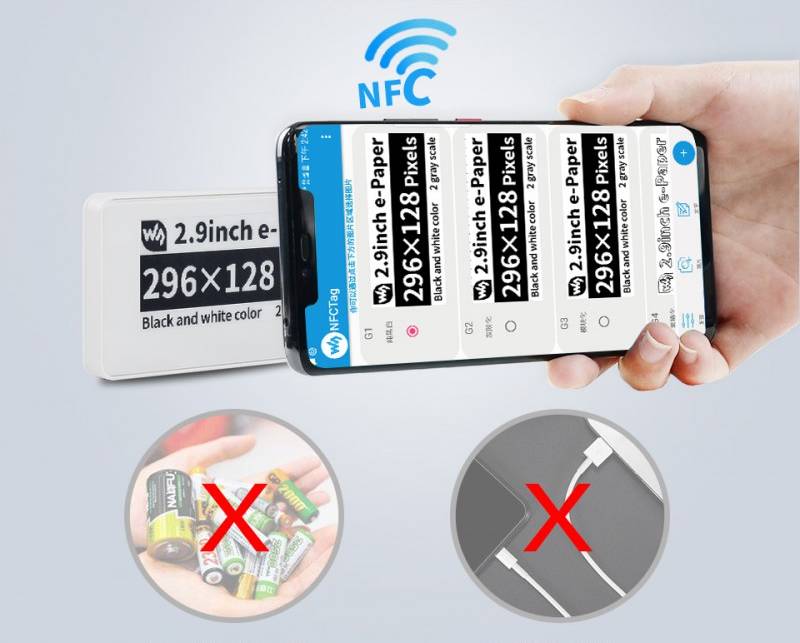

The Waveshare 2.9" model is based on passive NFC technology, which allows you to:
- power the screen wirelessly
- upload a new image from your phone or reader
The display requires no power or wiring, and all you need to update it is an NFC-enabled smartphone or compatible reader.
Once refreshed, the display maintains the image until the next update, without consuming any power.
Supported by NFCTag / NFC E-Tag app
The manufacturer provides applications to operate the display:
- NFCTag (Android)
- NFC E-Tag (iOS)
Main functions:
- sending images, texts, QR codes
- cropping, contrast and brightness editing
- graphic effects support (sketch, grayscale, block, etc.)
- multi-screen management
- ability to overwrite the access password
Note: The app does not support Samsung, Pixel, or Sony phones. An external NFC reader (e.g., ST25R3911B ) is required.
Technical specifications of the e-paper display
- Type: e-paper
- Diagonal: 2.9''
- Resolution: 296 x 128 pixels
- Display color: black, white
- Point spacing: 0.138 x 0.138
- Power supply: NFC, passive
- Viewing angle: >170°
- Refresh time: 2 s (without data transfer)
- Material: ABS
- Operating temperature: 0°C to 50°C
- Humidity: 35% RH to 65% RH

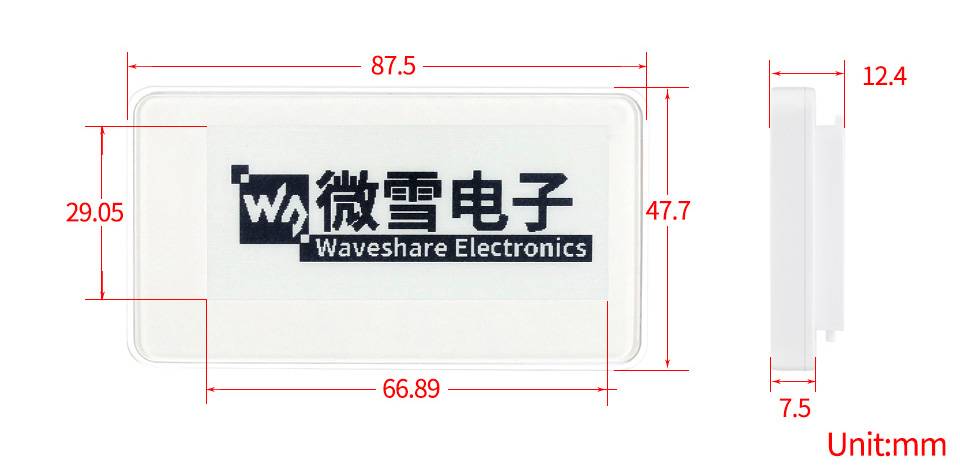

- Active area: 66.89 x 29.05 mm
- Dimensions: 87.5 x 47.7 x 12.4 mm
- Weight: 32 g
Contents of the set
- 1x 2.9'' NFC e-paper display
Compact dimensions will work well in many projects.
