EdgeBox-ESP-100 - Edge industrial controller 512KB + 8MB RAM + 16MB Flash - Seeedstudio 102991735
EdgeBox-ESP-100 is a compact, multifunctional industrial controller based on the ESP32 microcontroller, ideal for automation, monitoring and control in industrial environments. Equipped with a wide range of wired and wireless interfaces, such as WiFi, Bluetooth, 4G LTE, CAN, RS485 and Ethernet , it allows you to connect devices in local networks and the cloud. Thanks to its rugged design and isolated digital and analog inputs/outputs, it is perfect for harsh industrial environments.
We could not load the price.
The promotional price does not combine with quantity discounts.
Manufacturer's description: EdgeBox-ESP-100 - industrial Edge controller 512 KB + 8 MB RAM + 16 MB Flash - Seeedstudio 102991735
EdgeBox-ESP-100 is a compact, multifunctional controller designed for industrial automation and IoT applications. It has a wide range of communication interfaces, such as Ethernet, RS485, CAN , and also supports wireless connections via WiFi, Bluetooth and a 4G LTE module. Thanks to the use of the ESP32S3 microcontroller and isolated digital and analog inputs and outputs, it is an excellent solution for demanding industrial applications. The aluminum housing ensures durability and resistance to harsh operating conditions. Additionally, the device supports the LoRaWAN protocol, which allows for further expansion of communication capabilities, especially in the case of long-distance data transmission in IoT networks. Thanks to the rich number of interfaces, the device can act as an IoT gateway, connecting traditional PLC controllers with industrial networks and enabling their integration with the cloud. Programming is possible using ESP-IDF , and full support for the IEC 61131-3 standard (in development) provides additional possibilities for integration with control systems.
The manufacturer has prepared a detailed user guide that makes it much easier to start working with the controller.
EdgeBox-ESP-100 - industrial Edge controller 512 KB + 8 MB RAM + 16 MB Flash - Seeedstudio 102991735.
The 4G LTE module and the LoRa module cannot be supported at the same time.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.

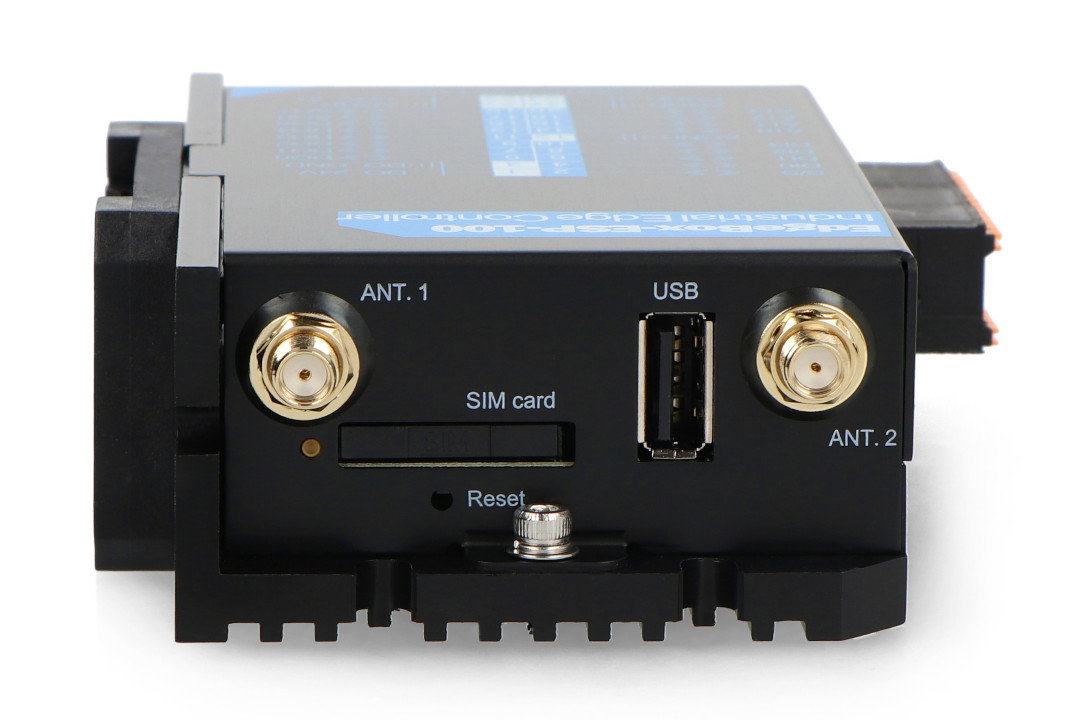

Communication interfaces in the EdgeBox-ESP-100.
EdgeBox-ESP-100 Main Features
- Versatile : Supports multiple Fieldbus protocols – RS485, CAN, Ethernet
- Wireless connectivity : built-in WiFi, Bluetooth 5.0 and 4G LTE module (SIMCom A7670G)
- Isolated I/O : 4 digital inputs, 6 digital outputs and 4 analog inputs and 2 analog outputs
- High resistance : aluminum housing, resistant to industrial conditions and protection against overvoltages and short circuits
- Wide power supply range : the device is powered by a voltage from 10.8 V to 36 V DC
- Programmability : ESP-IDF support and the ability to use Arduino for prototyping
Application of industrial controller
EdgeBox-ESP-100 is widely used in various industrial sectors. It can be used as:
- PLC controller : ideal for automating industrial processes such as machine control, plant monitoring or production process management.
- IoT Gateway : Enables traditional industrial systems to connect to IoT networks so devices can be monitored and controlled remotely via the cloud.
- SCADA : an excellent solution for building distributed control and data acquisition systems, ensuring full integration with networks of sensors and measuring devices.
- PID Control: Built-in analog inputs and programming capabilities enable precise control of processes based on PID algorithms.
EdgeBox-ESP-100 pinout.

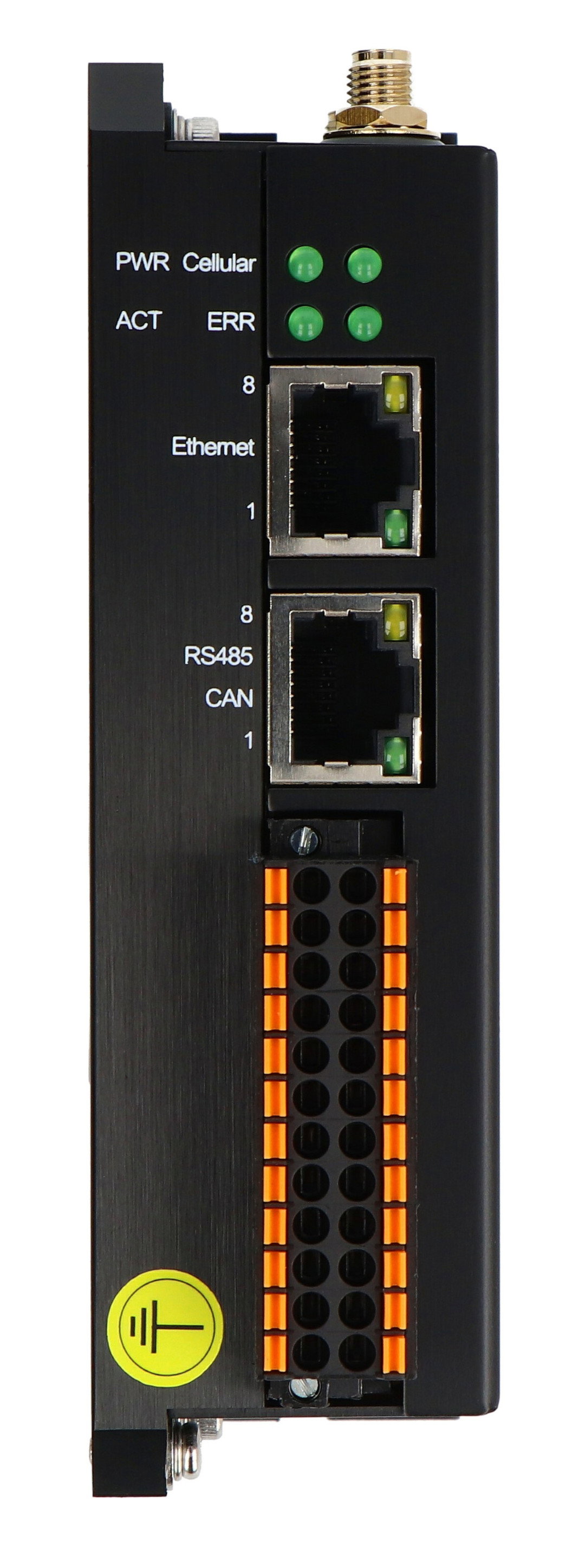

Device IO interfaces in the form of terminal connectors.
Available communication interfaces
- Ethernet : 1 RJ45 100M port offering high-speed wired connection to industrial networks.
- RS485 : 1 isolated RS485 port that ensures reliable communication with devices such as PLCs or HMIs.
- CAN Bus : 1 isolated CAN Bus port that supports communication in industrial networks, often used in systems requiring real-time.
- WiFi and Bluetooth : built-in 2.4 GHz WiFi and Bluetooth 5.0 BLE enable wireless communication with external devices and local networks.
- 4G LTE : SIMCom A7670G LTE (Cat 1) module, enabling connection to cellular networks, making the device ideal for remote communication.
- USB : The USB 2.0 Type-A port allows you to connect additional devices such as memory, adapters, or expansion modules.
- LoRaWAN : EdgeBox-ESP-100 supports LoRaWAN communication, but this requires replacing the 4G module with a LoRa module by soldering.
Digital and analog inputs/outputs
- Digital : 4 isolated digital inputs and 6 isolated digital outputs that can be used to monitor and control various industrial processes such as alarm signals, machine control or relay outputs.
- Analog : 4 isolated analog inputs (default 0 mA to 20 mA, optional 0 V to 10 V) and 2 isolated analog outputs (0 V to 5 V) that enable precise monitoring and control of processes with variable signals, such as temperature, pressure or fluid level sensors.

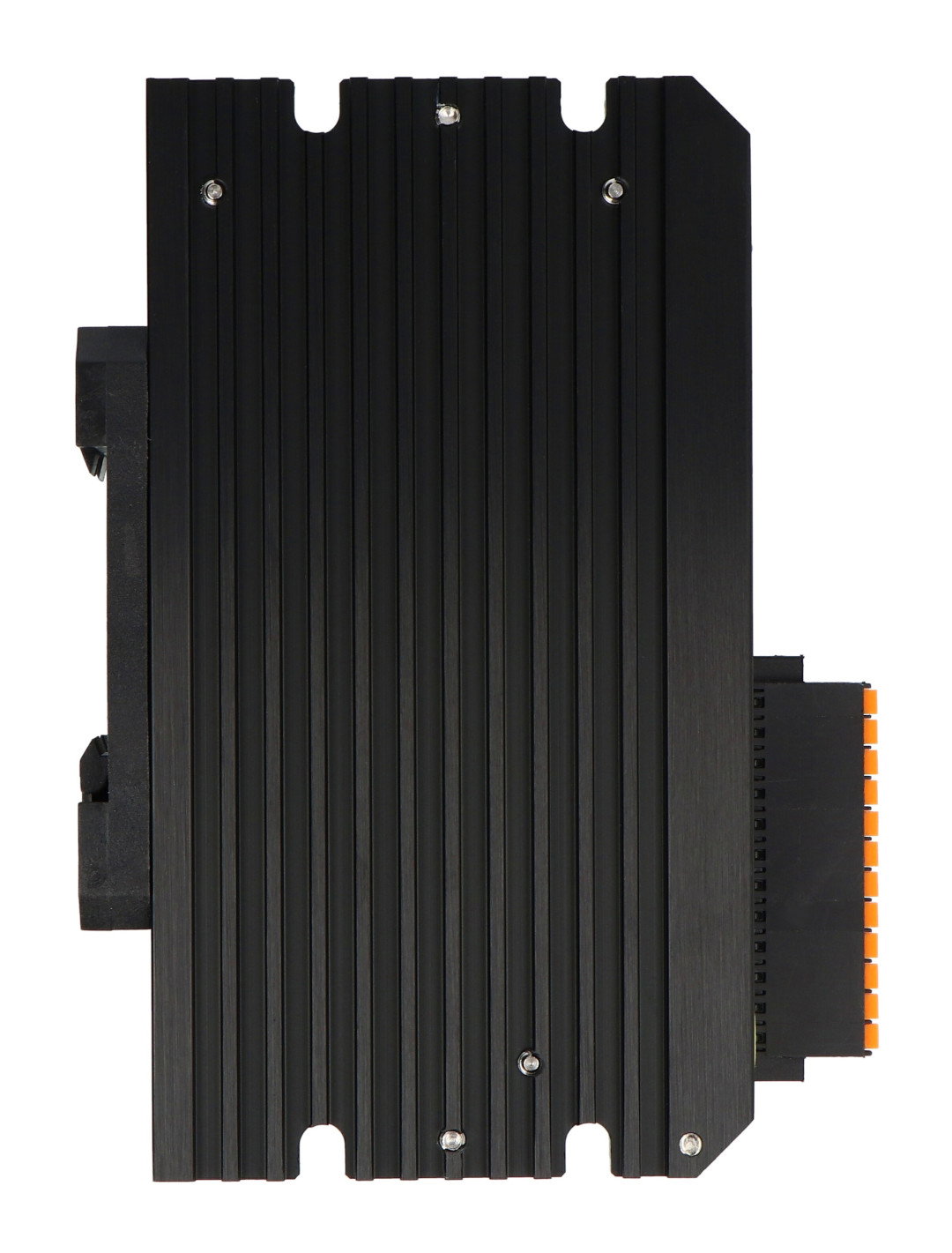

Aluminum housing resistant to industrial conditions.
EdgeBox-ESP-100 - industrial controller with support for multiple Fieldbus protocols.
Controller Technical Specifications
- Processor: ESP32S3
- RAM: 512KB + 8MB
- Flash Memory: 16MB
- Wired connectivity:
- Ethernet: x1 100M RJ45
- USB: x1 USB 2.0 Type-A
- CAN Bus: x1 (isolated)
- RS485: x1 (isolated)
- Digital inputs: 4 (isolated)
- Digital outputs: 6 (isolated)
- Analog inputs: 4 (isolated, 0 mA to 20 mA, optional 0 V to 10 V)
- Analog Outputs: 2 (isolated, 0 V to 5 V)
- Wireless connectivity:
- Wi-Fi: 2.4GHz
- Bluetooth: 5.0 BLE
- 4G LTE: SIMCom A7670G module
- LoRa: optional
- Supply voltage: 10.8 V to 36 V DC
- Operating temperature: -20°C to 60°C
- Dimensions: 124 x 92 mm
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-S3 |
| UC - Flash | 16 MB |
| UC - RAM | 512 kB |
| UC - Ethernet | yes |
| UC - WiFi | yes |
| UC - USB | 1x USB |
| UC - Bluetooth | yes |
| UC - CAN interface | yes |
| Width | 15.5 cm |
| Height | 10.5 cm |
| Depth | 6.3 cm |
| Weight | 0.348 kg |
