Description: Grove - Base Shield for NodeMCU

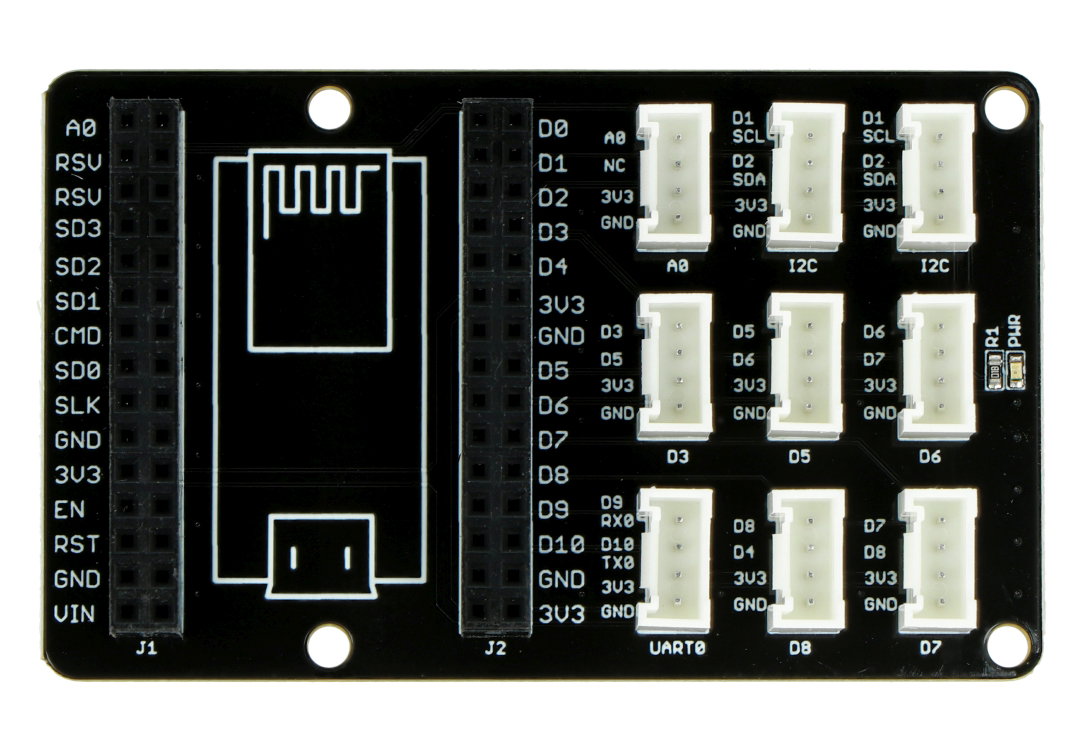

The cover plate is designed for the module with ESP8266 NodeMCU WiFi chip, allowing to lead GPIO pins to Grove connectors.There are9 Grove connectorson the board, which correspond to such interfaces as: I2C, UART, digital and analog pins.
Base Shield overlay for NodeMCU.
Main features of the Base Shield overlay
- Compatible with all Grove modules
- 5 digital connectors (D3 - D8)
- 1 analogue connector (A0)
- 2 I2C connectors
- UART connector (D9 - D10)
- Power LED
Overlay specification
- Compatible with: NodeMCU
- Connectors: 9x Grove
- Interfaces:
- 2x I2C
- 1x UART
- 5x digital
- 1x analogue
- Status LED
- Dimensions: 134 x 64 x 32 mm
- Weight: 40 g
