Product description: Grove - GPS module (Air530) with antenna - Seeedstudio 109020022

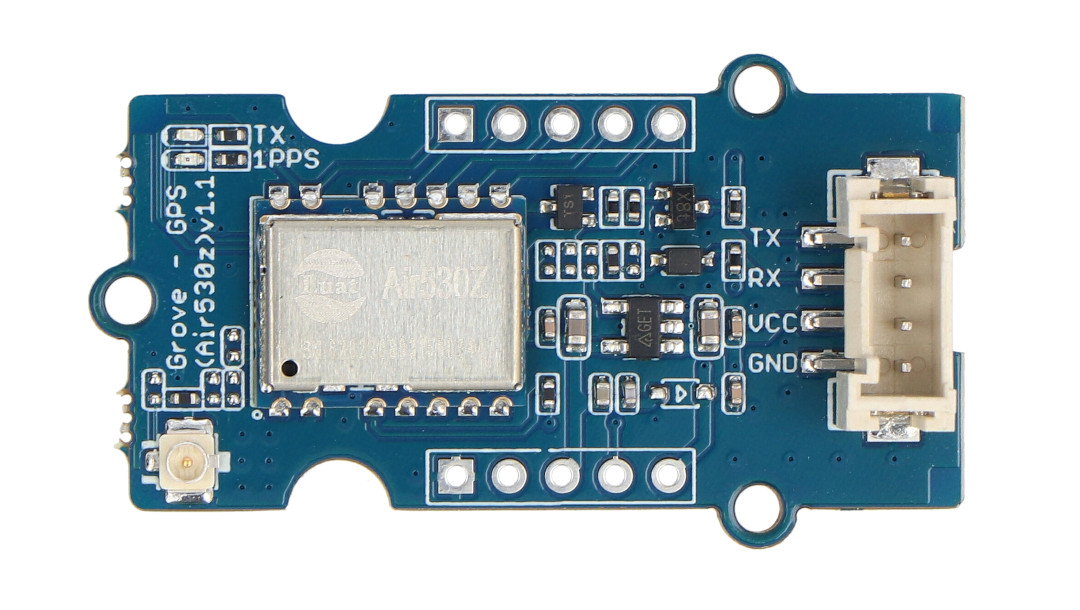

The GPS module (Air530) with an external antenna with a U.FL connector manufactured by Seeedstudio is a high-performance, highly integrated satellite navigation and positioning module. It supports GPS, Beidou, Glonass, Galileo, QZSS and SBAS , making it suitable for GNSS applications such as car navigation, smart devices and drone location. This module can receive signals from more than 6 satellites simultaneously , and the positioning accuracy is 2.5 m . Equipped with a socket for a CR1220 battery , which provides power to the system. Thanks to the Grove connector, the module can be used with the Base Shield V2 extension and Arduino . It communicates via the UART interface and is powered by 3.3 V or 5 V.
The product is compatible with Arduino and Raspberry Pi
A detailed user guide is available on the manufacturer's website, which contains information on how to connect the module and sample program code.
Grove - GPS module (Air530) with antenna - Seeedstudio 109020022.
GPS module (Air530) with external antenna with U.FL connector.

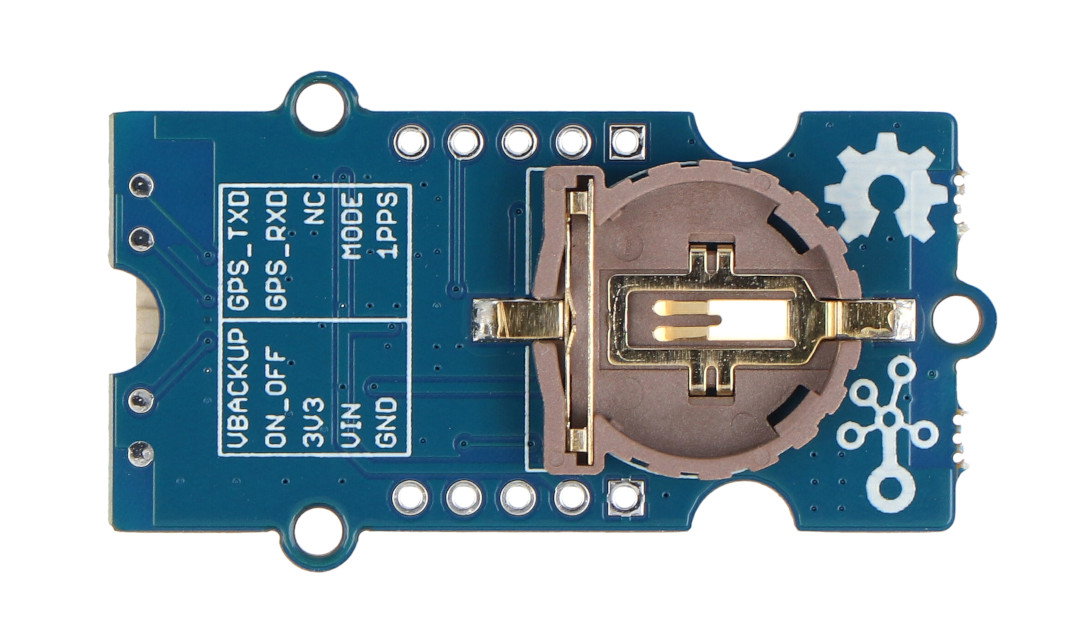

Special features of the GPS module
- High integration and multi-mode satellite positioning system: supports more than 6 satellites simultaneously, ensuring precise positioning.
- High precision positioning: the positioning error is less than 10m, and the positioning is fast and accurate even with weak signal.
- Integrated RF base design: adopts integrated RF base design, which combines DC/DC converter, LDO voltage stabilizer, LNA amplifier, front RF module, base signal processing, 32-bit RISC processor, RAM, FLASH memory, RTC clock and power management functions.
- Low power consumption: power consumption of only 31 uA.
- High compatibility: compatible with other modules in terms of hardware and software.
Module applications
- GPS tracker
- GPS navigation
- Distance measurement
- Car navigation
- Drone location
Product technical specifications
- Supply voltage: 3.3V / 5V
- Current consumption: 60 mA
- Interface: UART
- Warm start time: 4 s
- Cold start time: 30 sec
- Positioning time:
- cold start: 27.5 s
- warm start: < 1 s
- capture: < 1 sec
- software-assisted A-GNSS: < 5 s
- Sensitivity:
- cold start: -148 dBm
- warm start: -162 dBm
- recovery: -164 dBm
- tracking: -166 dBm
- Accuracy:
- horizontal positioning accuracy: 2.5 m
- height positioning accuracy: 3.5 m
- Speed accuracy: 0.1 m/s
- time accuracy: 30 ns
- Ultra-low power mode at 3.3V: 31uA
- Operating temperature: from -35°C to 85°C
- Storage temperature: -55°C to 100°C
- Humidity: 5% to 95%
- Dimensions: 40 x 20 x 13 mm
Set contents
- Grove - GPS module (Air530) with antenna - Seeedstudio 109020022
- Grove cable

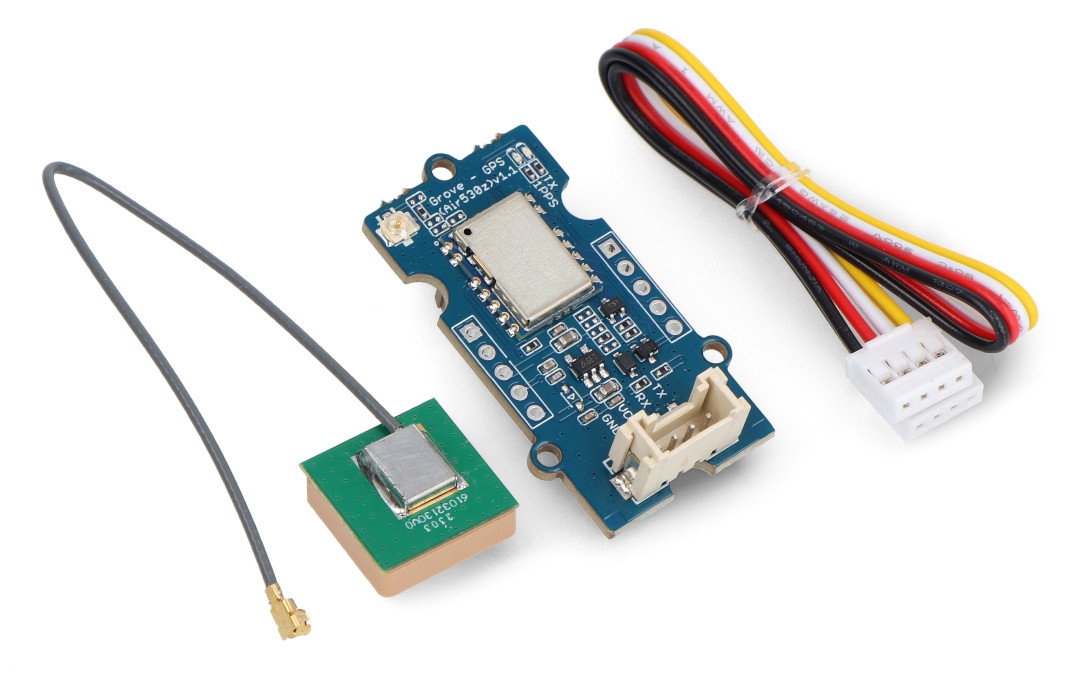

Set contents.
