Inkplate 6 - 800x600px e-paper display module - ESP32 - Arduino compatible - Soldered 333232
Inkplate 6 from Soldered is a module with a 6-inch e-paper display with a resolution of 800 x 600 px . Equipped with an ESP32 microcontroller, it enables wireless WiFi and Bluetooth 4.0 connectivity. It has a built-in power button, a microSD card reader and a real-time clock (PCF85063A) with a battery holder. It is powered by a USB Type-C port. The e-paper display works with a refresh rate of 1.26 s, has 8 grayscale modes and partial update support. The product is compatible with Arduino.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.
Product description: Inkplate 6 - e-paper display module 800 x 600 px - ESP32 - Arduino compatible - Soldered 333232
Inkplate 6 from Soldered is a module with a 6-inch e-paper display with a resolution of 800 x 600 px . Equipped with an ESP32 microcontroller, it supports WiFi and Bluetooth 4.0 wireless connectivity. It has a built-in power button, a microSD card reader and a real-time clock (PCF85063A) with a battery holder. It is powered by a USB Type-C port. It is intended mainly for hobbyists, for creating various DIY projects together with Arduino and Micropython. The e-paper display works with a refresh rate of 1.26 s, has 8 grayscale modes and partial update support. The module dimensions are 144 x 108 x 9 mm.
Product compatible with Adruino.
The manufacturer provides a user guide and libraries .
Inkplate 6 - module with e-paper display 800 x 600 px - ESP32 - Arduino compatible - Soldered 333232.

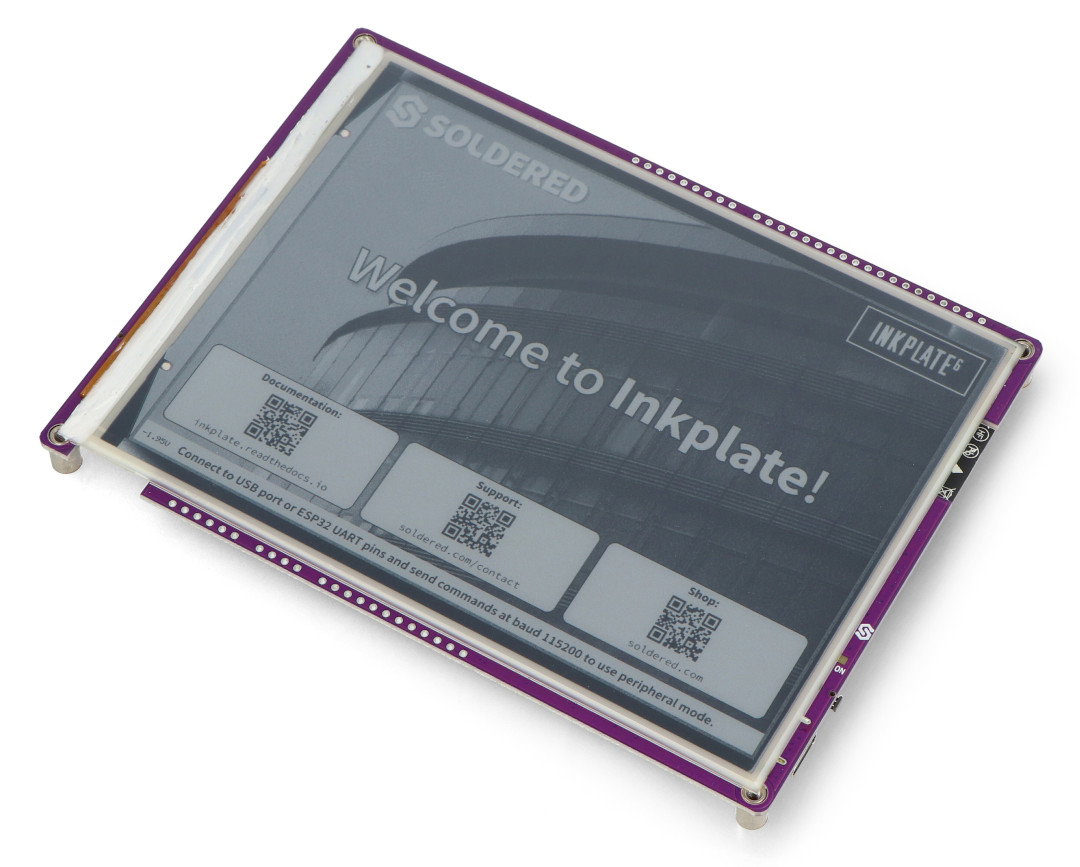

Inkplate 6 - 6-inch e-paper display.
Features of the display module
- 6-inch e-paper display with 800 x 600 px resolution
- The built-in ESP32 microcontroller supports WiFi and Bluetooth connectivity
- Module powered via USB C port
- The built-in microSD card reader allows you to read images stored on the card
- PCF85063A Real Time Clock with CR2032 3V Battery Holder

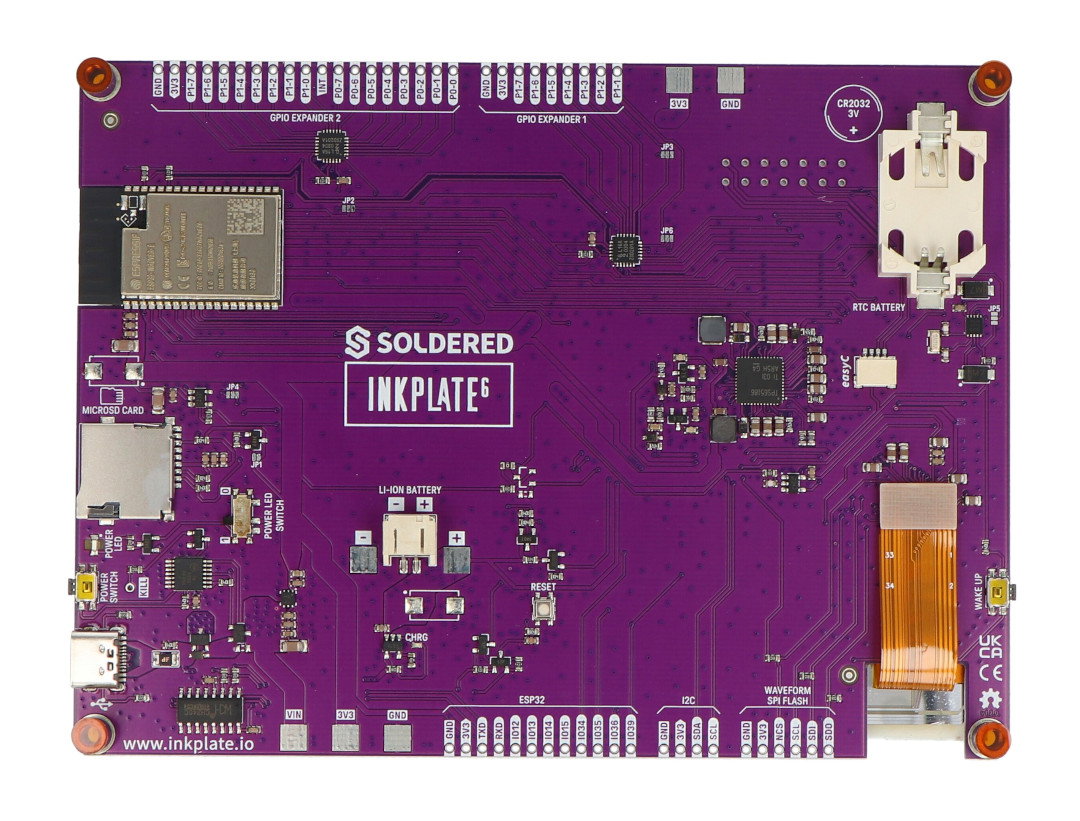

- Built-in GPIO pins, easyC, Qwiic compatible and I2C and SPI support
Inkplate 6 display module specification
- Display: e-paper
- Display diagonal: 6"
- Resolution: 800 x 600 px
- Display color: white, black, grayscale supported
- Grayscale Levels: 8
- Microcontroller: ESP32
- Connectivity: WiFi, Bluetooth 4.0 (BLE)
- MicroSD card reader: Yes
- Power Consumption: 22 µA in sleep mode
- Real Time Clock PCF85063A
- Compatible battery: CR2032 3V
- Interface: USB-C, GPIO, I2C, SPI
- Compatible with: easyC, Qwiic
- Programming: Arduino and MicroPython compatible
- Fast refresh time: 0.26 sec
- Full refresh time: 1.26 sec
- Dimensions: 144.5 x 107.8 x 10 mm

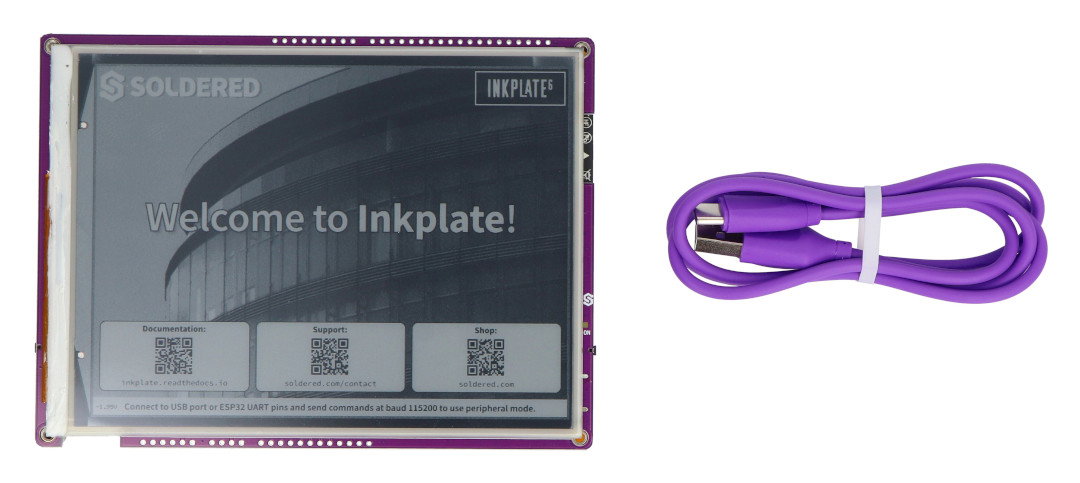

Inkplate 6 display module.
Kit contents.

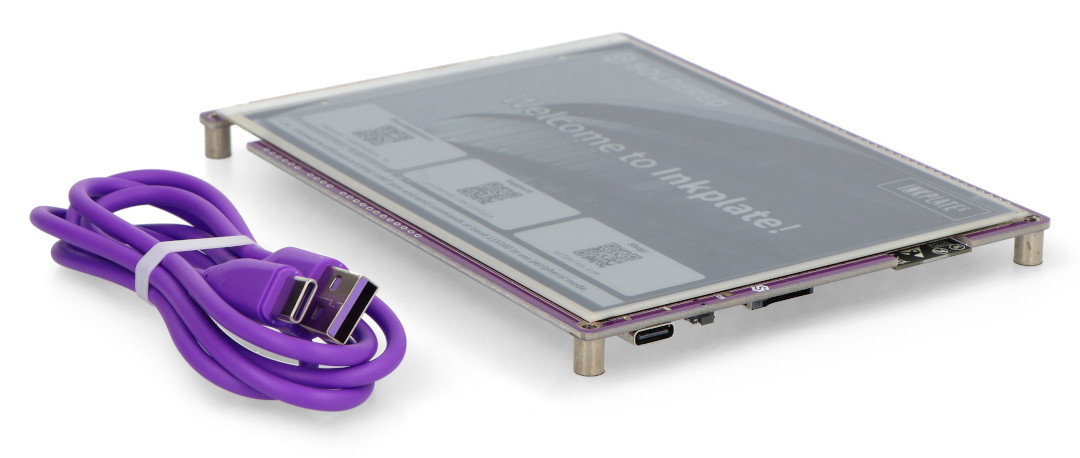

Kit Contents
- Inkplate 6 - Soldered 333232
- USB Type A - USB Type C cable - 1 m long
Useful links
| Name | Value |
|---|---|
| Screen - type | e-paper |
| Screen - diagonal | 6.00 '' |
| Screen - interface | SPI+I2C |
| Screen - touch | no |
| Screen - resolution | 800x600px |
| UC - Microcontroller | ESP32 |
| UC - Core | Tensilica Xtensa LX6 |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 20.5 cm |
| Height | 15.5 cm |
| Depth | 6.3 cm |
| Weight | 0.189 kg |
