Product description: CFS-C system for Creality 3D printers

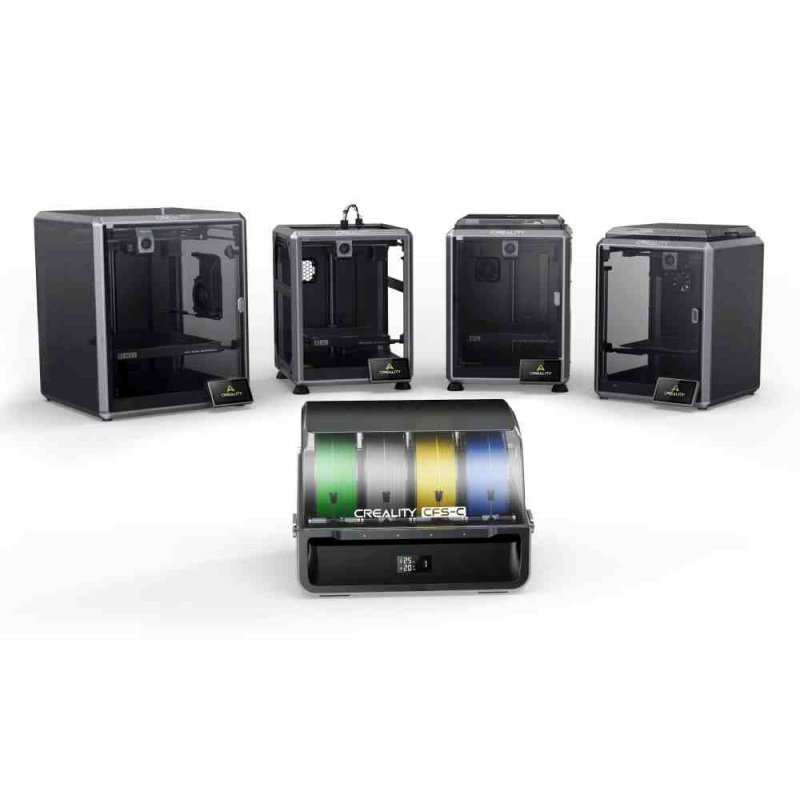

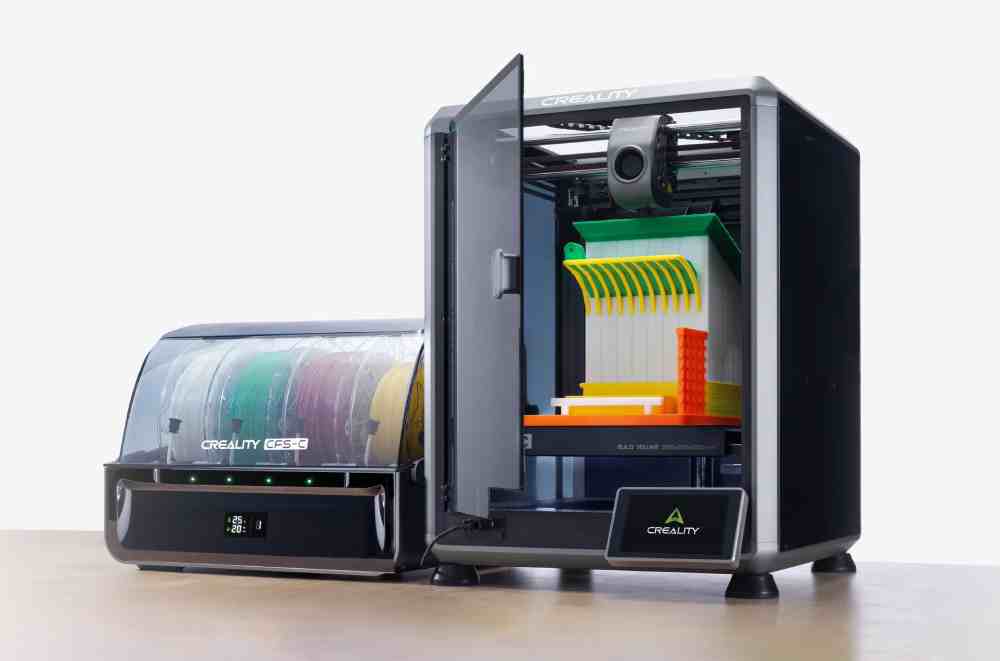

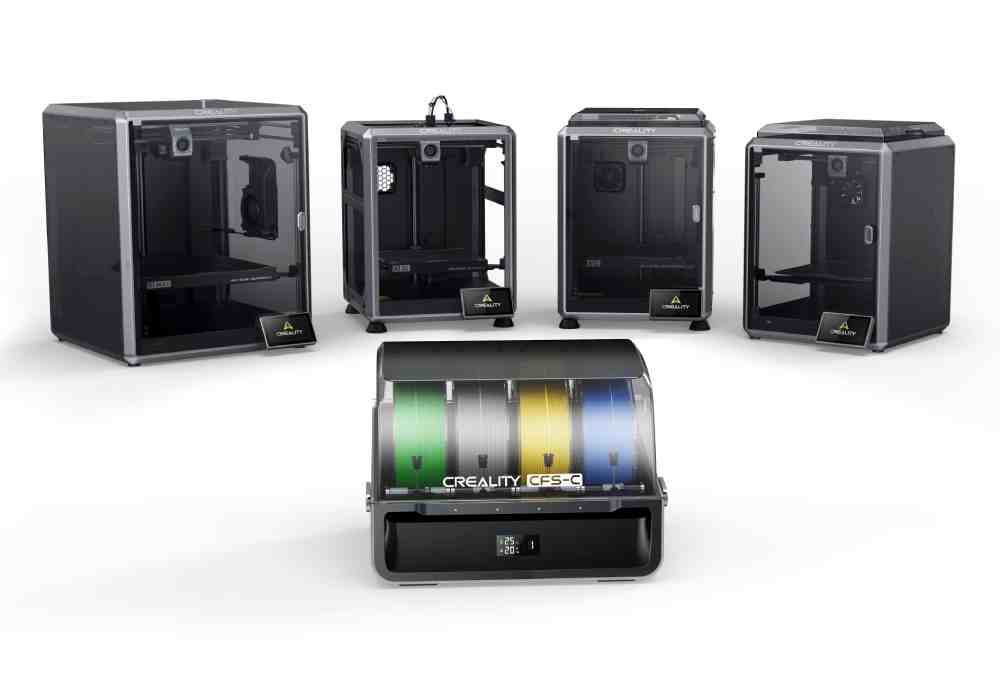

The Creality CFS-C is an intelligent filament feeding system designed to add multicolor printing capability to compatible K1 series 3D printers . The device supports up to four filament spools simultaneously, enabling automatic material switching during model building. The system utilizes an external filament cutting mechanism and buffer , so its installation does not require extensive modifications to the print head. After changing filament , it is discharged through an external path, making it easier to keep the printer's interior clean.
CFS-C system for Creality 3D printers.
The Creality CFS-C is an intelligent filament feeding system designed to upgrade compatible K1 series 3D printers.Special features
- Supports 4 filament spools - allows you to use up to four materials or colors in one printing process
- Automatic filament identification - in the case of Creality filaments equipped with RFID, the system automatically recognizes the material and the print settings assigned to it
- Automatic filament switching - after one spool runs out, the CFS-C can continue printing using filament of the same type and color in another slot
- Filament Problem Detection - Built-in sensors monitor filament and respond to filament exhaustion, breakage, or tangling
- Knife wear monitoring – the system tracks the wear level of the cutting element and informs when it reaches a level requiring replacement

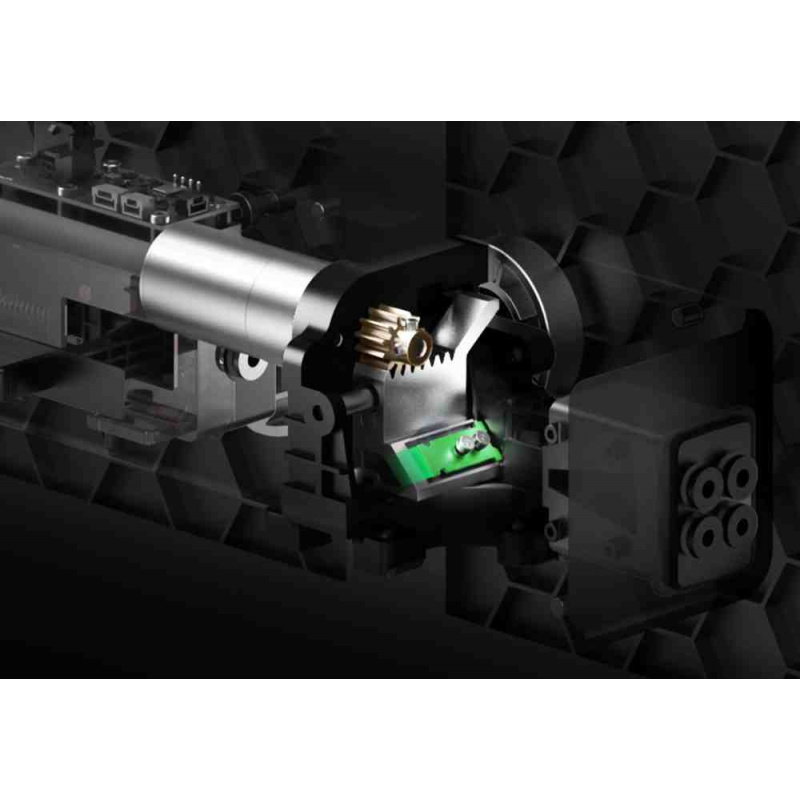

- External cutter and filament buffer - the design allows for the expansion of compatible printers with multi-color printing without the need for complicated head modifications
- Control of storage conditions - the segmented LCD screen displays the temperature and humidity inside the device in real time, and the built-in moisture absorber helps protect the stored filament
- Slot status indication - four white and red light indicators allow you to quickly check the status of individual filaments
Practical applications
The CFS-C is ideal for printing multi-color models, markings, decorations, figurines, prototypes, and functional items requiring automatic color changes. The system can also be used for long-term prints – the automatic switching to the next compatible spool reduces the risk of interrupting the print job when the filament runs out.
Intelligent filament management
The CFS-C combines automatic material feeding with monitoring of its condition and storage conditions. Each of the four slots is monitored, and temperature and humidity information is displayed on an LCD display. The system uses a desiccant and is therefore not an active dryer with a heating element. The manufacturer is designed to handle 1 kg spools with diameters ranging from 197 to 202 mm and widths ranging from 42 to 68 mm.

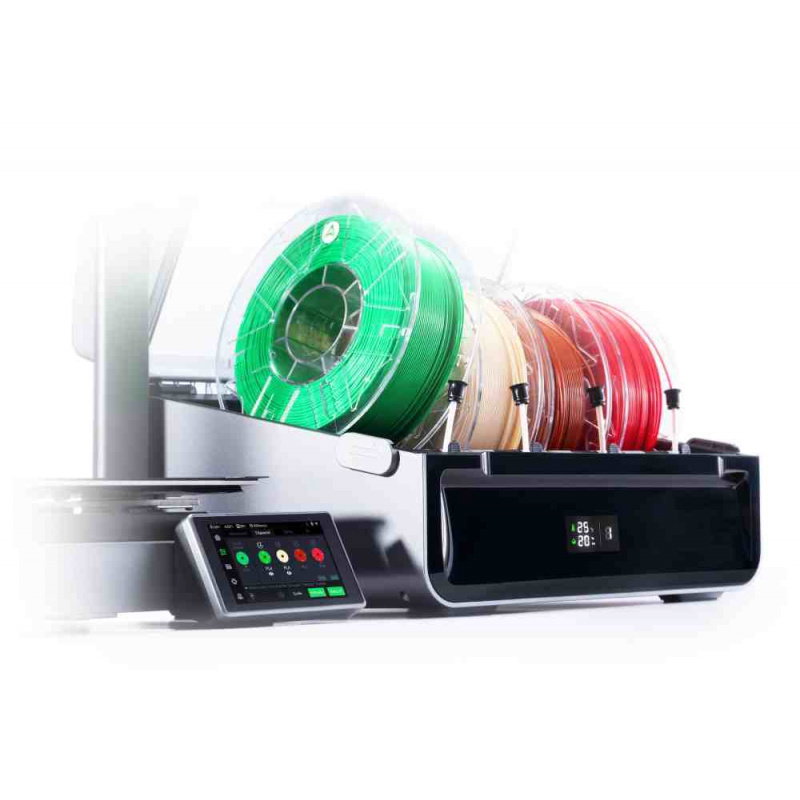

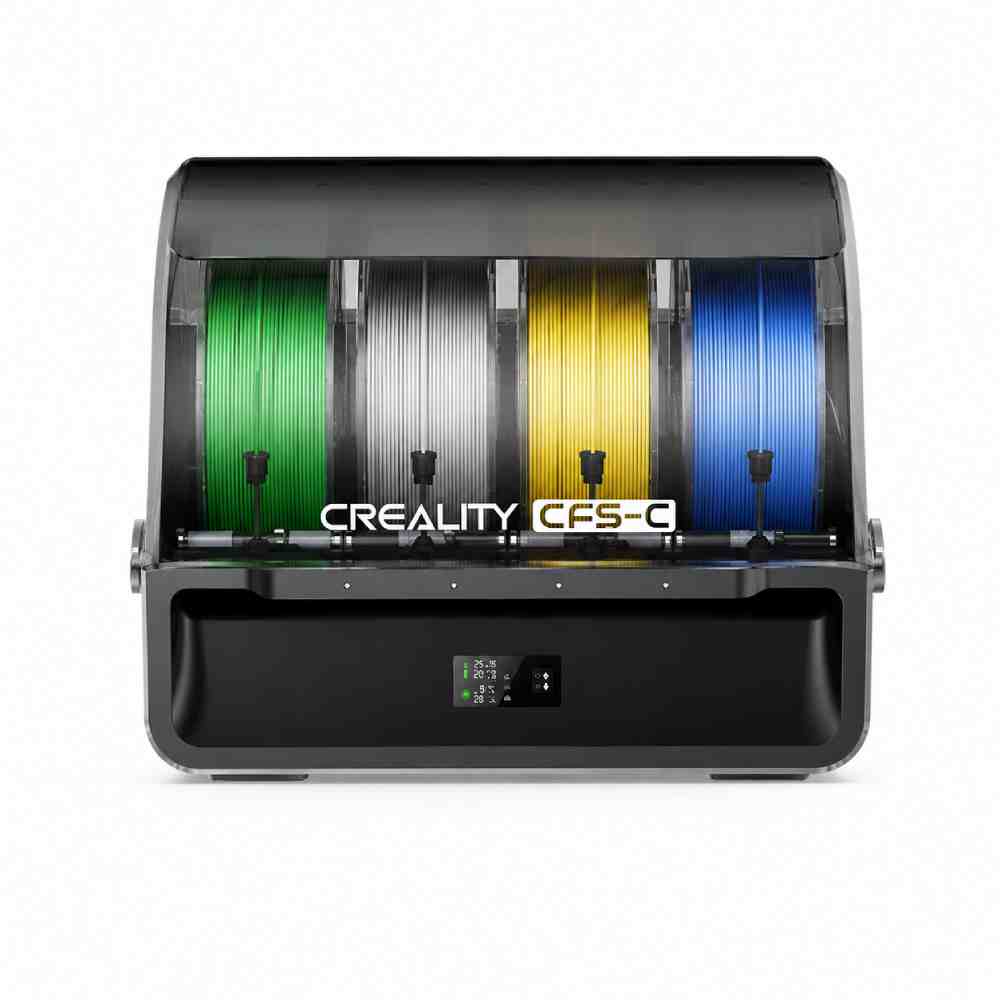

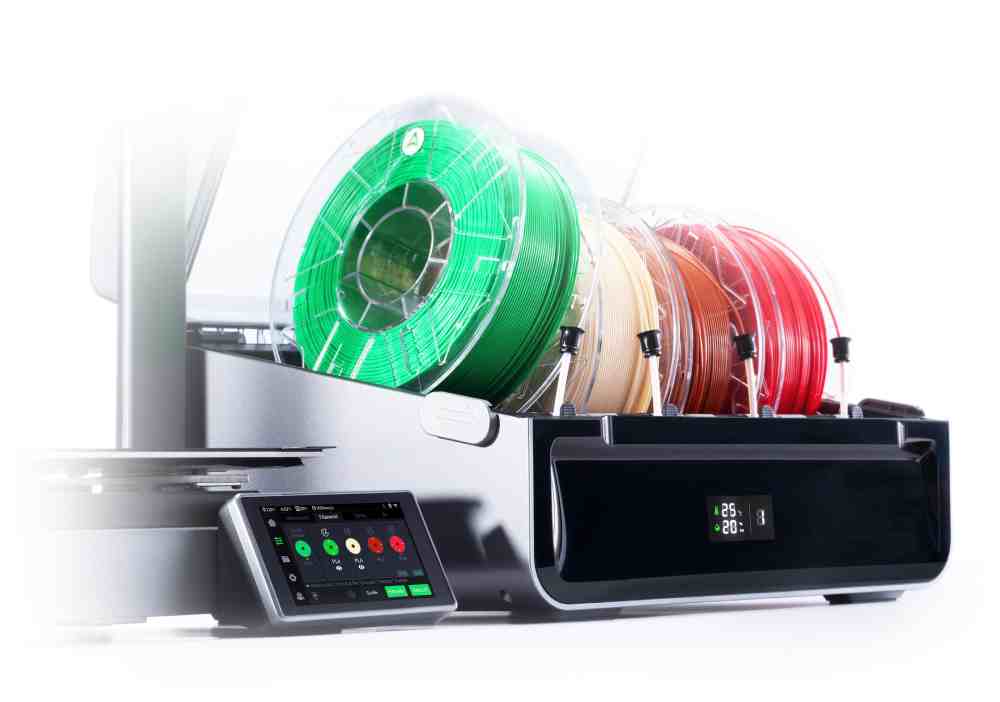

The device supports up to 4 spools of filament simultaneously, enabling automatic material switching during model realization.
After changing the filament, it is discharged through an external route, which makes it easier to keep the inside of the printer clean .
Technical specifications
- Compatibility: Creality K1 Max 2025, K1C 2025, K1 Max, K1C, K1, K1 SE
- Number of filament slots: 4
- Filament diameter: 1.75 ±0.05 mm
- Automatic Filament Identification: Yes, for Creality RFID filaments
- Automatic filament switching: yes
- Filament Out Detection: Yes
- Filament break/tangle detection: yes
- Knife wear monitoring: yes
- Moisture protection method: moisture absorber
- Display: segmented LCD
- Display readings: real-time temperature and humidity
- Status Indicators: 4x White/Red Indicator
- Filament buffer: 4x input / 1x output
- Supported spools: 1kg
- Compatible spool diameter: 197 mm to 202 mm
- Spool width: 42 mm to 68 mm
- Interface: CAN
- Power supply: 24V DC
- Rated power: 30 W
- Dimensions: 379 x 314 x 276 mm
- Weight: 4.56 kg
