Product description: NanoPi R4S - RK3399 Dual-Core 2 GHz + Quad-Core 1.5 GHz + 4 GB RAM with case
Advanced NanoPi R4S minicomputer from FriendlyElec with a metal casing , which in addition to its protective function, also acts as a radiator . This compact but powerful module offers the Rockchip RK3399 system (dual-core Cortex-A72 and quad-core Cortex-A53), providing exceptional performance. Equipped with Gigabit Ethernet ports, USB 3.0, it provides excellent flexibility in expansion and customization. Perfect for developers, hobbyists, and anyone who wants to build or develop their IoT projects. The board also has a button and LEDs indicating its operating status.

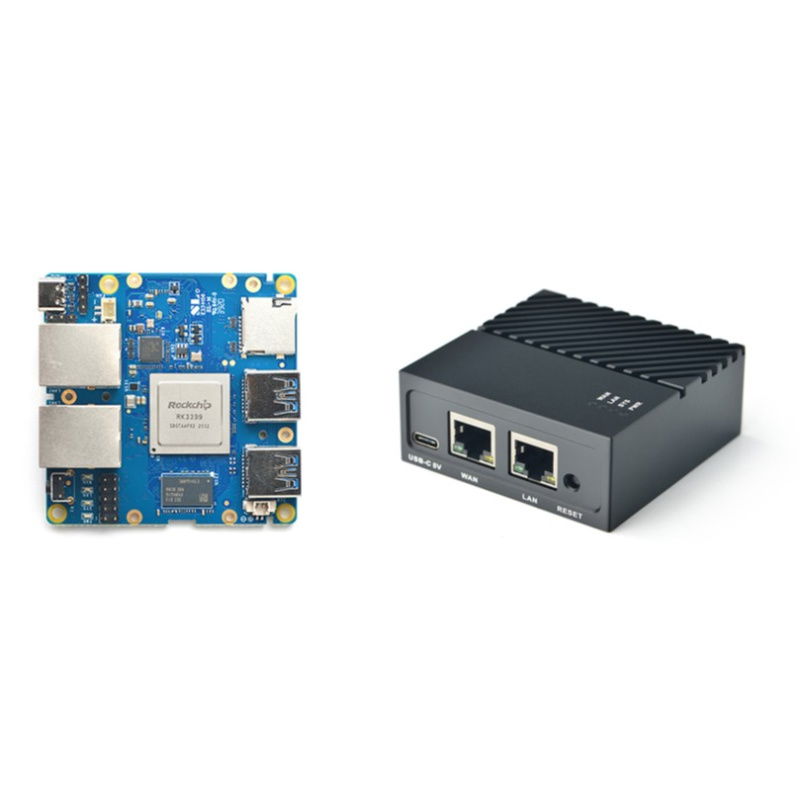

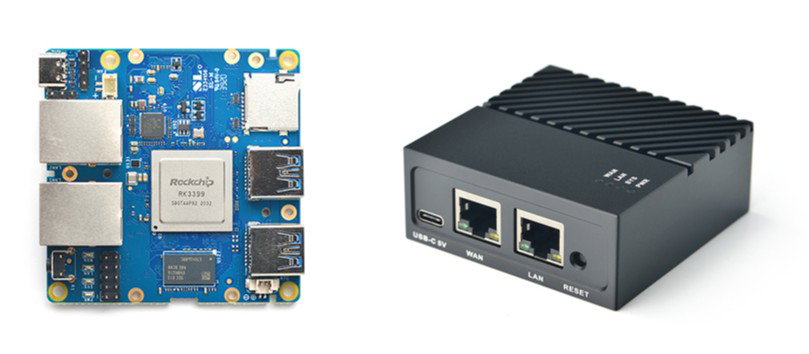

NanoPi R4S - RK3399 Dual-Core 2GHz + Quad-Core 1.5GHz + 4GB RAM with case.
The NanoPi R4S has two Gigabit Ethernet ports.
Key Features of NanoPi R4S
- Powerful RK3399 Processor - Equipped with a six-core processor (dual-core Cortex-A72 and quad-core Cortex-A53) that provides excellent performance
- 4GB RAM - Available with 4GB LPDDR4 RAM for fast and smooth operation
- Network Connectors - has two Gigabit Ethernet ports for fast and reliable network access
- Data storage - has a slot for a microSD card
- Operating System Support - Support for operating systems such as Ubuntu and Debian
- Compact dimensions - ideal for projects requiring high computing power in a small space
NanoPi R4S Technical Specification
- Processor: Rockchip RK3399
- Architecture: Dual-core Cortex-A72 2 GHz + Quad-core Cortex-A53 1.5 GHz
- RAM: 4GB LPDDR4
- GPU: Mali-T864 (supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11 and AFBC)
- VPU: 4K VP9 and 4K 10-bit H265/H264 60fps decoding
- Power Management System: RK808-D
- MicroSD card slot: Yes
- Ethernet: yes, 2x Gigabit Ethernet

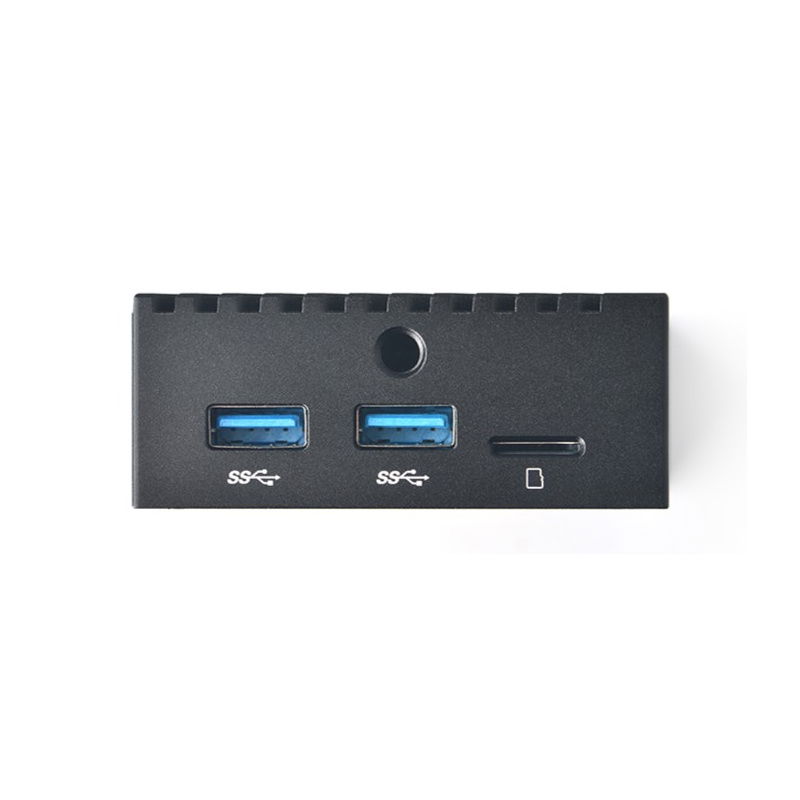

- USB: yes, 2x USB 3.0
- Buttons: yes, 1x programmable button, 1x MASK button

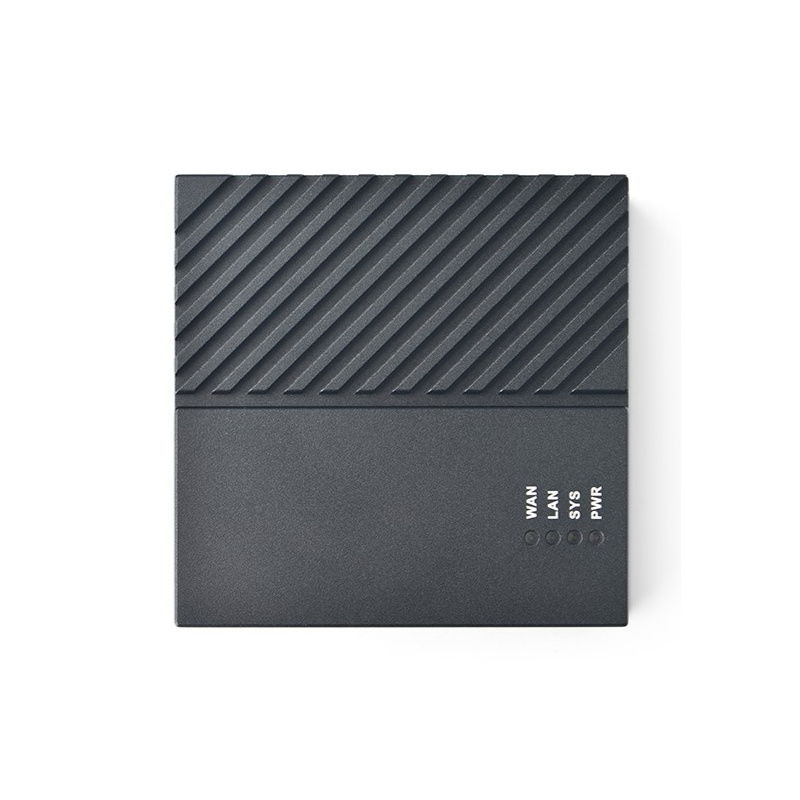

- LEDs: yes, 1x PWR, 1x STAT, 1x LAN, 1x WAN
- RTC Port: Yes, 2-pin
- Fan Port: Yes, 5V
- Power supply: 5V/3A, via USB C
- Supported Software: FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Focal Lite, Debian 10 Desktop, Debian 11 Desktop
- Operating temperature: -20°C to 70°C
- Dimensions with housing: 66 x 66 mm
- Weight without housing: 40.9 g
- Weight with housing: 310 g
Kit Contents
- NanoPi R4S - RK3399 Dual-Core 2GHz + Quad-Core 1.5GHz + 4GB RAM with case - 1 piece

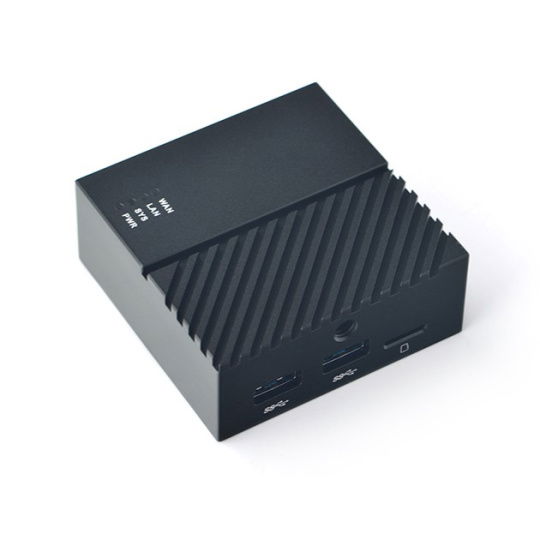

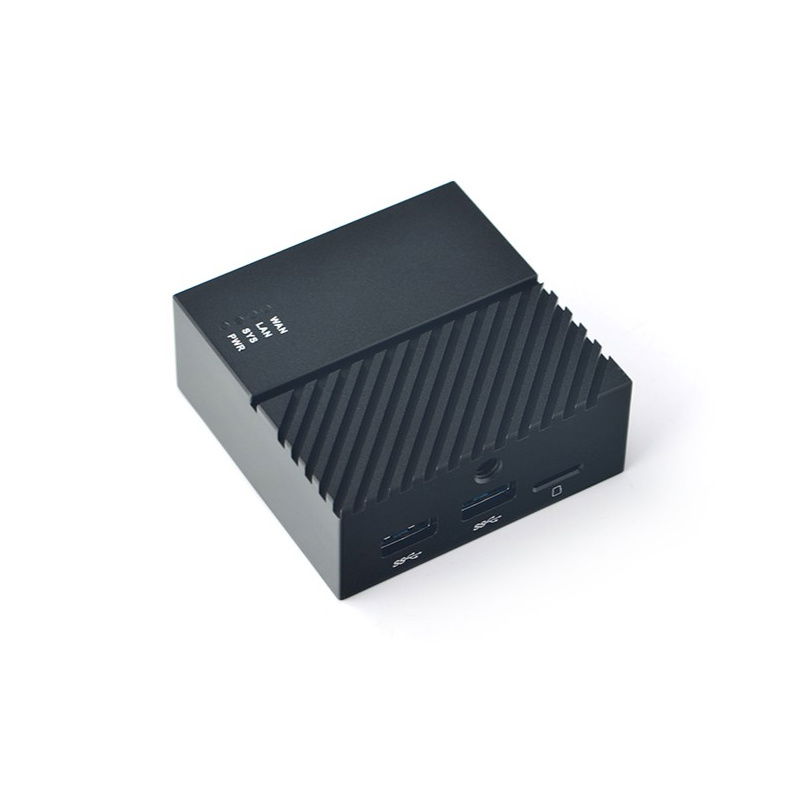

The product has a metal housing, which, in addition to its protective function, also acts as a radiator.
