Product description: BIQU RGB Upgrade Kit - intelligent LED backlight for Bambu Lab X1 / P1 / P2S 3D printers
The RGB Upgrade Kit is an extensive LED lighting kit designed to personalize Bambu Lab X1, P1, and P2S series 3D printers . At the heart of the kit is the Panda RGB Controller, equipped with an ESP32 -C3-MINI module, which allows for convenient lighting control via a web interface. You can configure colors, brightness, animation speed, and lighting effects, as well as synchronize the lighting with the printer's operating status. The system can signal errors, temperature, or device operating mode using dynamic LED effects.
Technical specifications of the set
- Compatibility: Bambu Lab X1, P1, P2S
- Controller: Panda RGB Controller
- Microcontroller: ESP32-C3-MINI
- Communication: WiFi
- Control: Web interface via browser
- Supply voltage: 24 V DC
- Power connector: DC 5.5 x 2.1 mm
- Logic voltage: 3.3 V
- RGB Output 5V PH2.0 3P: 5V 1.5A peak
- RGB 5V XH2.54 3P Output: 5V 2A peak
- 24V RGB Outputs: 2 x XH2.54 4P - 24V 2A peak
- 24V Output: XH2.54 2P - 24V 1.5A peak
- OTA support: yes
- Lighting effect modes: static, dynamic, strobe
- Possibility of synchronization with a printer: yes
- Controller dimensions: 100 x 25 mm

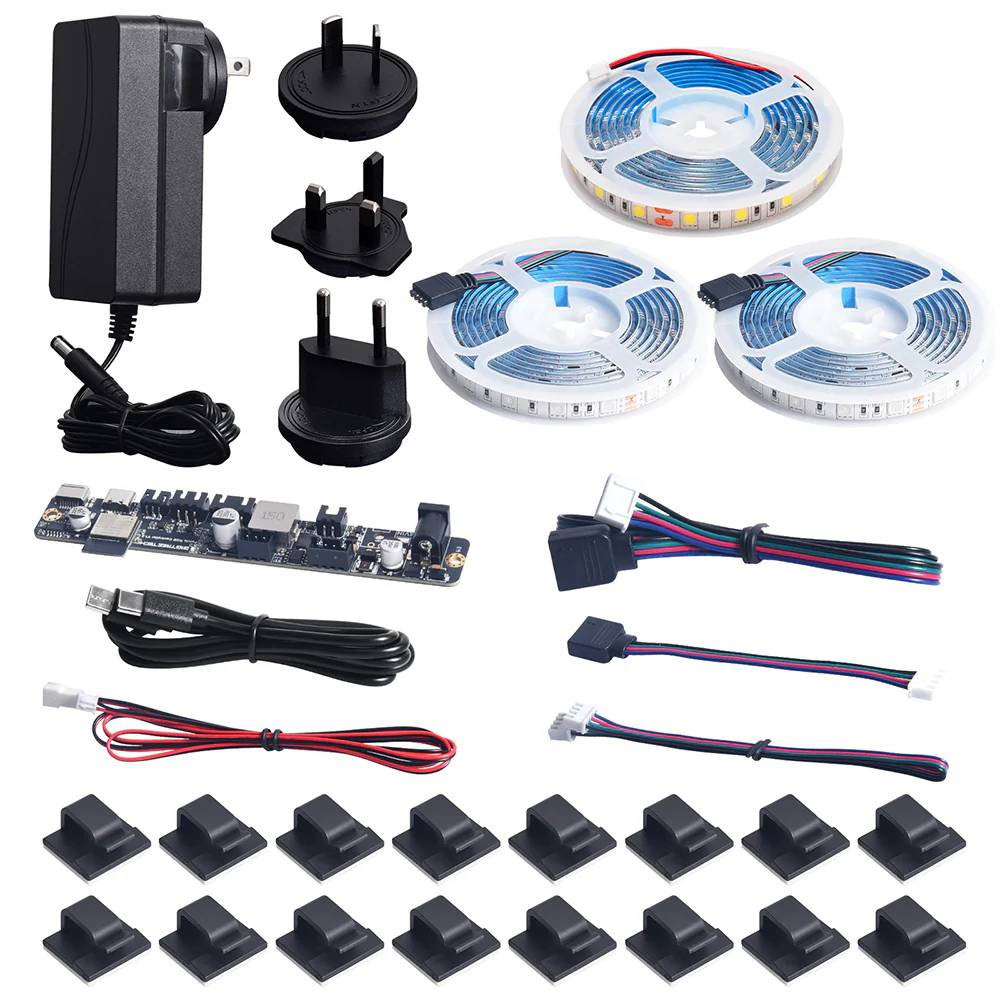

Contents of the set
- 1x Panda RGB Controller
- 3x LED strip
- 1x AC adapter
- 3x Power Plug Adapters
- 4x Connection cables
- 1x USB cable
- 1x Set of mounting hardware
