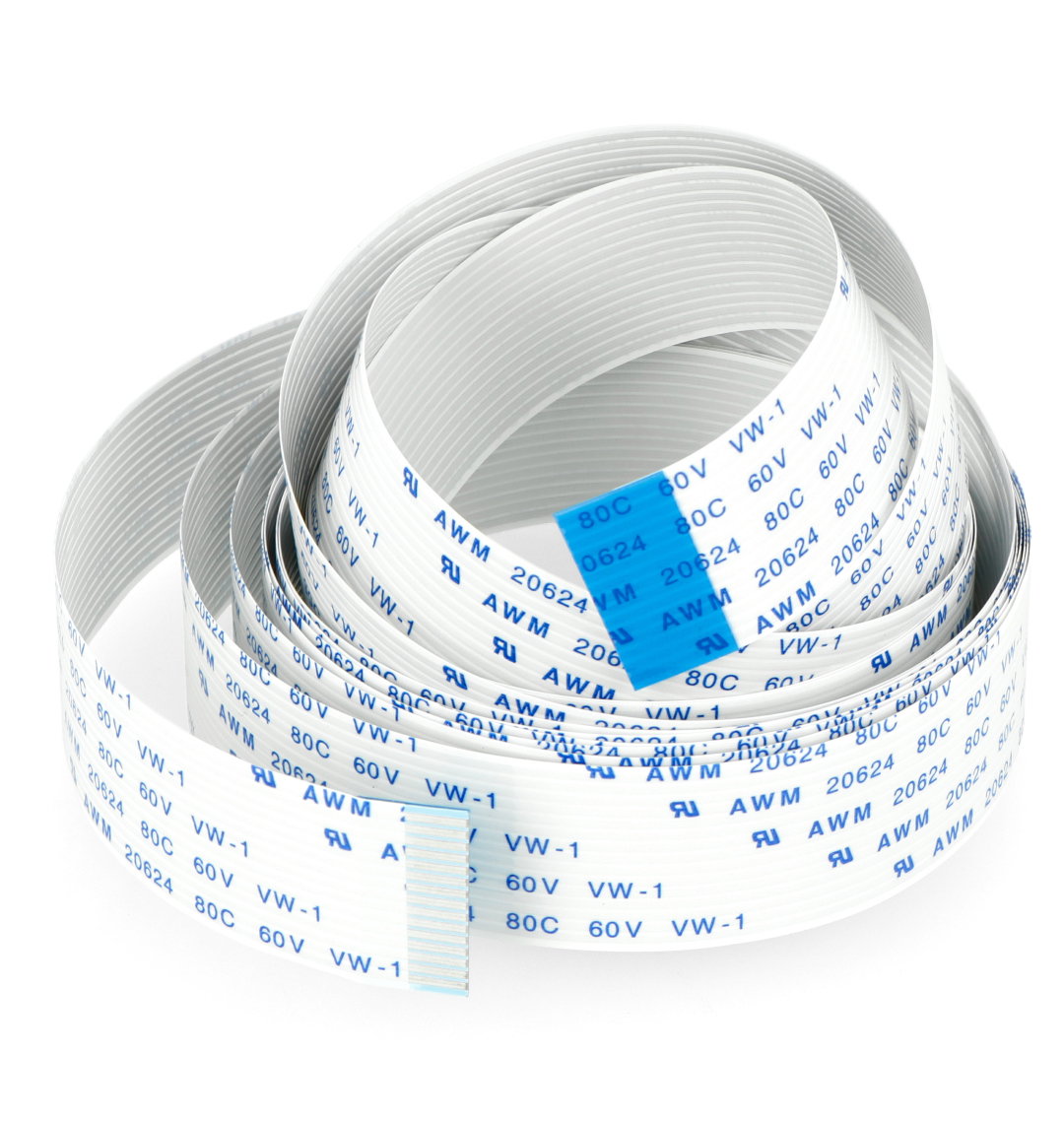

Product description: Raspberry Pi camera ribbon 200cm 15 wires 1mm raster
200cm long tape connecting Raspberry Pi minicomputer with dedicated camera. The connector has 15 wires, 1.0mm raster.
|
Attention! Before connecting check if the dedicated tape you have has the same layout of wires. There are differences with the Waveshare cameras compared to the official Raspberry Pi camera - the tape is crossover. |
Specifications of the Raspberry Pi to camera ribbon
- Number of wires: 15
- Raster: 1.0 mm
- Length: 200 cm
- Width: 16 mm
- Weight: 7.5g
Raspberry Pi ribbon- camera 200 cm 15 wires 1 mm raster.
Raspberry Pi ribbon - camera 200 cm 15 wires raster 1 mm
High quality FFC tape which is 2 meters long is perfect for connecting camera modules to Raspberry Pi. The tape has standard ZIF/FFC connectors and its pin layout is the same as original Raspberry Pi cameras with 1mm raster.
Offered tape consists of fifteen wires covered with flexible, durable insulation. The product is characterized by high resistance to mechanical damage and transmits signal without unnecessary interference. Its length of two meters allows to use it in projects such as mobile recording devices or spy cameras.
Useful accessories for Raspberry Pi cameras at Botland
In our offer you will find a very wide selection of high quality connection tapes for Raspberry Pi. They vary in features such as length or cable layout. In addition, we also offer adapters (for example, from CSI to HDMI and extenders for camera connection tapes for Raspberry Pi.
Raspberry Pi camera accessories include additional lenses, mounting plates, brackets, housings and many other useful add-ons to make your work with camera module and Raspberry Pi board easier and more comfortable.
