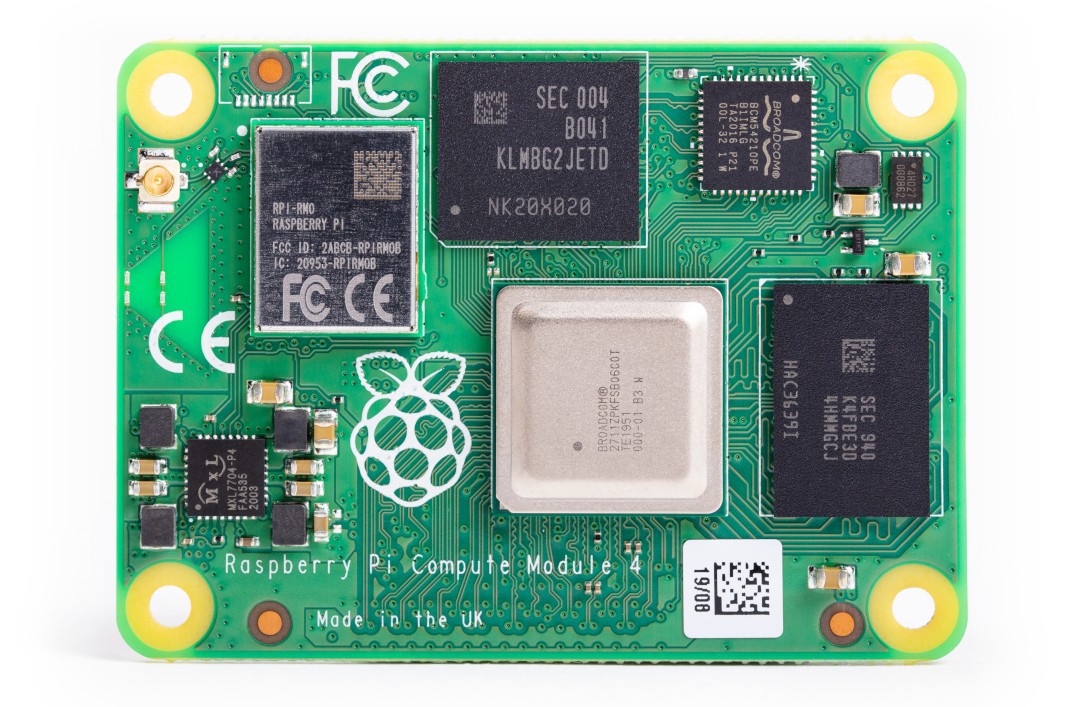

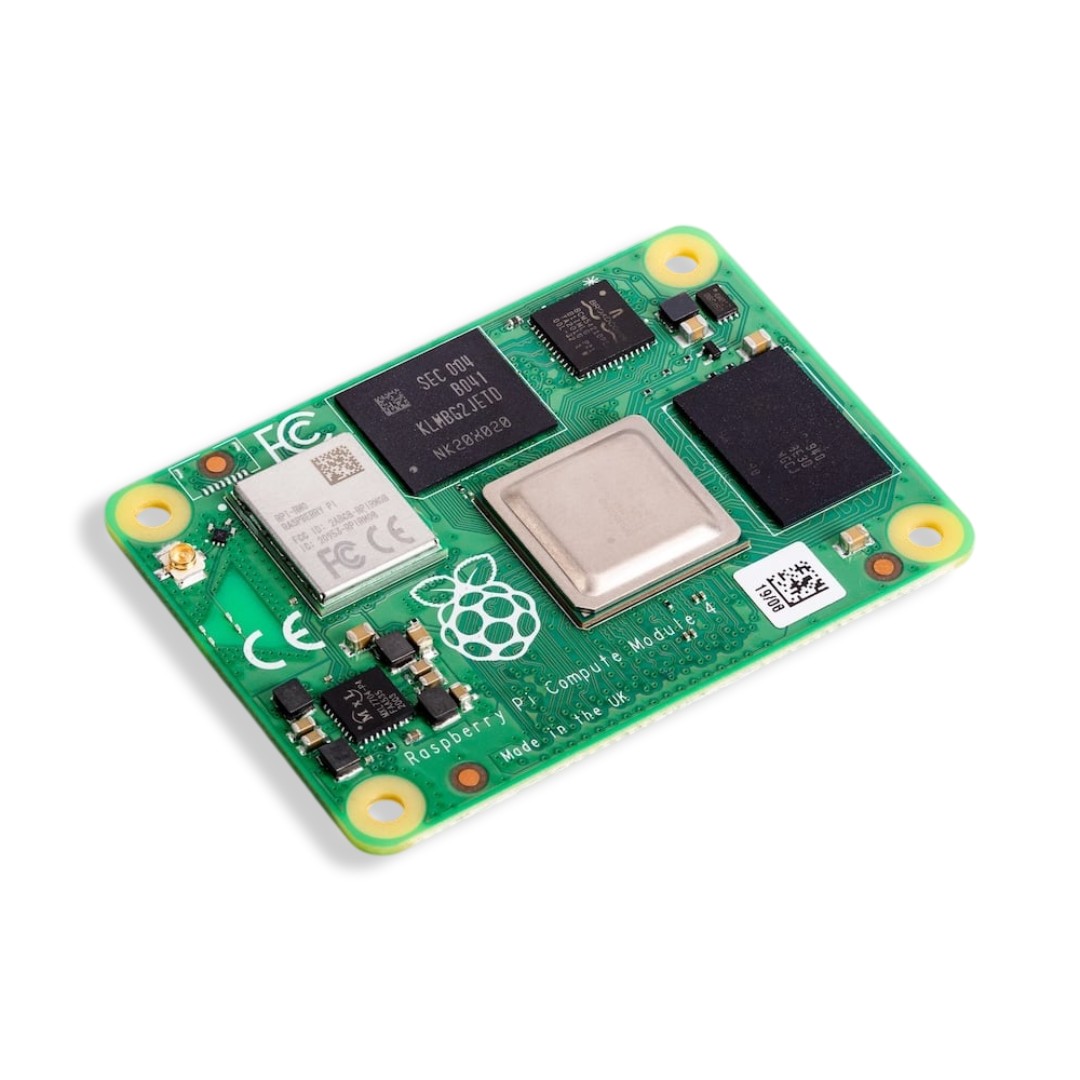

Raspberry Pi CM4 Compute Module 4 - 1GB RAM + WiFi/Bluetooth - CM4101000ET
Raspberry Pi Compute Module 4 (CM4) is a compact computing module equipped with a quad-core ARM Cortex A72 processor (1.5 GHz) , 1 GB RAM and a WiFi and Bluetooth wireless communication module . Thanks to the extended operating temperature range from -40°C to 85°C , it will work in demanding conditions. It works with dedicated base boards, offering wide integration and expansion possibilities. It is ideal for embedded applications, industrial automation and IoT projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Raspberry Pi CM4 Compute Module 4 - 1 GB RAM + WiFi / Bluetooth - CM4101000ET
Raspberry Pi CM4 Compute Module 4 is a compact module designed for embedded systems, industrial automation, IoT and applications requiring low power consumption. Based on the quad-core Broadcom BCM2711 Cortex A72 processor (1.5 GHz) and 1 GB of LPDDR4 RAM , it provides high performance at low power consumption. The built-in WiFi / Bluetooth module enables wireless connectivity , eliminating the need for additional adapters. CM4 does not have physical connectors like HDMI or USB - instead, it offers dedicated pins to the base board, e.g. Compute Module 4 IO Board , which extends the functionality with the necessary interfaces. The Extended Temperature (ET) version makes the module suitable for industrial solutions , operating stably at temperatures from -40 ° C to 85 ° C.
Attention!
This version of CM4 does not come with eMMC memory.
Raspberry Pi CM4 Compute Module 4 - 1 GB RAM + WiFi / Bluetooth - CM4101000ET.
Botland is an official distributor of Raspberry Pi single-board computers in Poland. Buying from us guarantees an original computer together with high quality accessories. You also support the Raspberry Pi Foundation, which helps develop the next version of this popular board.
The board is based on the Broadcom BCM2711 processor.
CM4 Compute Module Key Features
- Powerful processor - quad-core Broadcom BCM2711 Cortex A72 clocked at 1.5 GHz
- RAM memory - 1 GB LPDDR4 ensuring smooth system operation
- Wireless connectivity - built-in 2.4/5 GHz WiFi and Bluetooth 5.0 BLE
- Multiple interface support - PCIe Gen 2, MIPI CSI/DSI, I2C, SPI, UART, GPIO
- Extended temperature range - works from -40°C to 85°C
- Compact format - small dimensions allow for integration in embedded projects
- Compatibility - works with dedicated base boards for CM4
In our offer you will also find Raspberry Pi CM4 in other configurations .
Pins and Interfaces Raspberry Pi Compute Module 4

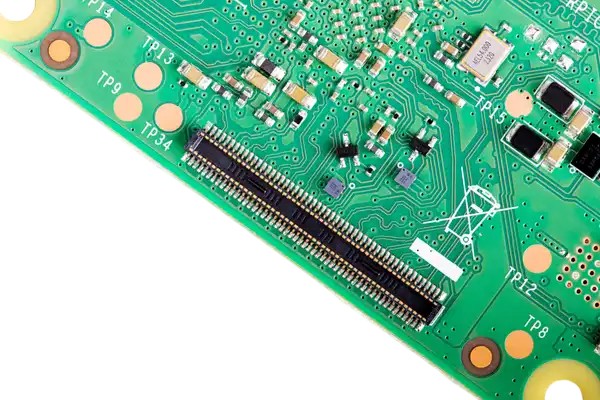

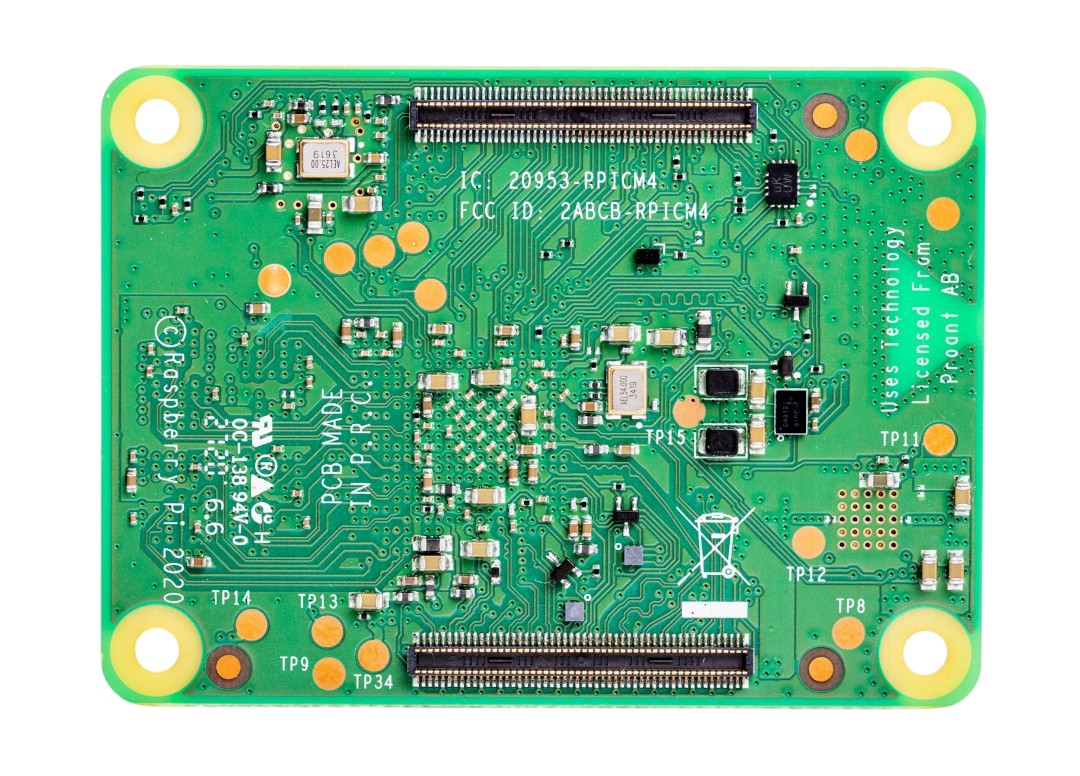

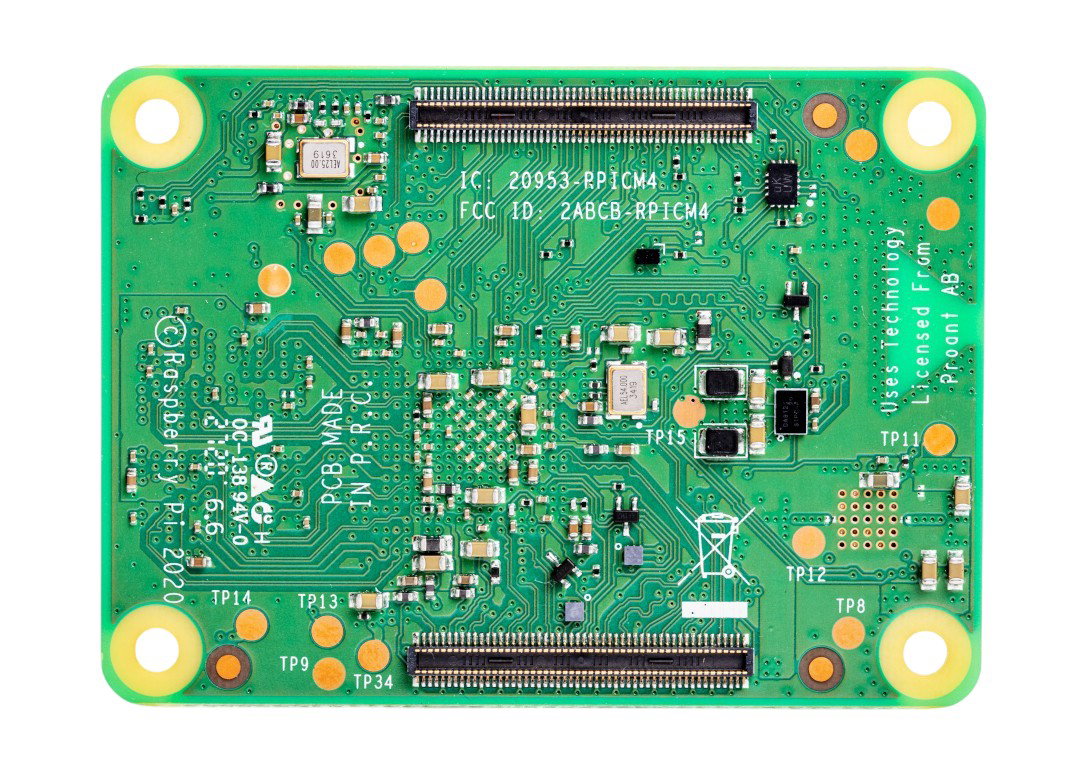

Raspberry Pi CM4 offers a wide range of interfaces , enabling integration with dedicated base boards and expansion of functionality. All pins are accessible via two 100-pin connectors, providing versatility in designing embedded systems. Available interfaces:
- GPIO - 28 multifunction input/output lines
- SD interface - support for microSD cards or external eMMC memory (for versions without built-in memory)
- PCIe Interface - PCIe Gen 2 x1 for connecting expansions
- USB - Single USB 2.0 Interface
- Ethernet - built-in Gigabit Ethernet PHY controller with IEEE1588 support
- MIPI Interfaces - 2 x 2-lane or 1 x 4-lane MIPI DSI for displays and 2 x 2-lane or 1 x 4-lane MIPI CSI for cameras
- Video Outputs - 2 x HDMI with support for resolutions up to 4K at 60 fps
- Wireless connectivity - WiFi 2.4/5 GHz and Bluetooth 5.0 BLE
- Power Supply - 5V DC Input
The module has the capabilities of a classic Raspberry Pi with interfaces led out to two multi-pin connectors compatible with the CM4IO Board sockets.
Raspberry Pi CM4 is a miniaturized version of the Raspberry Pi 4B minicomputer.
Practical applications
- IoT Systems - Smart Devices Connected to the Network
- Industrial Automation - Process Control and Monitoring
- Robotics - Control of Autonomous Systems
- Embedded systems - dedicated single board computers
Raspberry Pi CM4 Specifications
| Processor | Broadcom BCM2711 64-bit |
|---|---|
| Core | Quad-Core ARM Cortex A72 |
| Clocking | 1.5GHz |
| Architecture | ARMv8 |
| RAM memory | 1GB LPDDR4 |
| eMMC memory | - |
| Wireless connectivity | WiFi 2.4 GHz / 5.0 GHz IEEE 802.11b/g/n/ac and Bluetooth 5.0 BLE |
| Ethernet | built-in Gigabit Ethernet PHY controller with IEEE1588 support |
| Power supply | 5V |
| Interfaces |
|
| Operating temperature | from -40°C to 85°C |
| Dimensions | 55x40mm |
Useful links
| Name | Value |
|---|---|
| UC - RAM | 1 GB |
| UC - WiFi | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
