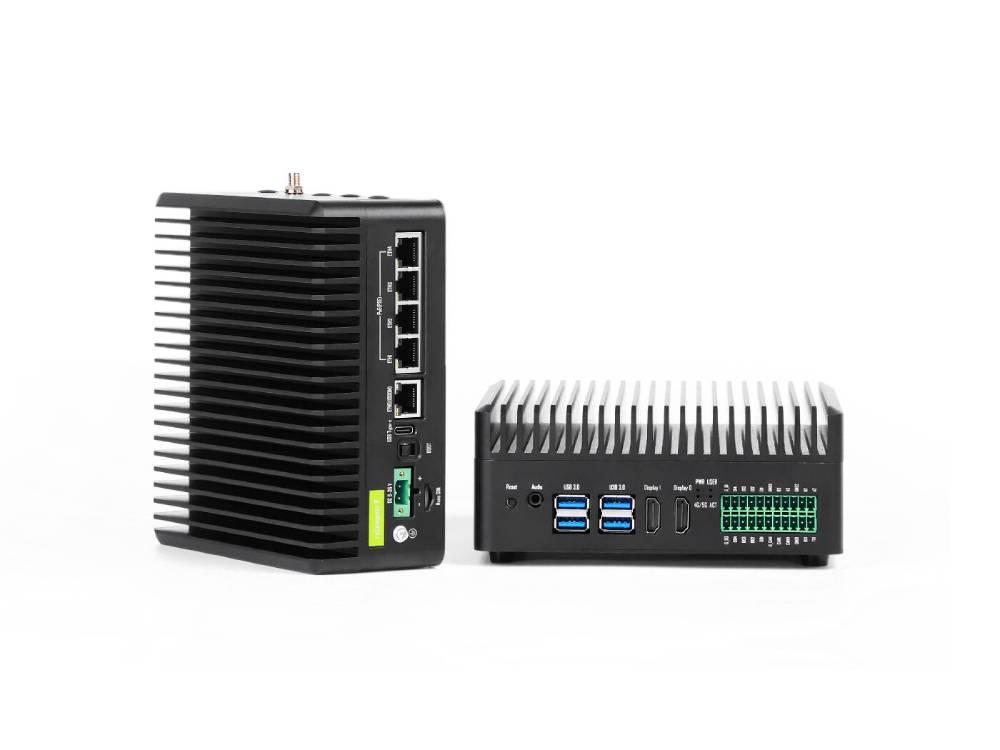

reComputer Industrial R2245-12 - Edge AI/IoT NVR with Raspberry Pi CM5 and Hailo-8 26 TOPS - 8GB - Seeedstudio 100079040
The reComputer Industrial R2245-12 is an industrial AI Edge computer and IoT NVR based on the Raspberry Pi Compute Module 5. Equipped with a Hailo-8 M.2 AI accelerator with up to 26 TOPS performance, the device is suitable for tasks related to image analysis, object recognition, event detection, motion tracking, and real-time data processing directly at the network edge.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: reComputer Industrial R2245-12 - Edge AI / IoT NVR with Raspberry Pi CM5 and Hailo-8 26 TOPS - 8 GB Seeedstudio 100079040
The reComputer Industrial R2245-12 is an industrial AI edge computer and IoT NVR based on the Raspberry Pi Compute Module 5. Equipped with a Hailo-8 M.2 AI accelerator with up to 26 TOPS performance, the device is suitable for tasks related to image analysis, object recognition, event detection, motion tracking, and real-time data processing directly at the network edge. The R2245-12 offers a wide range of industrial and network interfaces, including four Gigabit Ethernet ports with PoE PSE support and an additional Gigabit Ethernet port . This allows it to directly power and operate IP cameras, simplifying the construction of surveillance, video analytics, and automation systems. The computer also features isolated RS485, RS232, CAN FD, DI inputs and DO outputs, as well as WiFi, BLE connectivity, and expansion slots for 4G/5G, LoRa, Zigbee, and NVMe modules .
reComputer Industrial R2245-12 - Edge AI / IoT NVR with Raspberry Pi CM5 and Hailo-8 26 TOPS - 8 GB - Seeedstudio 100077451.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
reComputer Industrial R2245-12 is an industrial AI Edge Computer and IoT NVR based on the Raspberry Pi Compute Module 5.
Special features
- Raspberry Pi Compute Module 5: a powerful platform with a 64-bit, quad-core 2.4 GHz Arm Cortex-A76 processor
- Hailo-8 26 TOPS AI Accelerator: Fast processing of AI models for real-time image and data analysis
- Industrial Edge AI NVR: Ideal for surveillance systems, video analytics, and IP camera support
- 4 Gigabit Ethernet ports with PoE PSE: can power and communicate with IP cameras, maximum 12W per port
- Additional Gigabit Ethernet port: separate network connection to infrastructure, server or control system
- Rich industrial interfaces: 2x RS485, RS232, CAN FD, 4x DI and 4x DO, all in isolated version
- Wireless Connectivity: Built-in 2.4GHz/5GHz WiFi and BLE 5.0, and expandable to 4G/5G, LoRa and Zigbee
- NVMe support: 2 x M.2 M-key 2280 slots for SSDs
Interfaces in the reComputer Industrial R2245-12
- Ethernet with PoE PSE: 4x 10/100/1000 Mbps ports with PoE PSE support, max 12W per port
- Additional Ethernet: 1x 10 / 100 / 1000 Mb/s IEEE 802.3 / 802.3u port
- RS485: 2x isolated RS485 interface
- RS232: 1x isolated RS232 interface
- CAN FD: 1x isolated CAN FD interface
- Digital Inputs DI: 4x isolated inputs, input voltage 5 V to 24 V DC
- Digital outputs DO: 4x isolated outputs, output voltage below 60 V DC
- USB Type A: 4x USB Type A 3.0 Host
- USB Type-C: 1x USB Type-C 2.0 for system upload and debugging
- HDMI: 2x HDMI 2.0
- Audio: 1x 3.5mm jack
- Nano SIM slot: 1x Nano SIM card slot for cellular connectivity when an appropriate module is used
- M.2 M-key for SSD: 2x M.2 M-key 2280 slots for NVMe SSDs
- M.2 M-key for AI accelerator: 1x M.2 M-key 2280 slot with pre-installed Hailo-8 26 TOPS accelerator
- M.2 B-key for 4G / 5G: 1x M.2 B-key 3042 / 3052 slot for 4G / 5G LTE module
- Mini-PCIe: 1x Mini-PCIe slot for LoRa module
The R2245-12 offers a wide range of industrial and network interfaces, including 4 Gigabit Ethernet ports with PoE PSE support and an additional Gigabit Ethernet port.
The computer also has isolated RS485, RS232, CAN FD interfaces, DI inputs and DO outputs, as well as WiFi, BLE connectivity and expansion slots.
Technical specifications
- Model: reComputer Industrial R2245-12
- Device Type: Industrial Edge AI/IoT NVR
- Main Module: Raspberry Pi Compute Module 5
- Processor: 64-bit Arm Cortex-A76, 4 cores, 2.4 GHz
- AI Accelerator: Hailo-8 M.2 AI Accelerator
- AI Performance: Up to 26 TOPS
- Operating system: Raspbian, Debian
- RAM: 8 GB
- eMMC memory: 32 GB
- Power supply: 9V to 36V DC
- Power connector: 2-pin terminal block
- PoE: 4x PoE PSE
- Maximum PoE power per port: 12 W
- Power button: no
- Restart button: yes
- Ethernet: 4x 10 / 100 / 1000 Mb/s with PoE PSE support
- Additional Ethernet: 1x 10 / 100 / 1000 Mb/s IEEE 802.3 / 802.3u
- USB: 4x USB Type-A 3.0 Host
- USB Service: 1x USB Type-C 2.0 for system upload and debugging
- RS485: 2x RS485, isolated
- RS232: 1x RS232, isolated
- CAN: 1x CAN FD, isolated
- Digital inputs DI: 4x isolated, input voltage 5 V to 24 V DC
- Digital outputs DO: 4x isolated, output voltage below 60 V DC
- SIM slot: 1x Nano SIM
- M.2 SSD slots: 2x M.2 M-key 2280 NVMe
- M.2 slot for AI: 1x M.2 M-key 2280, occupied by Hailo-8 accelerator
- M.2 slot for 4G/5G: 1x M.2 B-key 3042/3052
- Mini-PCIe: 1x Mini-PCIe for LoRa module
- HDMI: 2x HDMI 2.0
- Audio: 1x 3.5mm jack
- LEDs: 4 LED indicators
- Buzzer: yes
- WiFi: 2.4GHz/5GHz, built-in
- BLE: BLE 5.0, built-in
- LoRa support: USB LoRa or SPI LoRa, optional
- 4G/5G Support: 4G LTE/5G, optional
- Zigbee support: USB Zigbee, optional
- Certificates: CE, FCC, TELEC, RoHS, REACH
- Housing protection class: IP40
- Operating temperature: -20°C to 50°C
- Working humidity: from 10% to 95% RH
- Storage temperature: -40°C to 85°C
- Dimensions: 155 x 120 x 68.5 mm
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | BCM2712 |
| UC - Core | Cortex A76 |
| UC - RAM | 8 GB |
| UC - core | 4. Quad Core |
| UC - External memory | eMMC 32GB |
| UC - Ethernet | yes |
| UC - WiFi | yes |
| UC - USB | 4x USB |
| UC - Bluetooth | yes |
| UC - HDMI | yes |
| Width | 27 cm |
| Height | 19 cm |
| Depth | 7.5 cm |
| Weight | 2.296 kg |
