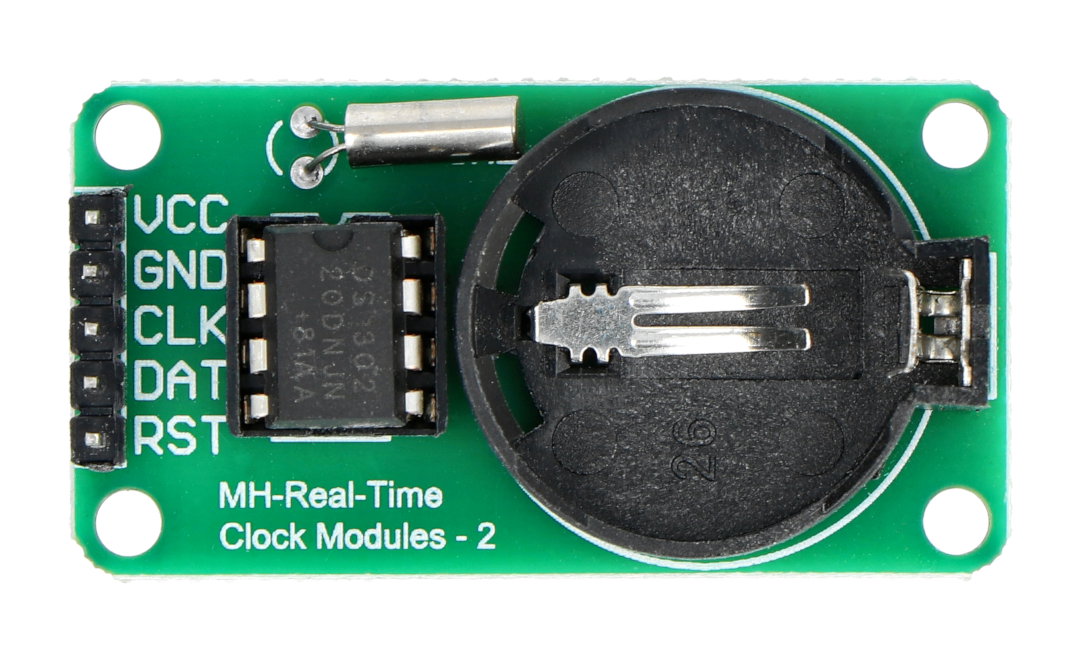

Real Time Clock DS1302 RTC

Index: OST-14303 EAN: 5903351241830

Module with real time clock DS1302 RTC. It allows you to read the time in hours, minutes, and seconds, date: day, month, year. Communicates via I/O interface.

Real Time Clock DS1302 RTC
€0.90
€0.73 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OpenPlatform

Product description: DS1302 RTC - real time clock

Module with real time clock DS1302 RTC. It allows you to read the time in hours, minutes, and seconds, date: day, month, year. Communicates via I/O interface.

DS1302 zegar RTC

The connection module RTC DS1302

The system communicates using the I/O (not SPI or I2C), it has solderedgoldpin connectors - 2.54 mm raster. Description of the outputs is given in the table below.



Pin Description
VCC Supply voltage from 2.0 V to 5.5 V
GND The ground of the system.
CLK Line clock.
DATE Data line.
RST Reset.



Specification of module RTC DS1302

  • Supply voltage: from 2.0 V to 5.5 V
  • Current consumption: less than 1 mA
  • Disposition: DS1302 (documentation)
  • Communication interface: I/O
  • Available data:
    • Time: time (AM, PM), minute, second
    • Date: month, day, year
  • Power supply: CR2032 battery (not included)



Package width 4.5 cm
Package height 5.6 cm
Package depth 1 cm
Package weight 0.01 kg
