Product description: Shelly Pro Dimmer 0/1 - 10 V PM - 1-channel WiFi lighting controller for DIN rail
Shelly Pro Dimmer 0/1-10V PM is an advanced module for regulating lighting brightness , which is mounted on a DIN rail and allows you to control devices requiring voltage from 0 V to 10 V and from 1 V to 10 V. It supports WiFi , Bluetooth , and LAN communication, offering full automation, thanks to the support of schedules, scenarios, and scripts. It monitors energy consumption (voltage, current, power) and provides protection against surges and overloads. It works with popular platforms such as Alexa, Google Home, and KNX. Ideal for integration in modern lighting installations.
The manufacturer has prepared a detailed user guide with instructions for connecting the controller - check it out!

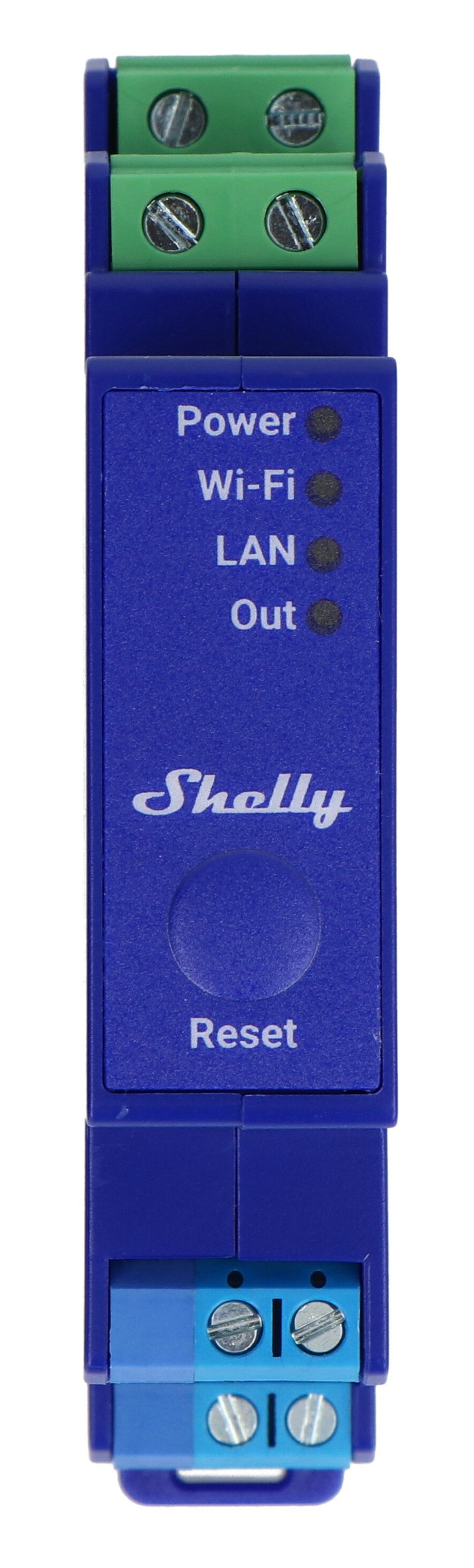

Shelly Pro Dimmer 0/1 - 10 V PM - 1-channel WiFi lighting controller for DIN rail.
One of the most important features of the Shelly Pro Dimmer is the ability to monitor energy consumption.
Key Features of the Shelly Pro Dimmer Controller
- Brightness control : allows precise control of the brightness of voltage-controlled lighting in the range of 0 V to 10 V and 1 V to 10 V
- Energy Monitoring : offers voltage, current and energy consumption measurement
- WiFi, Bluetooth, Ethernet : supports wireless and wired connectivity
- KNX Compatibility : Supports KNXnet/IP communication
- Scheduling and Automation : allows scheduling, supports webhooks (URL links) and offers full support for mjS scripts
- Protection : has built-in protection against overload, overvoltage, and overheating
- Voice assistant integration : compatible with Alexa, Google Home and Home Assistant
- Night mode : provides automatic dimming of lighting at night
- No hub required : the controller can be controlled via the Shelly Smart Control app or automation systems

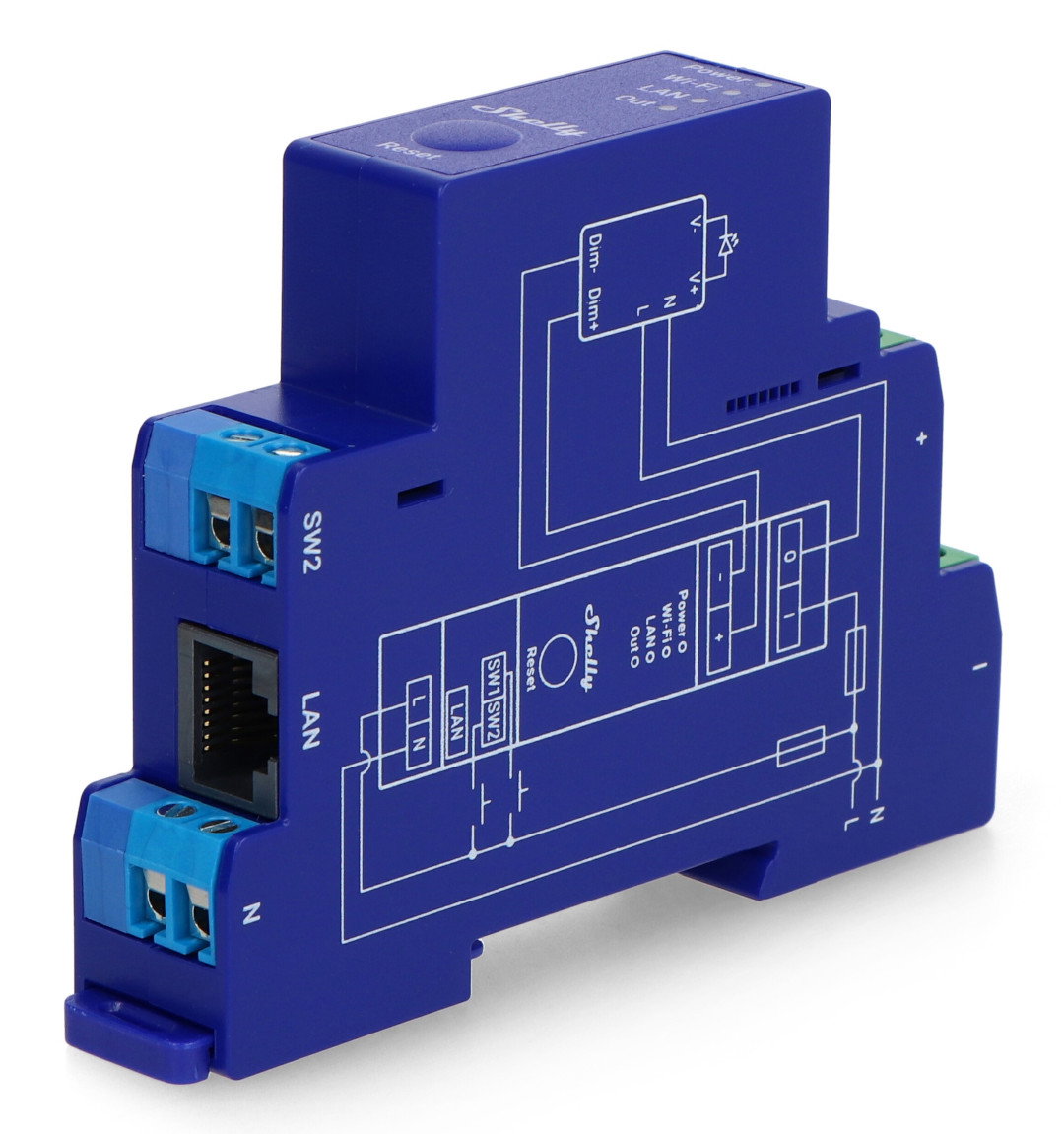

Easy to mount on a DIN rail
Shelly Pro Dimmer is designed for easy DIN rail mounting , making it the perfect solution for professional electrical installations in commercial, residential and industrial buildings. It offers seamless integration with existing lighting systems and Smart Home systems.

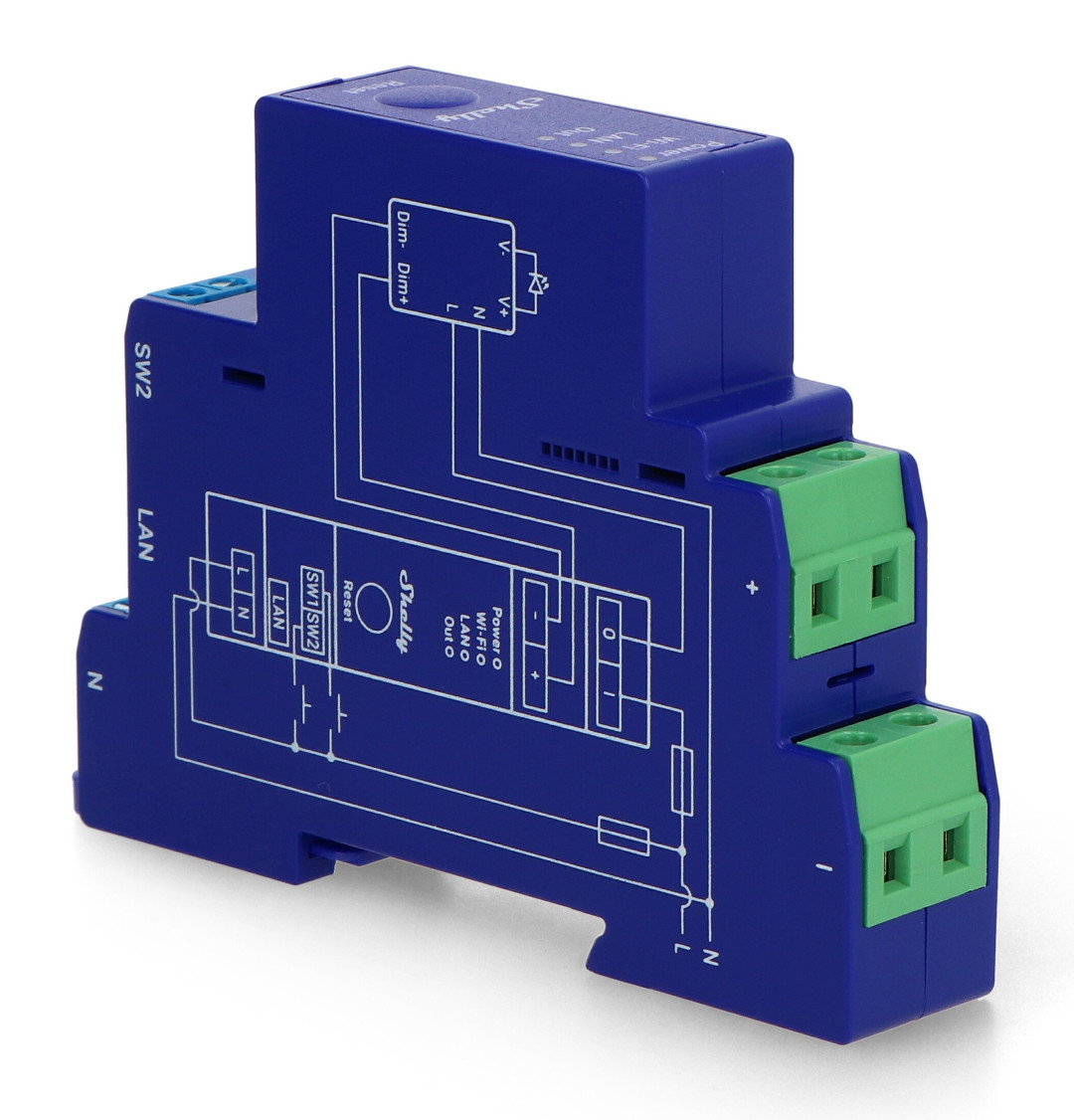

The controller is mounted on a DIN rail.
Shelly ProDimmer allows you to create automation scenarios using scripts.
Adapt your lighting to your lifestyle
With features like schedules, night mode and integration with home automation platforms (Alexa, Google Home, Home Assistant), you gain full control over your lighting . The ability to automatically turn on and off based on time , sunrise or sunset and precisely adjust the brightness provides energy savings and convenience.
Real-time energy consumption monitoring
Shelly Pro Dimmer offers a function for monitoring energy consumption (voltage, current, power), which allows for better management of operating costs. External devices can be connected to the monitoring system , allowing control of the entire energy consumption in a building or installation. It also has built-in protection against overvoltage, overloads and overheating , which ensures the safety of both the device and the connected installations.

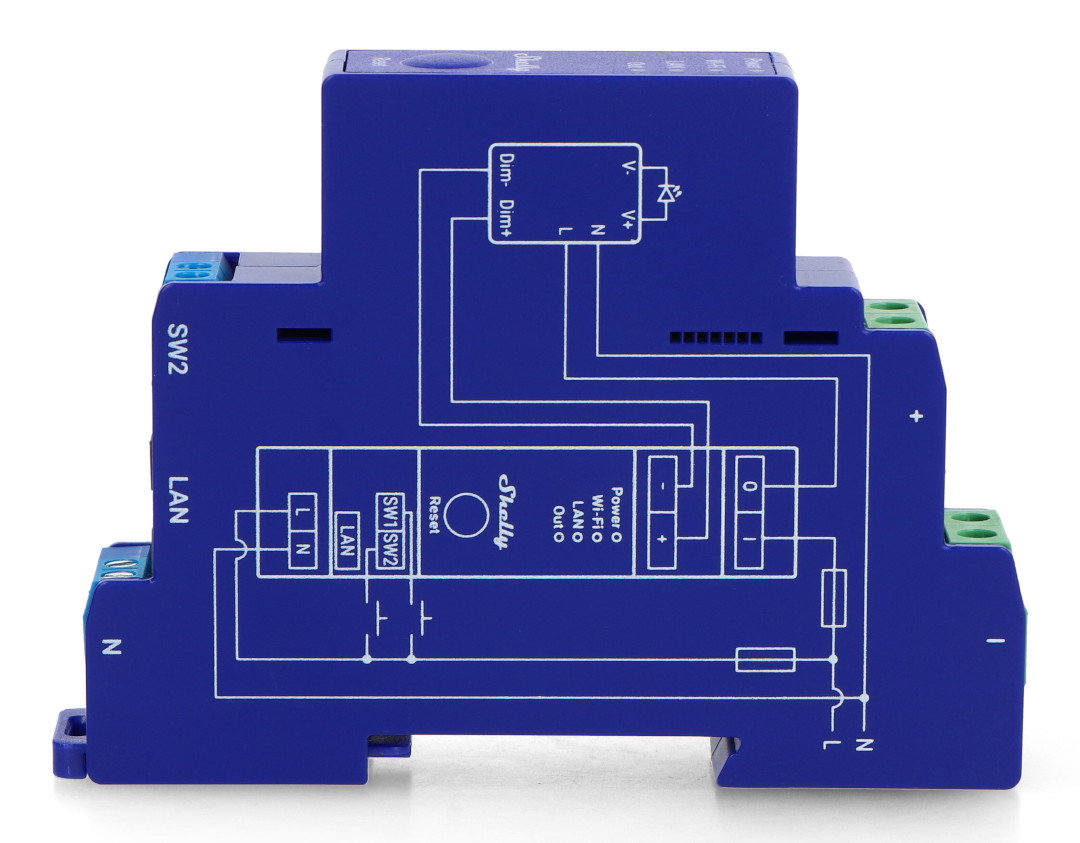

The Shelly controller connection diagram is located on the housing.

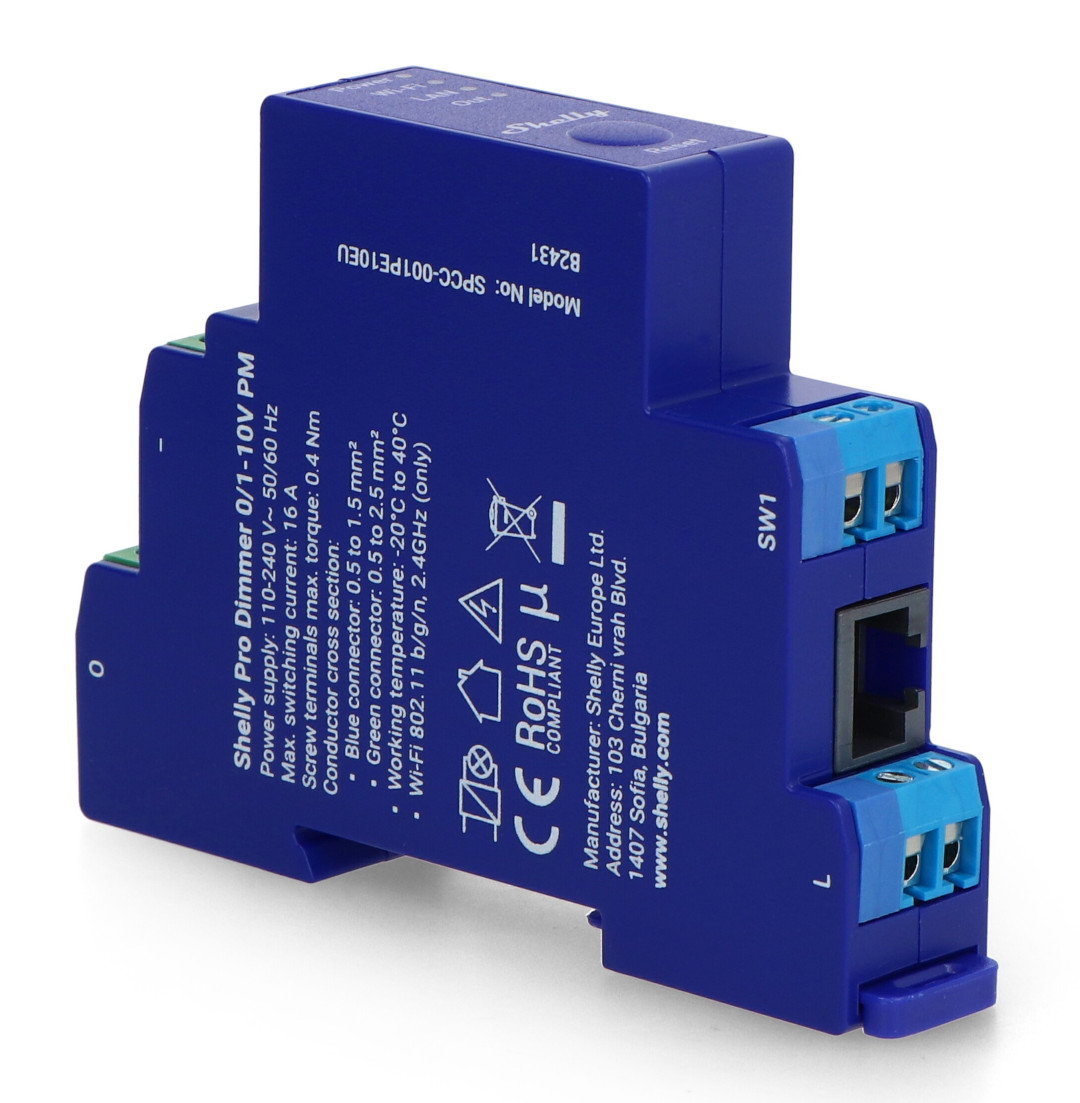

Shelly Pro is a series improved with protection against temperature, overload and overvoltage.
Professional line of devices for intelligent installations
The Shelly Pro product line is an advanced device designed for electrical installations in professional environments such as offices, shops, factories and new construction . The products in this series offer full automation, energy monitoring, integration with popular automation systems and easy installation on a DIN rail, making them ideal for commercial and industrial applications.
| Shelly Pro Dimmer 0/1 - 10V PM Specification | |
|---|---|
| Power supply | From 110V to 240V ~ 50/60Hz |
| Power consumption | < 3 W |
| External protection | Max. 16 A, tripping characteristic B or C, short-circuit strength 6 kA, energy limitation class 3 |
| RF band | From 2412MHz to 2472MHz |
| Max RF Power | <20dBm |
| WiFi protocol | 802.11 b/g/n |
| WiFi range (depending on local conditions) | Up to 50 m outdoors Up to 30 m indoors |
| Bluetooth protocol | 4.2 |
| Bluetooth range (depending on local conditions) | Up to 30 m outdoors Up to 10 m indoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8MB |
| Schedules | 20 |
| Webhooks (URL Actions) | 20 out of 5 URLs on webhook |
| Scripts | Yes |
| MQTT | Yes |
| Ambient temperature | From -20°C to 40°C |
| Humidity | From 30% to 70% RH |
| Maximum working height | 2000m |
| Maximum tightening torque of screw terminals | 0.4 Nm |
| Wire cross-section | 0.5 mm² to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 mm² to 1.5 mm² / 20 to 16 AWG (blue connector) |
| Length of stripped wire | 6 mm to 7 mm / 0.24 to 0.28 in (green connectors) 5 mm to 6 mm / 0.20 to 0.24 in (blue connector) |
| Dimensions (L x W x H) | 94x19x69mm |
| Mass | 70g |
