Product description: Shelly 1 Mini Gen4 - relay 240 V / 8 A WiFi / Bluetooth / ZigBee / Matter - Android/iOS application
The Shelly 1 Mini Gen4 is a modern and compact relay that allows remote control of lighting, locks, doorbells, and various electrical devices. Its small size makes it an ideal solution for upgrading traditional switches and sockets. The Shelly 1 Mini Gen4 supports loads up to 8 A at 240 V AC and 5 A at 30 V DC , and allows control of devices with a maximum power of up to 16 A. The Shelly 1 Mini Gen4 module ensures quick and easy installation and is fully compatible with multiple platforms and protocols , including the Shelly Smart Control app, the Home Assistant platform, the MQTT protocol, and voice assistants like Alexa and Google Home. Additionally, it offers a scheduling function, allowing you to customize your smart home environment to your needs and preferences.
The small dimensions of Shelly 1 Mini Gen4 allow the module to be installed in an electrical box, and the screw connectors enable securecable assembly.Main features of the relay
- Compact size: extremely small dimensions allow installation in standard electrical boxes, even in hard-to-reach places
- Dry Contact: The module does not monitor power or energy consumption, but allows you to control electrical devices in the traditional way – by turning circuits on and off. Shelly 1 Mini Gen4 can be used to control devices with an on/off function.
- Easy remote control: Allows full remote control of connected devices via the Shelly mobile app. Integration with popular smart home systems like Google Home and Amazon Alexa allows the device to be controlled by voice, enhancing user convenience.
- Scheduling and Automation: Built-in scheduling features allow you to set cyclical on/off times, ideal for devices that need to be turned on at specific times. Users can conveniently and easily schedule when devices should be turned on or off, increasing convenience and energy efficiency.
Shelly 1 Mini Gen4 Applications
The Shelly 1 Mini Gen4 is a versatile module that finds wide application in home and office automation . Its compact design and dry contact make it an ideal solution for modernizing traditional electrical installations. Shelly enables remote control of lighting and electrical devices such as fans, air conditioners, and more. The relay is a great solution for both individual users and businesses seeking simple and intelligent solutions. for increased energy efficiency and process automation. With control via a mobile app and voice assistants, Shelly 1 Mini Gen4 provides flexibility and convenience in managing your home or business environment, regardless of location or time.

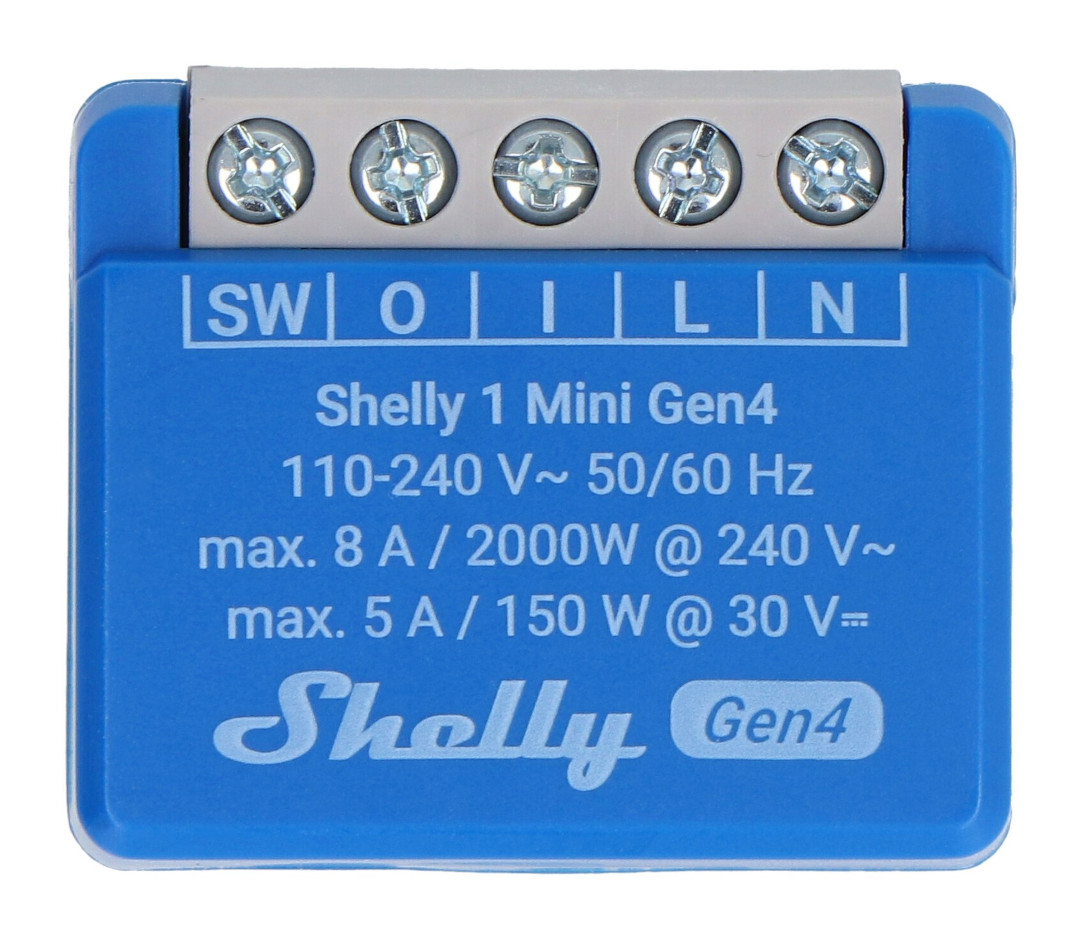

Shelly 1 Mini Gen4 - remote control relay.
The module has five terminals in the form of screw connectors.
Shelly 1 Mini Gen4 Technical Specifications
- Producer: Shelly
- Model: 1 Mini Gen4
- Processor: ESP-Shelly-C68F
- Flash memory: 8 MB
- Power supply: 110V to 240V AC
- Maximum switching voltage: 240 V / 30 V
- Maximum switching current: 8 A
- Maximum switching power: 2000 W
- Power measurement: no
- Internal temperature sensor: yes
- Communication: WiFi / Bluetooth / ZigBee / Matter
- RF Band: 2412 MHz to 2472 MHz
- WiFi protocol: 802.11 b/g/n/ax
- WiFi range: up to 30 m indoors and 50 m outdoors (depending on local conditions)
- Bluetooth protocol: 5.0
- Bluetooth range: up to 10 m indoors and 30 m outdoors (depending on local conditions)
- Webhooks: 20 with 5 URLs per hook
- MQTT: yes
- Scripts: yes
- Ambient temperature: -20°C to 40°C
- Dimensions: 29 x 34 x 16 mm
- Weight: 19 g
| Comparison of Shelly Gen1, Gen2, Gen3 and Gen4 Devices | ||||
|---|---|---|---|---|
| Feature | Shelly Gen 1 | Shelly Gen 2 (Plus/Pro, Mini) | Shelly Gen 3 | Shelly Gen 4 |
| WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi (WiFi 6) |
| Processing Power | Basic | More powerful processors than Gen 1 | Shelly chip for optimal performance | Most advanced processing power |
| Memory | Basic memory | Up to 4 MB Flash (8 MB in PRO) | 8 MB Flash, 256 kB RAM | More than Gen 3 (512 kB RAM) |
| Bluetooth | No | Yes - for easy setup | Yes - for easy setup | Yes - for easy setup |
| Scripting and Automation | No | Enhanced automation capabilities | Advanced scripting and automation | Advanced scripting and automation |
| Energy Monitoring | Basic (selected models) | Extended monitoring (some models) | Advanced monitoring and safety | Advanced monitoring and safety |
| Device Control | MQTT, CoAP, HTTP Webhooks | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud |
| Virtual Components | No | Available (PRO only) | Supported | Supported |
| KNX Support | No | Yes (selected PRO only) | Yes (selected devices) | Yes (selected devices) |
| Bluetooth Gateway | No | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) |
| KVS (Key-Value Store) | No | Yes | Yes | Yes |
| Timer Loop | No | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously |
| Range Extender | No | Yes | Yes | Yes (WiFi and ZigBee) |
| Simultaneous AP and WiFi | No | Yes | Yes | Yes |
| Ethernet | No | Yes (PRO only) | Yes (PRO only) | Yes (PRO only) |
| Intended Use | Basic home automation | More features, scripting, better hardware | Advanced automation, future-proof | Full automation, maximum flexibility |
| Protocol Support | None | BTHome, MQTT+Cloud, KNX (PRO) | BTHome, KNXnet/IP, Matter, MQTT+Cloud, Virtual Components | BTHome, Matter, ZigBee, TCP/IP Modbus, KNXnet/IP, MQTT+Cloud |
