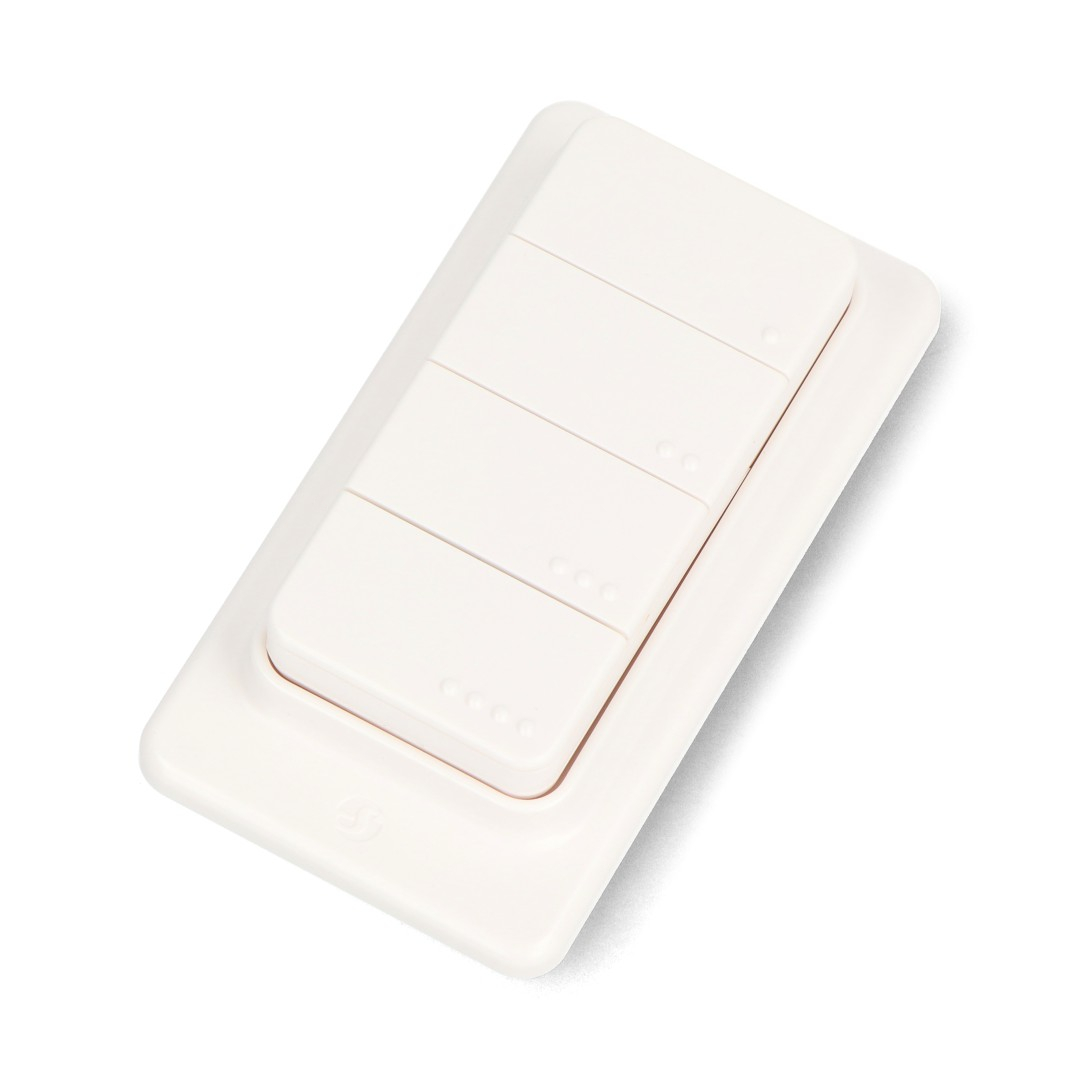

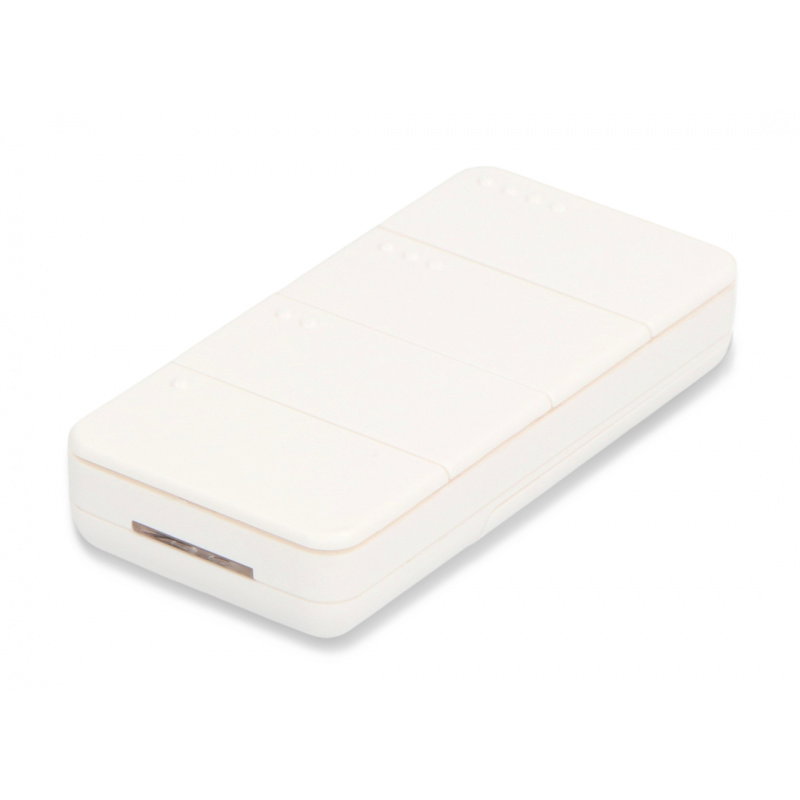

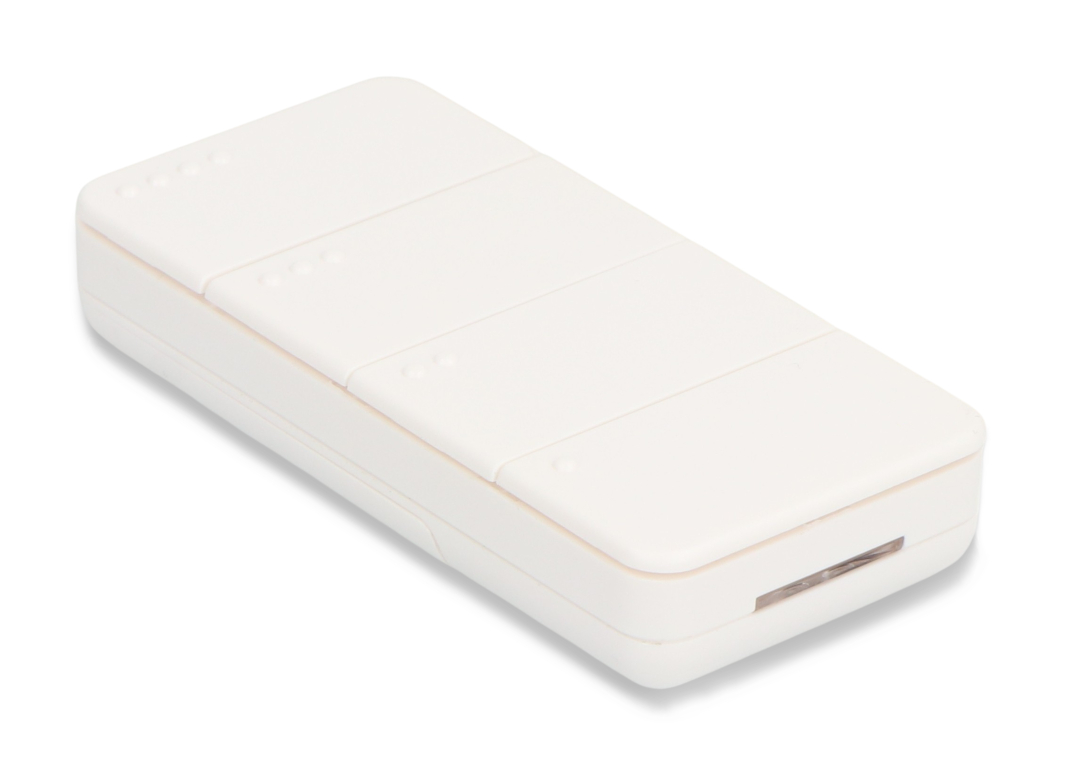

Product description: Shelly BLU RC Button 4 ZB - remote control for scene and action activation - 4 buttons - Bluetooth/ZigBee - white
The Shelly BLU RC Button 4 ZB is a compact remote control designed for intelligent control of Smart Home devices, automations, and scenes. It features four independent buttons that support different action triggers, allowing the user to assign up to 16 commands to them, including: To control lighting, blinds, curtains, garage doors, and other automation elements, the remote uses Bluetooth and ZigBee communication, allowing for integration with compatible home automation systems. Beacon mode allows you to create scenes that respond to the device's presence within range, while encryption ensures a high level of security for transmitted commands. Built-in magnets, a magnetic mount, and the included double-sided 3M tape allow for a variety of mounting and use options . The undemanding design eliminates the need for additional wiring, and the white housing blends well with various interiors. The CR2032 battery powering the Shelly BLU RC Button 4 ZB has a lifespan of up to 2 years, and the high-quality build ensures a high level of reliability in everyday use.

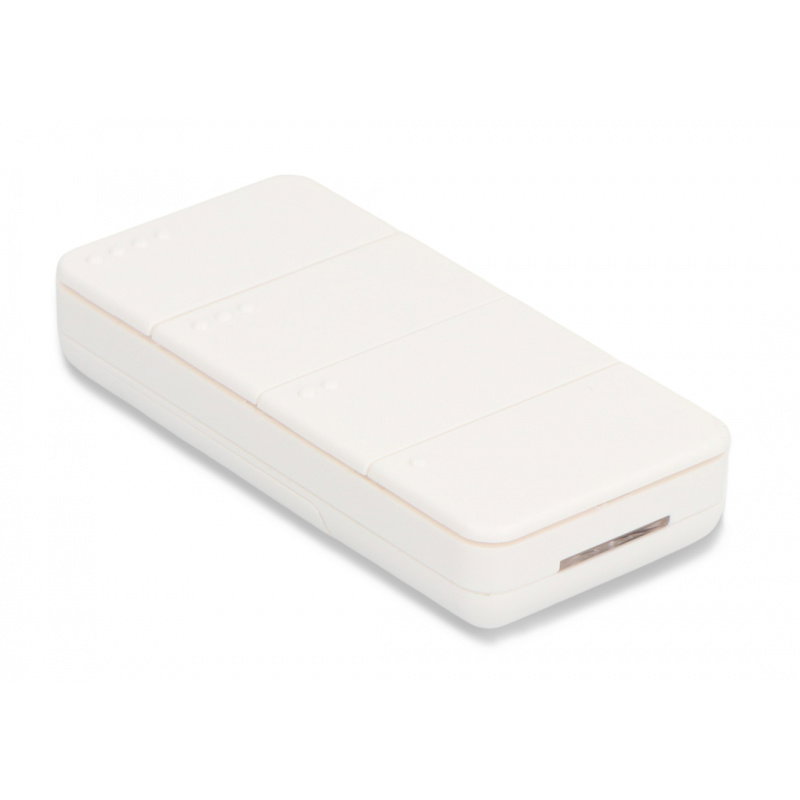

Shelly BLU RC Button 4 ZB - scene and action activation remote control - 4 buttons - Bluetooth/ZigBee - white.
Ensures full compatibility with Home Assistant and devices supporting the BTHome protocol.
Main features of Shelly BLU RC Button 4 ZB
- 4 independent buttons: enabling convenient control of smart home devices and scenes
- Supports up to 16 programmable commands: supports single, double, triple clicks and one long press
- Bluetooth and ZigBee connectivity: ensuring integration with compatible home automation systems
- Efficient scene launching: activate lights, blinds, and other devices with a single command
- Home Assistant and BTHome compatibility : support for advanced integrations
- Beacon Mode: Create automations that respond to the presence of a remote control within the system's range.
- Encrypted communication: increasing the security of transmitted commands
- Battery powered: uses CR2032 batteries for longer operating time (up to 2 years)
- LED: indicates when a button is pressed and informs about the current operating mode
- Magnetic holder: stores the device in a permanent, easily accessible place, providing a wide range of mounting options
- Compact housing: handy size for ease of use, allowing the user to take the remote control with them and store it in smaller spaces, such as clothing pockets, drawers or car glove compartments
Remote control applications
The Shelly remote control can be used to control lighting, blinds, curtains, garage doors and other devices connected to the smart home system. Various presses can be used to turn lights on and off, adjust brightness, open blinds, or activate selected scenes, among other things. With a single command, the user can, for example, turn lights on or off, open or close blinds, or even trigger an exit scene. This small device can prove incredibly helpful during everyday activities.
Elements included in the set.
Configuration and installation of the Bluetooth and Zigbee remote control
The Shelly BLU RC Button 4 ZB works with the free Shelly Smart Control app via a compatible gateway or appropriate Shelly device . The remote can also be integrated with supported ZigBee systems, Home Assistant, and BTHome-compatible devices. Built-in magnets allow you to place the device directly on a metal surface. The included magnetic holder and double-sided 3M mounting tape allow you to mount the remote anywhere you choose, without the need to drill additional holes or prepare wiring.
Technical specifications of Shelly BLU RC Button 4 ZB
- Model: SBBT-104CUS
- Number of buttons: 4
- Maximum number of shares: 16
- Supported action combinations: single, double, triple click and single long press
- Bluetooth communication:
- Protocol: 5 (LE)
- RF band: 2402 to 2480 MHz
- RF Power: <8 dBm
- Range: up to 10 m indoors and up to 30 m outdoors
- ZigBee communication:
- Protocol: 802.15.4
- RF band: 2405 to 2480 MHz
- RF Power: <8 dBm
- Range: up to 10 m indoors and up to 30 m outdoors
- Beacon mode: transmits a signal every 8 seconds
- Communication encryption: yes
- Processor: EFR32MG27
- Flash memory: 768 kB
- Schedules: no
- Webhooks: no
- MQTT support: no
- Scripting support: no
- Encryption: yes
- Compatibility: Shelly Plus, Shelly Pro, Shelly Gen3, Shelly Gen4
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% to 70% RH
- Power supply: 1 CR2032 battery (3V)
- Battery life: up to 2 years
- Housing material: plastic
- Color: white
- Dimensions:
- remote control: 65 x 30 x 13 mm
- magnetic holder: 83 x 44 x 9 mm
- Weight: 21 g

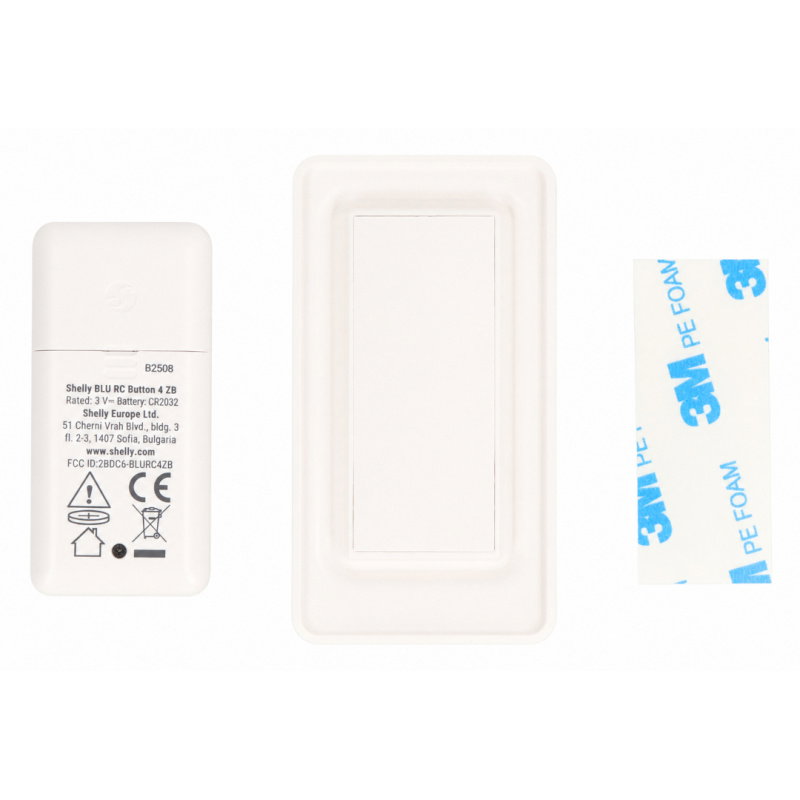

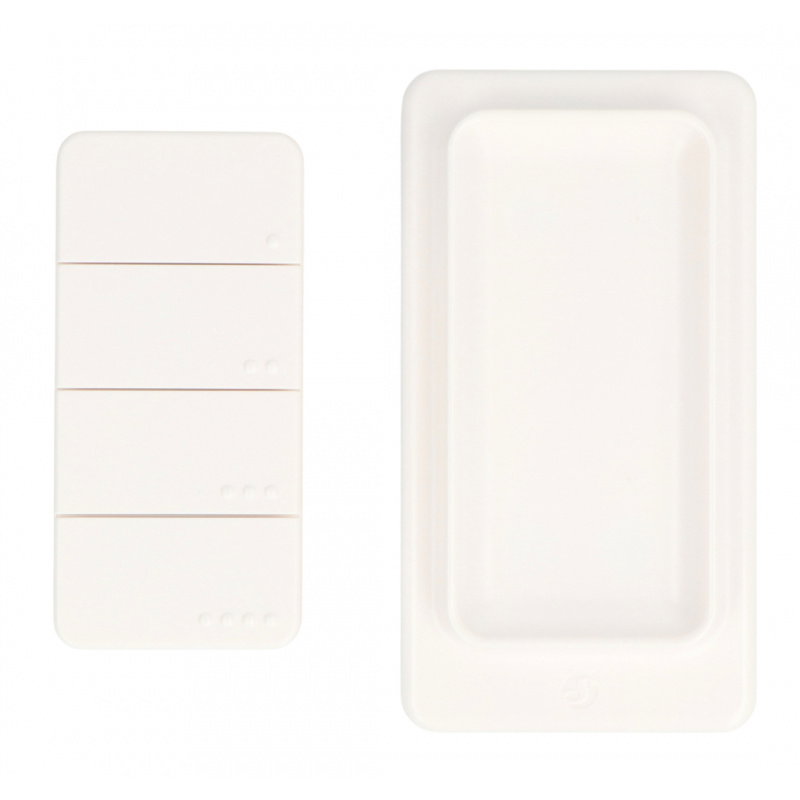

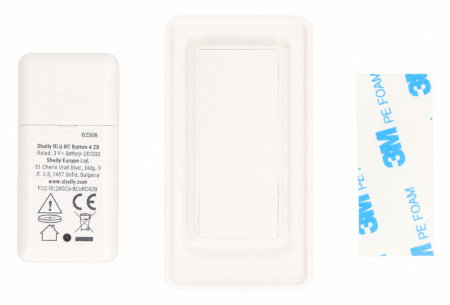

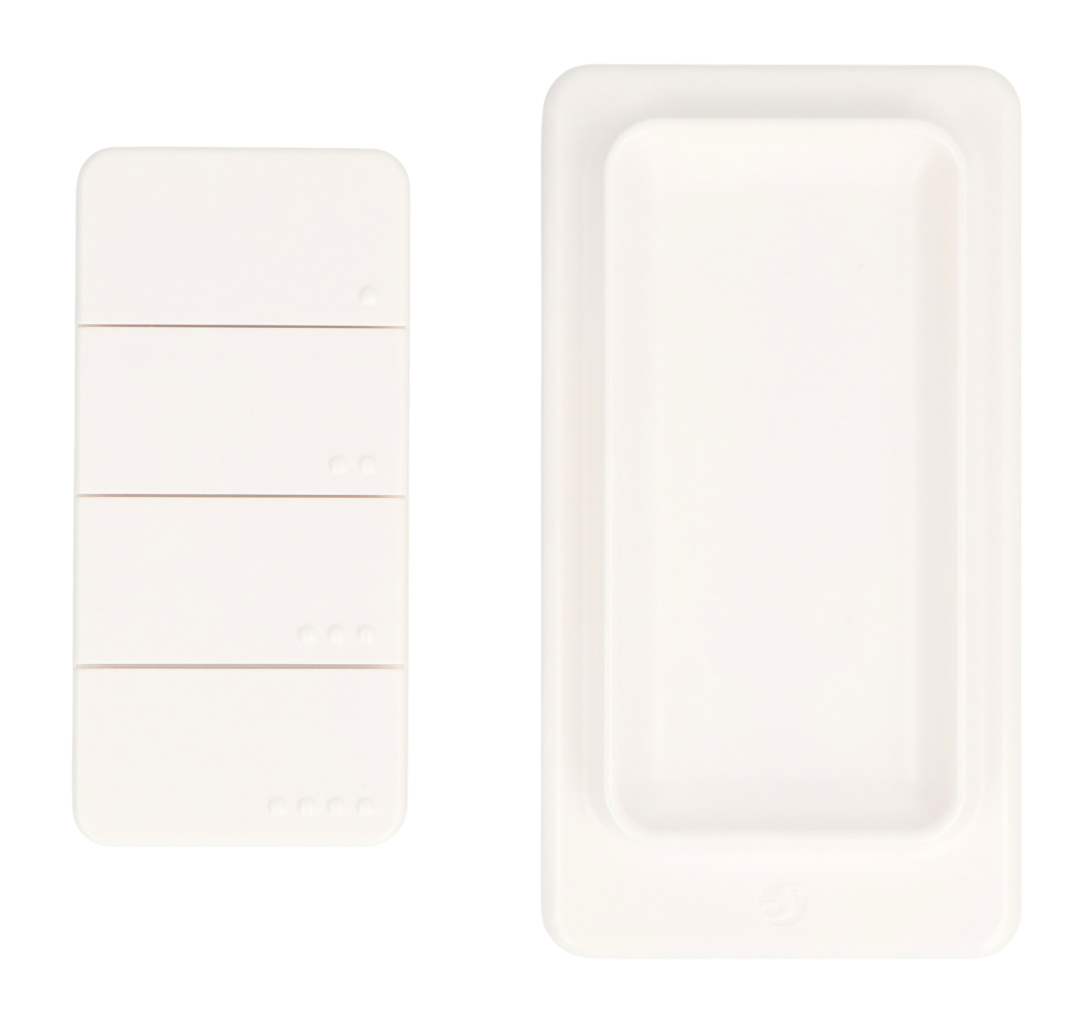

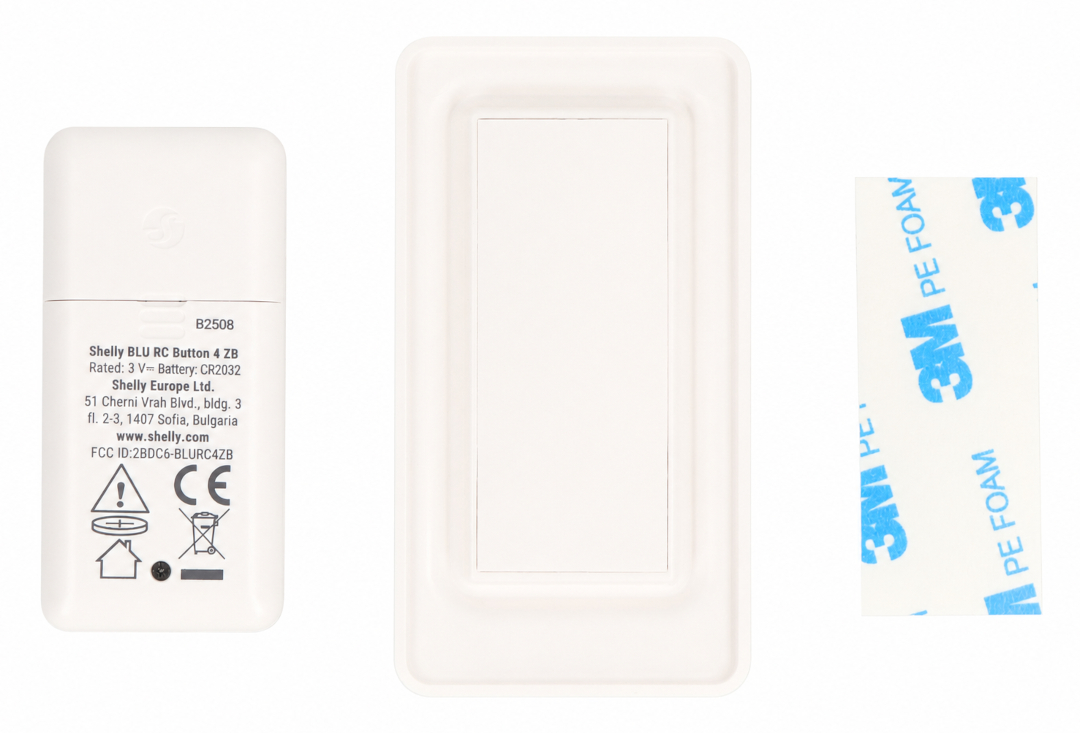

Kit contents
- 1 x Shelly BLU RC Button 4 ZB Remote Control
- 1 x CR2032 battery (installed)
- 1 x Magnetic wall mount
- 1 x 3M mounting tape
The colored LED indicator shows the device's pairing mode and the number of button presses.
